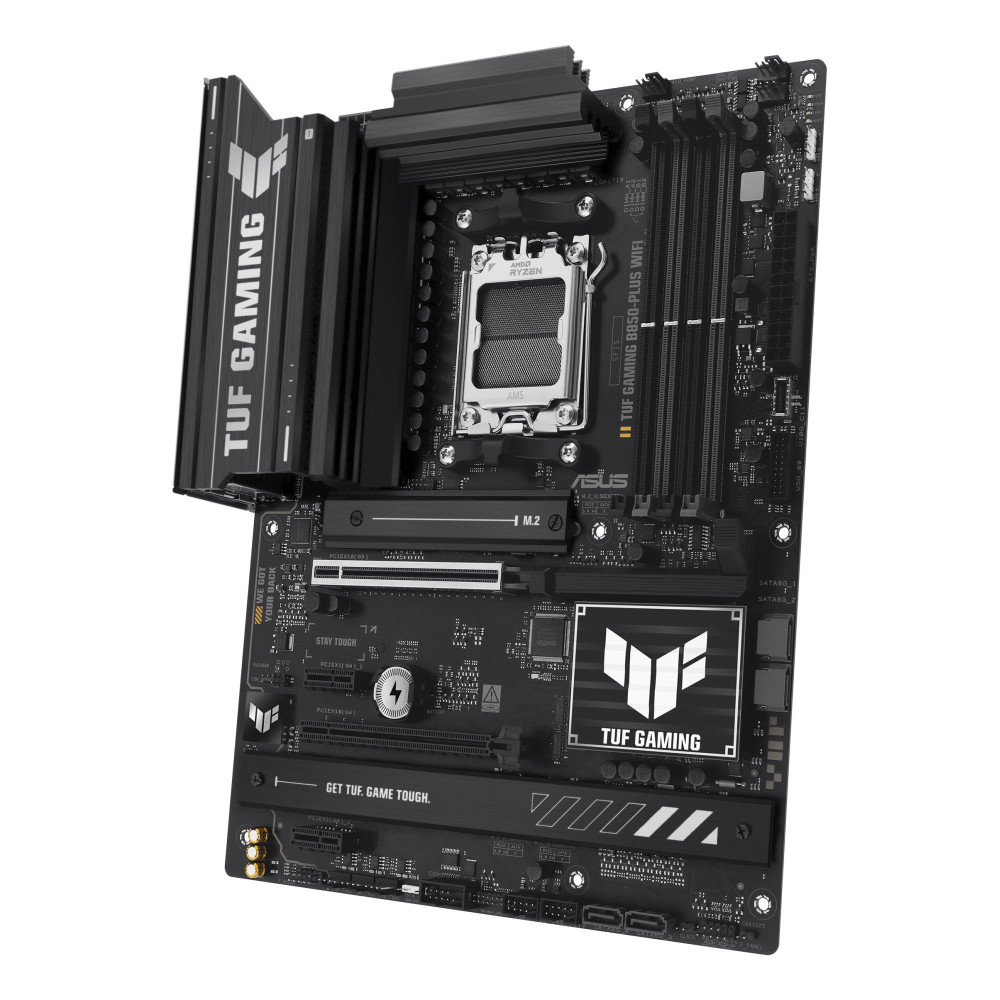

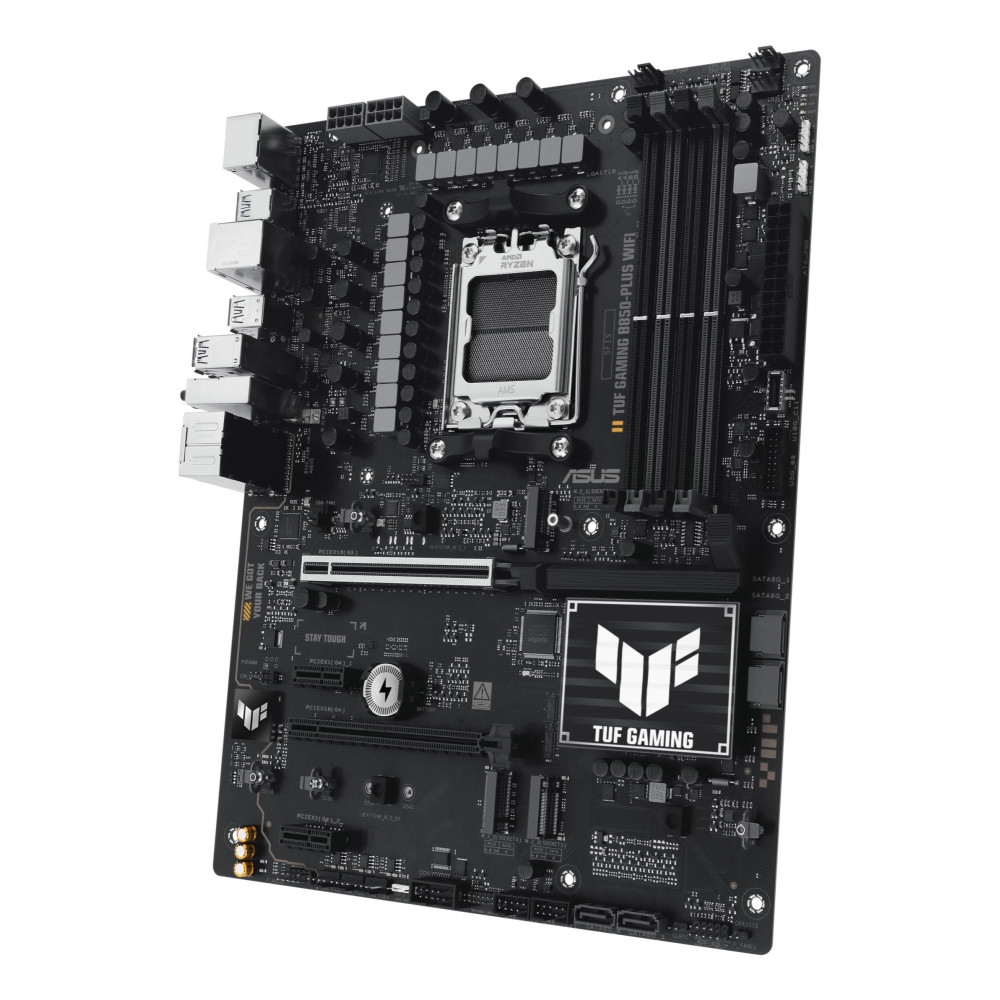

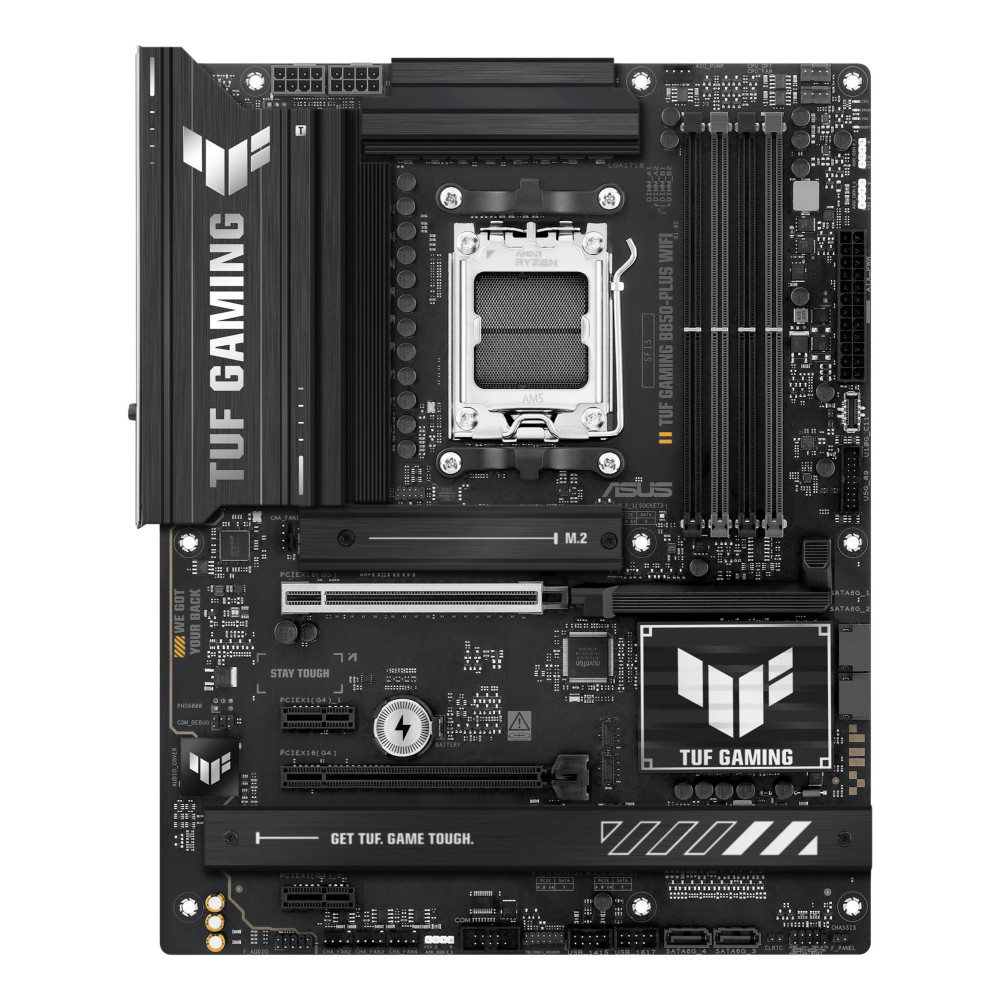

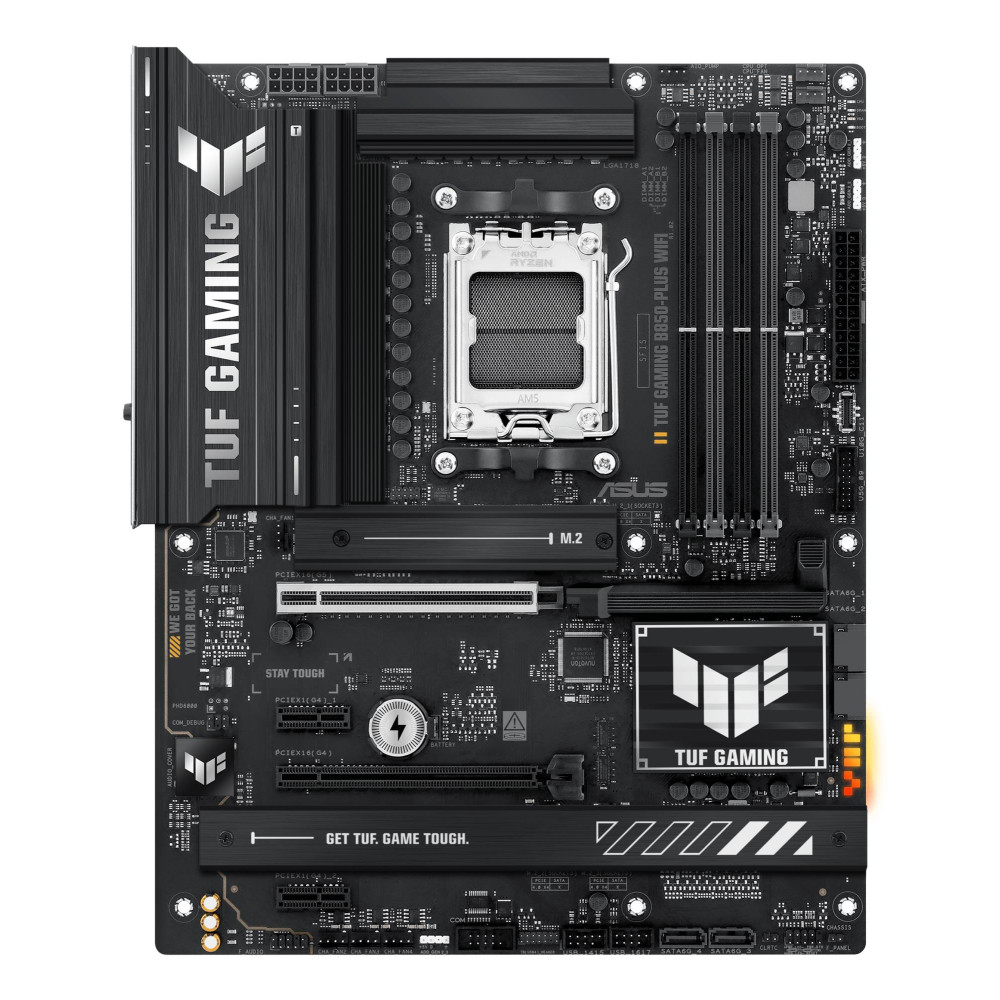

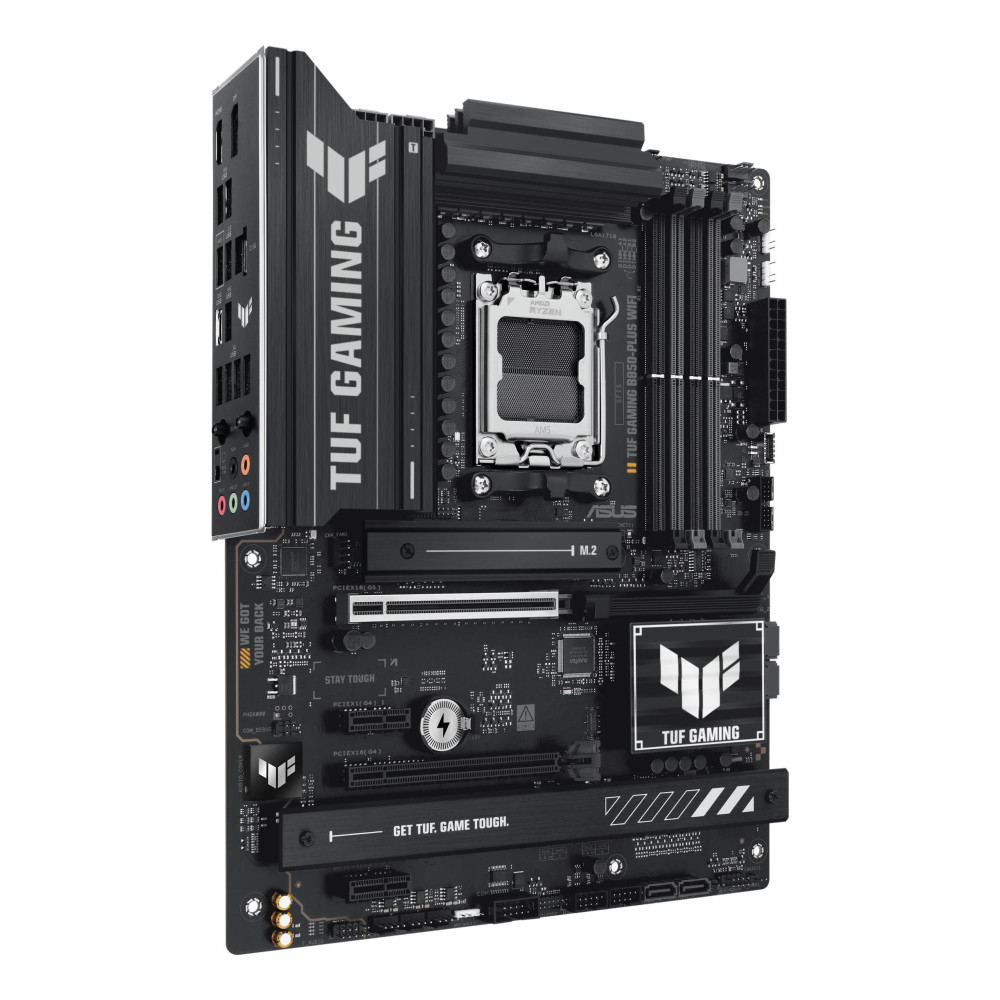

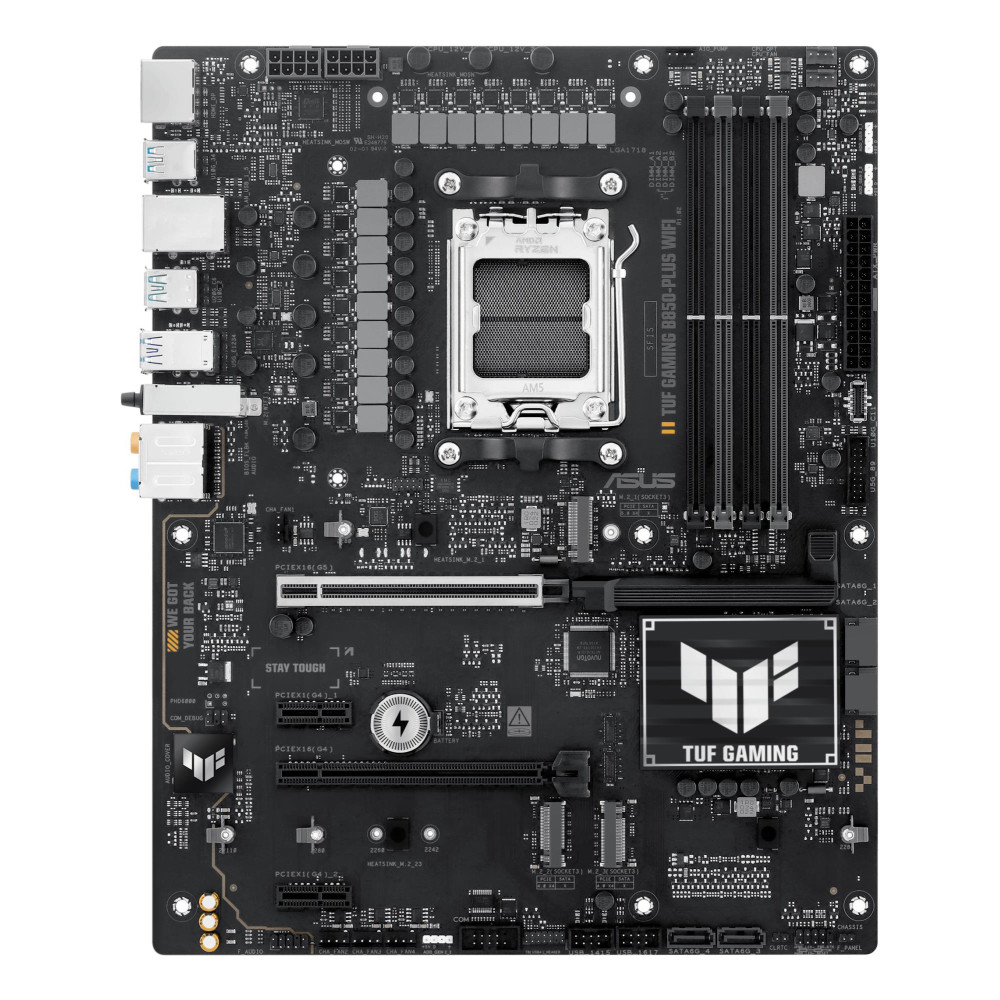

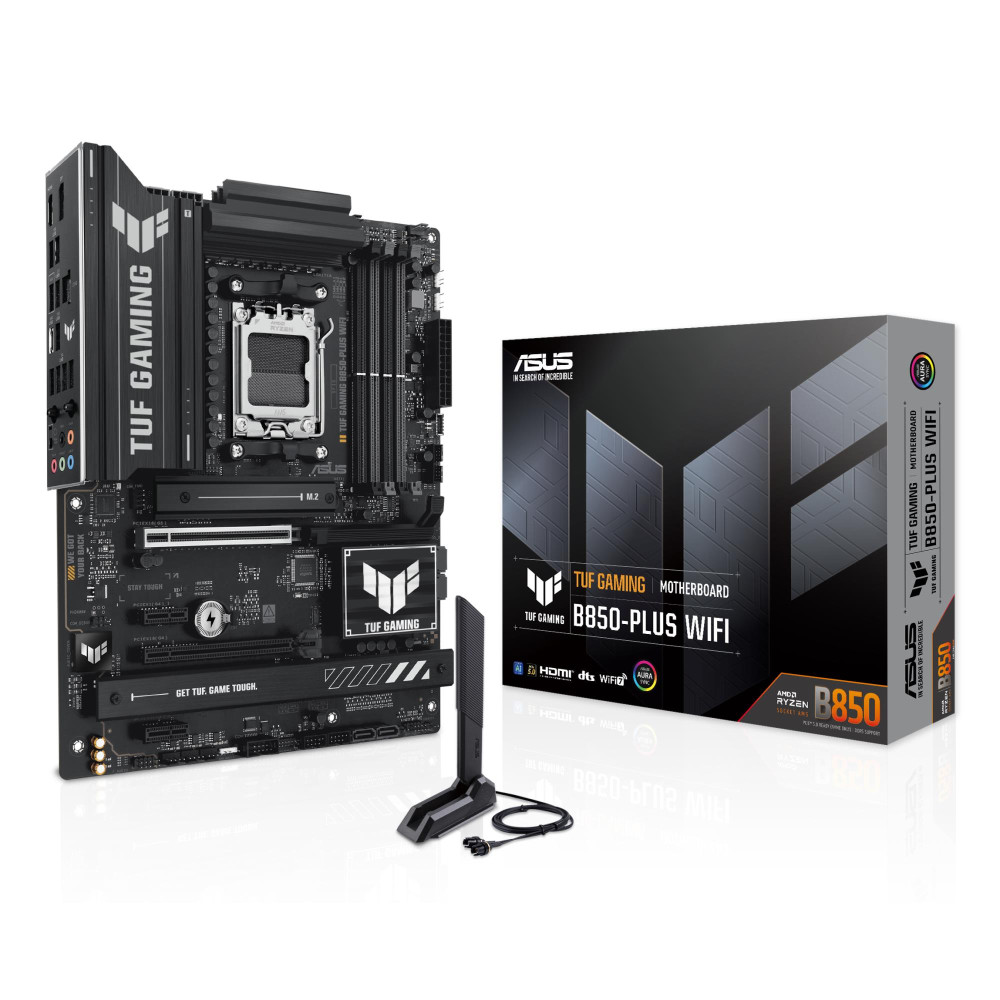

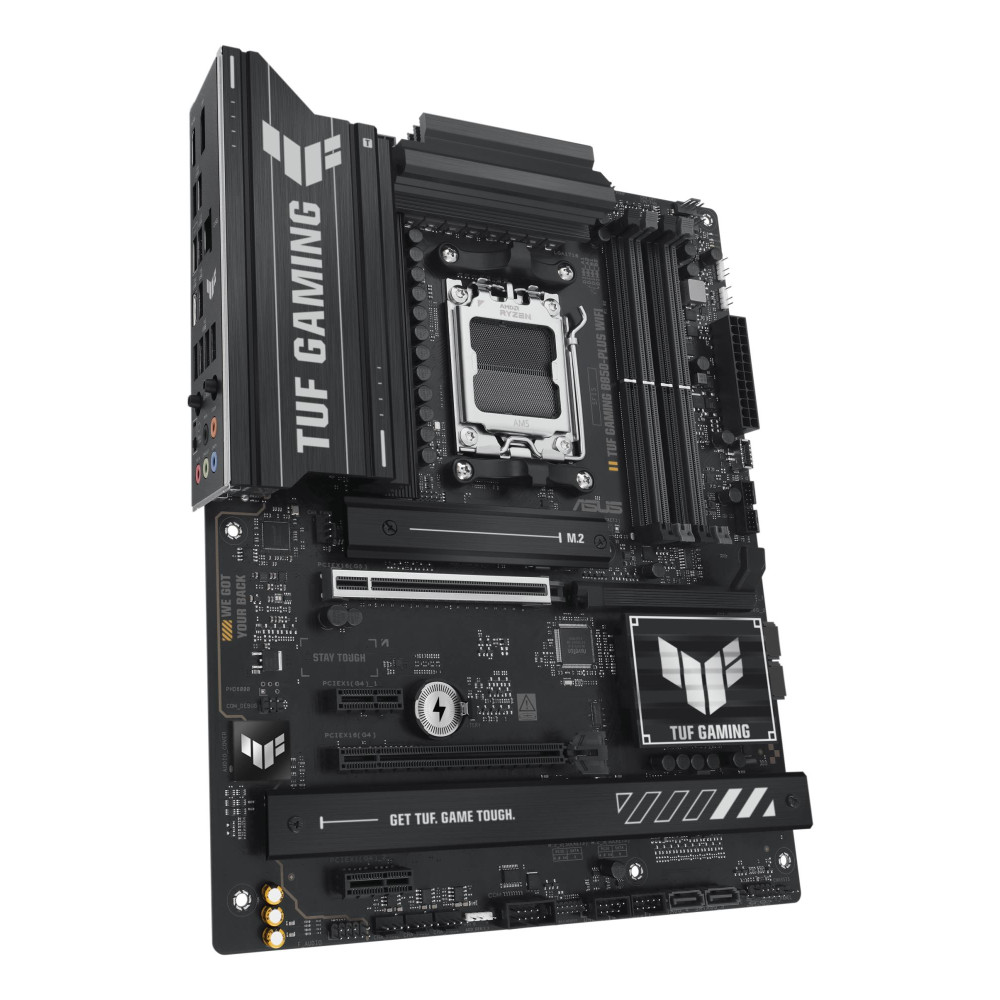

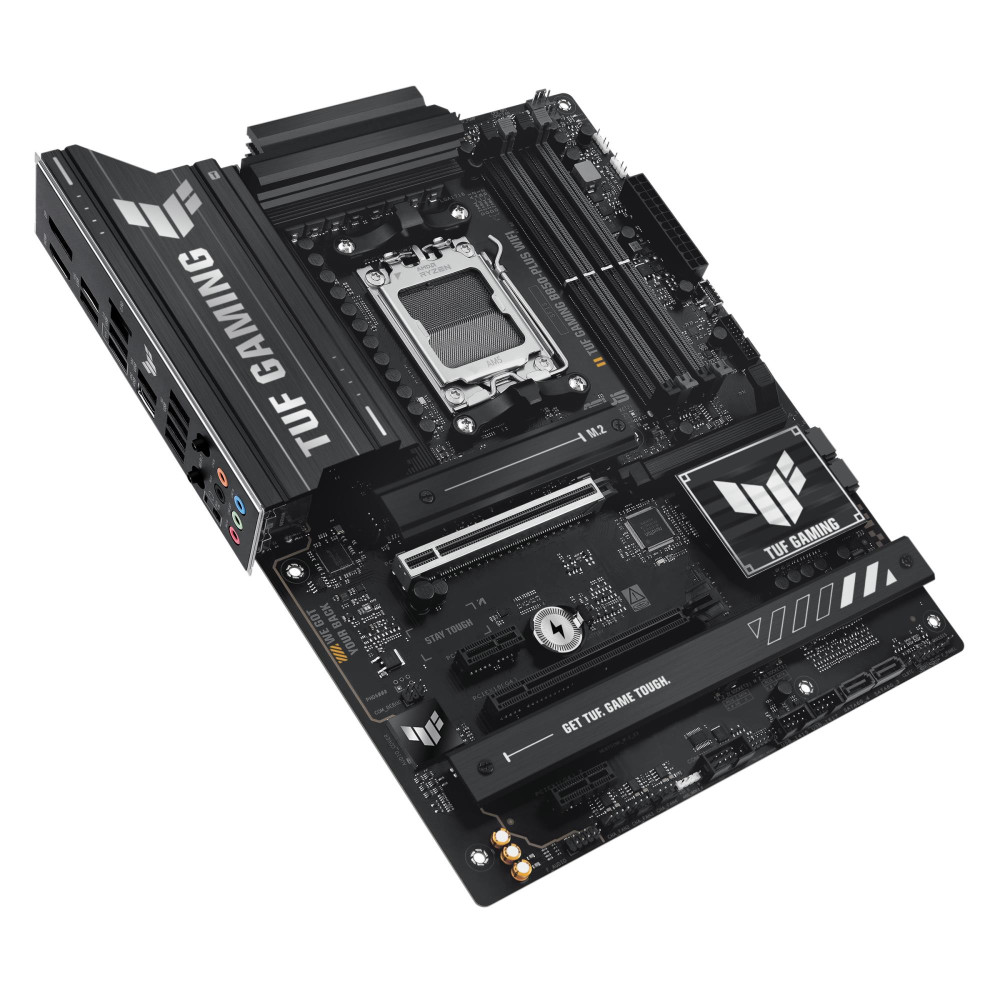

Mainboard, ASUS, AMD B850, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 2xUSB 2.0, 4xUSB 3.1, 3xUSB 3.2, 1xUSB-C, 1xRJ45, 5xAudio port, TUFGAMINGB850-PLUSWIFI
Популярный
- Бренд: Asus
- Модель: TUF GAMING B850-PLUS WIFI
- EAN: 4711387781609
- Наличие: 15
Наименование:
Asus TUF GAMING B850-PLUS WIFI
196.03€
Без PVN: 162.01€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
Antenna included
Yes
Audio chip
Realtek ALC1220
BIOS memory size
256
Chassis intrusion connector
Yes
Clear CMOS button
Yes
CPU fan connector
Yes
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Motherboard chipset family
AMD
Number of chassis fan connectors
4
Number of COM connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of RGB LED pin headers
3
Number of SATA III connectors
4
Number of water pump connectors
1
On-board graphics card
No
Parallel processing technology support
Not supported
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
Black
RGB LED pin header
Yes
Summary
ASUS TUF GAMING B850-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)
Supported memory clock speed (max)
8000
Thunderbolt headers
1
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Unit Calculated Volume
0.008131
Unit Calculated Weight
2.11
Units per Shipping Box
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2x2 Type-C ports quantity
1

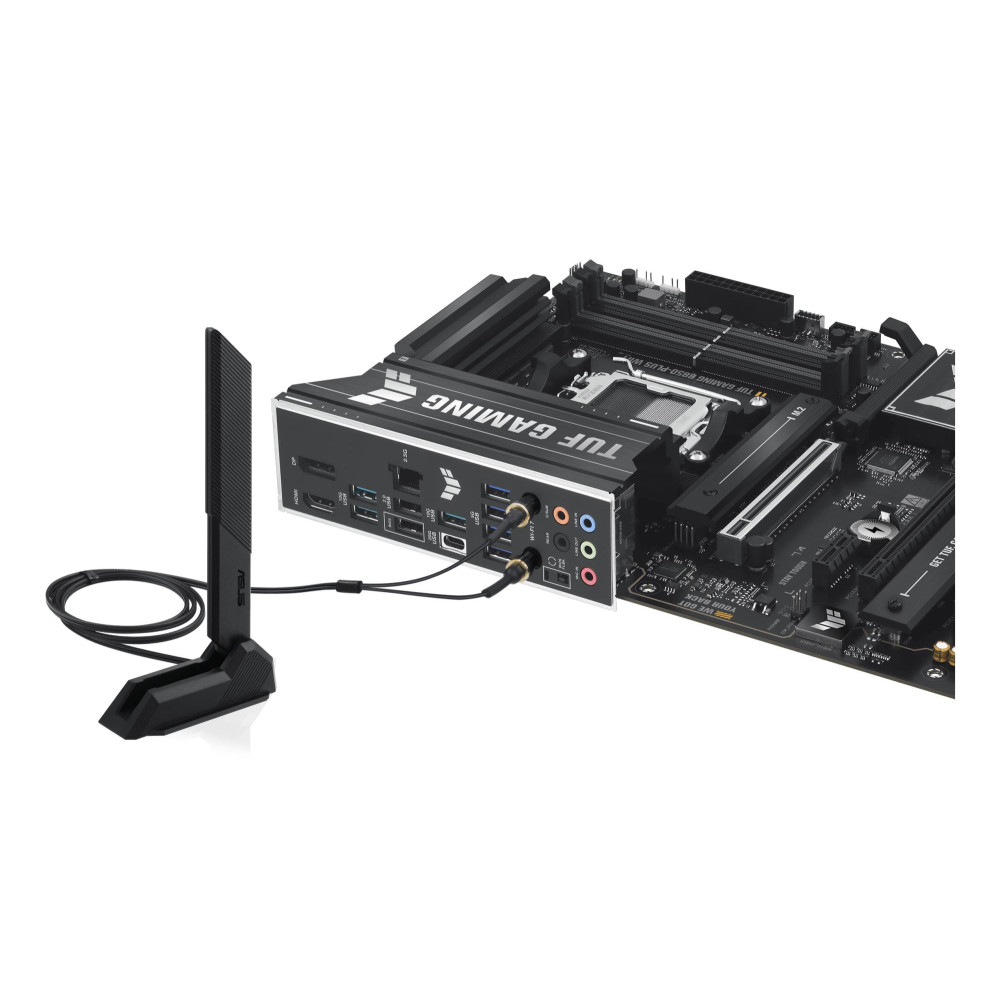

WiFi-AP antenna jack
2
Процессор
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Сокет процессора
AM5
Память
Maximum internal memory
192
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Тип памяти
DDR5
Запоминающее устройство
Number of storage drives supported
7
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD

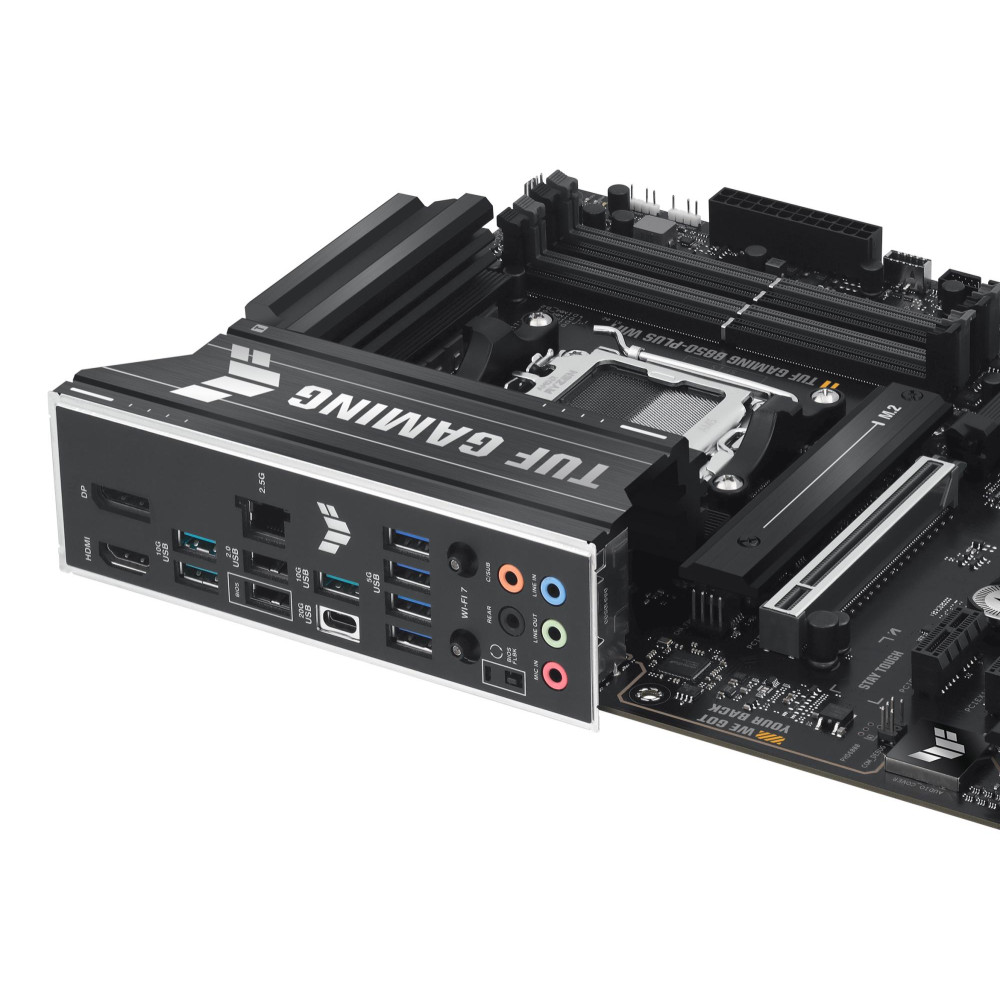

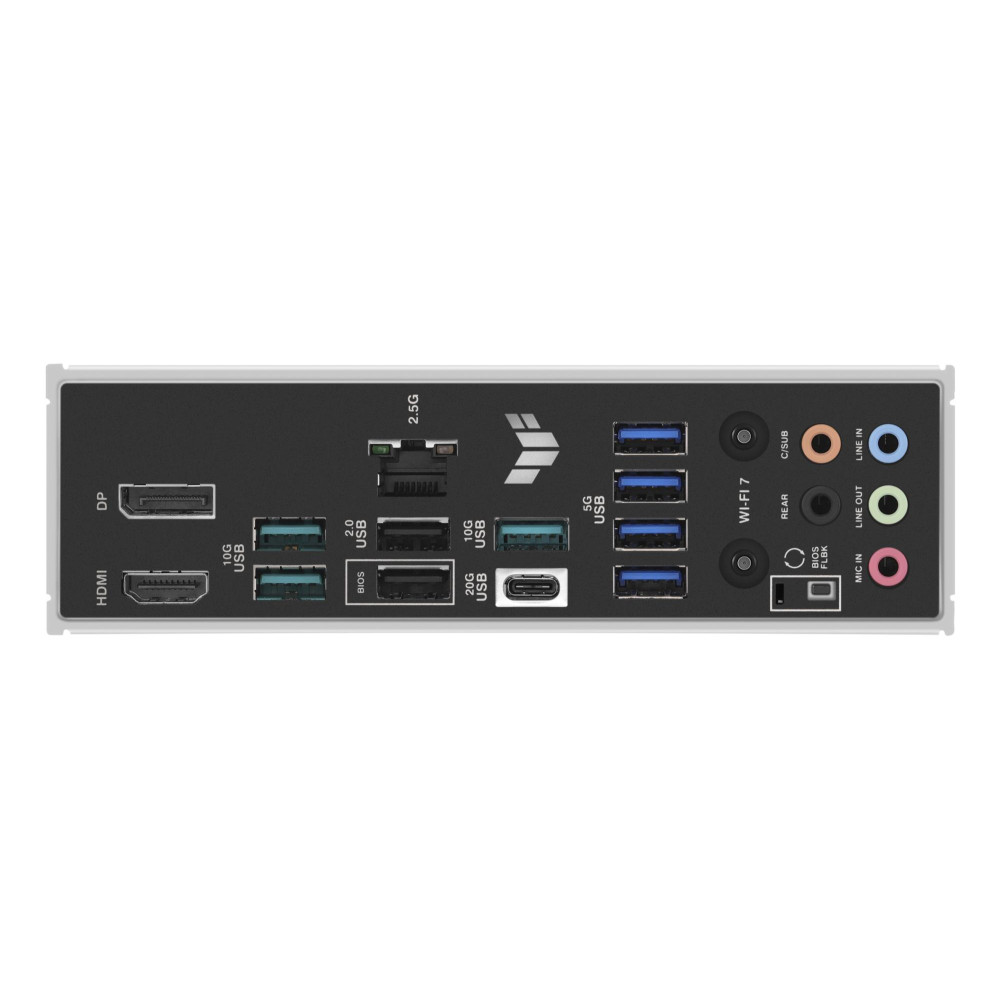

Порты
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
Количество портов HDMI
1
Подключения
Bluetooth
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Версия Bluetooth
5.4
Порты локальной сети Ethernet (RJ-45)
1
Спецификация
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI
Component for
PC
EPS power connector (8-pin)
Yes
Form factor
ATX
Line-in
Yes
Maximum resolution
7680 x 4320
Model
TUF GAMING B850-PLUS WIFI
Motherboard chipset
AMD B850
Motherboard form factor
ATX
Number of memory slots
4
Package depth
273
Package height
68
Package weight
1810
Package width
353
Power source type
ATX
Quick installation guide
Yes
Supported processor sockets
Socket AM5
Weight
1320
Windows operating systems supported
Windows 11
Глубина
244

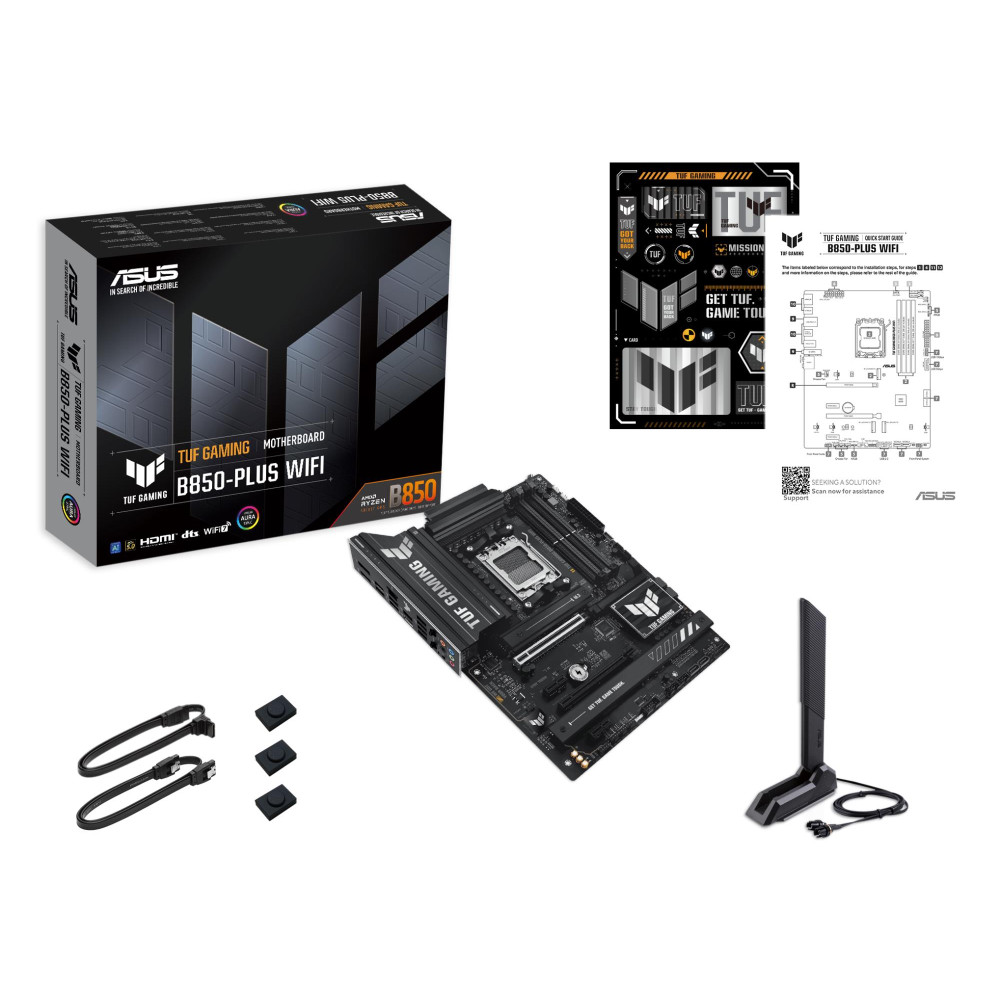

Кабели в комплекте
SATA
Чипсет
B850
Ширина
305
