Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 11xUSB 2.0, 2xUSB-C, 1xRJ45, 5xAudio port, GAMINGB850M-PLUSWIFI

Популярный

Отзывы:

(0)

Наименование:

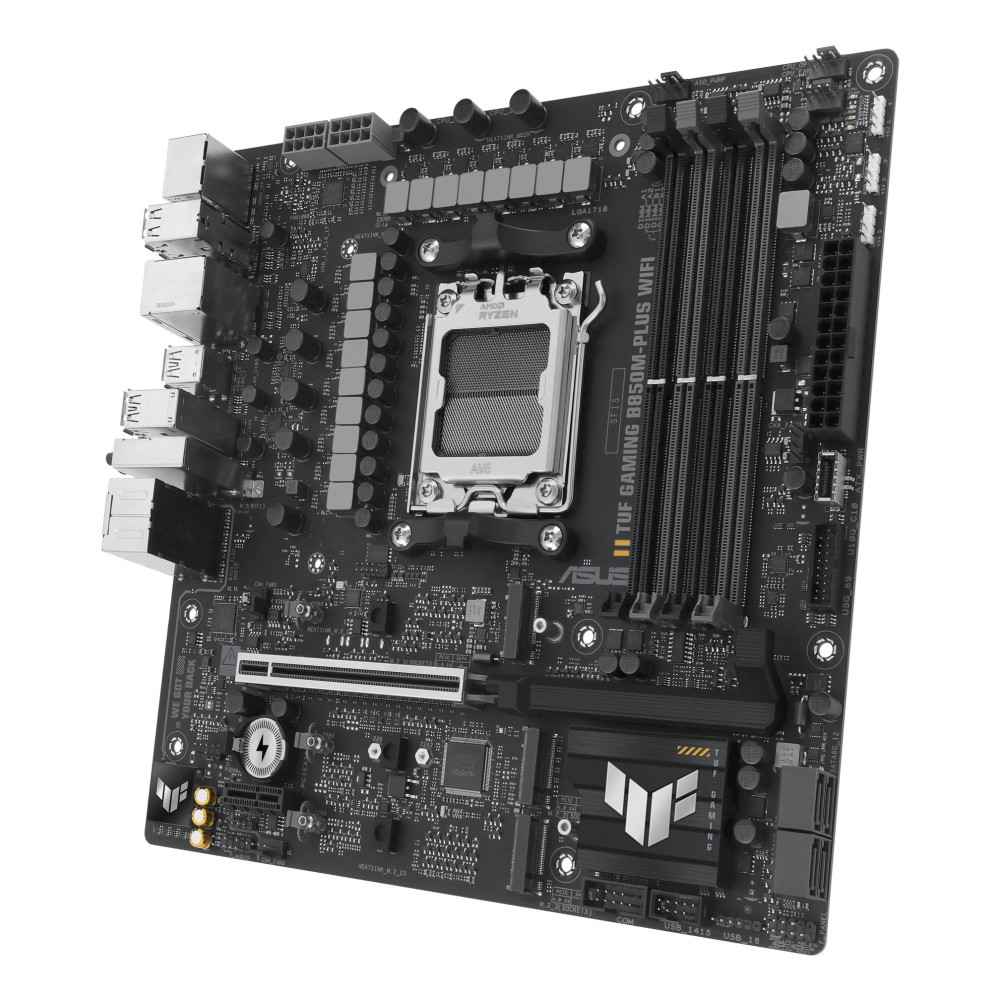

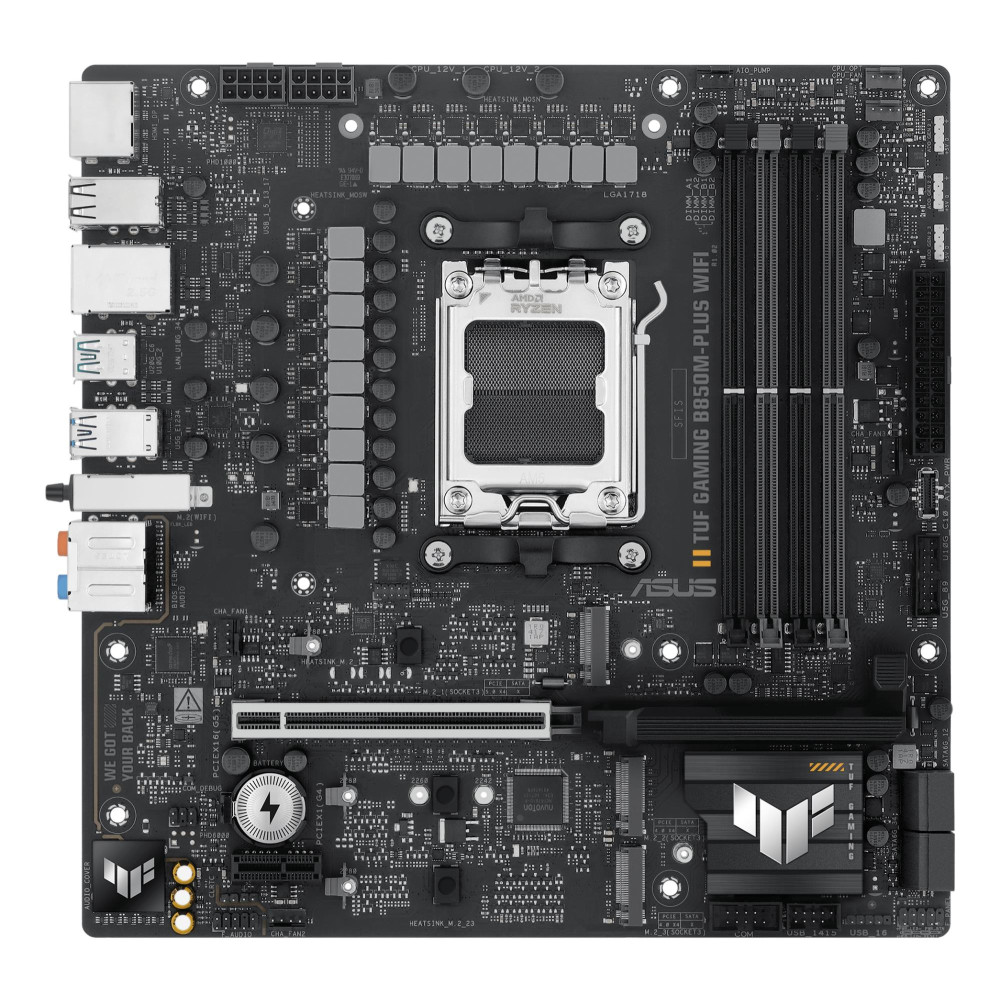

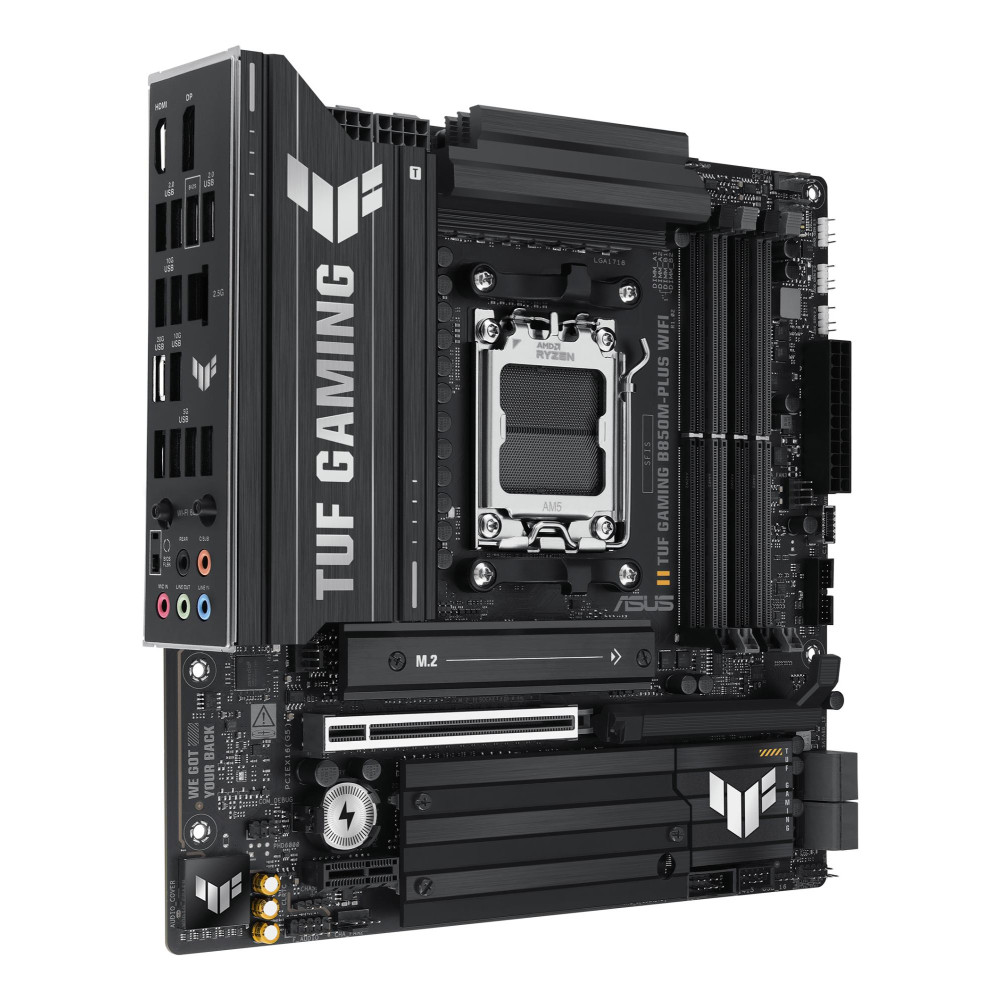

Asus TUF GAMING B850M-PLUS WIFI

Бренд: Asus
Модель: TUF GAMING B850M-PLUS WIFI
EAN: 4711387764916
Наличие: 3

248.58€

Без PVN: 205.44€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

1st M.2 highest PCI Express generation 5.0

1st M.2 largest key size 2280

2nd M.2 highest PCI Express generation 4.0

2nd M.2 largest key size 2280

3rd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 2280

Antenna included Yes

Audio chip Realtek ALC1220P

BIOS memory size 256

Chassis intrusion connector Yes

CPU fan connector Yes

ECC сompatibility ECC & Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Motherboard chipset family AMD

Number of chassis fan connectors 3

Number of COM connectors 1

Number of HDDs supported 4

Number of M.2 (M) slots 3

Number of SATA III connectors 4

On-board graphics card No

Parallel processing technology support Not supported

PCI Express x1 (Gen 4.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Product colour Black

S/PDIF out connector Yes

Screws included Yes

Summary ASUS TUF GAMING B850M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Top Wi-Fi standard Wi-Fi 6E (802.11ax)

Unit Calculated Volume 0.006251

Unit Calculated Weight 1.84

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3

USB 3.2 Gen 2x2 Type-C ports quantity 1

WiFi-AP antenna jack 1

Процессор

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer AMD

Сокет процессора AM5

Память

Maximum internal memory 192

Memory channels Dual-channel

Memory slots type DIMM

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 7

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

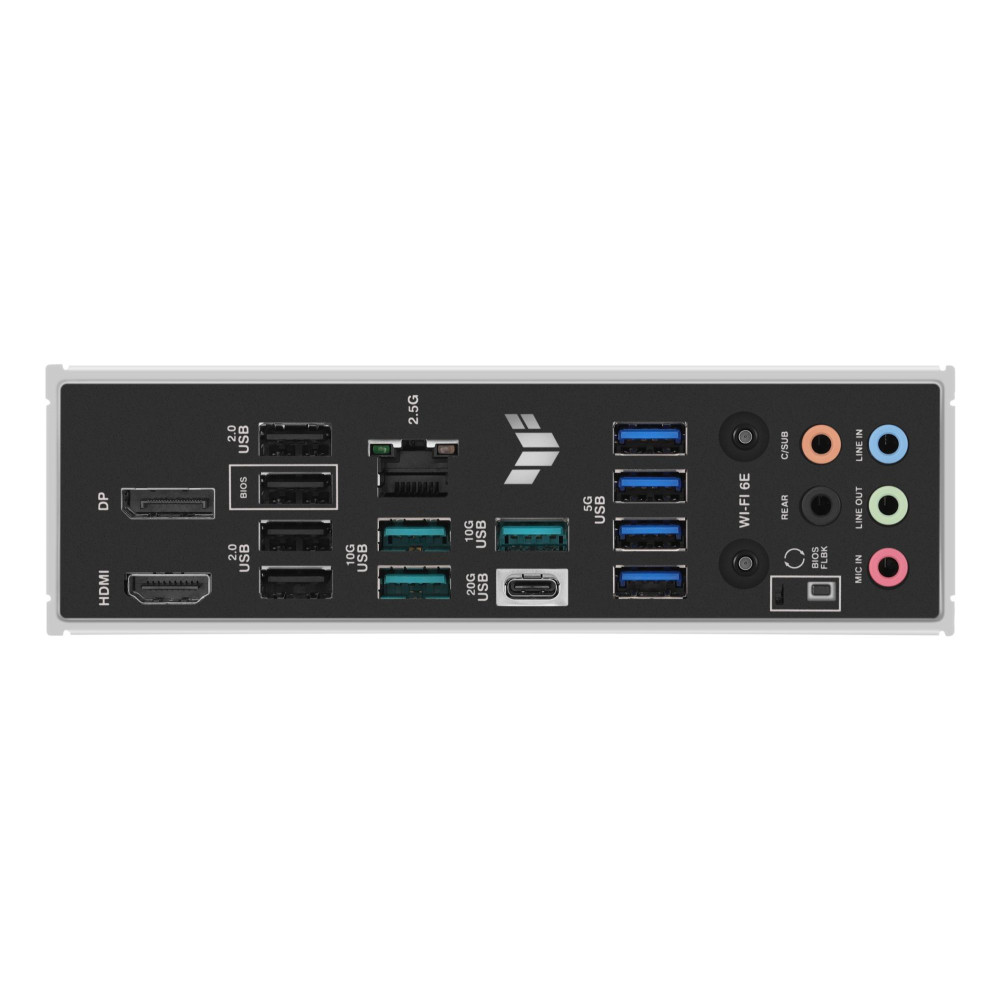

Порты

DisplayPorts quantity 1

USB 2.0 connectors 2

USB 2.0 ports quantity 4

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi Yes

Wi-Fi standards Wi-Fi 6E (802.11ax)

Версия Bluetooth 5.3

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

Form factor mATX

Model TUF GAMING B850M-PLUS WIFI

Motherboard chipset AMD B850

Motherboard form factor micro ATX

Number of memory slots 4

Package depth 275

Package height 67.5

Package weight 1681

Package width 275

Supported processor sockets Socket AM5

Weight 1200

Windows operating systems supported Windows 10 x64/Windows 11

Глубина 244

Кабели в комплекте SATA

Чипсет B850

Ширина 244
