Отзывы:
(0)
    Наименование:

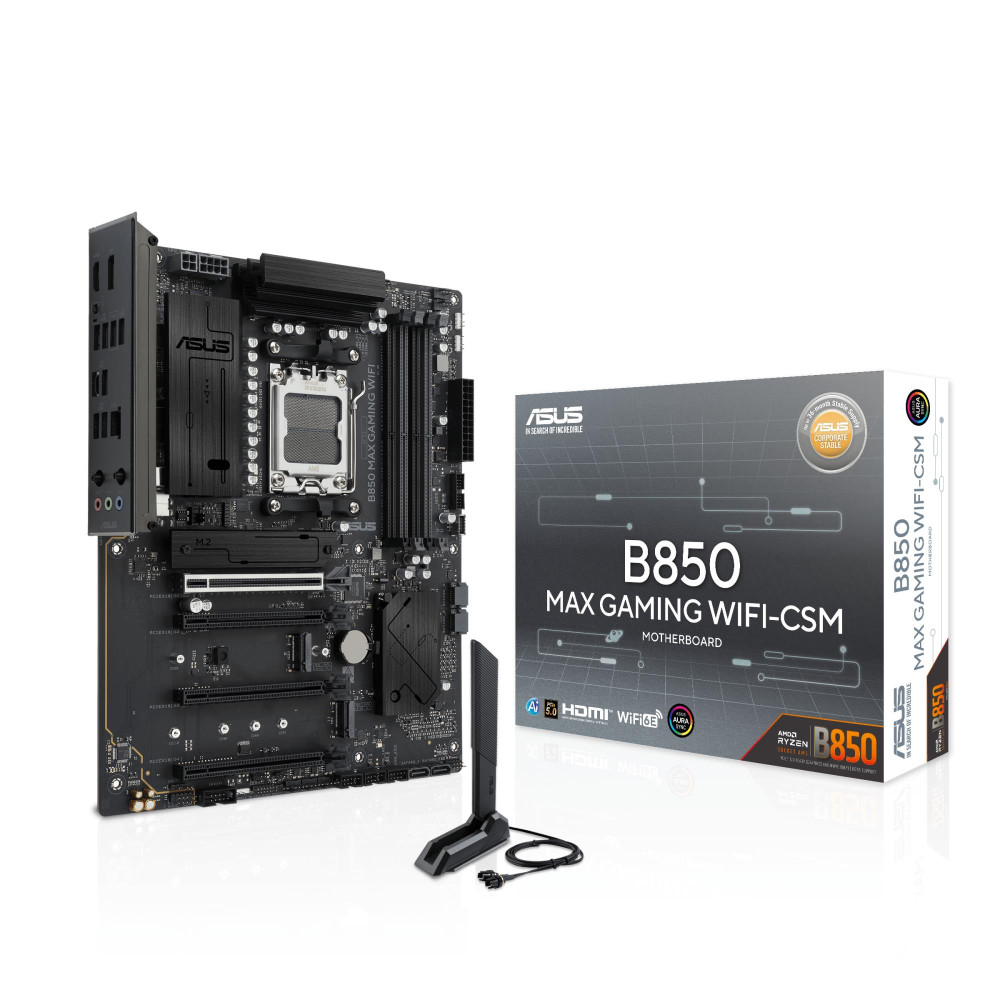

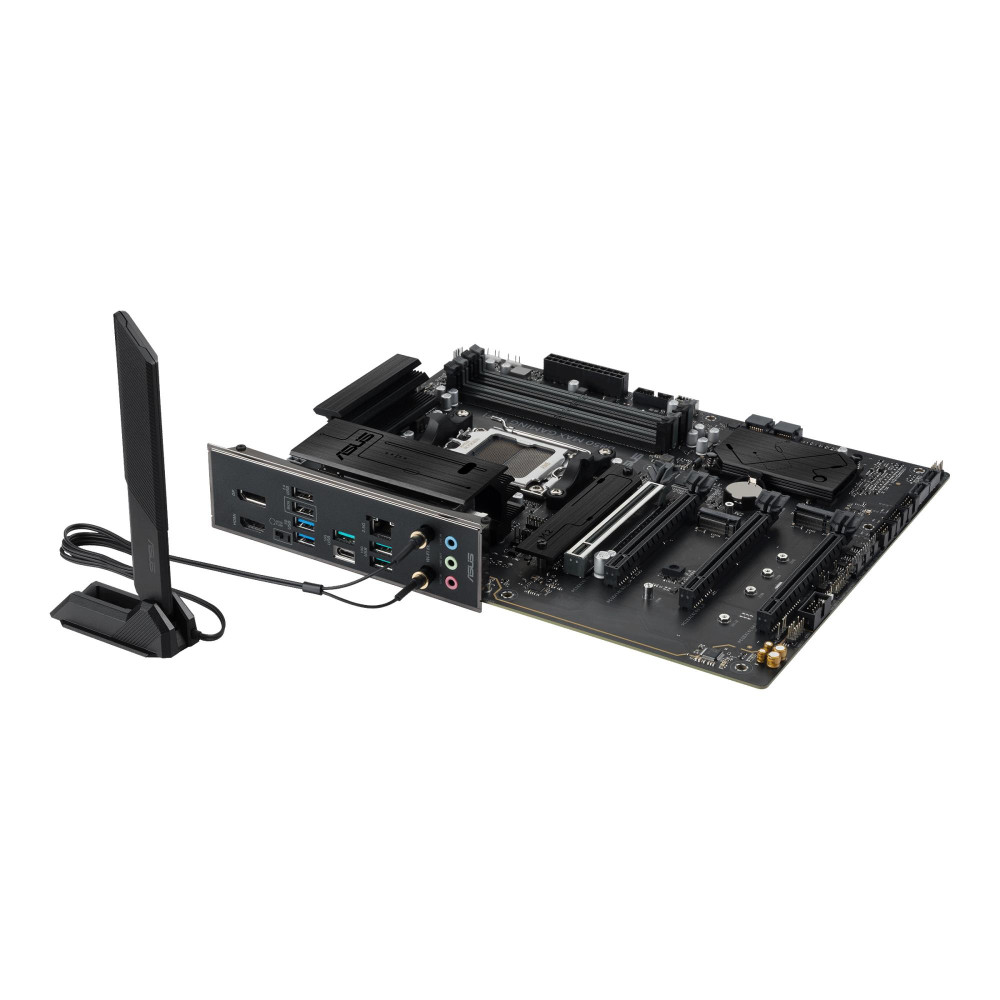

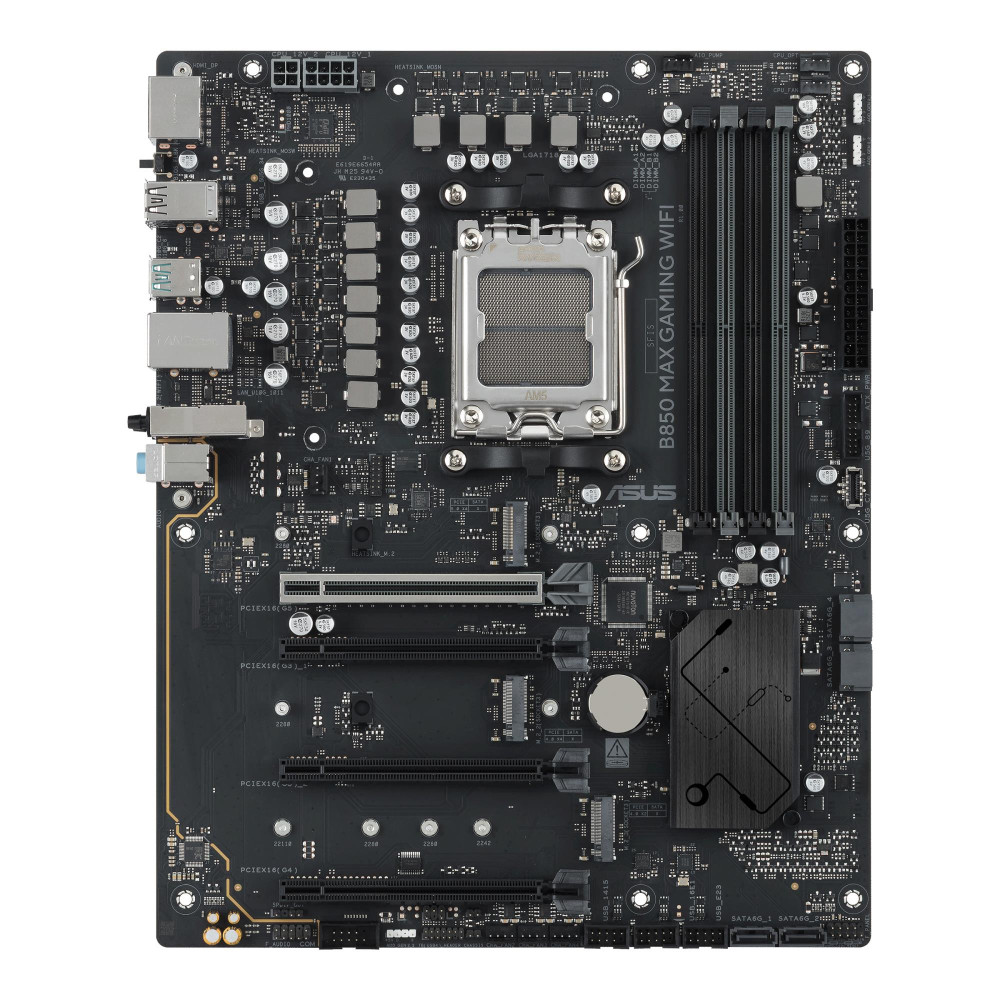

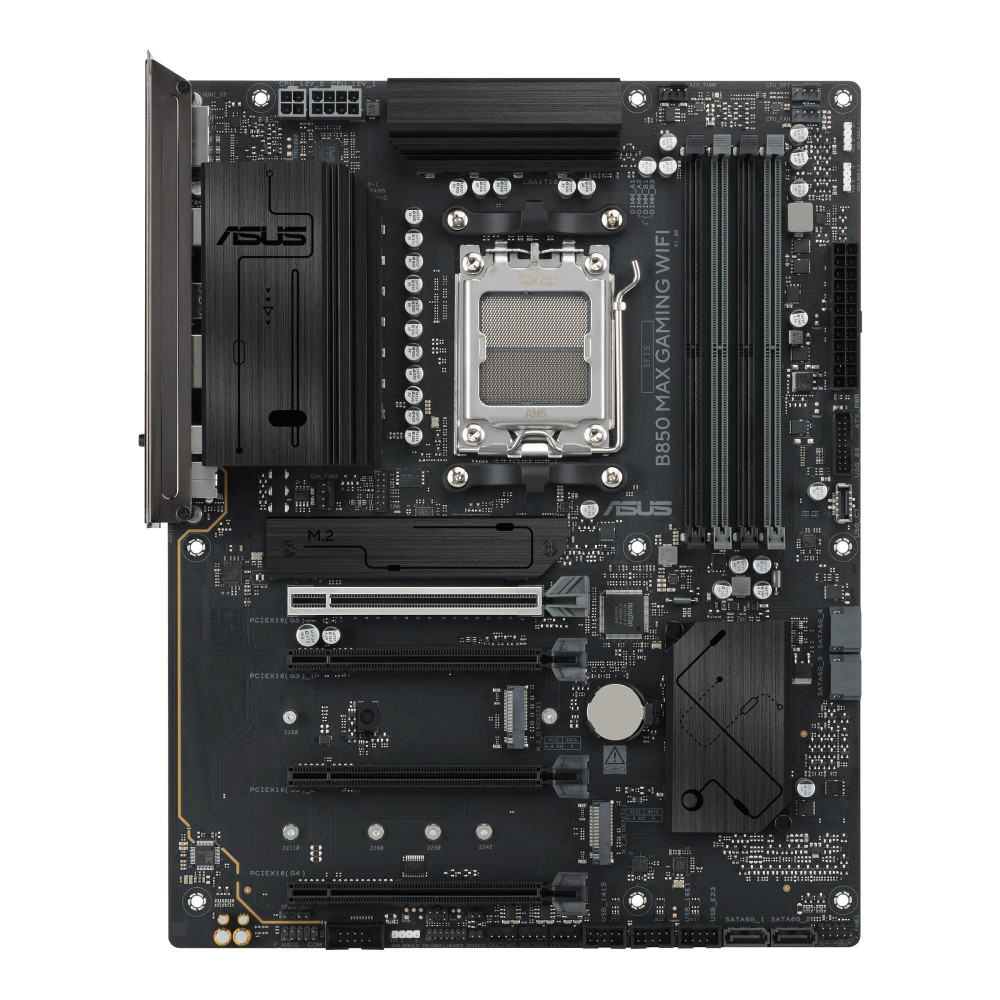

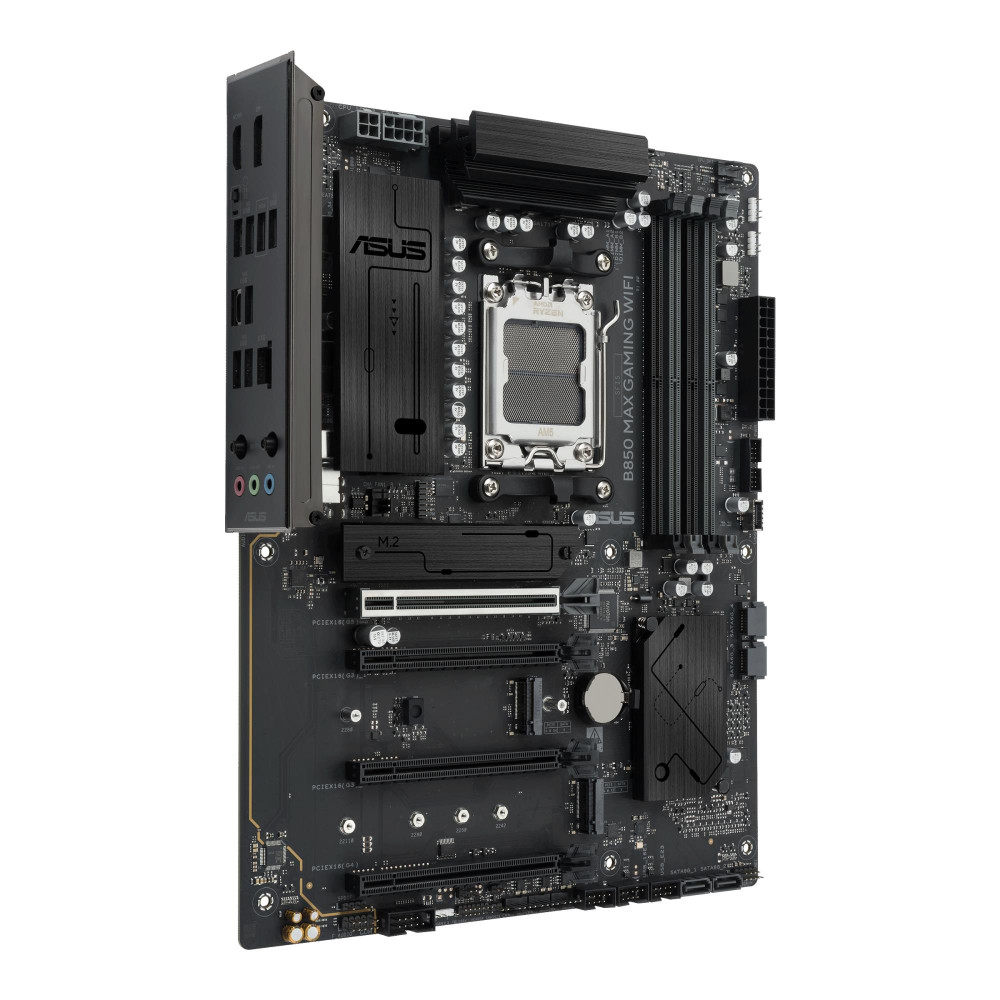

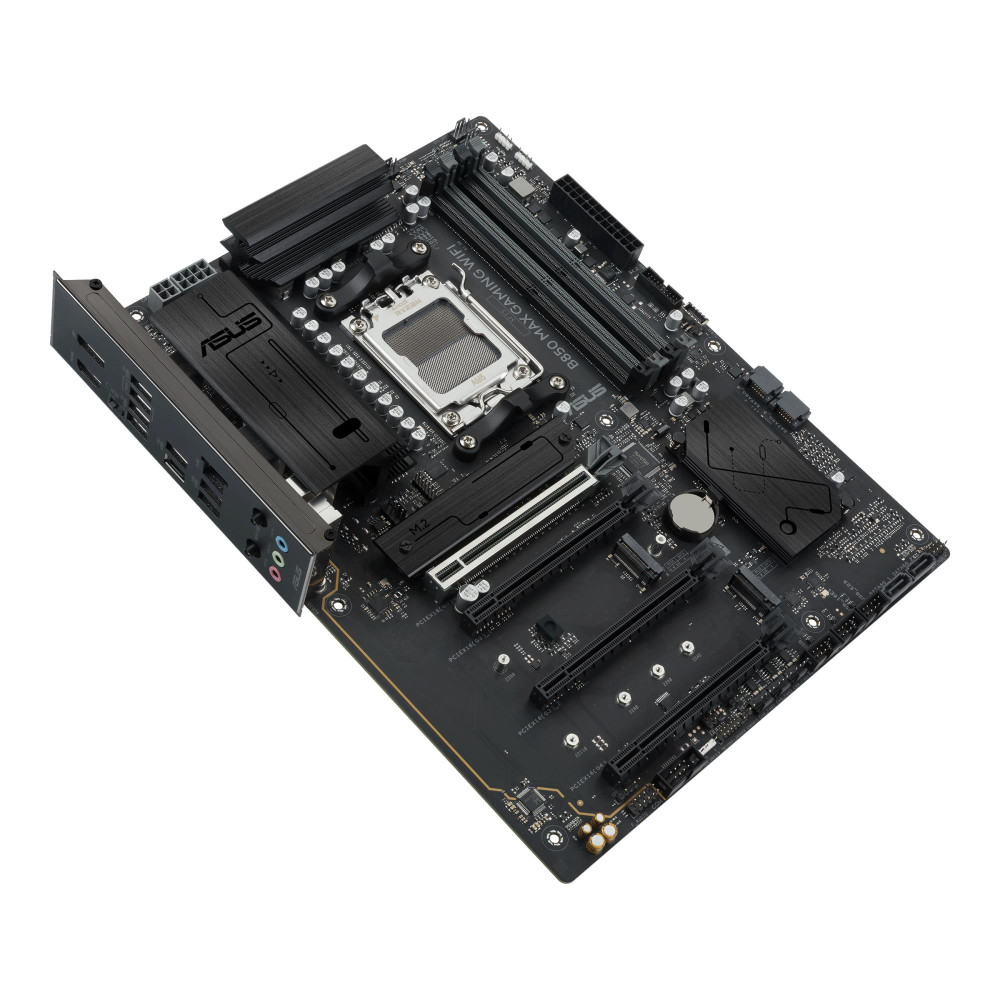

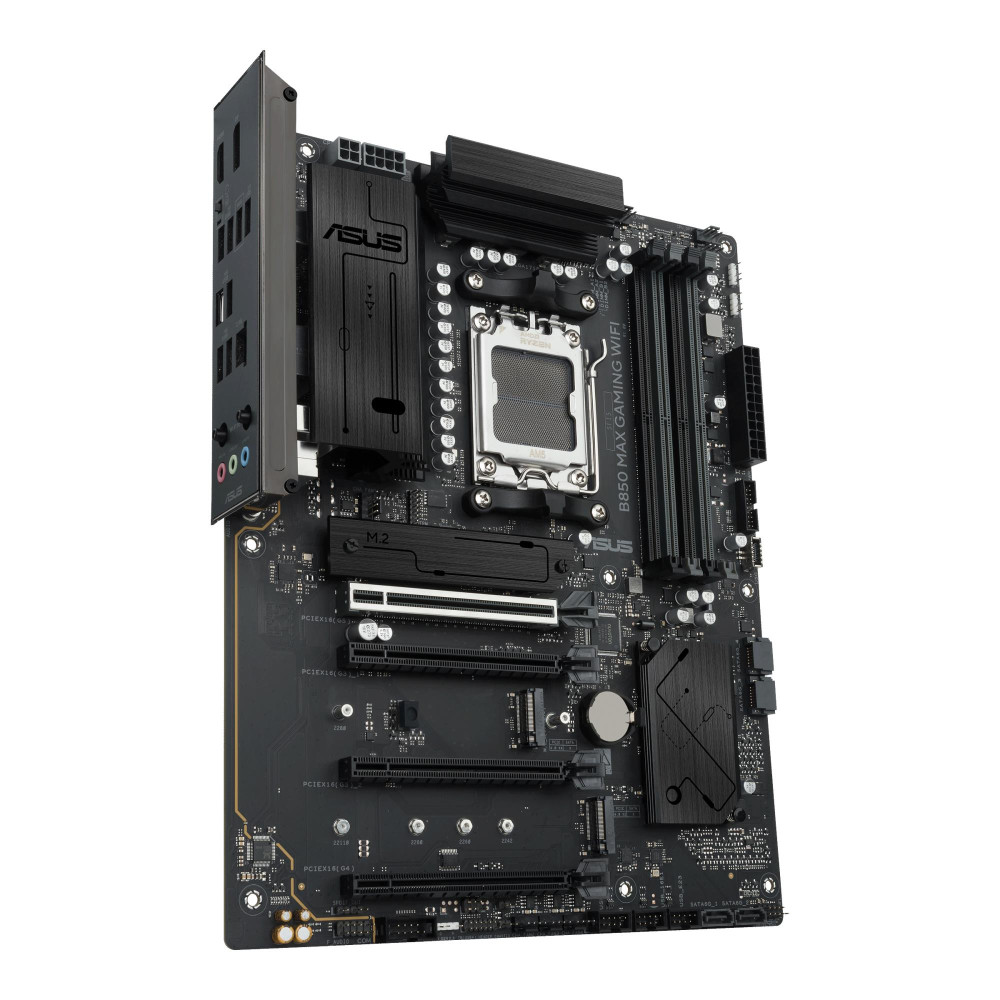

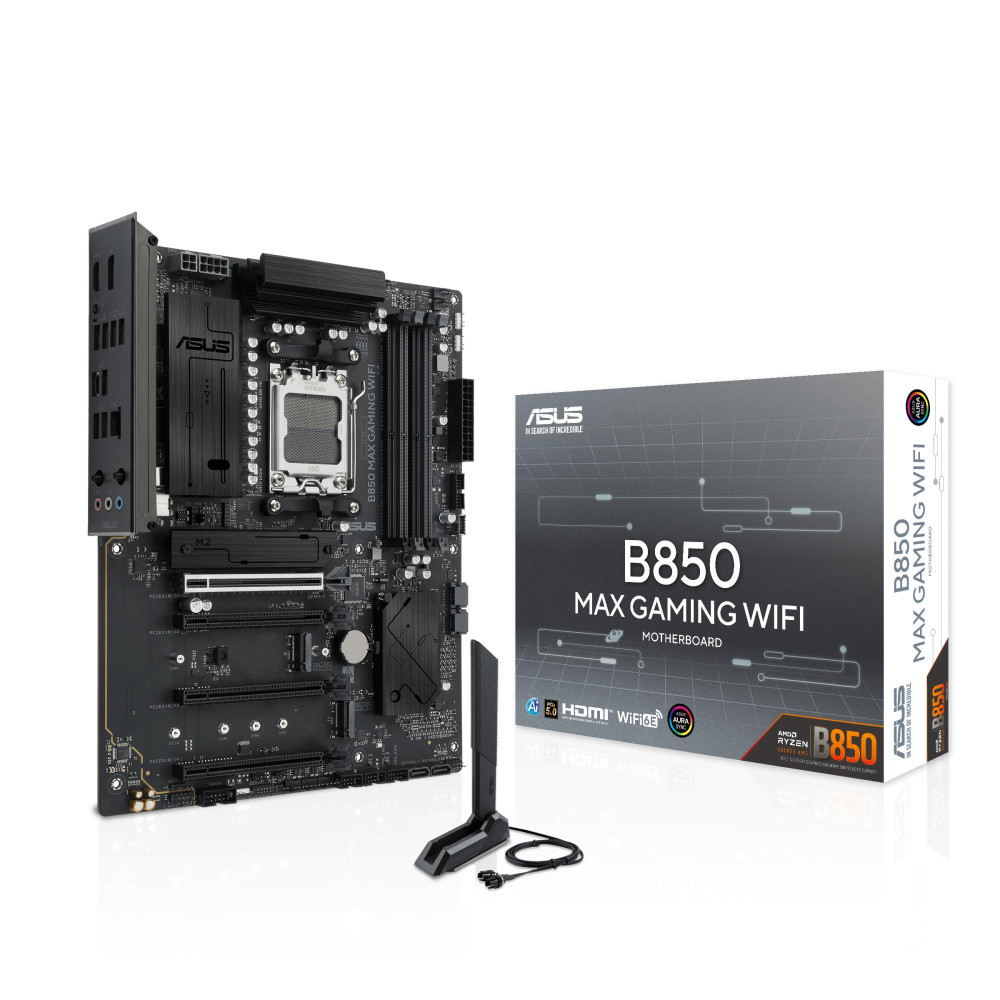

    Asus B850 MAX GAMING WIFI

  • Бренд: Asus
  • Модель: B850 MAX GAMING WIFI
  • EAN: 4711636465519
  • Наличие: 5
197.36€
Без PVN: 163.11€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for AMD CPUs

Характеристики
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
Antenna included Yes
BIOS flashback button Yes
BIOS memory size 256
Chassis intrusion connector Yes
CPU fan connector Yes
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Maximum internal memory per slot 64
Motherboard chipset family AMD
Number of chassis fan connectors 4
Number of COM connectors 1
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
Parallel processing technology support Not supported
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Product colour Black
RGB LED pin header Yes
S/PDIF out connector Yes
Screws included Yes
Summary ASUS B850 MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) 9000
Thunderbolt headers 1
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.008214
Unit Calculated Weight 1.8
Units per Shipping Box 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
WiFi-AP antenna jack 2
Процессор
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Сокет процессора AM5
Память
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Тип памяти DDR5
Запоминающее устройство
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

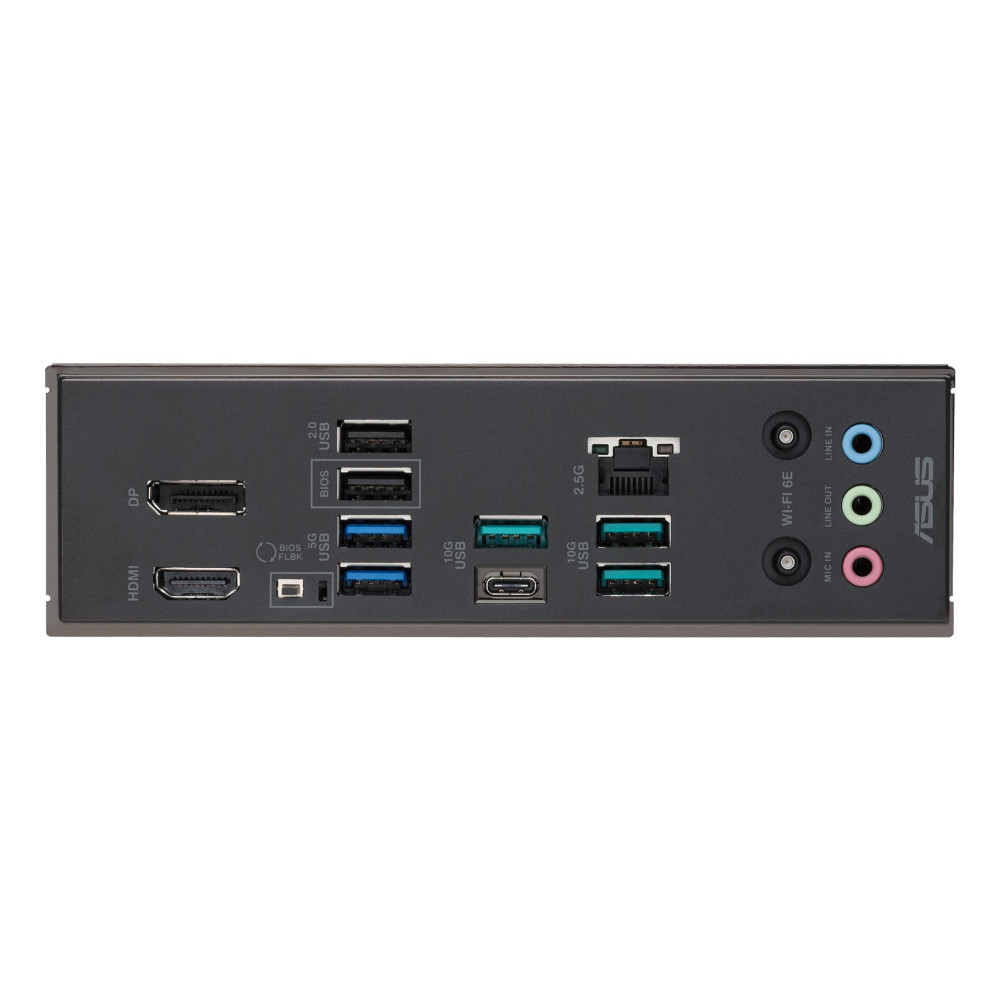

Порты
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 3
USB 2.0 ports quantity 2
Количество портов HDMI 1
Подключения
Bluetooth Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards Wi-Fi 6E (802.11ax)
Версия Bluetooth 5.4
Порты локальной сети Ethernet (RJ-45) 1
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Cooling type Passive
EPS power connector (8-pin) Yes
Form factor ATX
Line-in Yes
Maximum resolution 7680 x 4320
Motherboard chipset AMD B850
Motherboard form factor ATX
Number of memory slots 4
Package depth 273
Package height 68
Package weight 1260
Package width 353
Peripheral (Molex) power connectors (4-pin) 1
Power source type ATX
Supported processor sockets Socket AM5
Weight 1050
Windows operating systems supported Windows 10 x64/Windows 11
Высота 48
Глубина 244

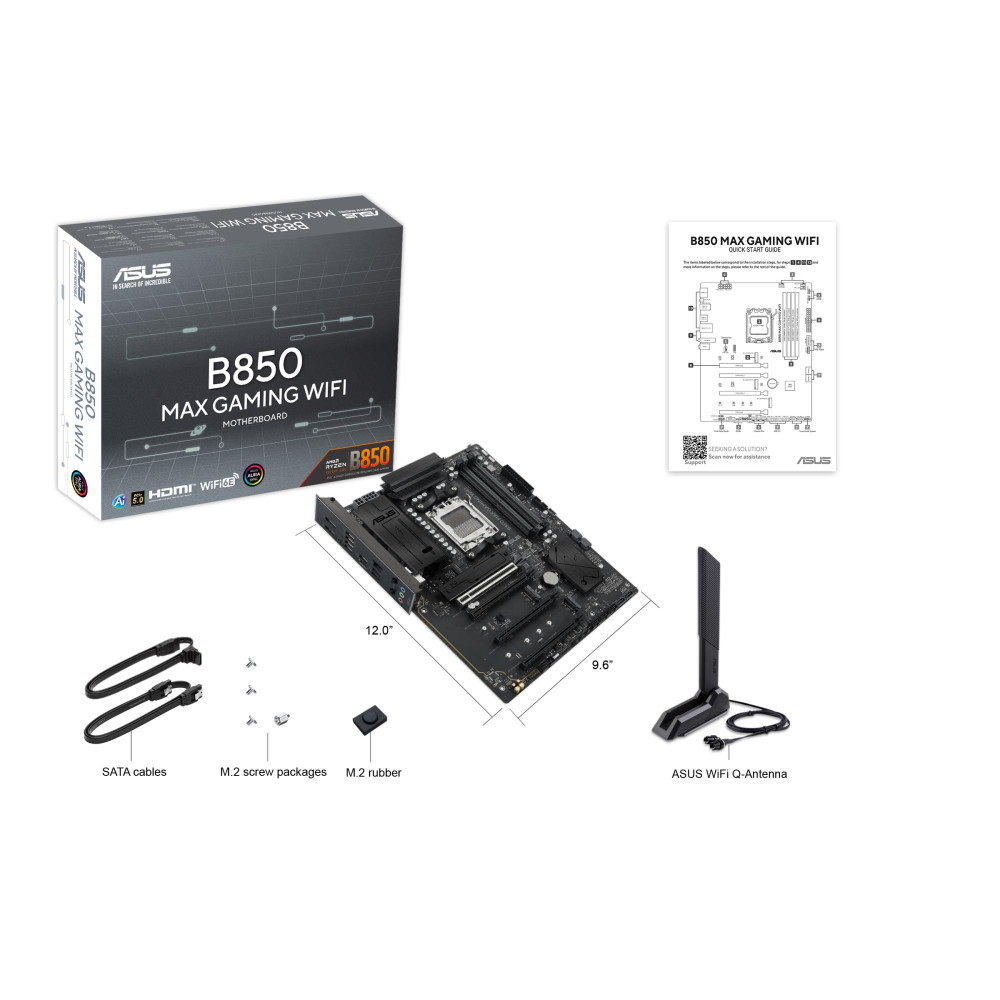

Кабели в комплекте SATA
Чипсет B850
Ширина 305
