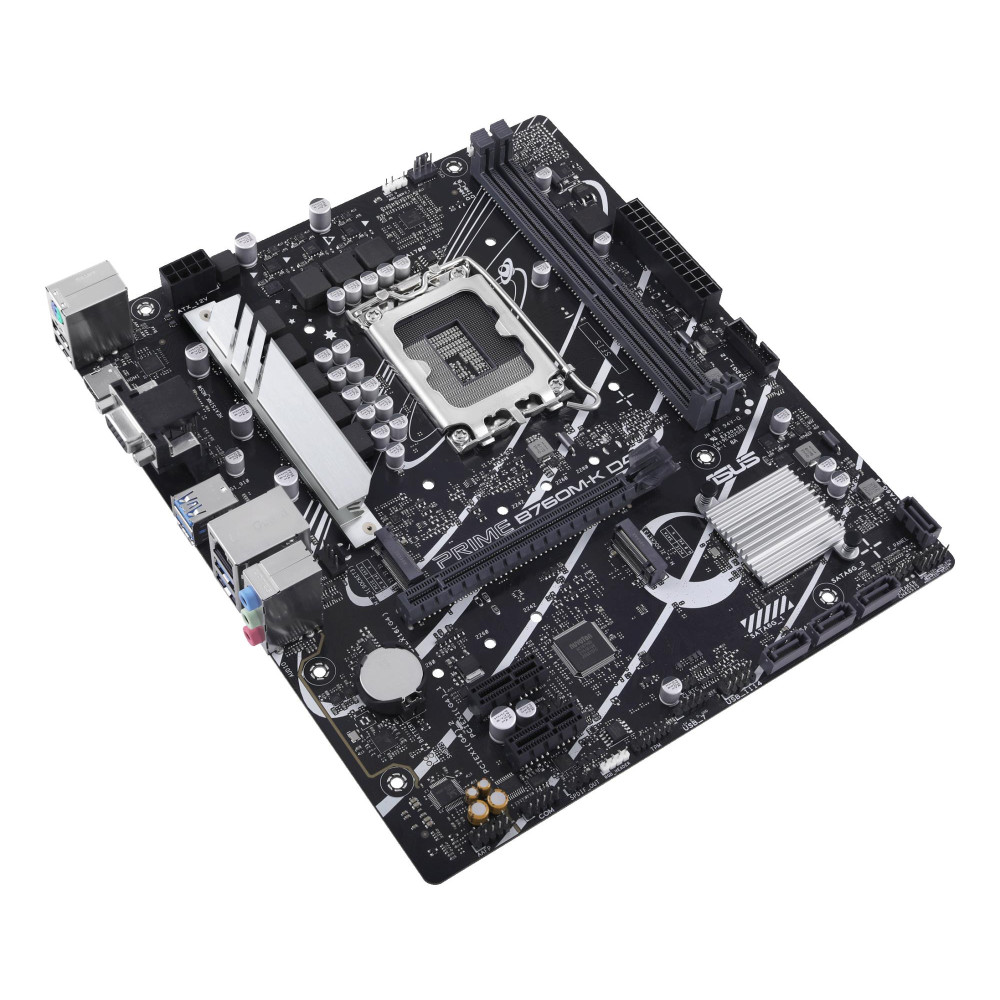

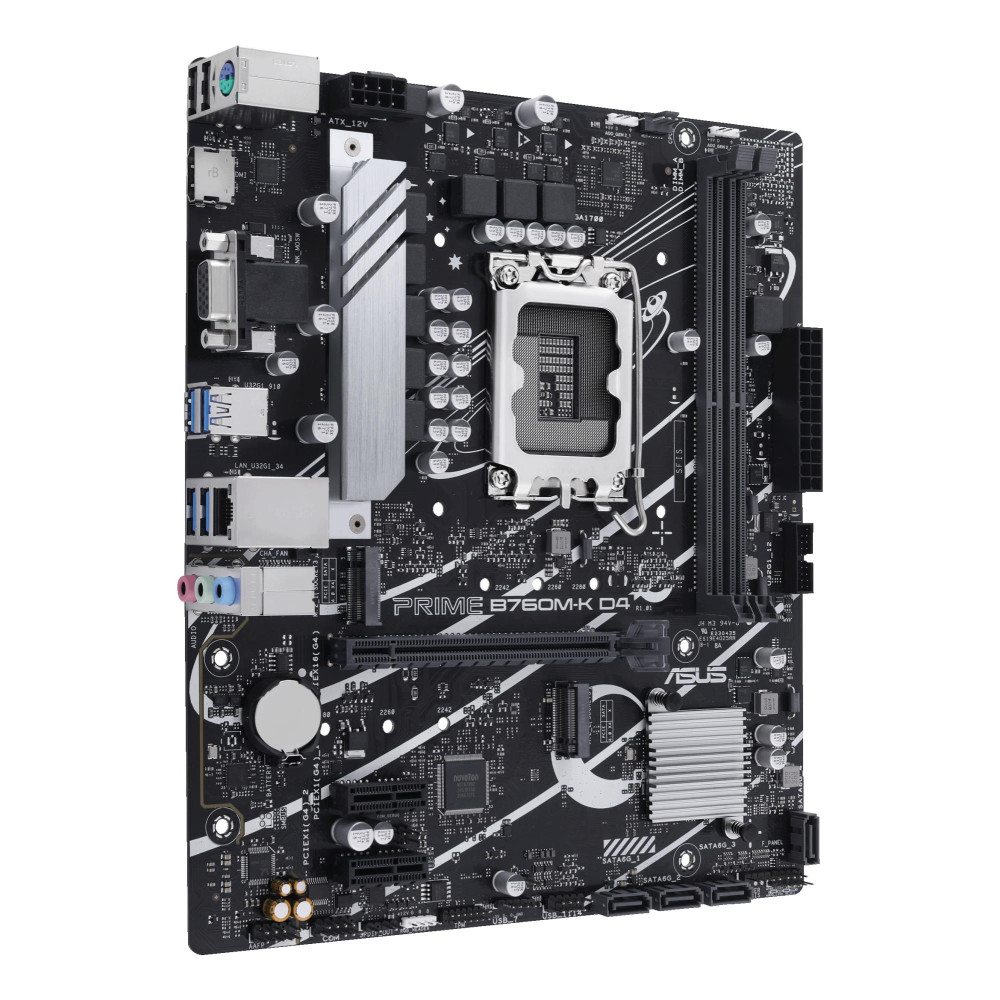

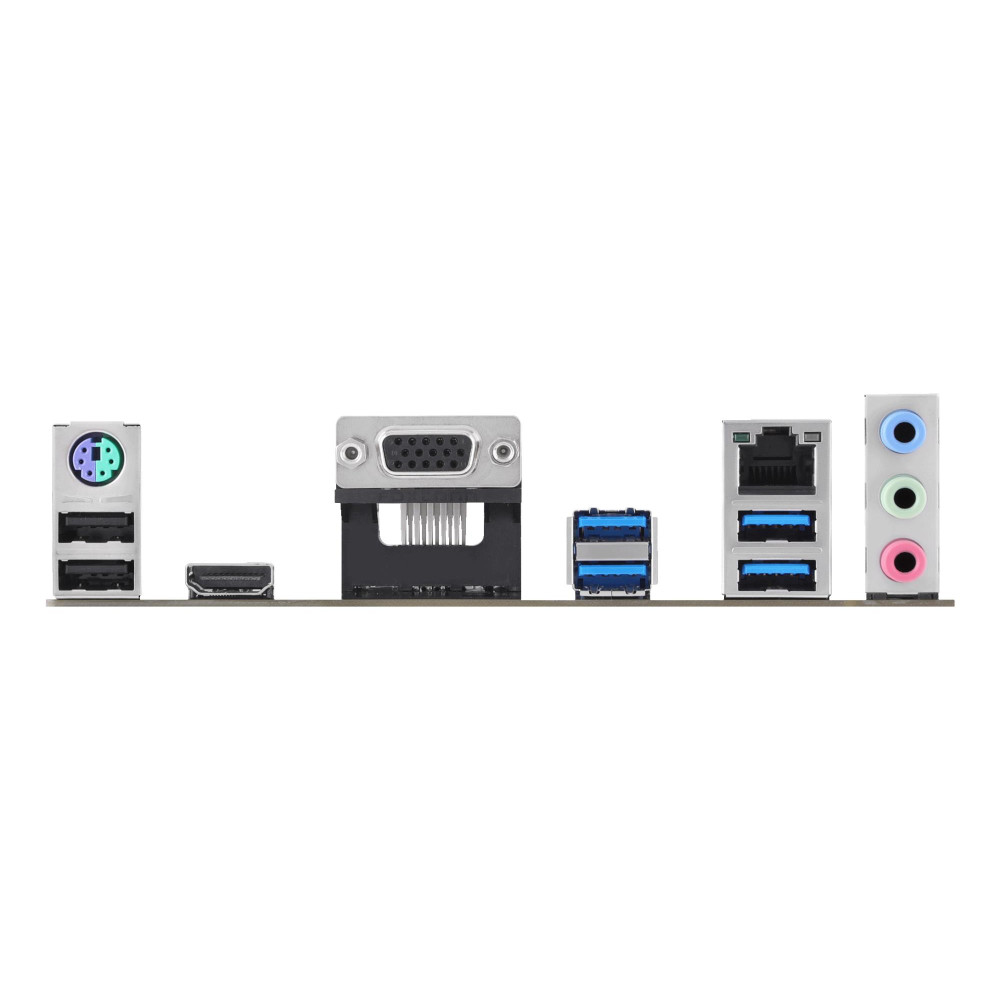

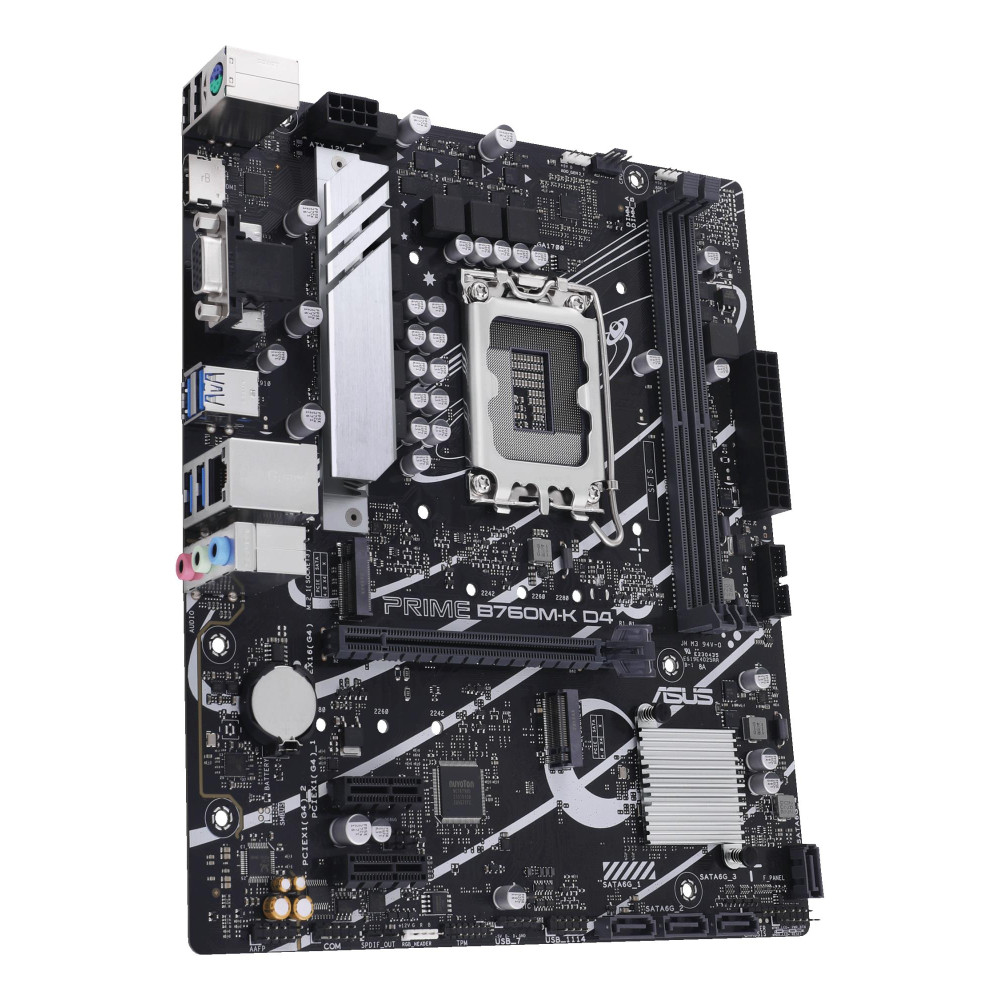

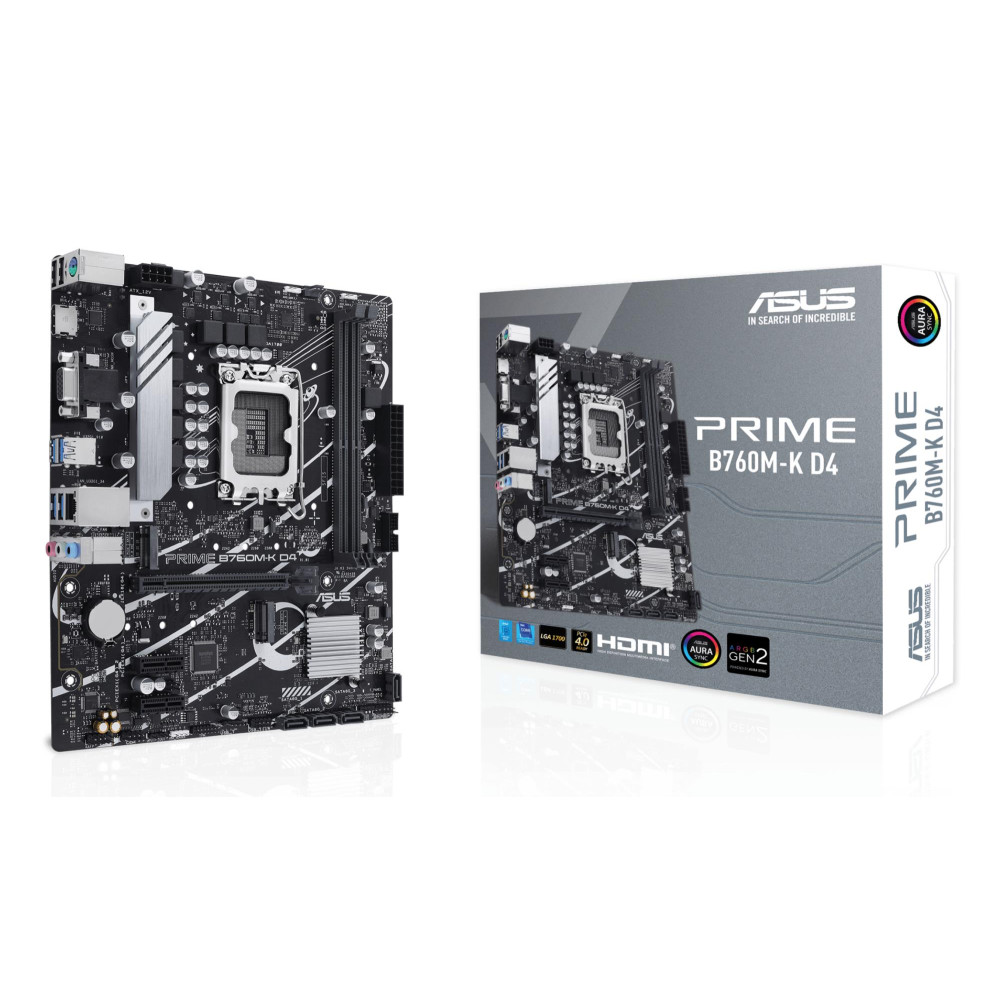

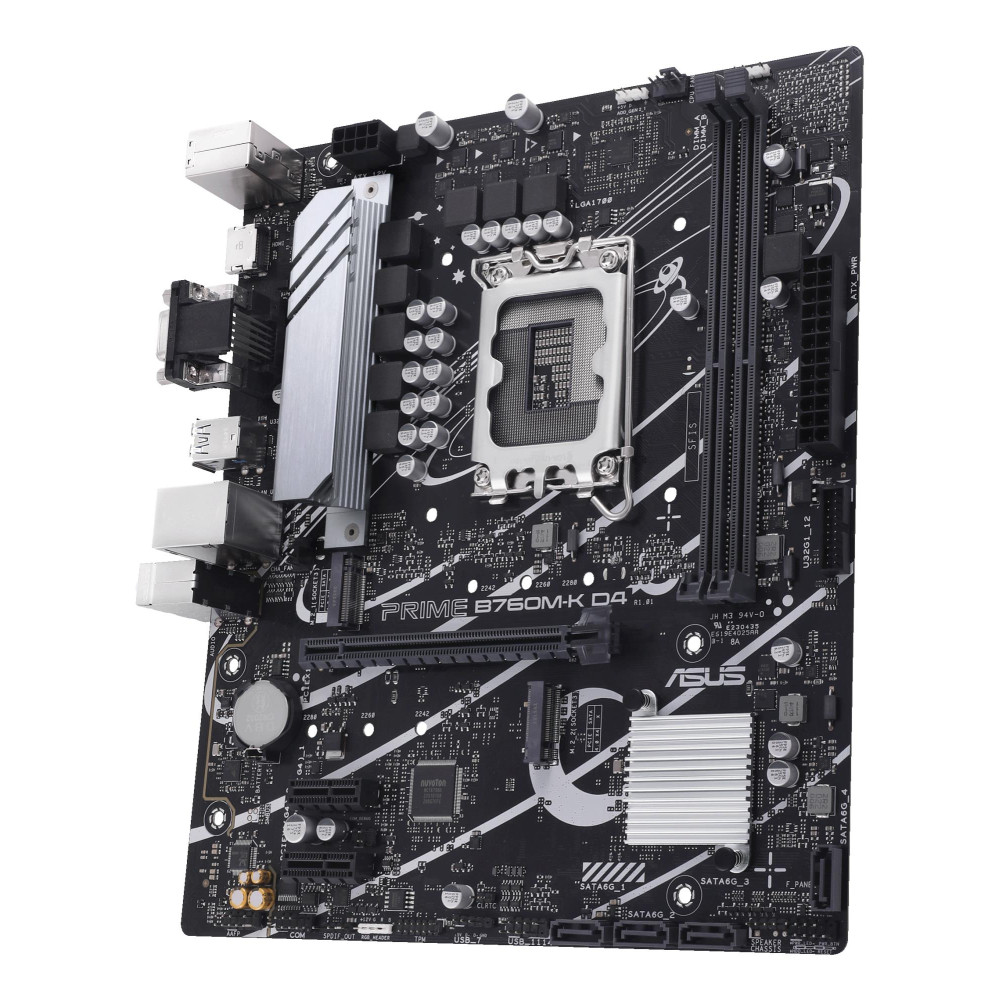

Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PRIMEB760M-KD4

Популярный

Отзывы:

(0)

Наименование:

Asus PRIMEB760M-KD4

Бренд: Asus
Модель: PRIMEB760M-KD4
EAN: 4711387006917
Наличие: 10

102.40€

Без PVN: 84.63€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Характеристики

Specifikācija

12V power connector Yes

BIOS memory size 128

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 1

Number of COM connectors 1

Number of HDDs supported 4

Number of M.2 (M) slots 2

Number of SATA III connectors 4

Parallel processing technology support Not supported

PCI Express x1 (Gen 4.x) slots 2

PCI Express x16 (Gen 4.x) slots 1

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet

Supported memory clock speed (max) 5333

TPM connector Yes

Unit Calculated Volume 0.004834

Unit Calculated Weight 0.998

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

Процессор

Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor manufacturer Intel

Память

Maximum internal memory 64

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333

Supported memory types DDR4-SDRAM

Unbuffered memory Yes

Тип памяти DDR4

Запоминающее устройство

Number of storage drives supported 6

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

Порты

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 2

USB connector type USB Type-A

Количество портов HDMI 1

Количество портов VGA (D-Sub) 1

Подключения

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi No

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

EPS power connector (8-pin) Yes

Form factor mATX

Model PRIME B760M-K D4

Motherboard chipset Intel B760

Motherboard form factor micro ATX

Number of memory slots 2

Package depth 51.5

Package height 263

Package weight 926.3

Package width 270

PS/2 ports quantity 1

Supported processor sockets LGA 1700

Wake-on-LAN ready Yes

Weight 528

Windows operating systems supported Windows 10 x64/Windows 11

Высота 36

Глубина 211

Кабели в комплекте SATA

Чипсет B760

Ширина 244
