Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 2xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PRIMEB760M-A-CSM

Популярный

Отзывы:

(0)

Наименование:

Asus PRIME B760M-A-CSM

Бренд: Asus
Модель: PRIME B760M-A-CSM
EAN: 4711387140710
Наличие: 9

132.57€

Без PVN: 109.56€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

BIOS memory size 128

Clear CMOS button Yes

CPU fan connector Yes

ECC ?ompatibility Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 2

Number of COM connectors 1

Number of HDDs supported 4

Number of M.2 (M) slots 2

Number of SATA III connectors 4

Parallel processing technology support Not supported

PCI Express x16 (Gen 4.x) slots 3

Product Net Weight 0.8

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 7200

TPM connector Yes

Unit Calculated Volume 0.004548

Unit Calculated Weight 1.18

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

WiFi-AP antenna jack 1

Процессор

Compatible processor series Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor manufacturer Intel

Память

Maximum internal memory 128

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 6

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

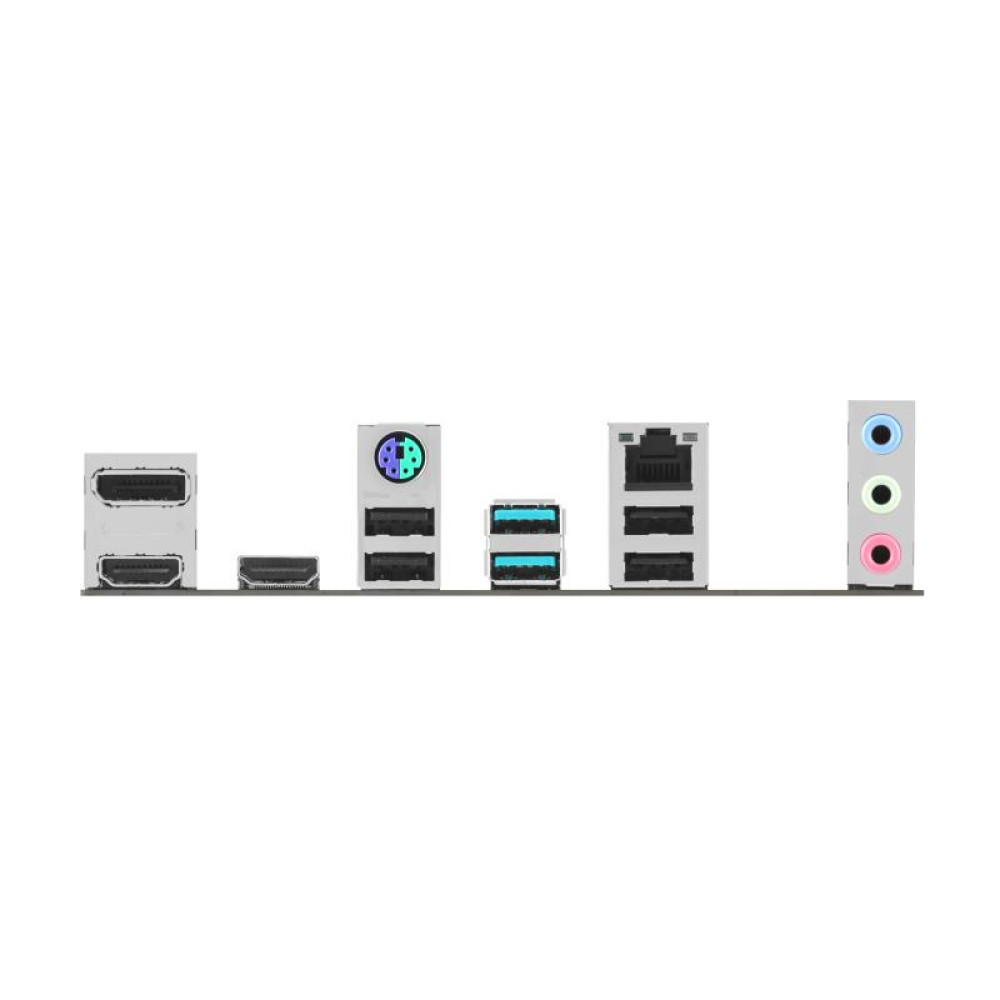

Порты

DisplayPorts quantity 1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 3

USB 2.0 ports quantity 4

Количество портов HDMI 2

Подключения

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi Yes

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

EPS power connector (8-pin) Yes

Form factor mATX

Line-in Yes

Model PRIME B760M-A-CSM

Motherboard chipset Intel B760

Motherboard form factor micro ATX

Number of memory slots 4

Package depth 263

Package height 52

Package weight 1140

Package width 270

PS/2 ports quantity 1

Supported processor sockets LGA 1700

Windows operating systems supported Windows 10 x64/Windows 11

Высота 40

Глубина 244

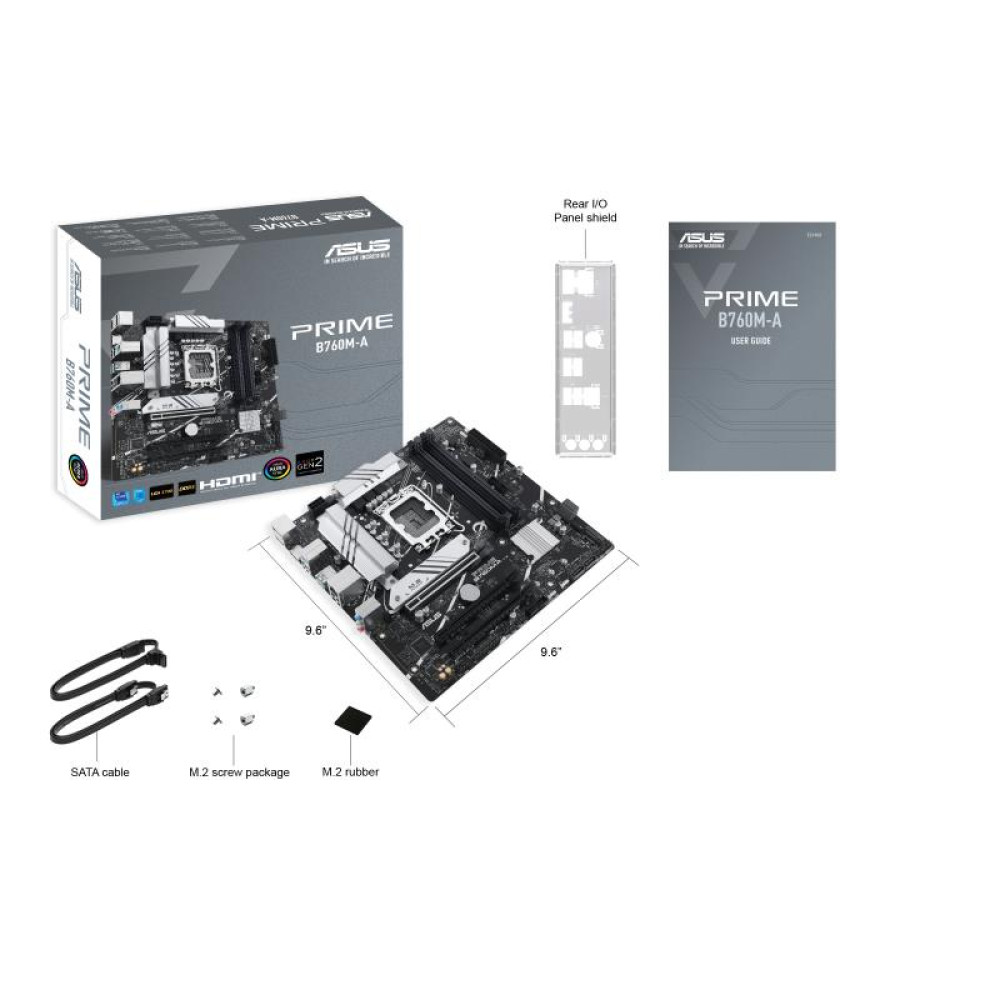

Кабели в комплекте SATA

Чипсет B760

Ширина 244
