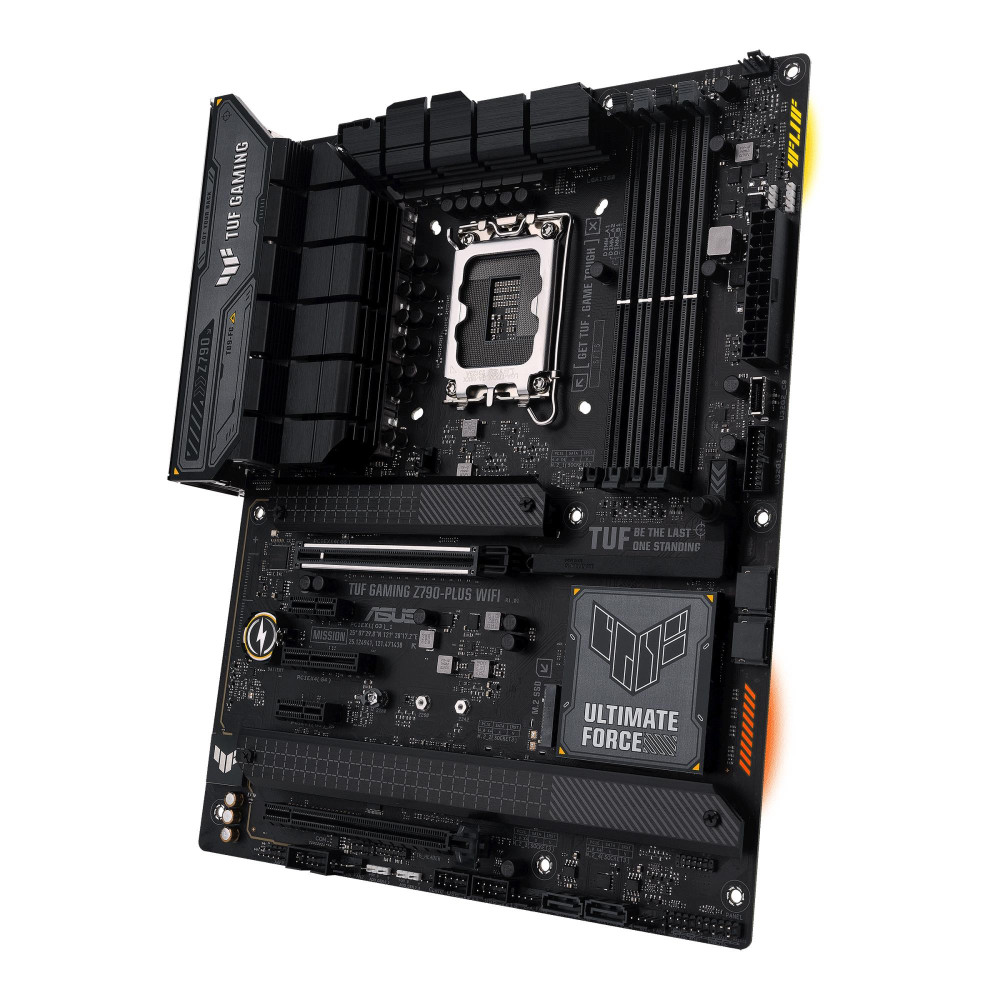

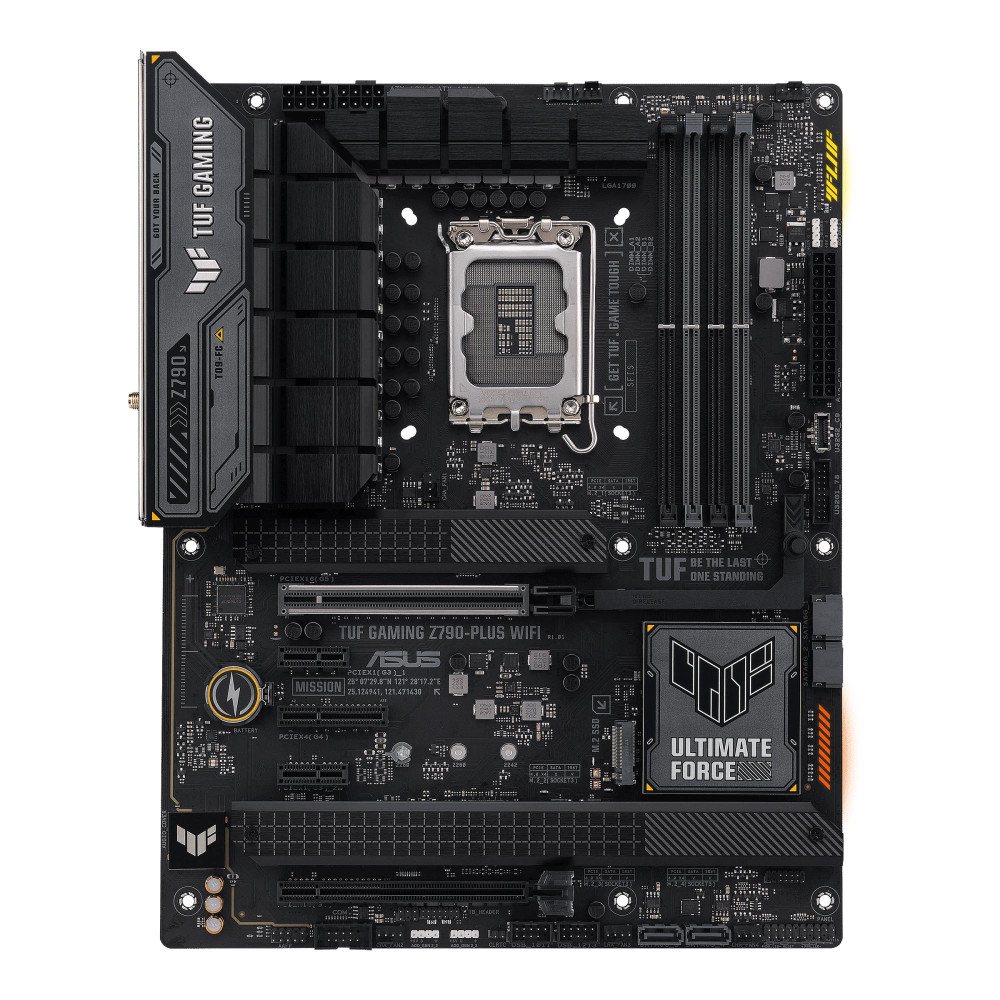

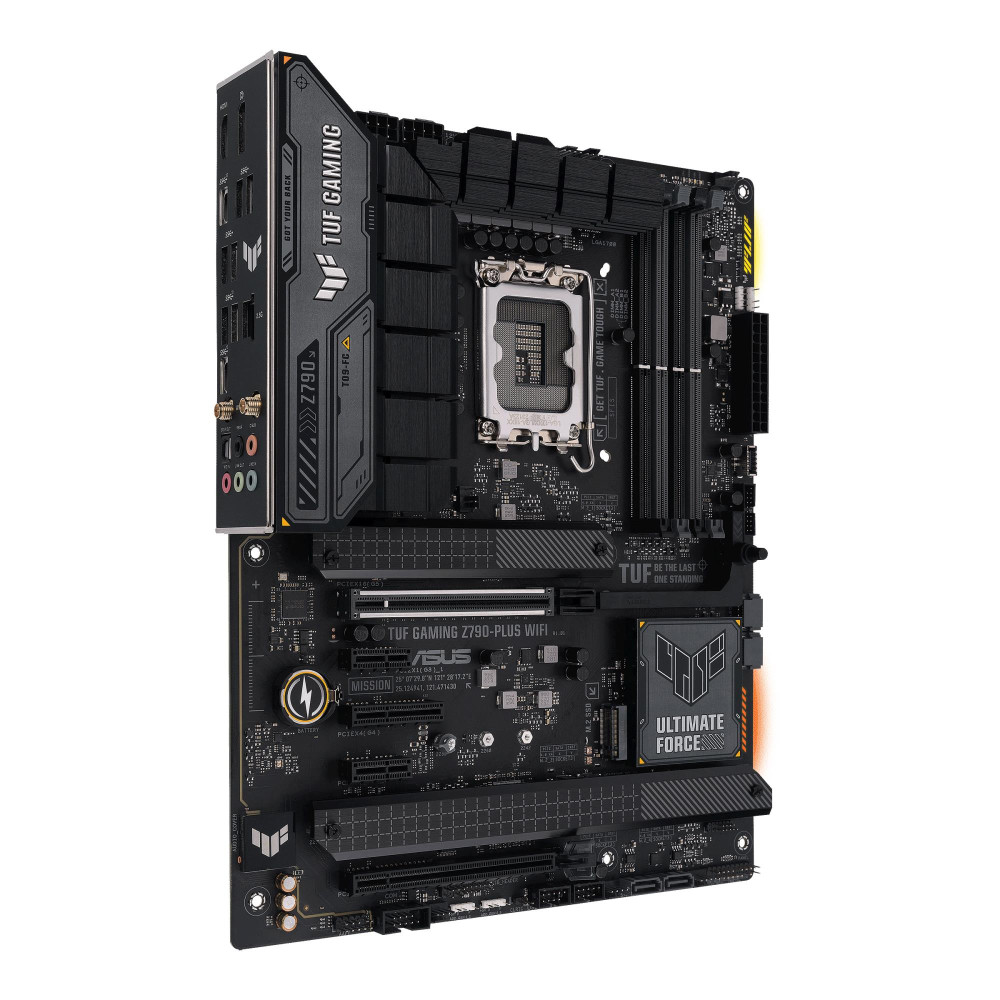

Mainboard, ASUS, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 4x , 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 4xM.2, 1xHDMI, 1xDisplayPort, 6xUSB 3.2, 2xUSB-C, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, TU

Популярный

Отзывы:

(0)

Наименование:

Asus TUFGAMINGZ790-PLUSWIFI

Бренд: Asus
Модель: TUFGAMINGZ790-PLUSWIFI
EAN: 4711387014509
Наличие: 8

246.44€

Без PVN: 203.67€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

Audio chip Realtek S1220A

BIOS memory size 192

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 4

Number of COM connectors 1

Number of M.2 (M) slots 4

Number of SATA III connectors 4

On-board graphics card No

Parallel processing technology support Not supported

PCI Express x1 (Gen 3.x) slots 2

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

PCI Express x4 (Gen 4.x) slots 1

Product colour Black

RGB LED pin header Yes

S/PDIF out port Yes

Summary ASUS TUF GAMING Z790-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 7200

Thunderbolt headers 1

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

Unit Calculated Volume 0.008693

Unit Calculated Weight 2.17

Units per Shipping Box 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

WiFi-AP antenna jack 2

Процессор

Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor manufacturer Intel

Память

Maximum internal memory 128

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

Порты

DisplayPort version 1.4

DisplayPorts quantity 1

HDMI version 2.1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 2

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Версия Bluetooth 5.3

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

EPS power connector (8-pin) Yes

Form factor ATX

Line-in Yes

Model TUF GAMING Z790-PLUS WIFI

Motherboard chipset Intel Z790

Motherboard form factor ATX

Number of memory slots 4

Power source type ATX

Supported processor sockets LGA 1700

User guide Yes

Windows operating systems supported Windows 10/Windows 11

Глубина 244

Кабели в комплекте SATA

Чипсет Z790

Ширина 305
