Mainboard, ASUS, Intel Z890, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 4xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 2xUSB 3.0, 1xUSB 3.1, 1xUSB-C w/Thunderbolt, 1xRJ45, PRIM

Популярный

Отзывы:

(0)

Наименование:

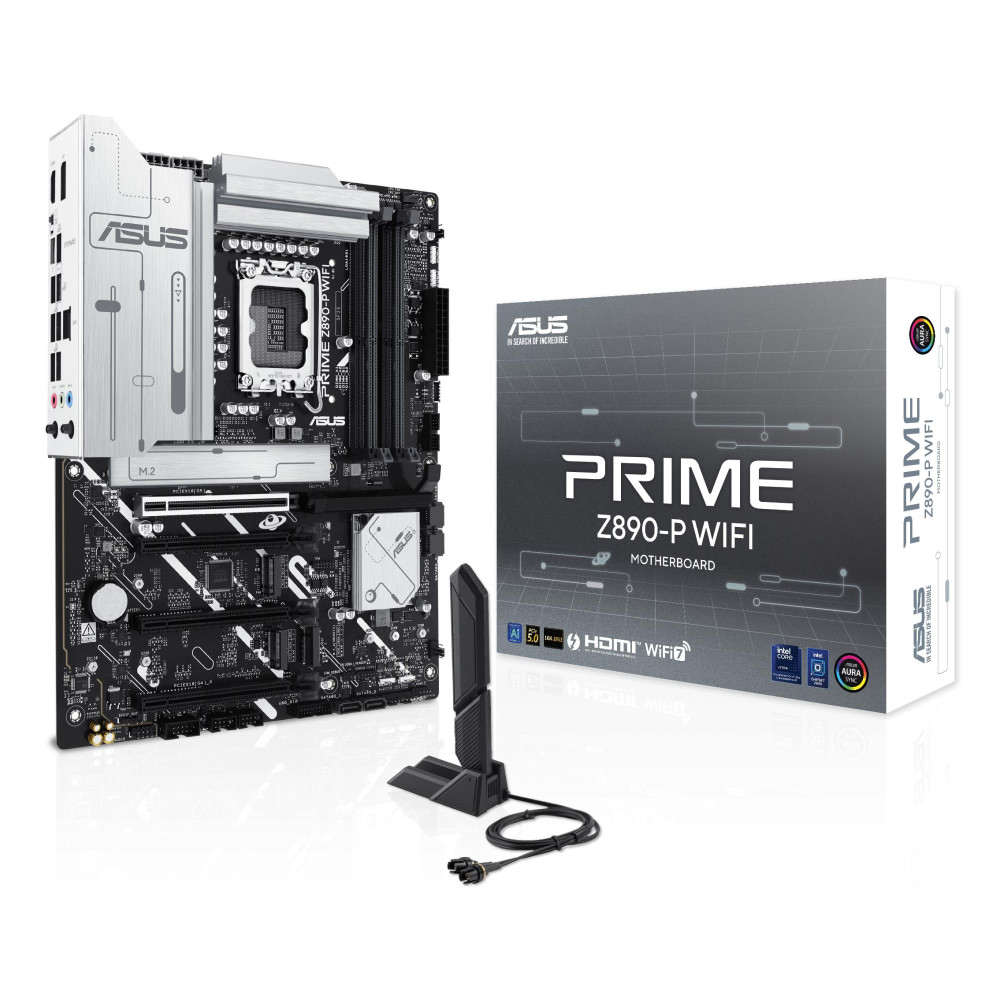

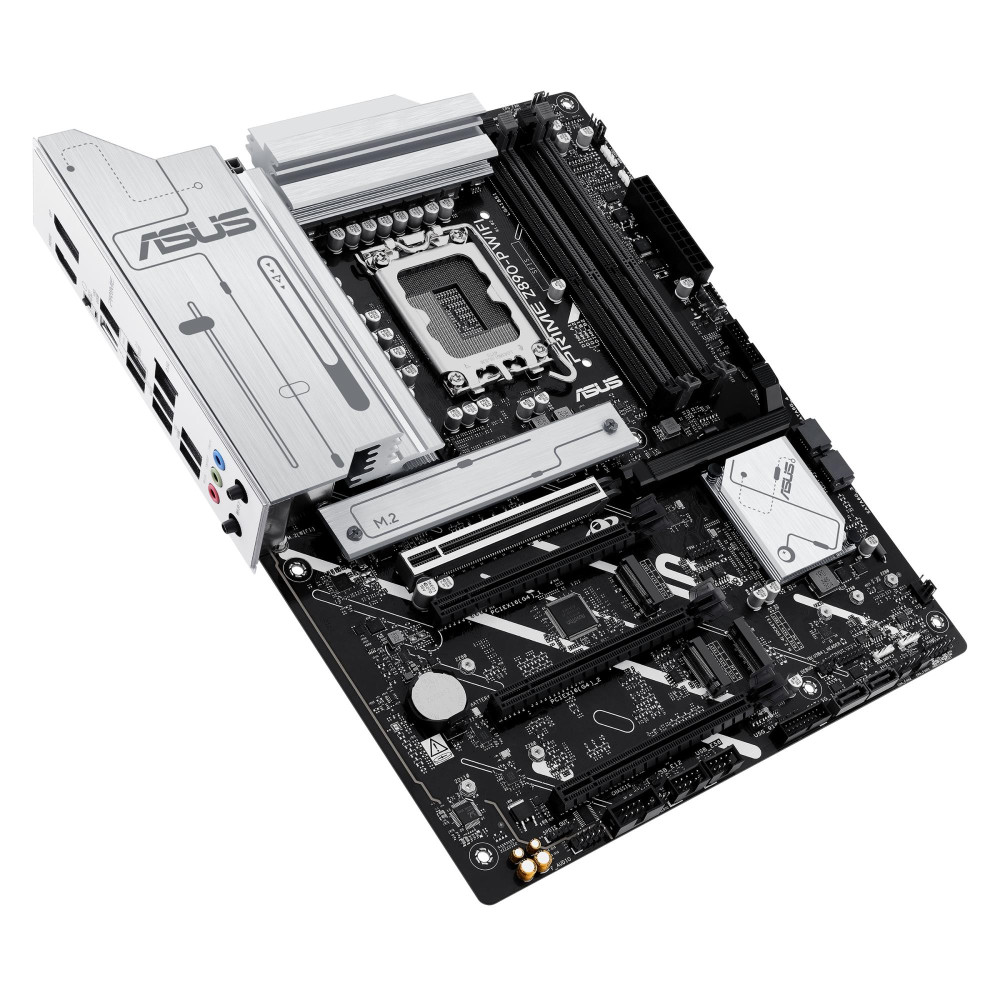

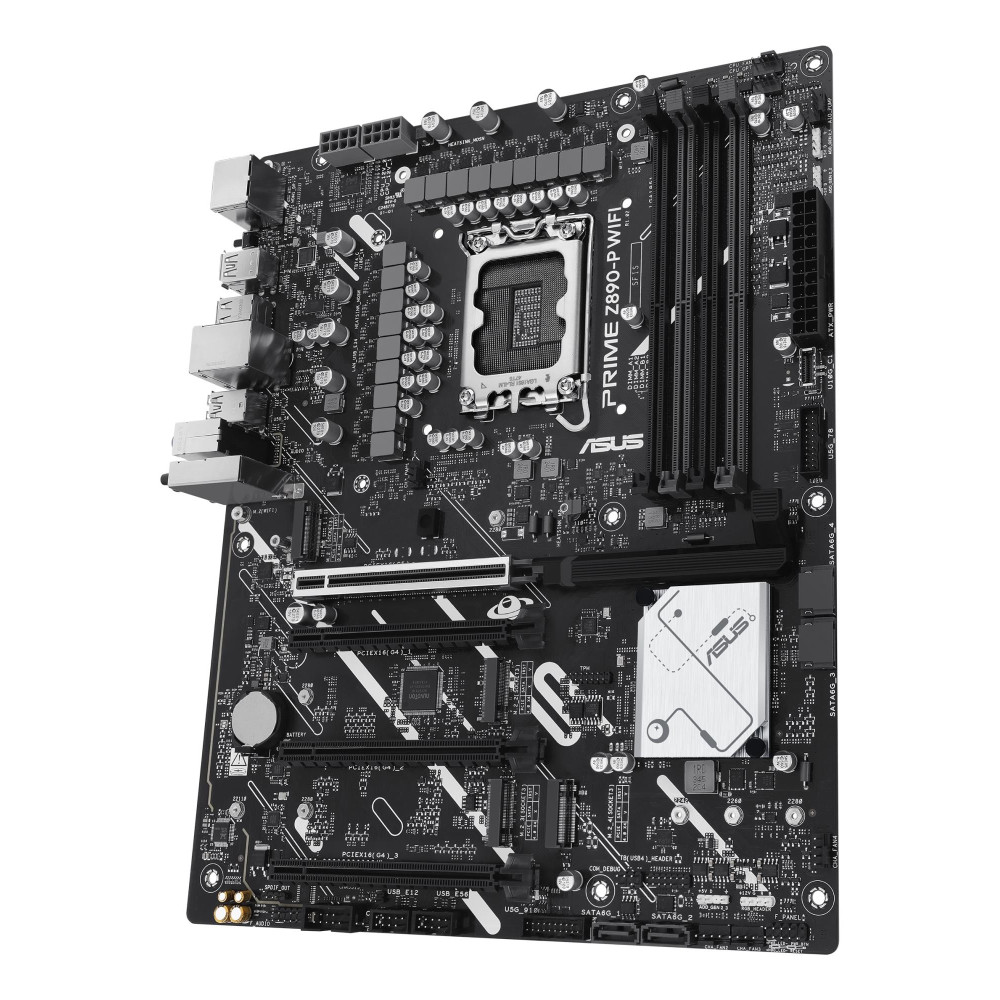

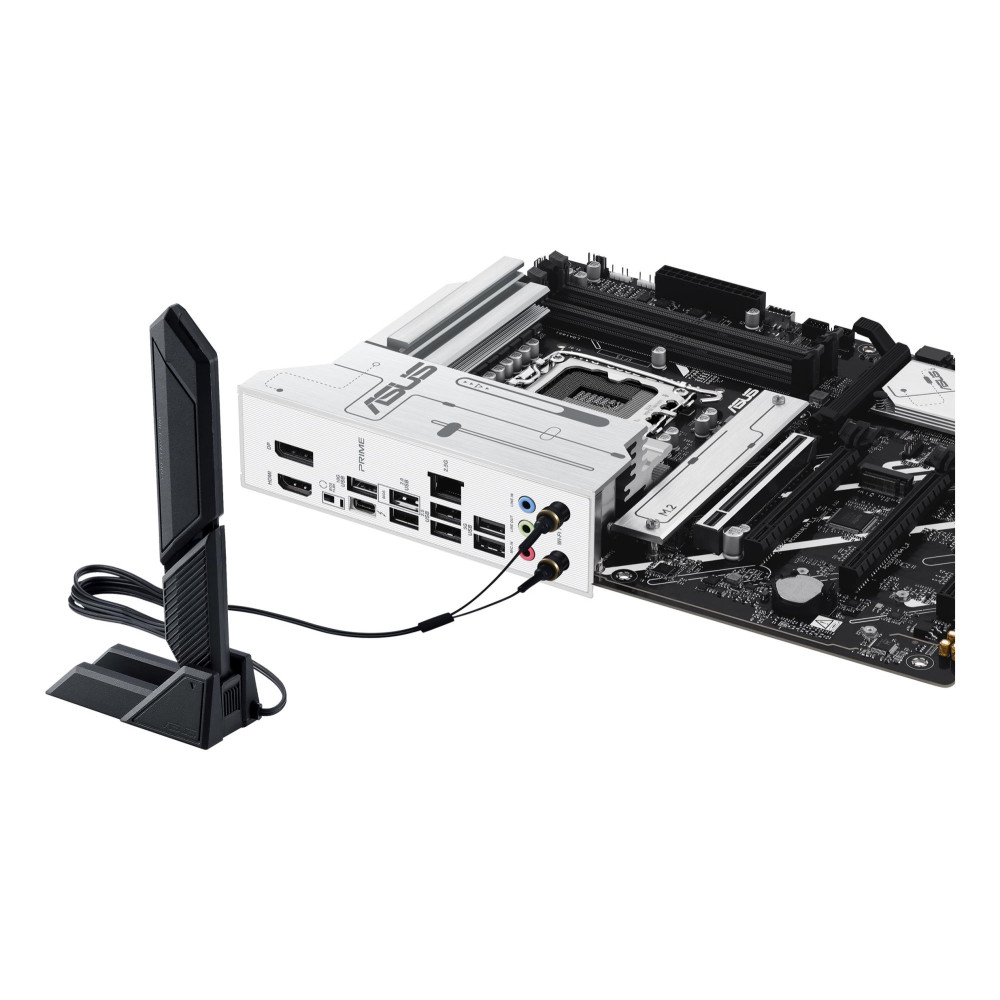

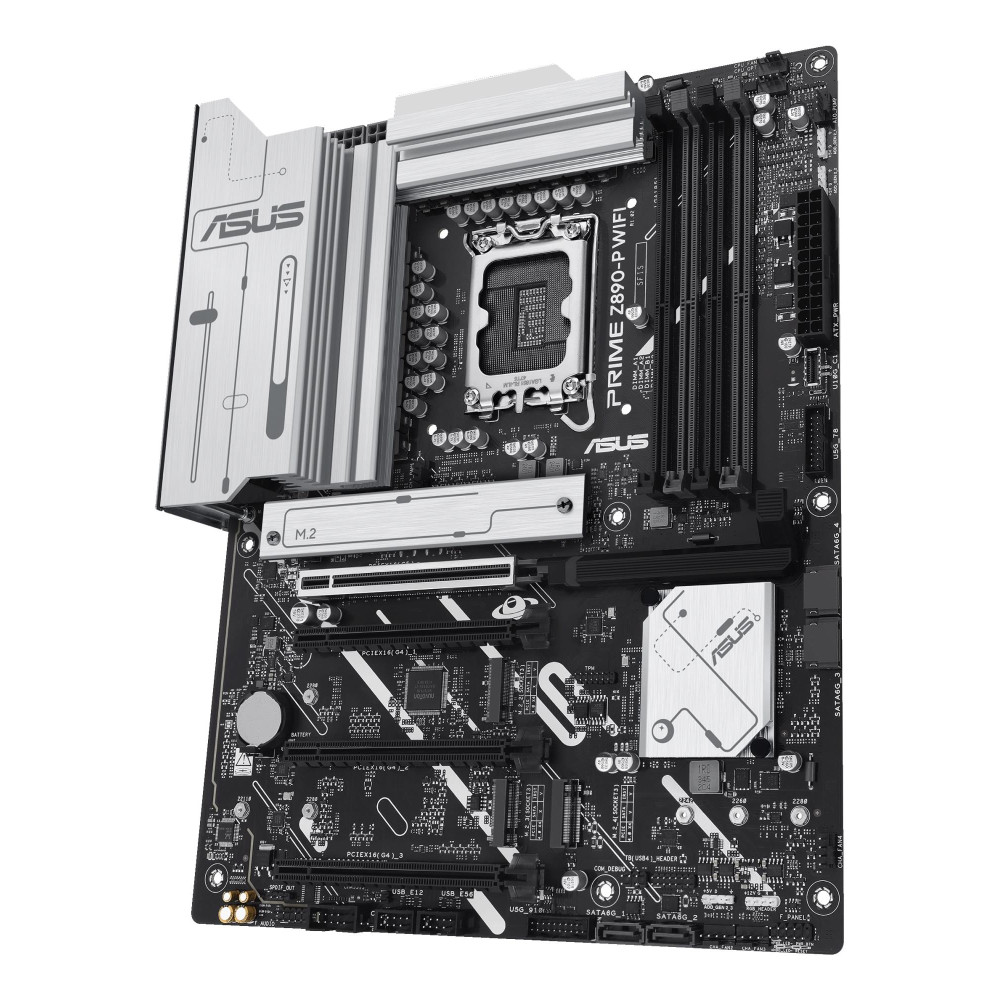

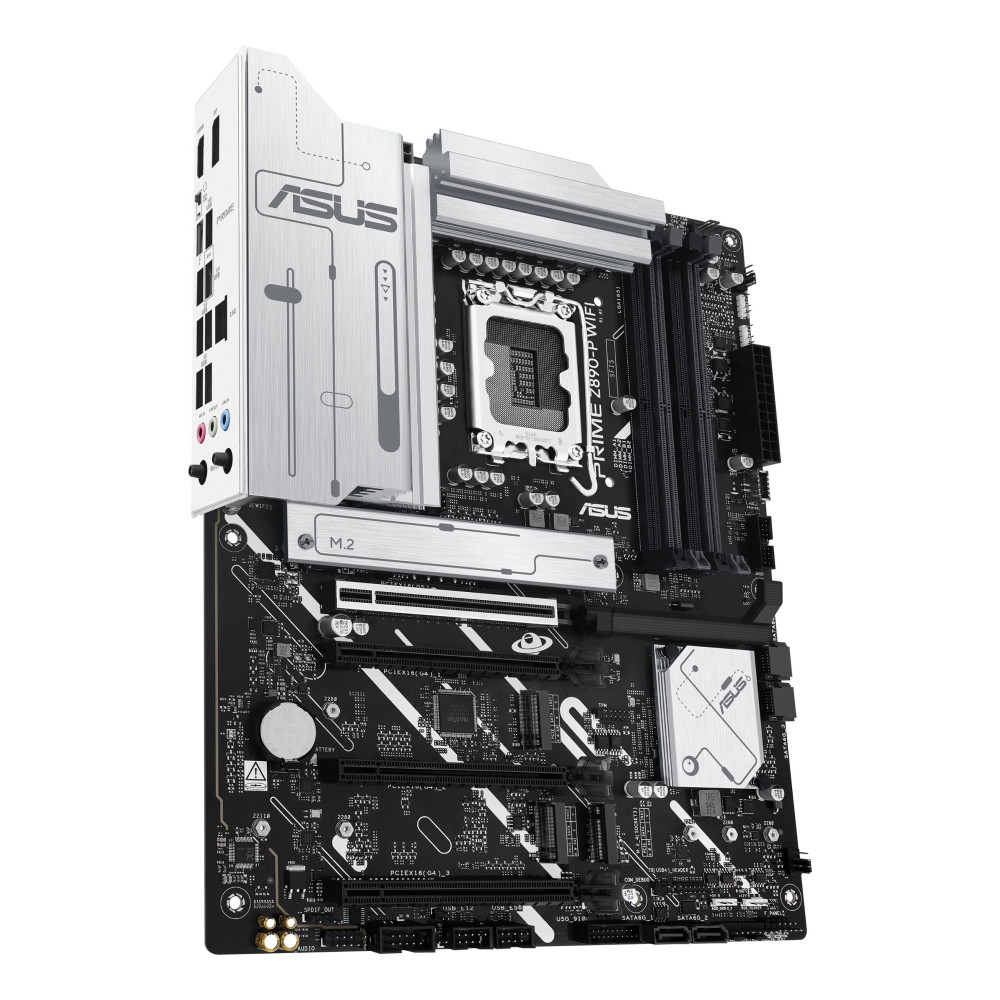

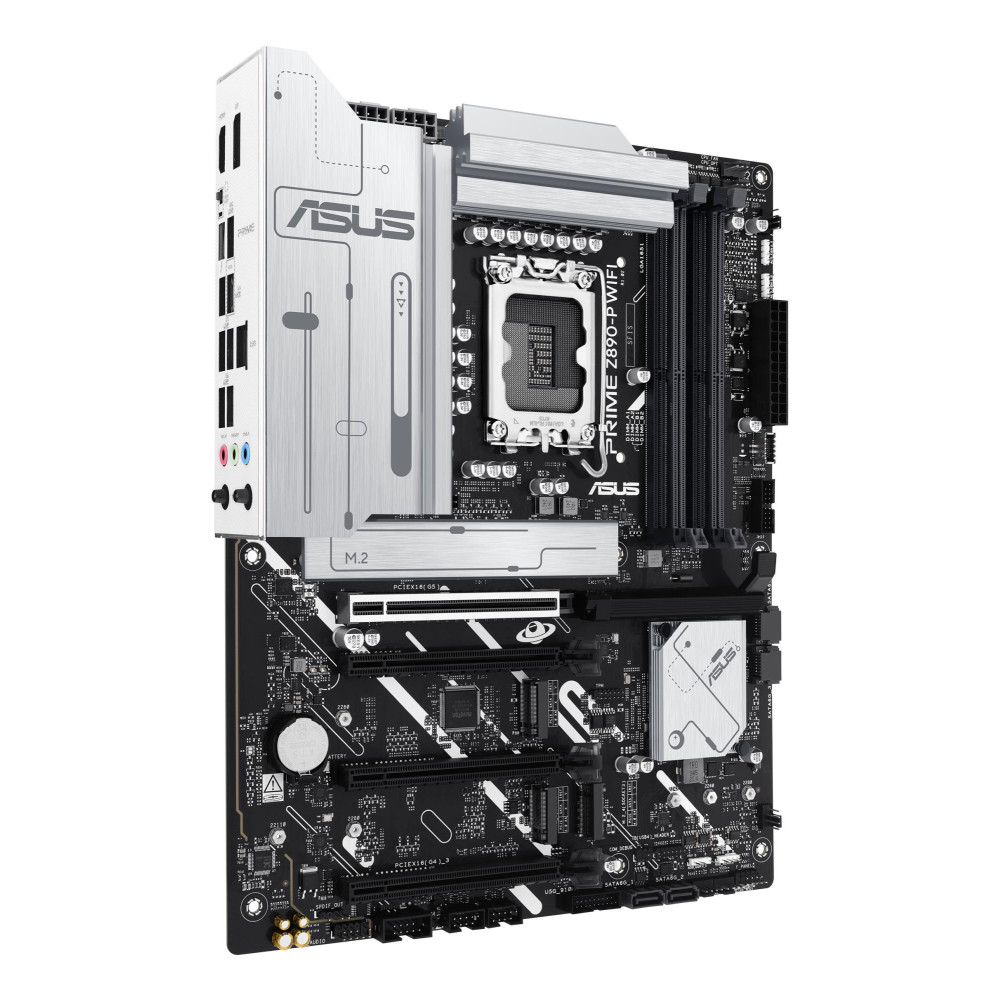

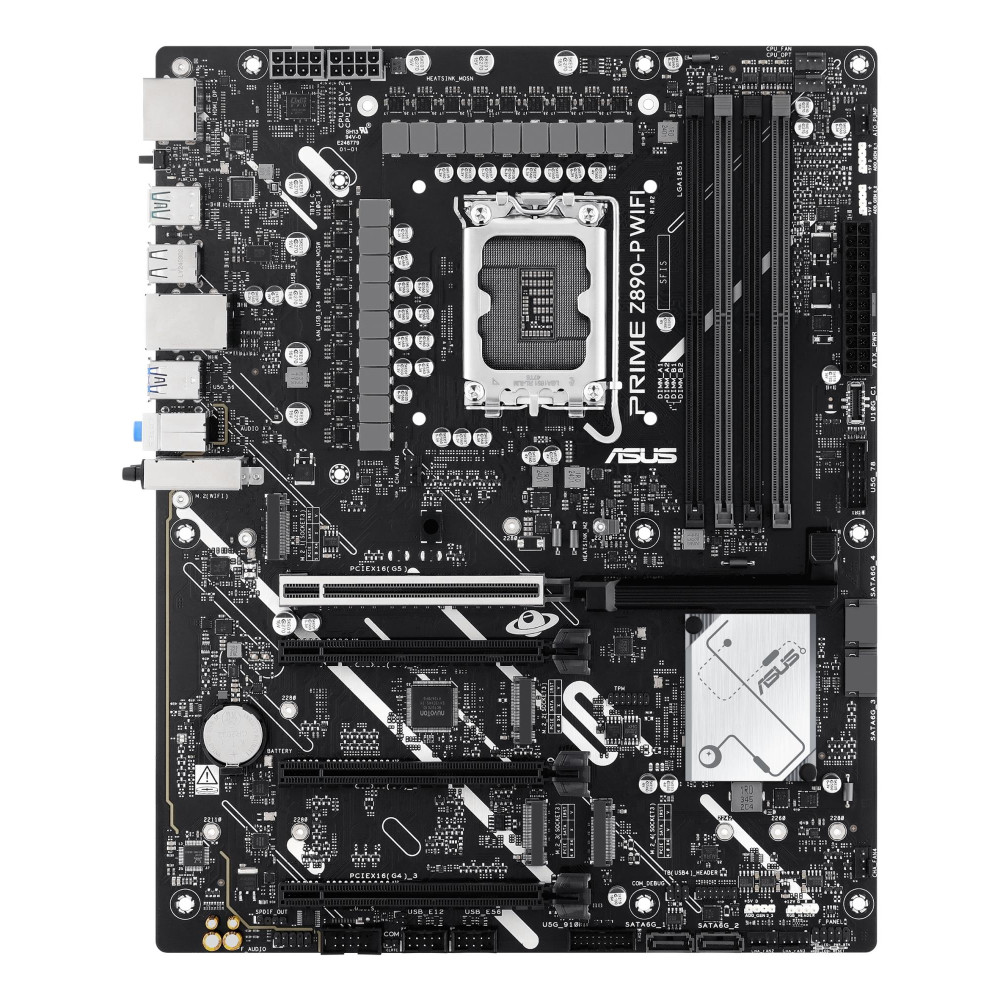

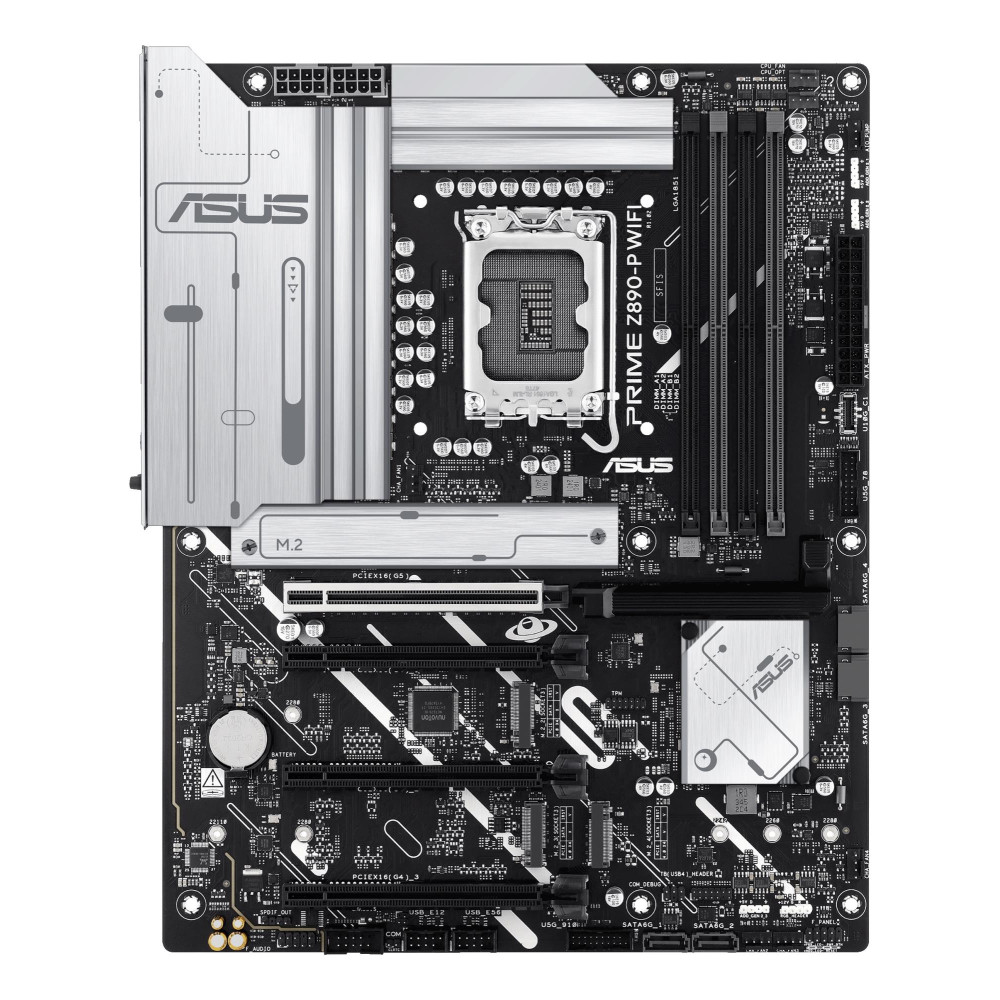

Asus PRIME Z890-P WIFI

Бренд: Asus
Модель: PRIME Z890-P WIFI
EAN: 4711387754818
Наличие: 14

225.81€

Без PVN: 186.62€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

Back-to-BIOS button Yes

BIOS memory size 256

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 4

Number of COM connectors 1

Number of HDDs supported 4

Number of M.2 (M) slots 4

Number of SATA III connectors 4

On-board graphics card No

Parallel processing technology support Not supported

PCI Express x16 (Gen 4.x) slots 3

PCI Express x16 (Gen 5.x) slots 1

Product colour Black

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME Z890-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 7600

Thunderbolt headers 1

Top Wi-Fi standard Wi-Fi 7 (802.11be)

TPM connector Yes

Unit Calculated Volume 0.008892

Unit Calculated Weight 2.02

Units per Shipping Box 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

Процессор

Compatible processor series Intel Core Ultra (Series 2)

Processor manufacturer Intel

Память

Maximum internal memory 192

Memory channels Dual-channel

Memory slots type DIMM

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 8

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

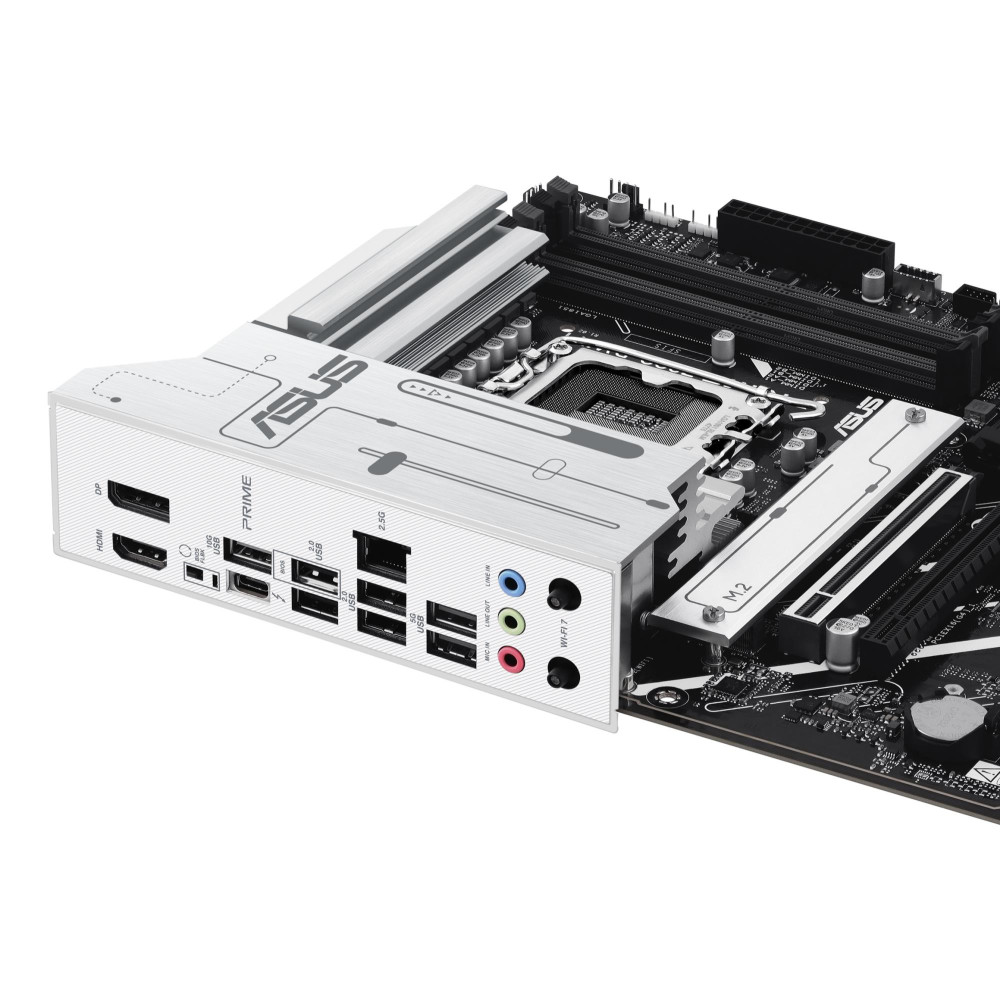

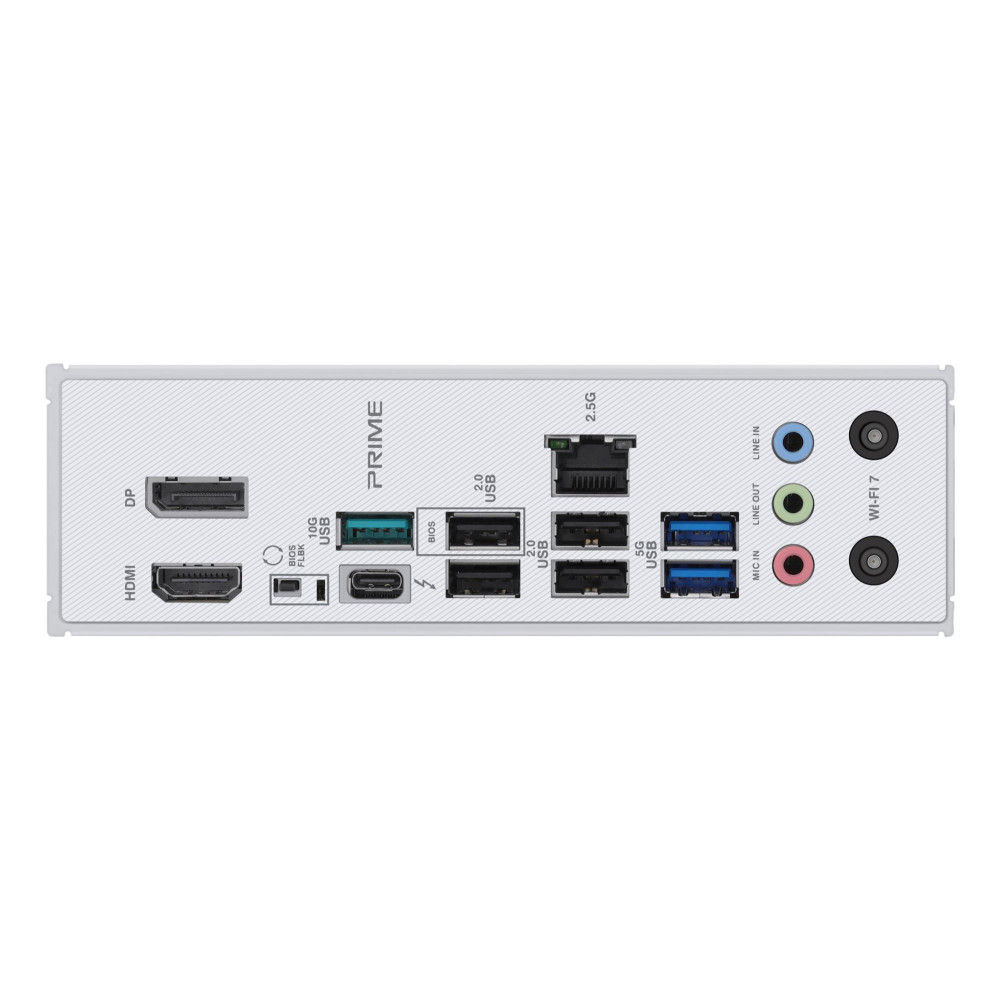

Порты

DisplayPort version 1.4

DisplayPorts quantity 1

HDMI version 2.1

Headphone outputs 1

USB 2.0 connectors 2

USB 2.0 ports quantity 4

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Версия Bluetooth 5.4

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

Cooling type Passive

EPS power connector (8-pin) Yes

Form factor ATX

Line-in Yes

Model PRIME Z890-P WIFI

Motherboard chipset Intel Z890

Motherboard form factor ATX

Number of memory slots 4

Package depth 273

Package height 68

Package weight 1893

Package width 353

Power source type ATX

Quick installation guide Yes

Windows operating systems supported Windows 10/Windows 11

Глубина 244

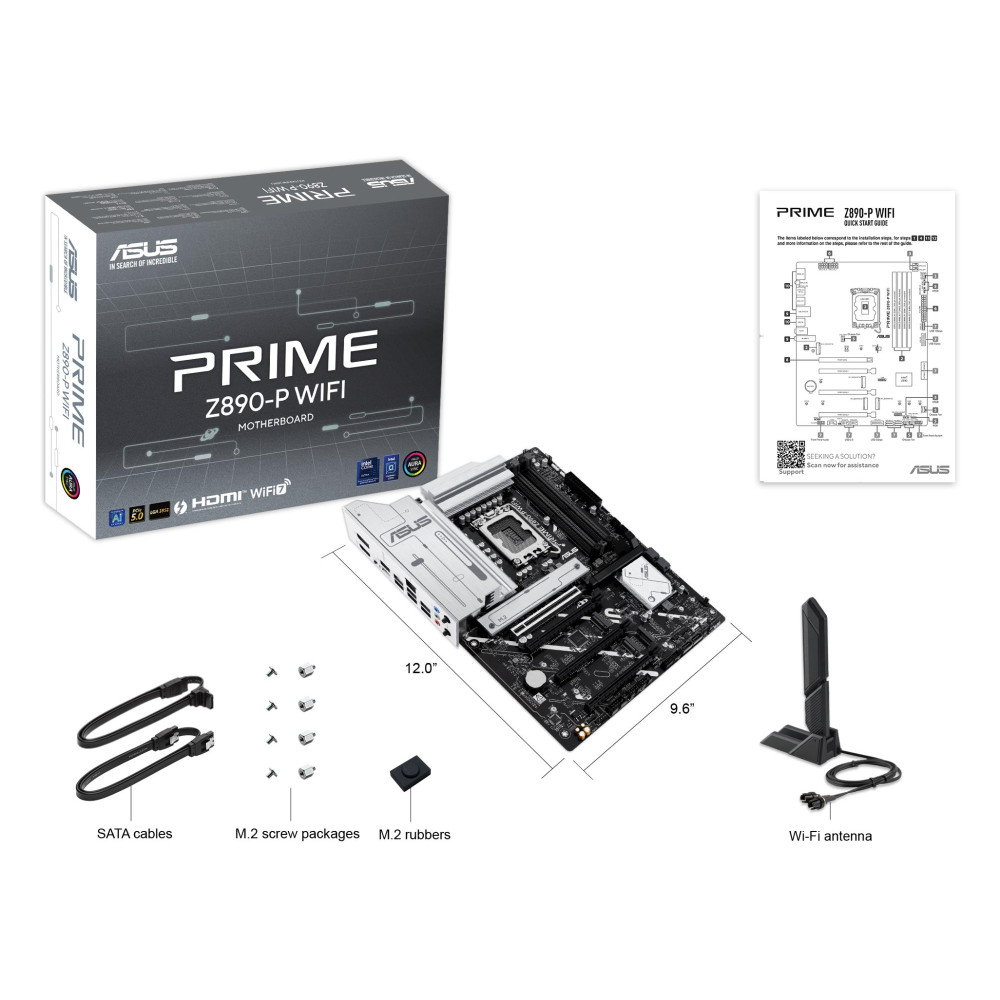

Кабели в комплекте SATA

Чипсет Z890

Ширина 305
