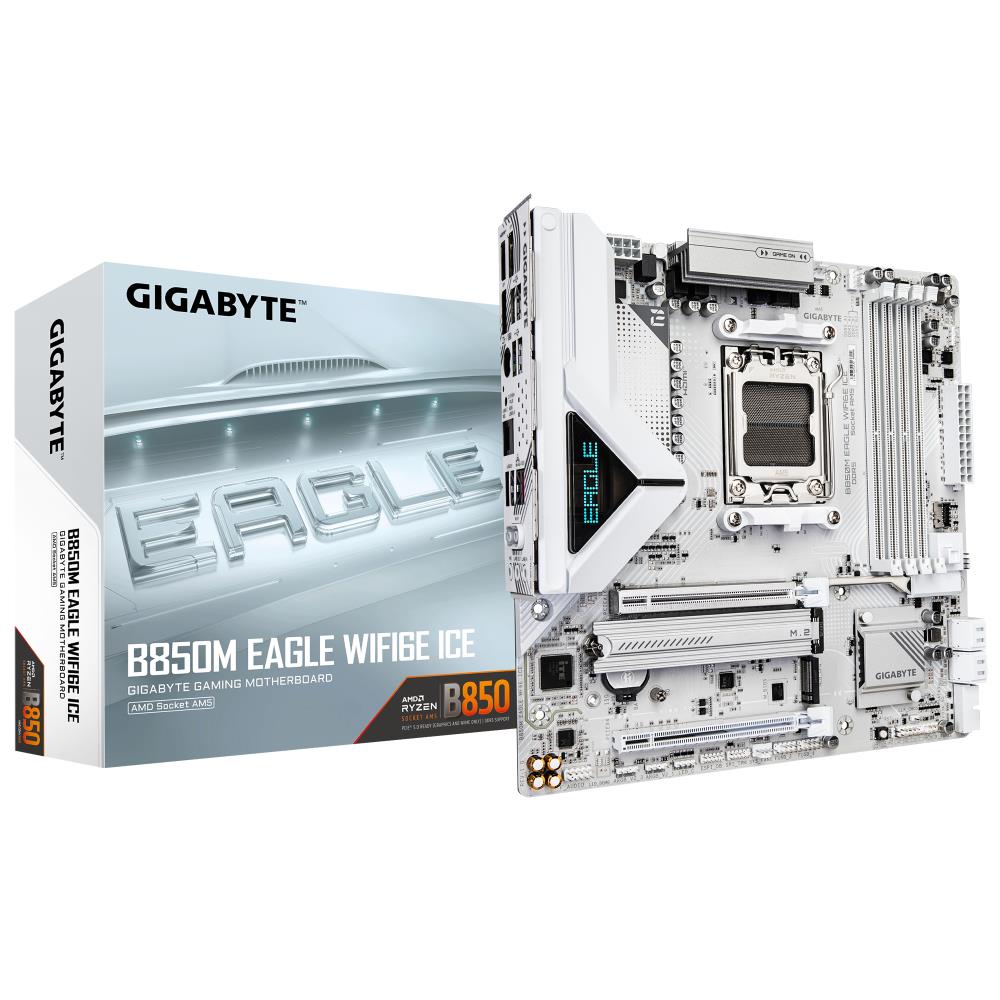

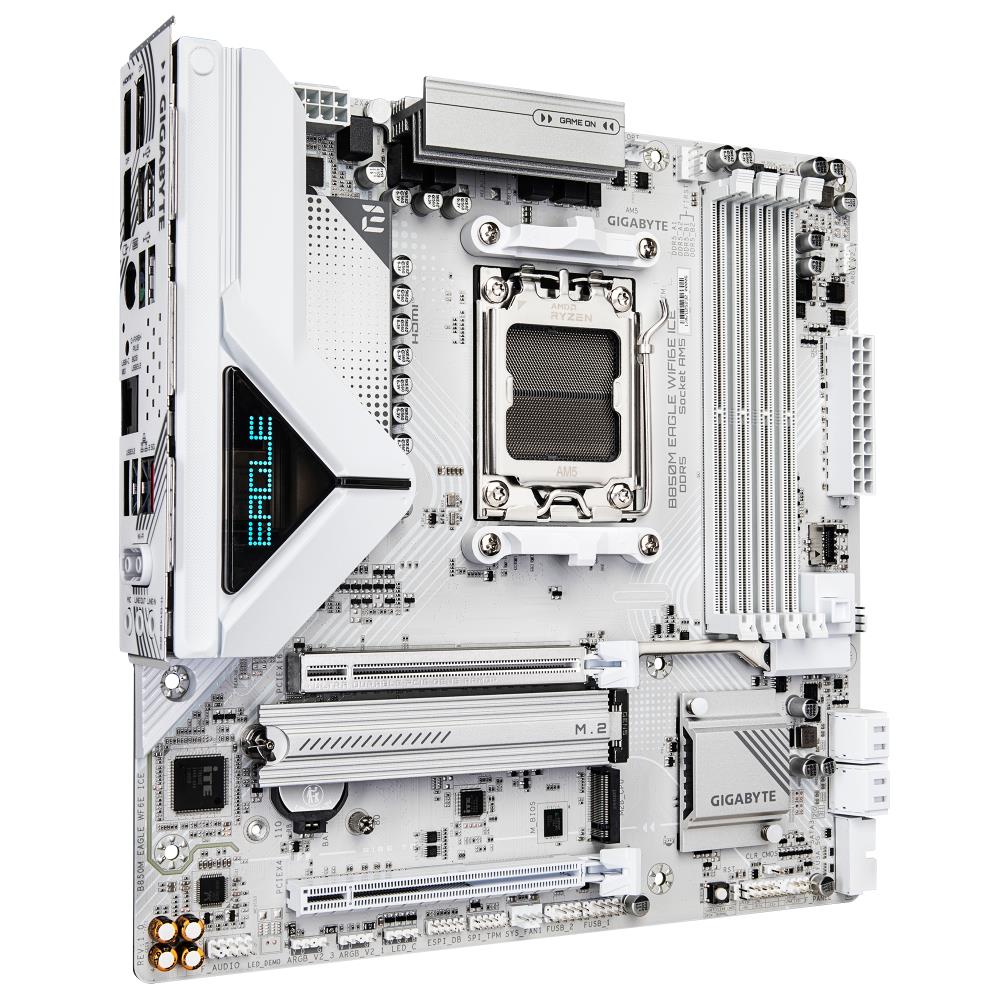

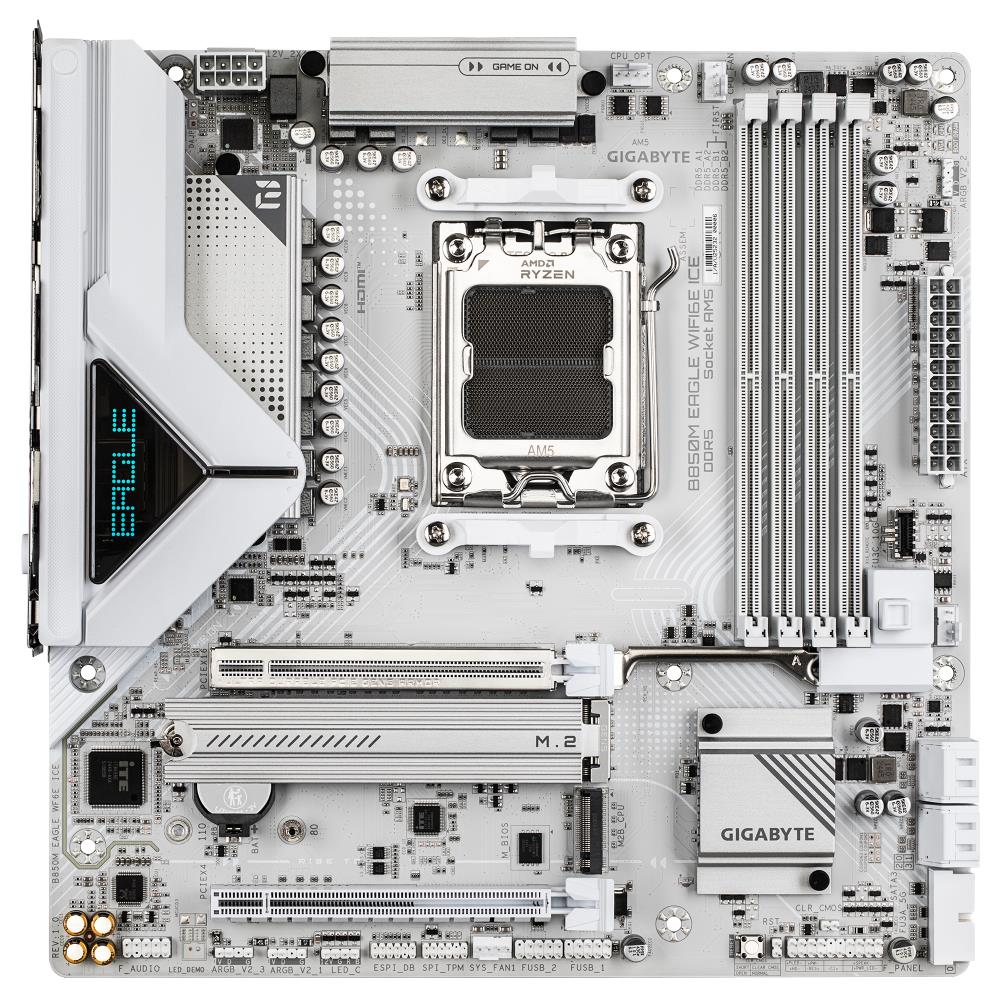

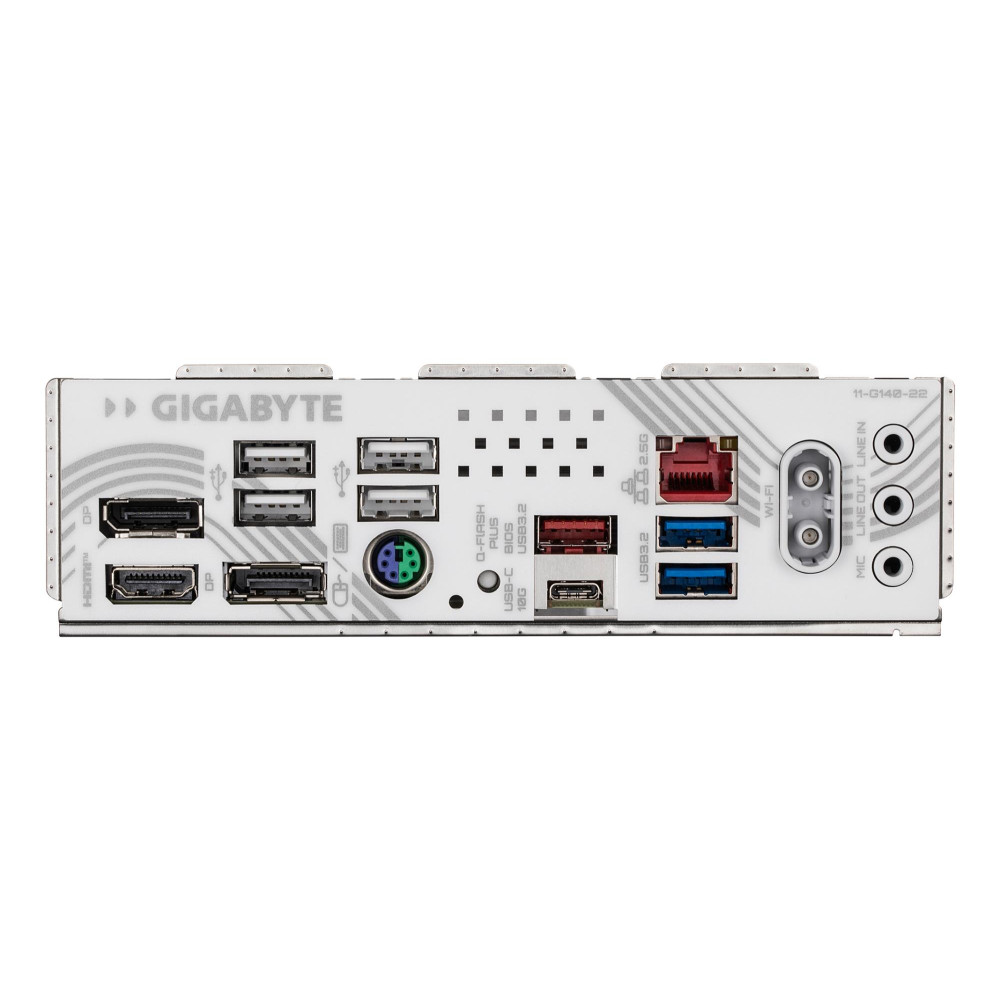

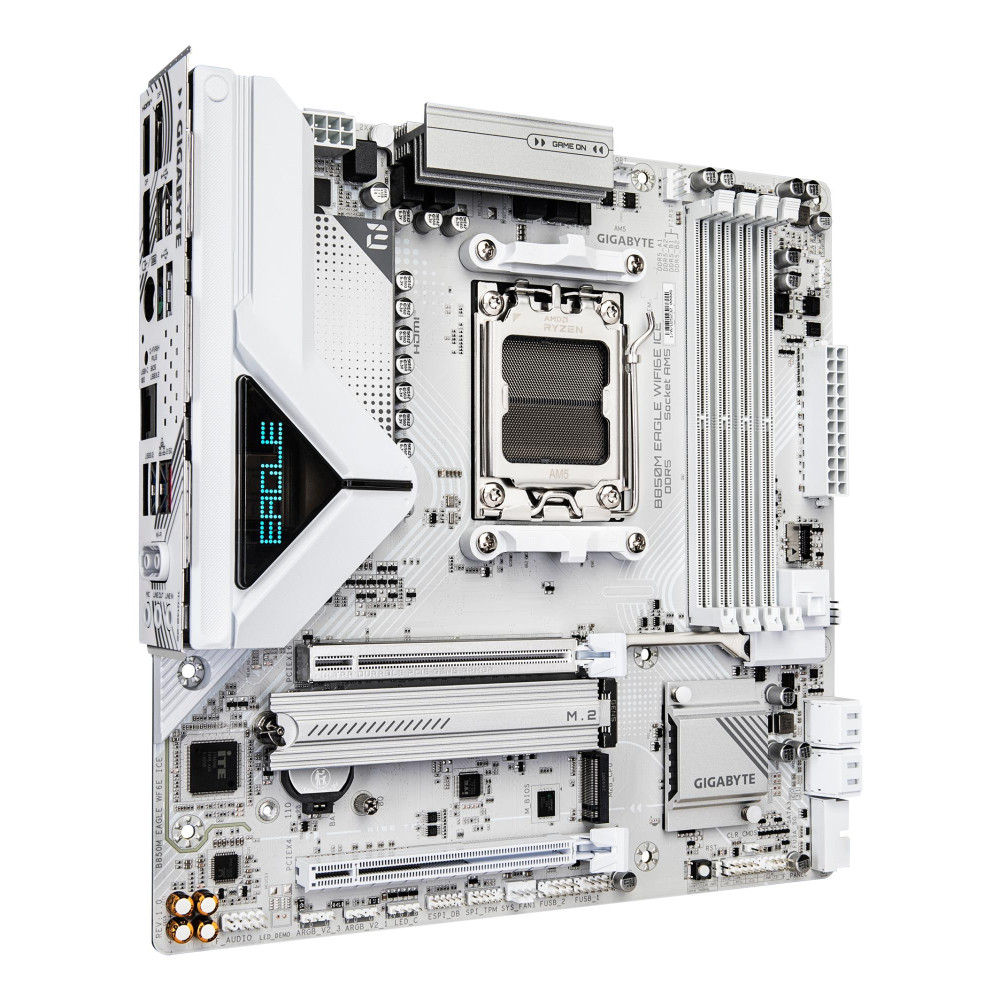

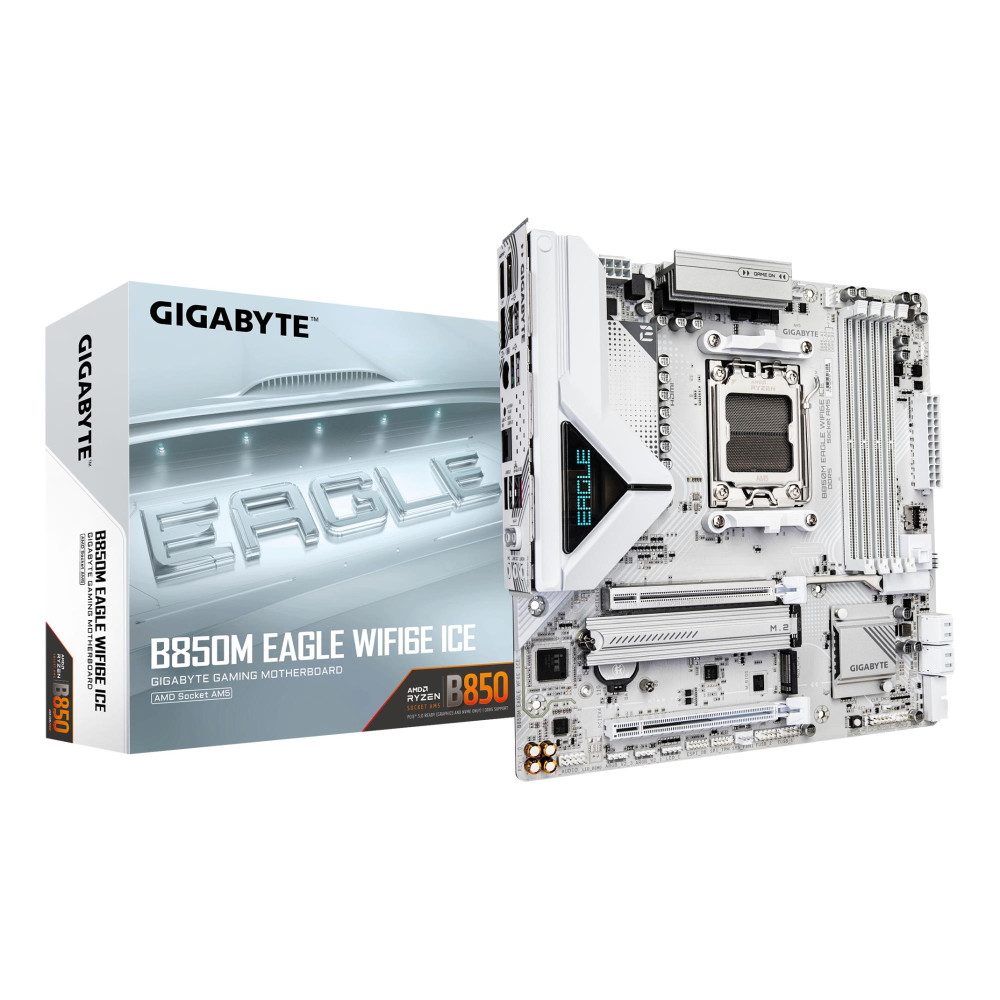

Mainboard, GIGABYTE, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B850MEAGLEWF6EICE
Популярный
- Бренд: Gigabyte
- Модель: B850M EAGLE WF6E ICE
- EAN: 4719331871789
- Наличие: 7
Наименование:
Gigabyte B850M EAGLE WF6E ICE
181.31€
Без PVN: 149.84€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
12V power connector
Да
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Да
BIOS memory size
256
Clear CMOS jumper
Да
CPU fan connector
Да
Desktop Management Interface (DMI) version
2.7
ECC ?ompatibility
Non-ECC
Front panel audio connector
Да
Front panel connector
Да
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
AMD
Number of chassis fan connectors
2
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of water pump connectors
2
On-board graphics card
Нет
Parallel processing technology support
Не поддерживается
PC health monitoring
Water cooling/Вентилятор/Напряжение/Температура
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
Белый
Products per shipping (inner) case
1
RGB LED pin header
Да
Screws included
Да
Summary
GIGABYTE B850M EAGLE WIFI6E ICE. Производитель процессора: AMD, Сокет процессора: Socket AM5, Совместимые серии процессоров: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Поддерживаемые типы памяти: DDR5-SDRAM, Максимальная внутренняя память: 256 GB, Тип слотов памяти: DIMM. Поддерживаемые интерфейсы носителя: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Поддерживаемые типы накопителей: HDD & SSD, Уровни RAID: 0, 1, 5, 10. Максимальное разрешение: 4096 x 2160 пикселей. Тип Ethernet интерфейса: 2.5 Gigabit Ethernet, Основной стандарт Wi-Fi: Wi-Fi 6E (802.11ax), Wi-Fi стандартов: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Supported memory clock speed (max)
8200
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Да
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Warranty period
3
WiFi-AP antenna jack
2
WLAN controller model
Realtek RTL8852CE
Вес в упаковке
1.46
Количество в транспортной упаковке
8
Модель
B850M EAGLE WIFI6E ICE
Объем
0.007341
Процессор
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Сокет процессора
AM5
Память
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Supported memory types
DDR5-SDRAM
Unbuffered memory
Да
Тип памяти
DDR5
Запоминающее устройство
Number of storage drives supported
6
RAID levels
0/1/10/5
RAID support
Да
Supported storage drive interfaces
M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types
HDD & SSD
Порты
DisplayPort version
1.4
DisplayPorts quantity
2
HDMI version
2.1
Headphone outputs
1
Microphone in
Да
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Количество портов HDMI
1
Подключения
Bluetooth
Да
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Да
Wi-Fi
Да
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Версия Bluetooth
5.3
Порты локальной сети Ethernet (RJ-45)
1
Батарея
Batteries included
Да
Battery type
CR2032
Battery weight
3
Количество ячеек батареи
1
Технология аккумуляторов
Lithium-Manganese Dioxide (LiMnO2)
Спецификация
ATX Power connector (24-pin)
Да
Audio output channels
7.1
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Component for
ПК
Cooling type
Пассивный
Country of origin
Китай
EPS power connector (8-pin)
Да
Form factor
mATX
HDCP
Да
Line-in
Да
Maximum resolution
4096 x 2160
Motherboard chipset
AMD B850
Motherboard form factor
Микро ATX
Number of memory slots
4
Package weight
1900
Power source type
ATX
PS/2 ports quantity
1
Supported processor sockets
Socket AM5
Weight
1700
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Высота
35
Глубина
244
Чипсет
B850
Ширина
244
