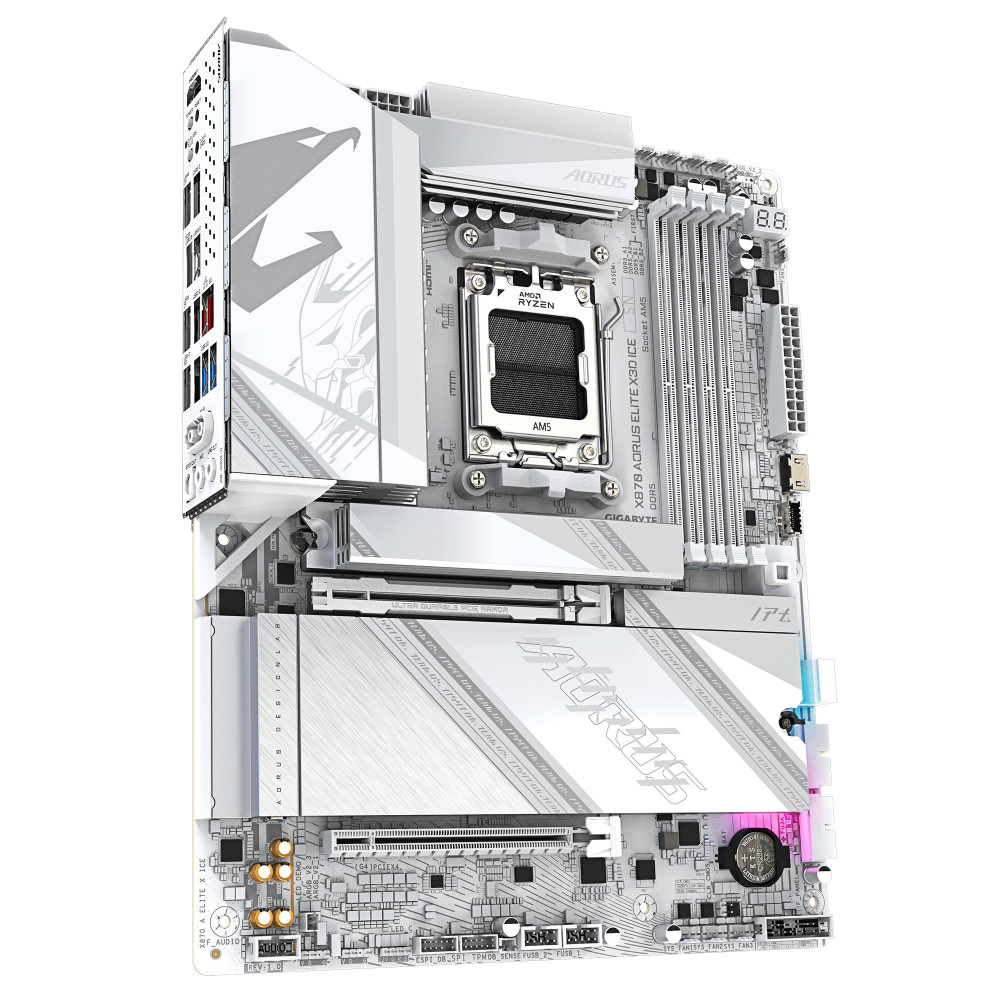

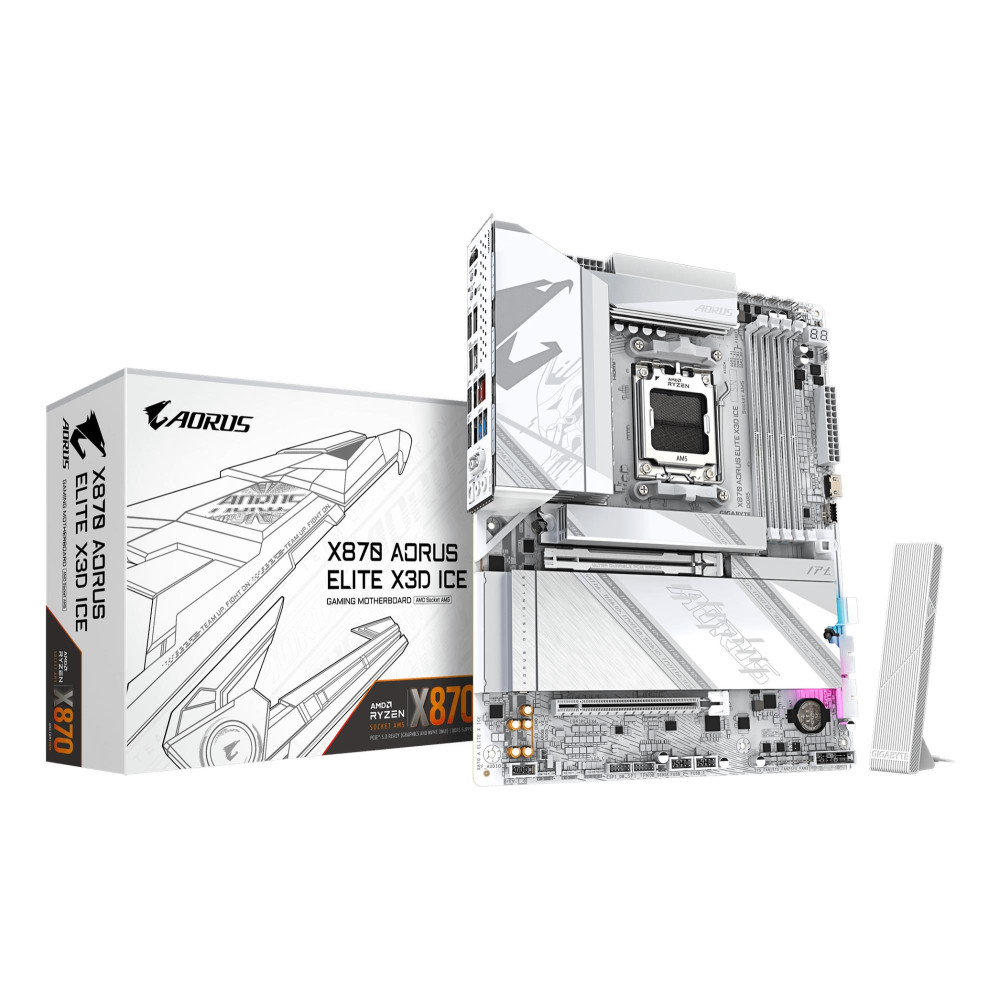

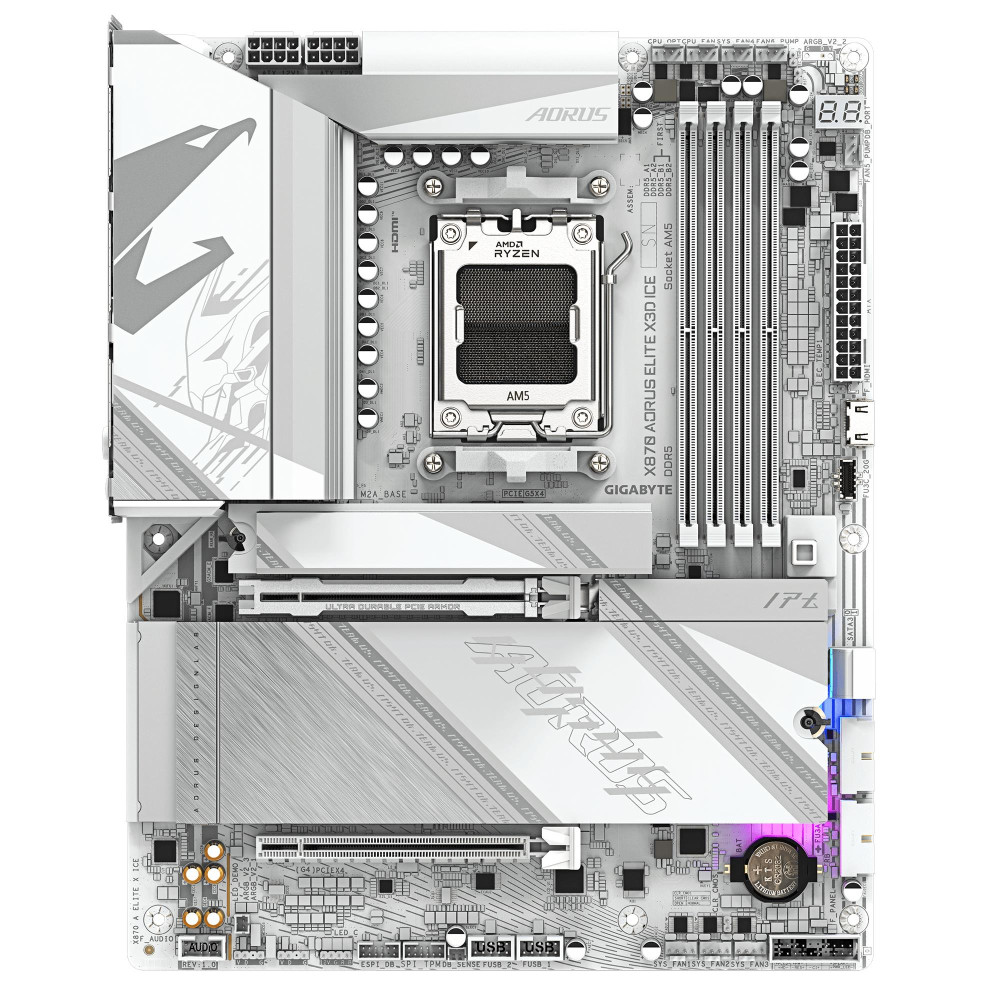

Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, X870AELITEXICE

Популярный

Отзывы:

(0)

Наименование:

Gigabyte X870 A ELITE X ICE

Бренд: Gigabyte
Модель: X870 A ELITE X ICE
EAN: 4719331876678
Наличие: 8

308.57€

Без PVN: 255.02€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

1st M.2 highest PCI Express generation 5.0

1st M.2 largest key size 25110

2nd M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 22110

3rd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 22110

4th M.2 highest PCI Express generation 4.0

4th M.2 largest key size 22110

ACPI version 5.0

Antenna included Yes

Audio chip Realtek ALC1220-VB

BIOS memory size 512

Clear CMOS button Yes

Clear CMOS jumper Yes

CPU fan connector Yes

Desktop Management Interface (DMI) version 2.7

Digital audio optical out 1

ECC сompatibility Non-ECC

Front panel audio connector Yes

Front panel connector Yes

HDCP version 2.3

Lithium weight per battery 0.07

Maximum internal memory per slot 64

Motherboard chipset family AMD

Number of chassis fan connectors 6

Number of CPU fan connectors 2

Number of EPS power connectors (8-pin) 2

Number of HDDs supported 2

Number of M.2 (M) slots 4

Number of noise detection headers 1

Number of RGB LED pin headers 4

Number of SATA III connectors 2

Number of temperature sensor headers 2

Number of water pump connectors 3

Parallel processing technology support Not supported

PC health monitoring CPU/Fan/Temperature/Voltage/Water cooling

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Product colour White

Products per shipping (inner) case 1

RGB LED pin header Yes

S/PDIF out port Yes

Screws included Yes

Summary GIGABYTE X870 AORUS ELITE X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Supported memory clock speed (max) 9000

System Management BIOS (SMBIOS) version 2.7

Top Wi-Fi standard Wi-Fi 7 (802.11be)

TPM connector Yes

Unit Calculated Volume 0.01018

Unit Calculated Weight 2.7

Units per Shipping Box 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB 3.2 Gen 2x2 connectors 1

USB4 Gen 2x2 ports quantity 2

Warranty period 3

WiFi-AP antenna jack 2

WLAN controller model Qualcomm QCNCM865

Процессор

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer AMD

Сокет процессора AM5

Память

Maximum internal memory 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 6

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Supported storage drive types HDD & SSD

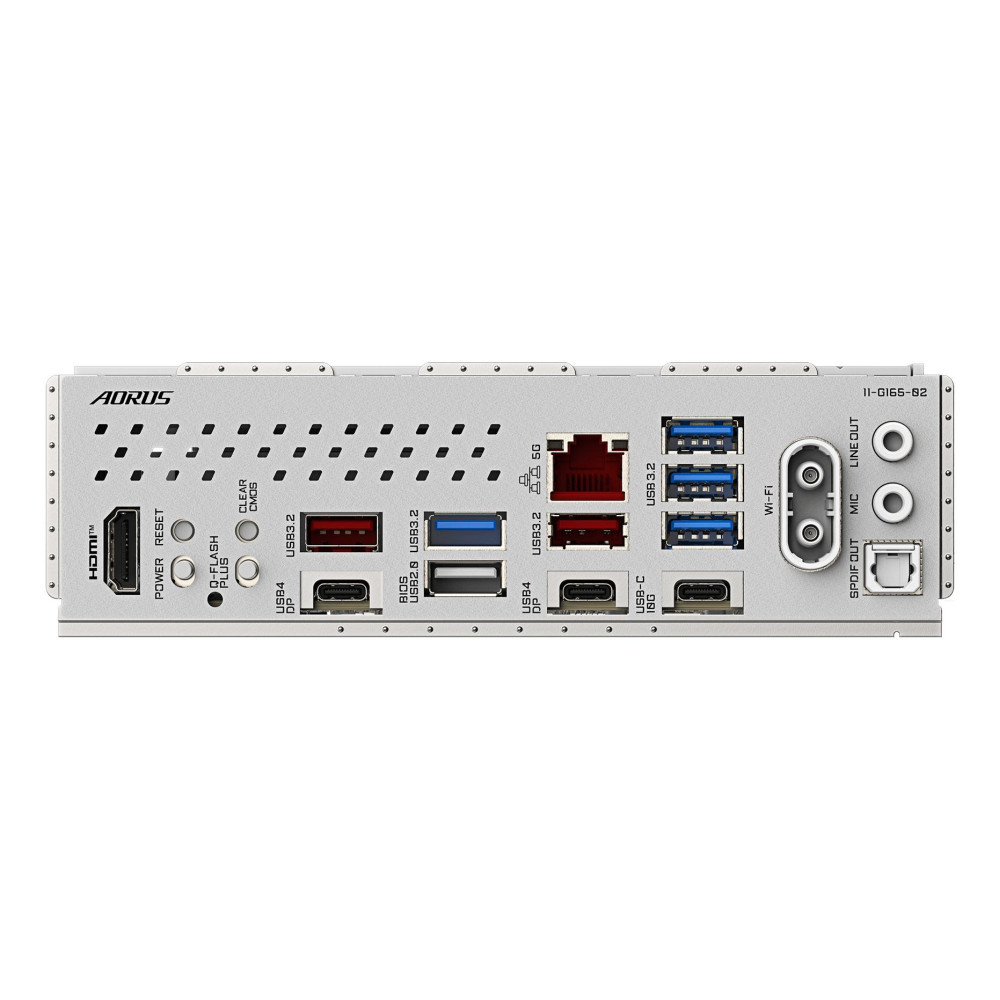

Порты

DisplayPort version 1.4

HDMI version 2.1

Headphone outputs 1

USB 2.0 connectors 2

USB 2.0 ports quantity 1

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Ethernet LAN Yes

LAN controller Realtek RTL8126

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Версия Bluetooth 5.4

Порты локальной сети Ethernet (RJ-45) 1

Батарея

Batteries included Yes

Battery type CR2032

Battery weight 3

Количество ячеек батареи 1

Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Bundled software Norton® Internet Security (OEM version)

Component for PC

Cooling type Passive

Country of origin China

DirectX version 12.0

EPS power connector (8-pin) Yes

Form factor ATX

HDCP Yes

Line-in Yes

Maximum resolution 4096 x 2304

Model X870 AORUS ELITE X3D ICE

Motherboard chipset AMD X870

Motherboard form factor ATX

Number of memory slots 4

Package depth 270

Package height 80

Package weight 2708

Package width 335

Power source type ATX

Supported processor sockets Socket AM5

Weight 2420

Windows operating systems supported Windows 11 x64

Высота 35

Глубина 244

Чипсет X870

Ширина 305
