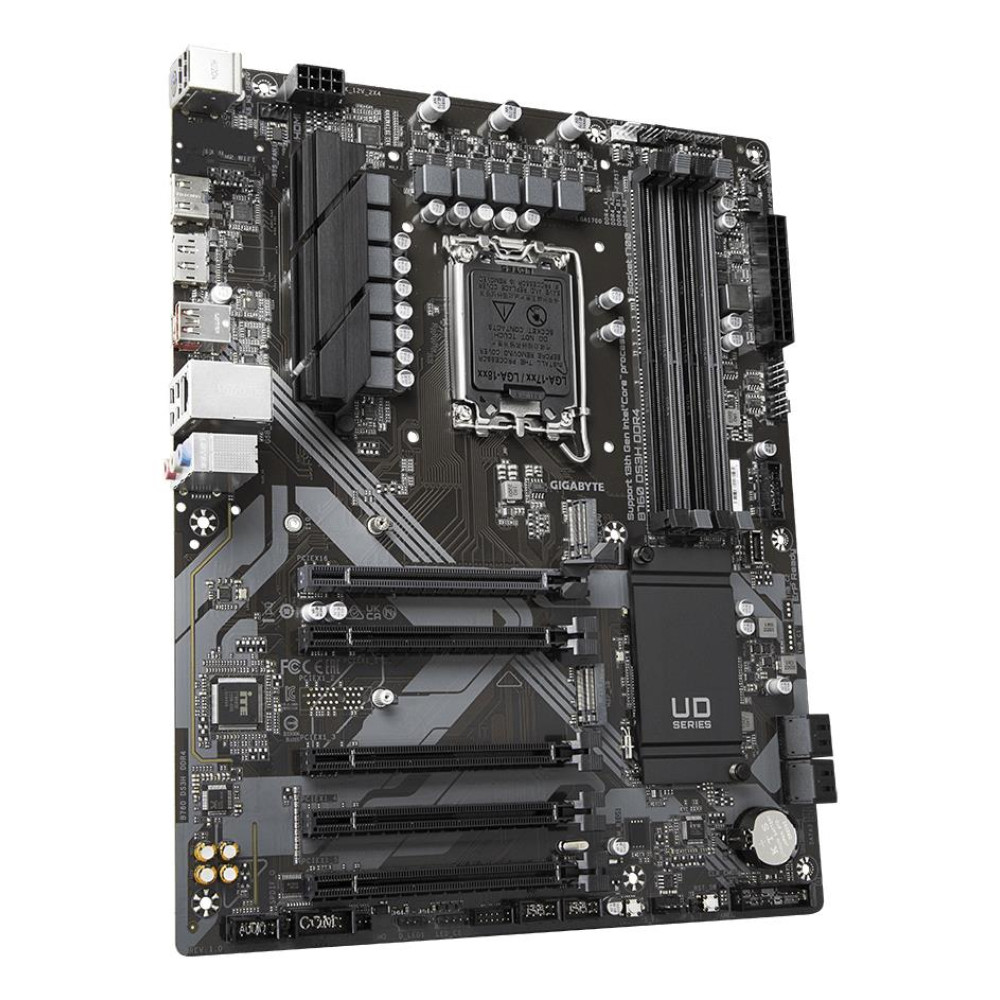

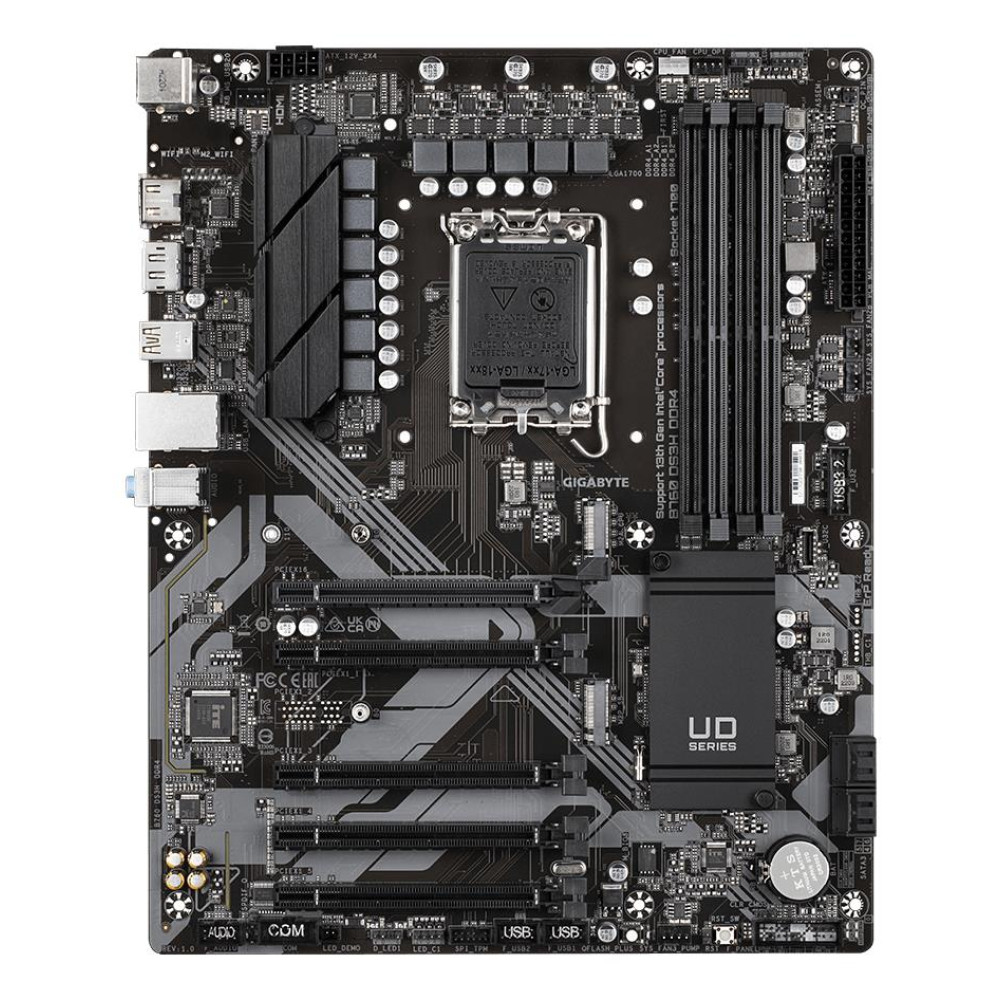

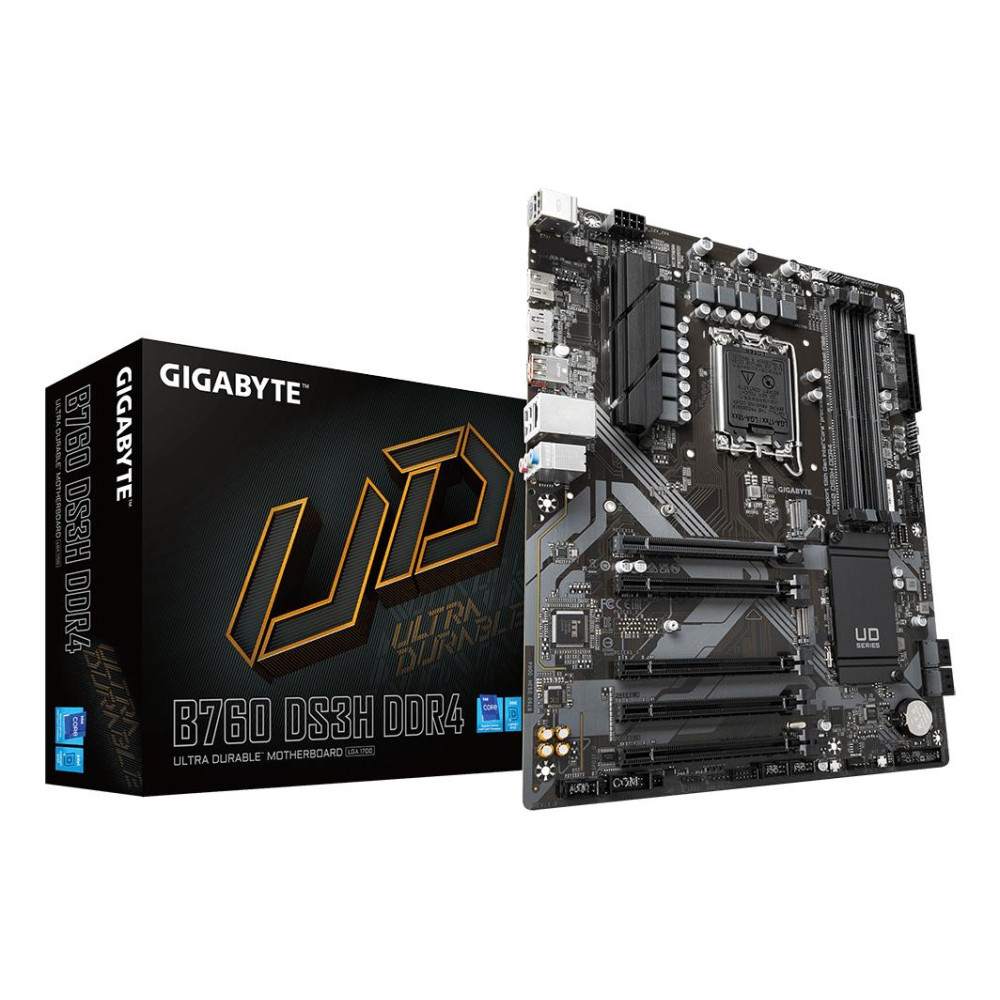

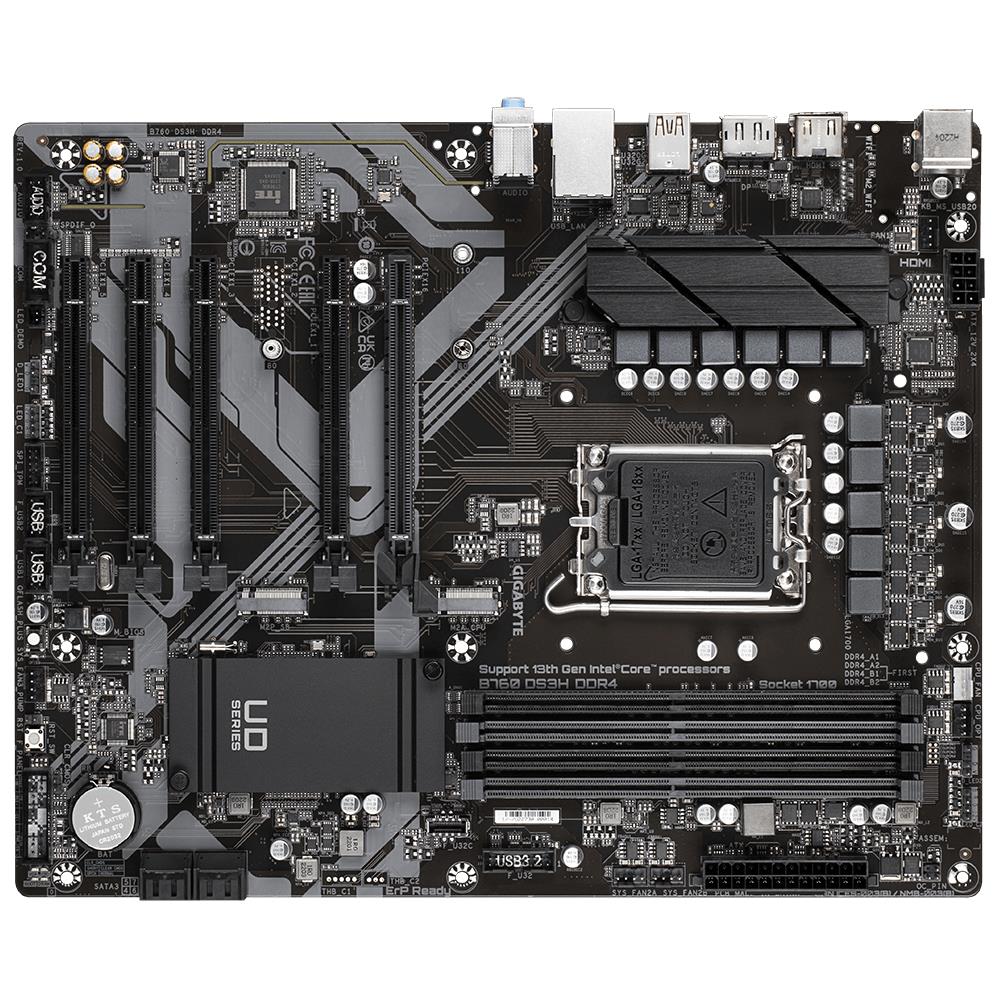

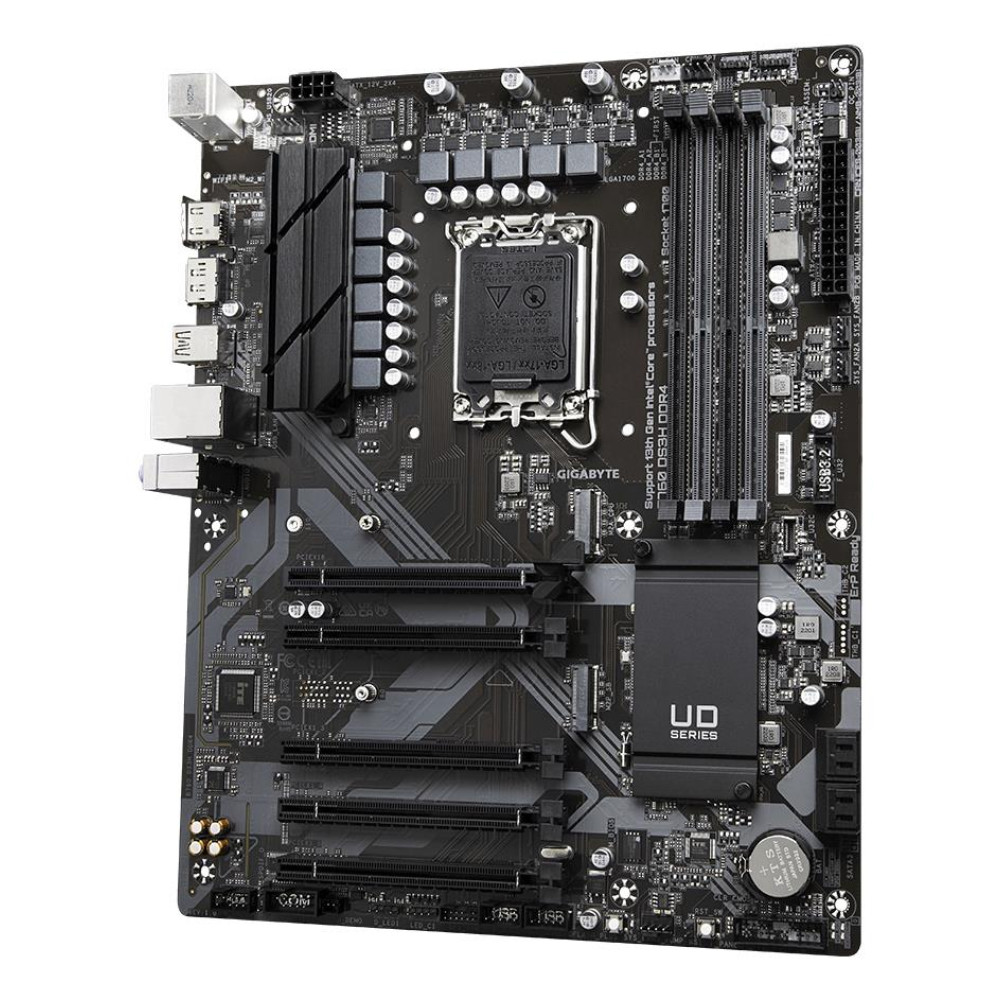

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR4, Memory slots 4, 4xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760DS3HDDR4

Популярный

Отзывы:

(0)

Наименование:

Gigabyte B760DS3HDDR4

Бренд: Gigabyte
Модель: B760DS3HDDR4
EAN: 4719331850746
Наличие: 8

112.87€

Без PVN: 93.28€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

ACPI version 5.0

BIOS memory size 128

Clear CMOS jumper Yes

CPU fan connector Yes

Desktop Management Interface (DMI) version 2.7

ECC сompatibility ECC & Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Lithium weight per battery 0.07

Motherboard chipset family Intel

Number of HDDs supported 4

Number of M.2 (M) slots 2

Number of SATA III connectors 4

Parallel processing technology support Not supported

PC health monitoring Fan/Temperature/Voltage/Water cooling

Products per shipping (inner) case 1

RGB LED pin header Yes

S/PDIF out connector Yes

Serial port headers 1

Summary GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Supported memory clock speed (max) 5333

System Management BIOS (SMBIOS) version 2.7

Total number of SATA connectors 4

TPM connector Yes

Unit Calculated Volume 0.009752

Unit Calculated Weight 1.41

Units per Shipping Box 8

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Warranty period 3

Процессор

Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor manufacturer Intel

Память

Maximum internal memory 128

Maximum internal memory supported by processor 128

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333

Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/4GB/8GB

Supported memory types DDR4-SDRAM

Unbuffered memory Yes

Тип памяти DDR4

Запоминающее устройство

Number of storage drives supported 6

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,PCI Express 4.0,SATA III

Supported storage drive types HDD & SSD

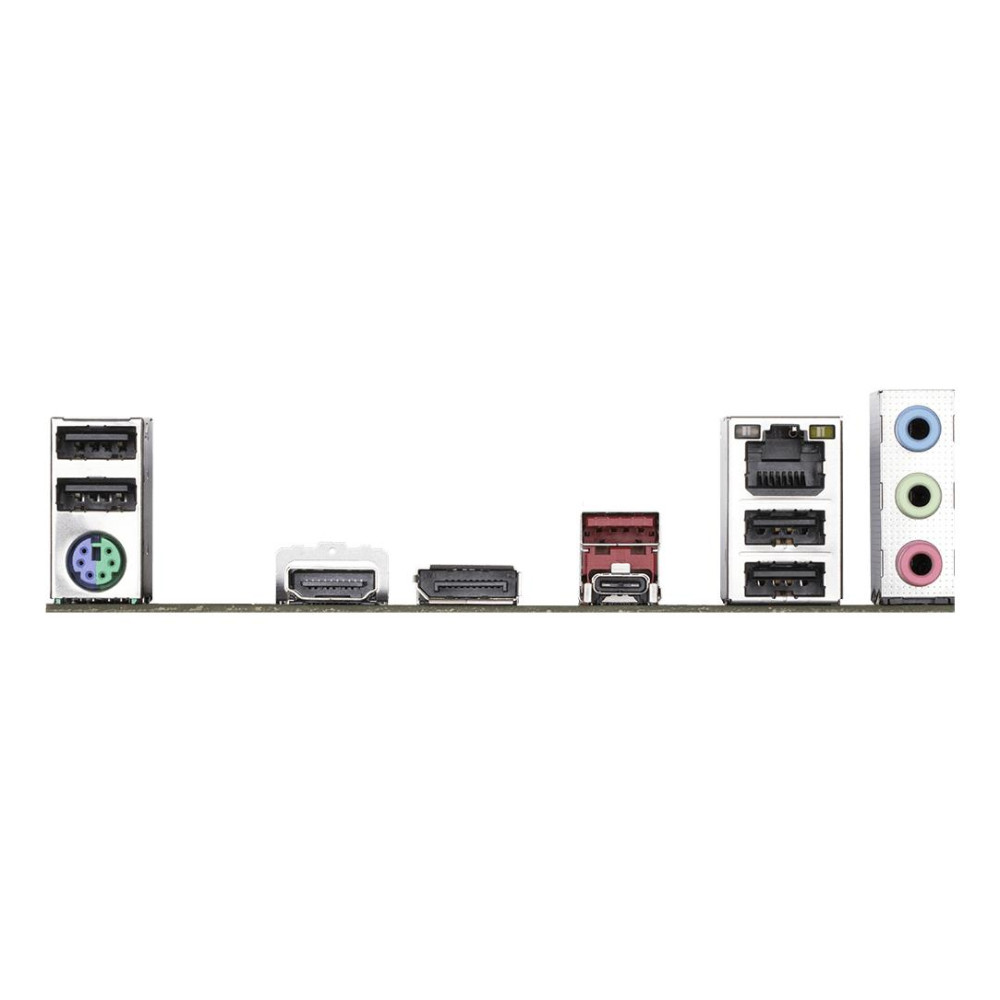

Порты

DisplayPort version 1.2

DisplayPorts quantity 1

HDMI version 2.0

Headphone outputs 3

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 4

USB connector type USB Type-A/USB Type-C

Количество портов HDMI 1

Подключения

Ethernet interface type Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi No

Порты локальной сети Ethernet (RJ-45) 1

Батарея

Batteries included Yes

Battery type CR2032

Battery weight 3

Количество ячеек батареи 1

Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Bundled software Norton Internet Security

Component for PC

Country of origin China

DirectX version 12.0

EPS power connector (8-pin) Yes

Form factor ATX

HDCP Yes

Maximum resolution 4096 x 2304

Model B760 DS3H DDR4

Motherboard chipset Intel B760 Express

Motherboard form factor ATX

Number of memory slots 4

Package depth 270

Package height 80

Package weight 1311

Package width 335

PCI Express x16 slots 5

PS/2 ports quantity 1

Supported processor sockets LGA 1700

Windows operating systems supported Windows 10 x64/Windows 11 x64

Высота 35

Глубина 244

Кабели в комплекте SATA

Чипсет B760

Ширина 305
