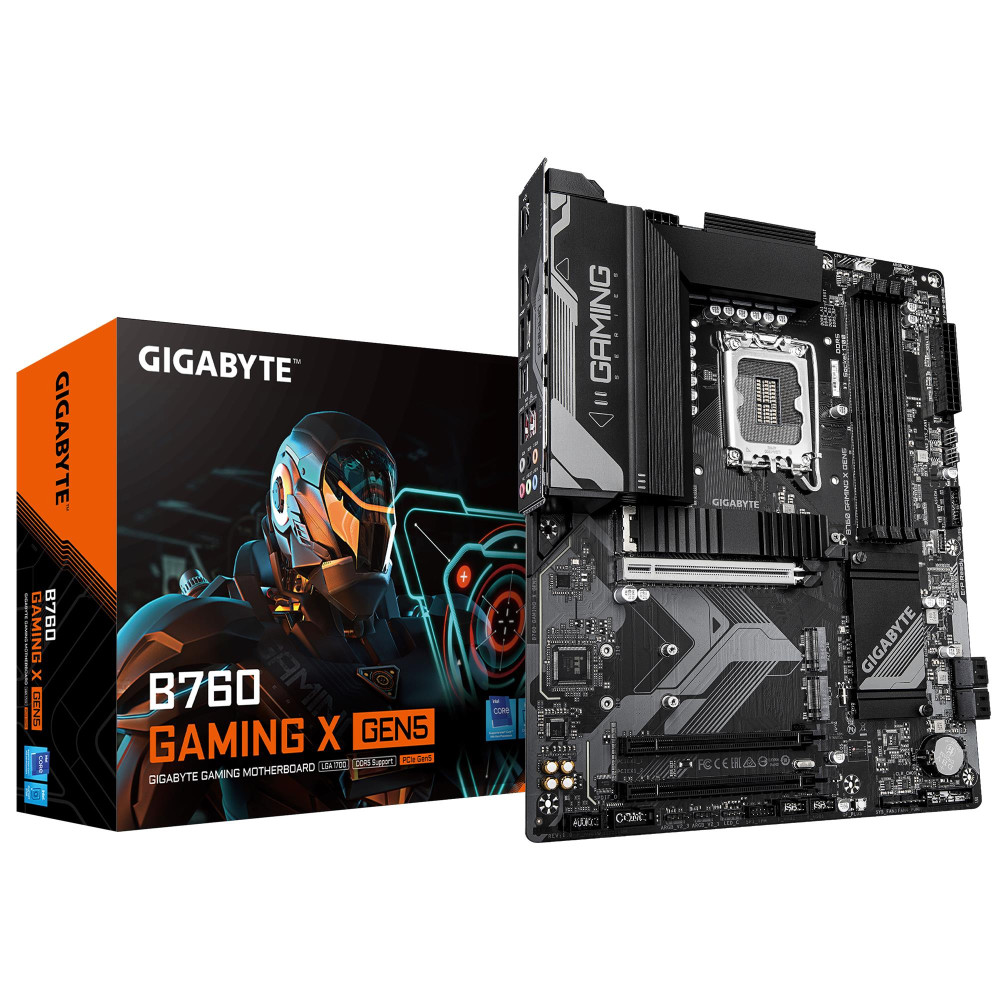

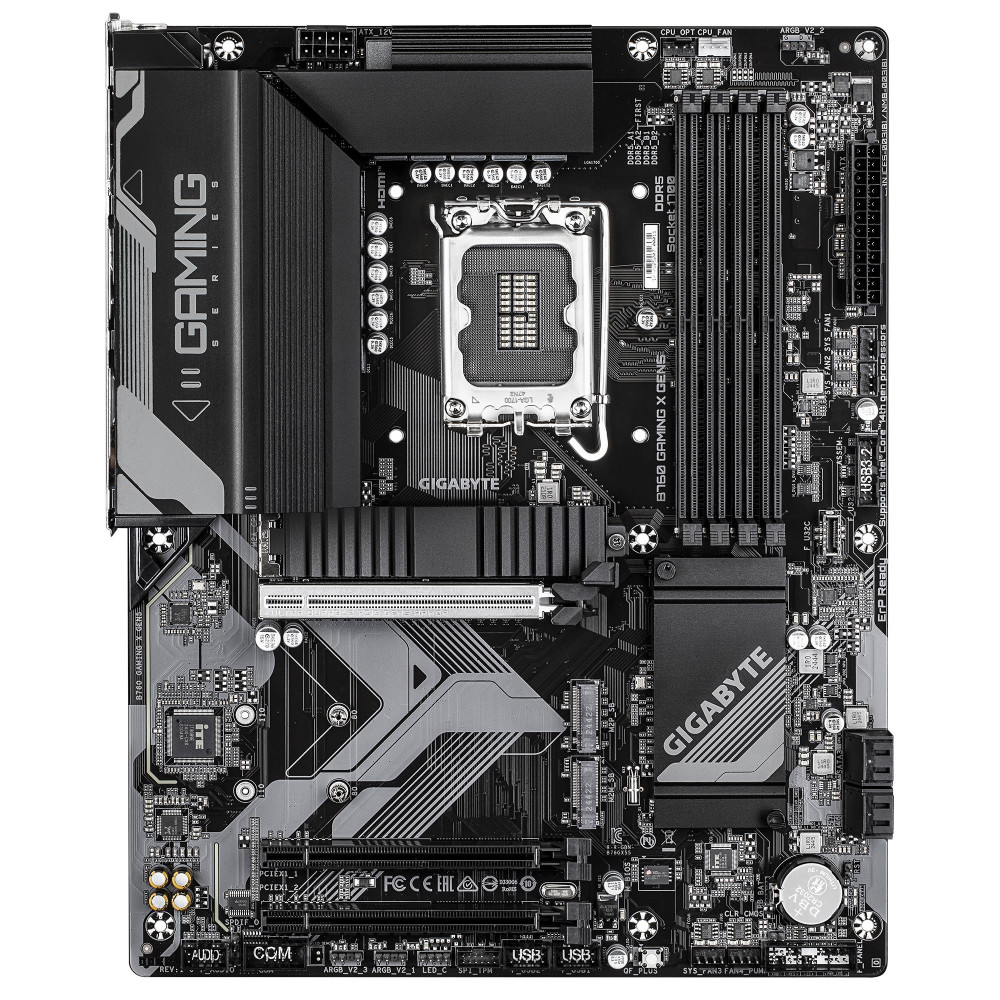

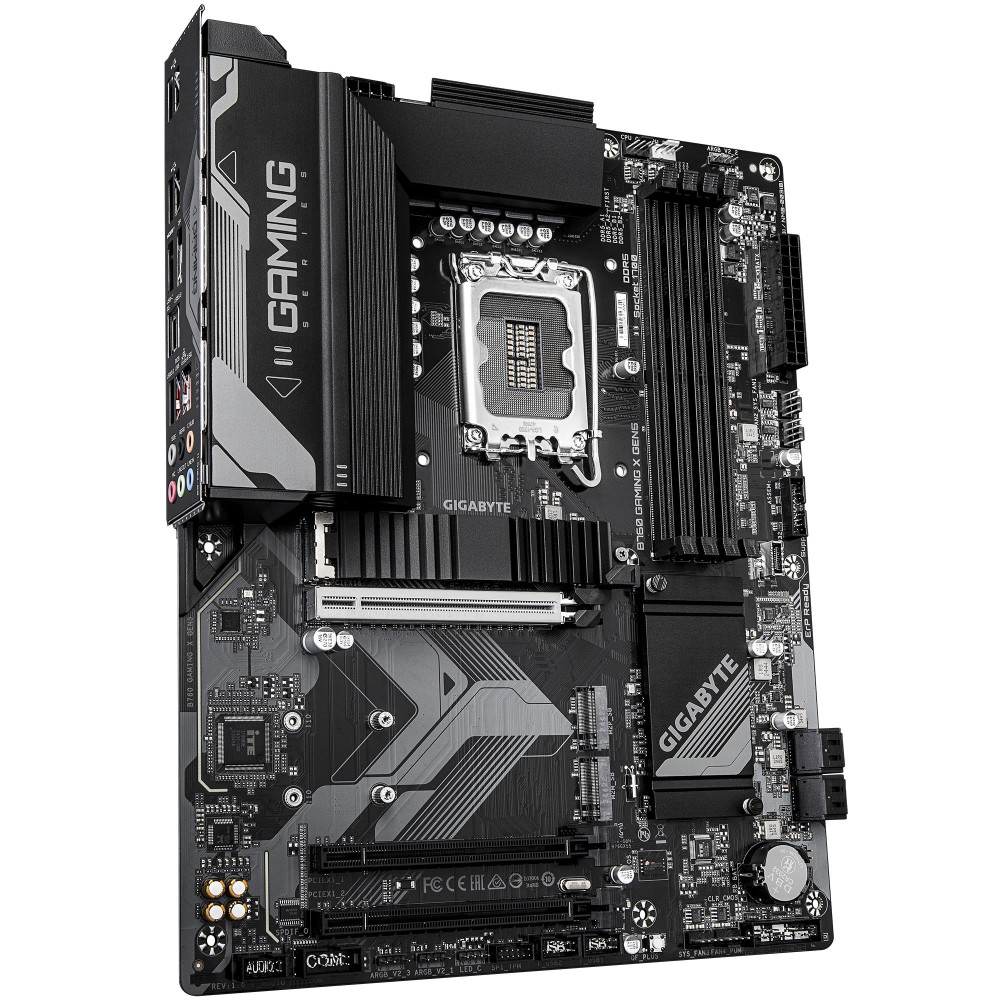

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5

Популярный

Отзывы:

(0)

Наименование:

Gigabyte B760 GAMING X GEN5

Бренд: Gigabyte
Модель: B760 GAMING X GEN5
EAN: 4719331872120
Наличие: 8

142.57€

Без PVN: 117.83€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

1st M.2 highest PCI Express generation 4.0

1st M.2 largest key size 22110

2nd M.2 highest PCI Express generation 4.0

2nd M.2 largest key size 22110

3rd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 22110

ACPI version 5.0

Audio chip Realtek ALC897

BIOS memory size 256

Clear CMOS jumper Yes

CPU fan connector Yes

Desktop Management Interface (DMI) version 2.7

ECC ?ompatibility ECC & Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Lithium weight per battery 0.07

Maximum internal memory per slot 64

Motherboard chipset family Intel

Number of chassis fan connectors 4

Number of CPU fan connectors 2

Number of EPS power connectors (8-pin) 1

Number of HDDs supported 4

Number of M.2 (M) slots 3

Number of RGB LED pin headers 4

Number of SATA III connectors 4

Number of water pump connectors 2

Parallel processing technology support Not supported

PC health monitoring Fan/Temperature/Voltage/Water cooling

PCI Express x16 (Gen 3.x) slots 2

PCI Express x16 (Gen 5.x) slots 1

Product colour Dark brown

Product Net Weight 1.2

Products per shipping (inner) case 1

RGB LED pin header Yes

S/PDIF out connector Yes

Screws included Yes

Serial port headers 1

Summary GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

Supported memory clock speed (max) 5600

System Management BIOS (SMBIOS) version 2.7

TPM connector Yes

Unit Calculated Volume 0.007236

Unit Calculated Weight 1.55

Units per Shipping Box 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

Warranty period 3

Процессор

Compatible processor series Intel Celeron/Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen

Processor manufacturer Intel

Память

Maximum internal memory 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4400/4800/5200/5600

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 7

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,PCI Express 4.0,SATA III

Supported storage drive types HDD & SSD

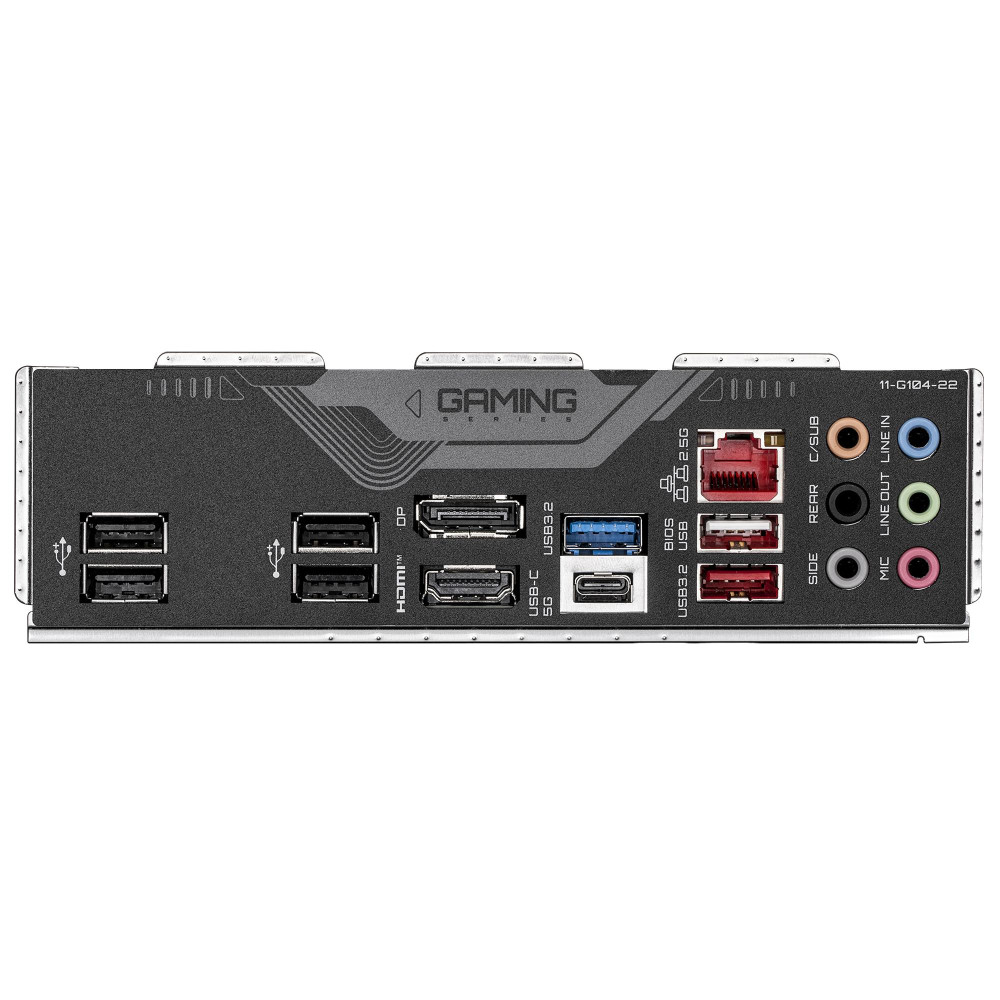

Порты

DisplayPort version 1.2

DisplayPorts quantity 1

HDMI version 2.1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 5

Количество портов HDMI 1

Подключения

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

LAN controller Realtek RTL8125

Wi-Fi No

Порты локальной сети Ethernet (RJ-45) 1

Батарея

Batteries included Yes

Battery type CR2032

Battery weight 3

Количество ячеек батареи 1

Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Bundled software Norton® Internet Security (OEM version)

Component for PC

Cooling type Passive

Country of origin China

DirectX version 12.0

EPS power connector (8-pin) Yes

Form factor ATX

HDCP Yes

Line-in Yes

Maximum resolution 4096 x 2304

Model B760 GAMING X GEN5

Motherboard chipset Intel B760

Motherboard form factor ATX

Number of memory slots 4

Package depth 270

Package height 80

Package weight 1800

Package width 335

Power source type ATX

Supported processor sockets LGA 1700

Weight 1560

Windows operating systems supported Windows 10 x64/Windows 11 x64

Высота 35

Глубина 244

Чипсет B760

Ширина 305
