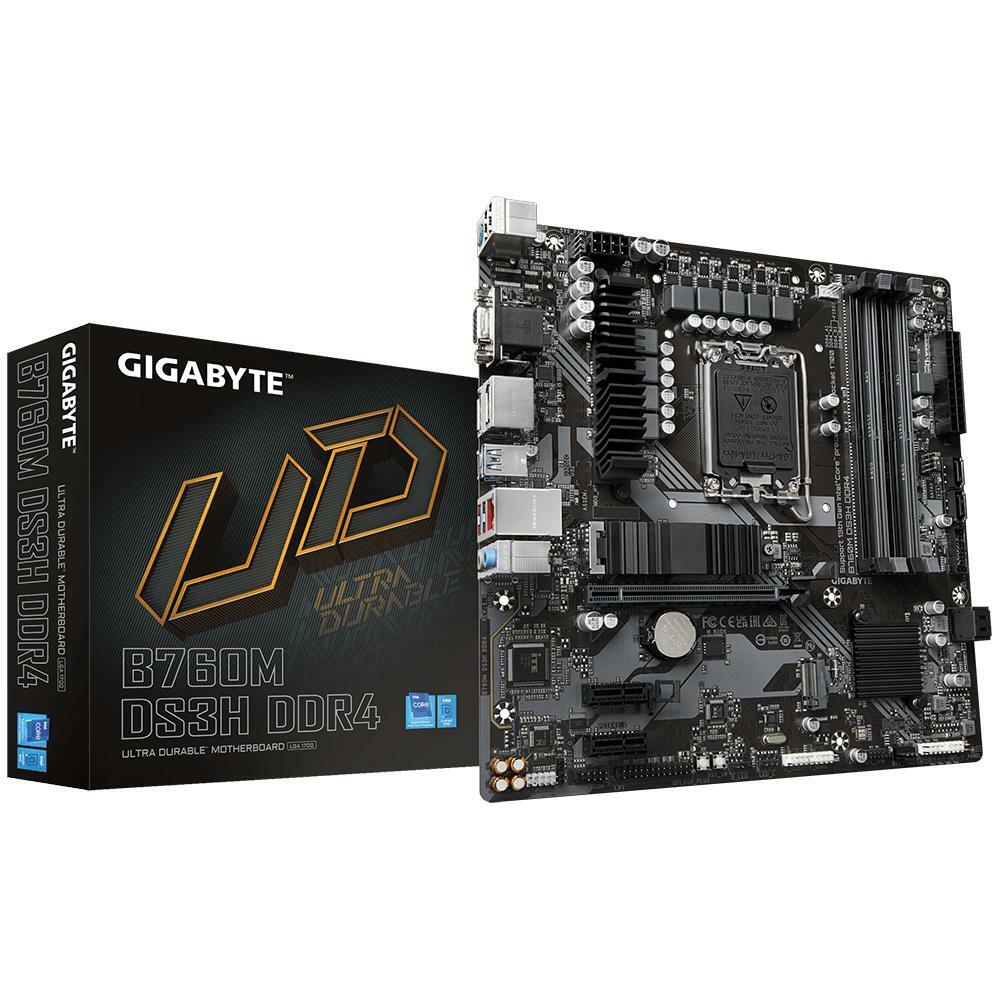

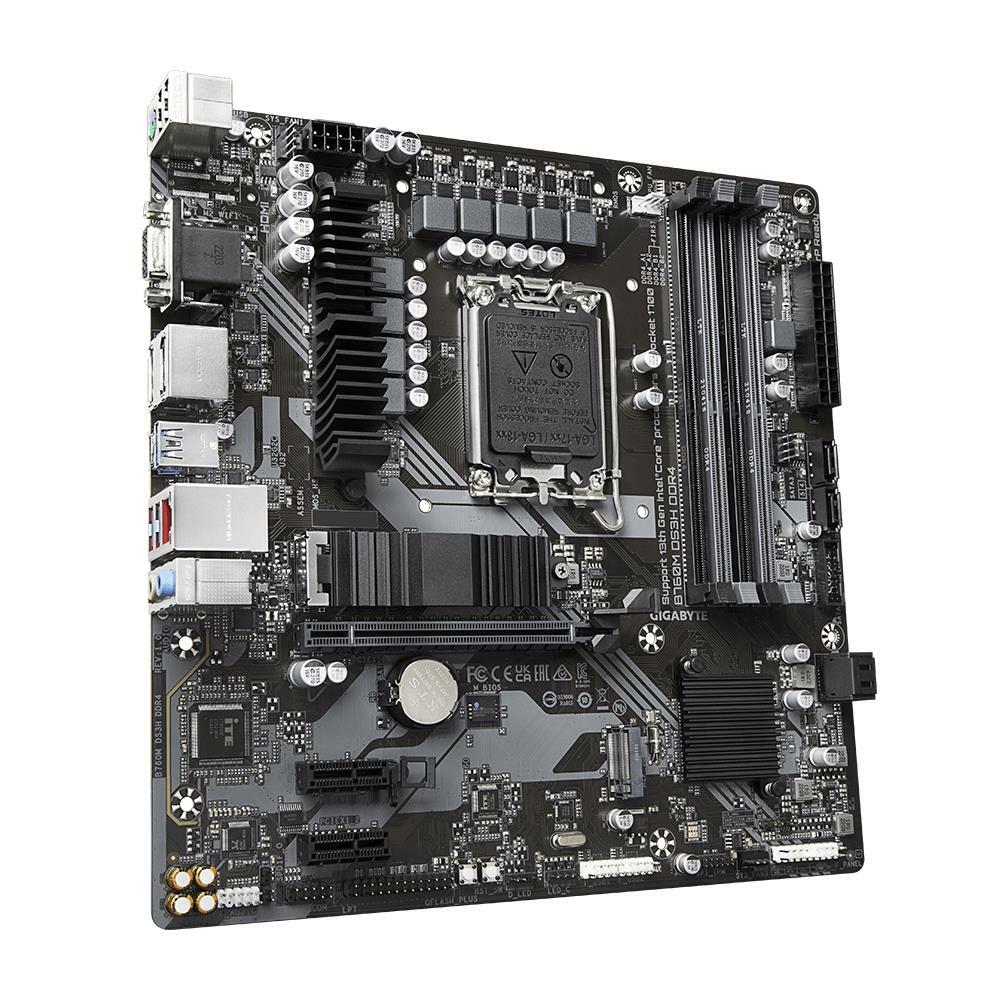

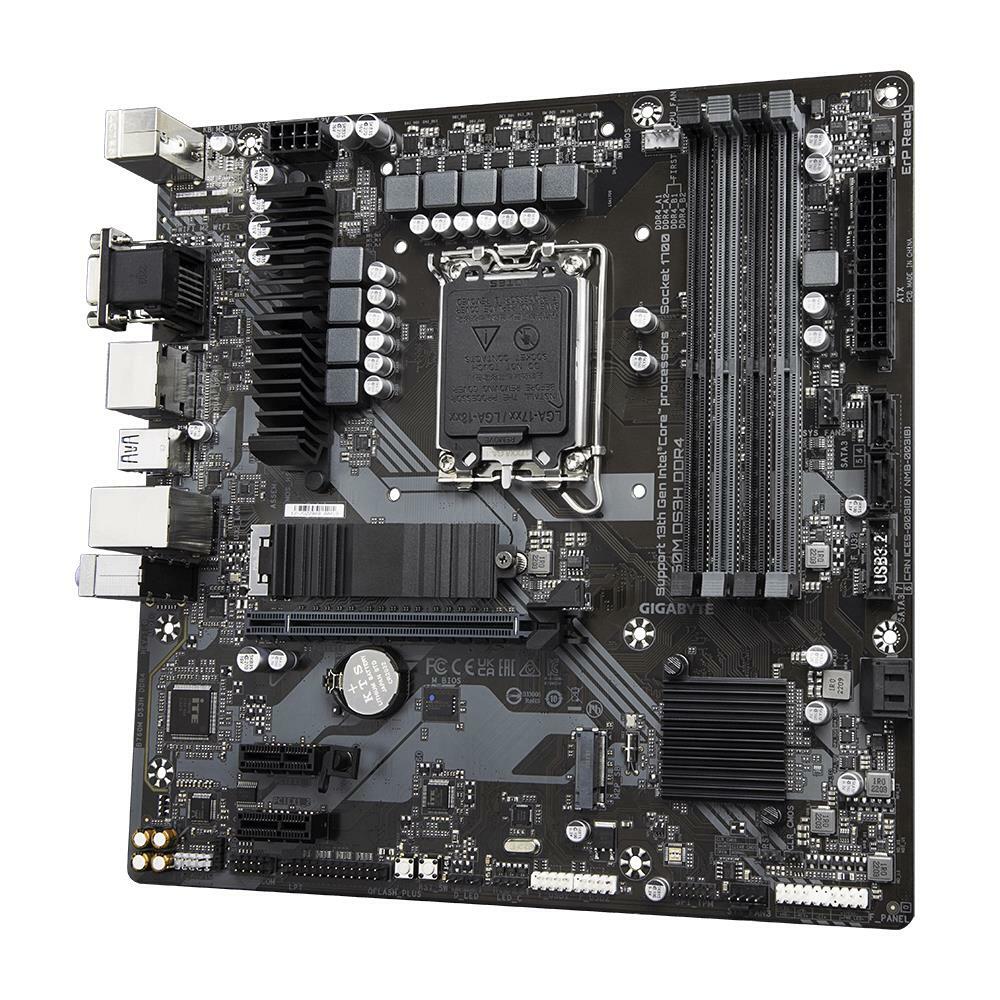

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Популярный
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 2xDisplayPort, 2xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MDS3HDDR4
Отзывы:
(0)
    Наименование:

    Gigabyte B760MDS3HDDR4

  • Бренд: Gigabyte
  • Модель: B760MDS3HDDR4
  • EAN: 4719331850876
  • Наличие: 17
95.30€
Без PVN: 78.76€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for Intel CPUs

Характеристики
Specifikācija
ACPI version 5.0
BIOS memory size 128
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Motherboard chipset family Intel
Number of chassis fan connectors 3
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of SATA III connectors 4
On-board graphics card No
Parallel connector Yes
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Product colour Brown
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Serial port headers 1
Summary GIGABYTE B760M DS3H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
Supported memory clock speed (max) 5333
System Management BIOS (SMBIOS) version 2.7
Total number of SATA connectors 4
TPM connector Yes
Unit Calculated Volume 0.00401
Unit Calculated Weight 0.92
Units per Shipping Box 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Warranty period 3
Процессор
Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Processor manufacturer Intel
Память
Maximum internal memory 128
Maximum internal memory supported by processor 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Тип памяти DDR4
Запоминающее устройство
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Порты
DisplayPorts quantity 2
Headphone outputs 1
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Количество портов HDMI 1
Количество портов VGA (D-Sub) 1
Подключения
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
Порты локальной сети Ethernet (RJ-45) 1
Батарея
Batteries included Yes
Battery type CR2032
Battery weight 3
Количество ячеек батареи 1
Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Bundled software Norton Internet Security
Component for PC
Country of origin China
DirectX version 12.0
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2304
Model B760M DS3H DDR4
Motherboard chipset Intel B760 Express
Motherboard form factor micro ATX
Number of displays supported 4
Number of memory slots 4
Package depth 265
Package height 54
Package weight 990
Package width 265
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1700
Windows operating systems supported Windows 10/Windows 11
Высота 35
Глубина 244
Чипсет B760
Ширина 244
