Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Популярный
Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Mainboard, MSI, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 4x, 2xM.2, 1xPCI-Express 4.0 1x, Memory DDR4, Memory slots 4, 1xHDMI, 1xDisplayPort, 2xAudio-In, 3xAudio-Out, 4xUSB 2.0, 1xUSB type C, 3xUSB 3.2, 1xPS/2, 1xOptical S/PDIF, 1xRJ45
Отзывы:
(0)
    Наименование:

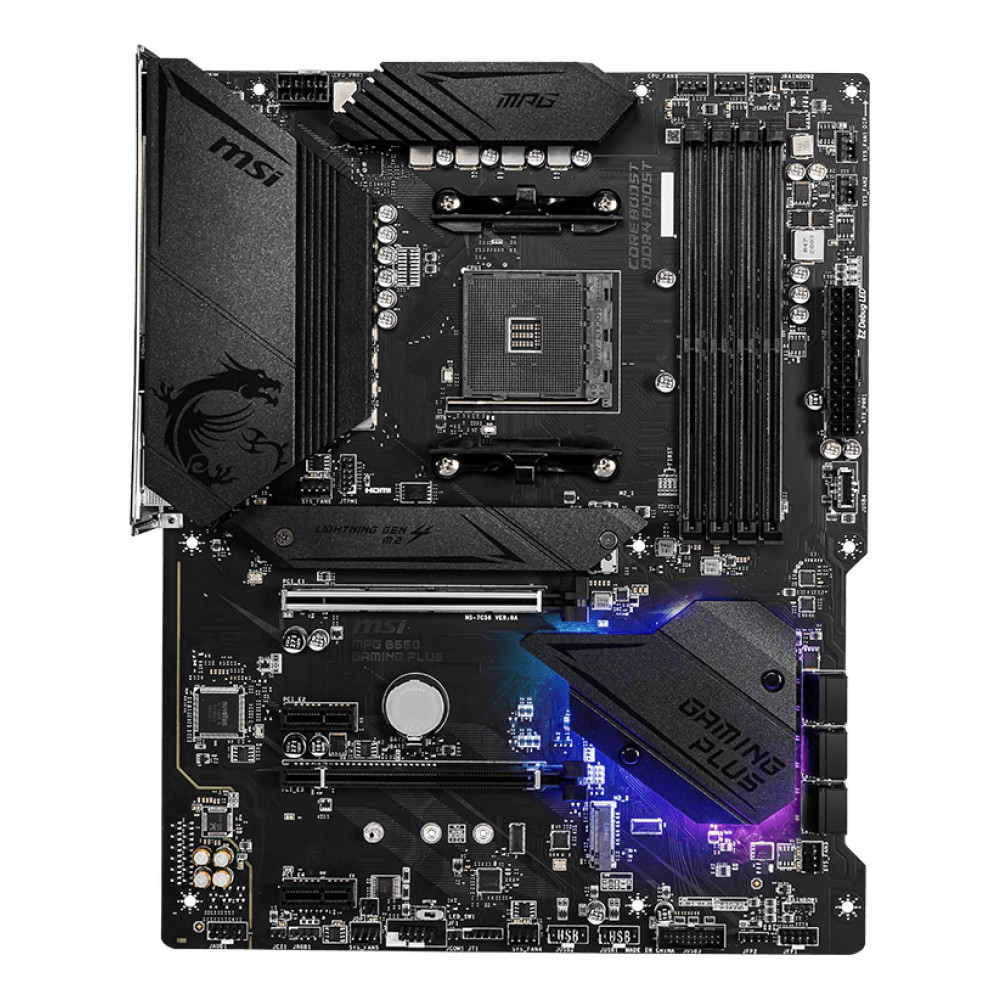

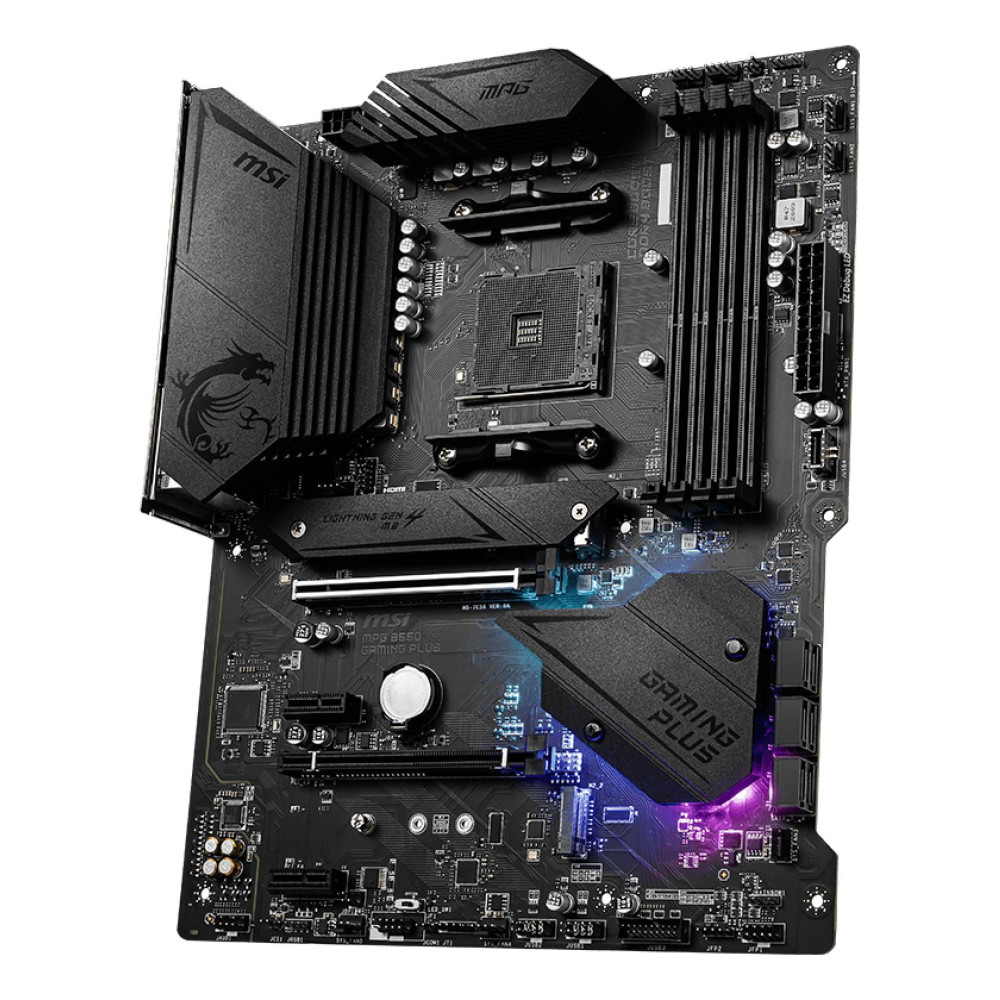

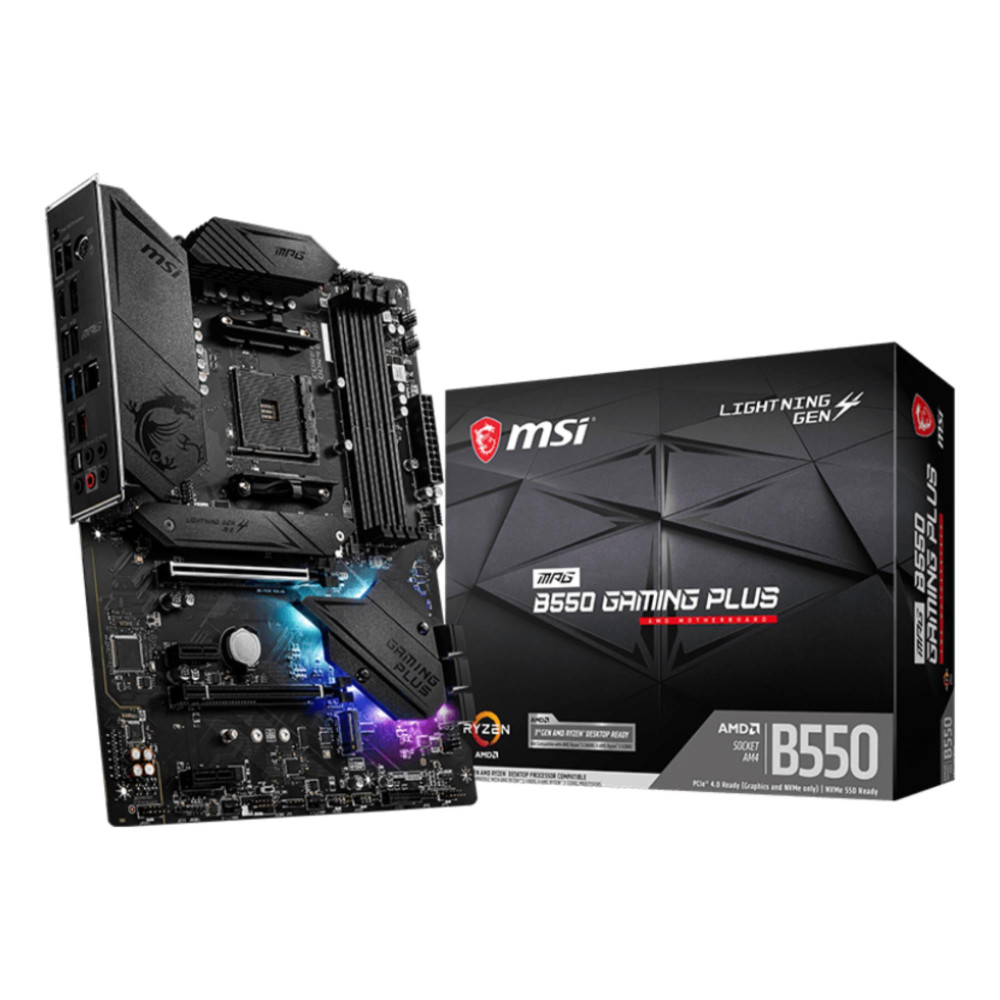

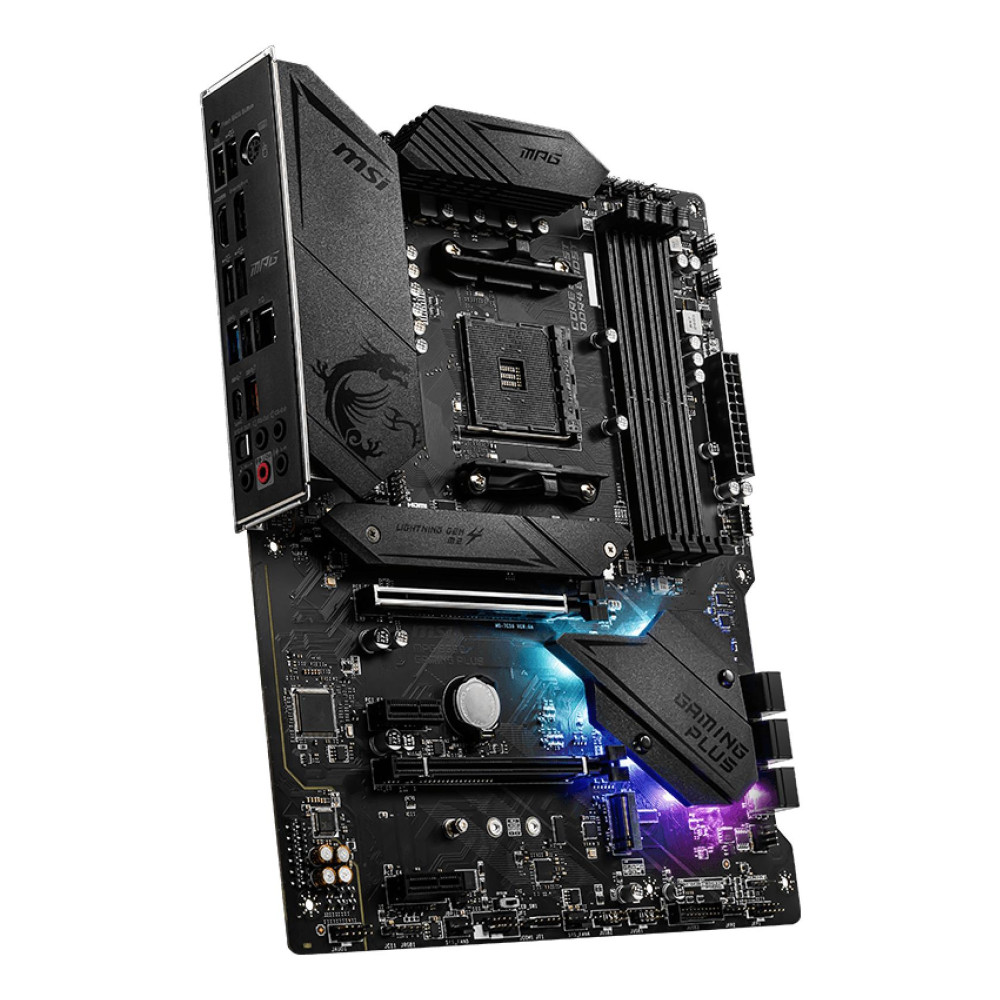

    MSI MPGB550GAMINGPLUS

  • Бренд: MSI
  • Модель: MPGB550GAMINGPLUS
  • EAN: 4719072731885
  • Наличие: Нет в наличии
118.42€
Без PVN: 97.87€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for AMD CPUs

Характеристики
Specifikācija
12V power connector Y
Audio chip Realtek ALC892
Chassis intrusion connector Y
Clear CMOS jumper Y
CPU fan connector Y
Digital audio optical out 1
ECC ?ompatibility ECC & non-ECC
Front panel audio connector Y
Harmonized System (HS) code 84733020
Maximum graphics card memory 16000
Maximum number of SMP processors 1
Motherboard chipset family AMD
Number of chassis fan connectors 6
Number of M.2 (M) slots 2
Number of mounting holes 9
Number of SATA III connectors 6
On-board graphics card N
Parallel processing technology support 2-Way CrossFireX
PC health monitoring CPU/FAN/Temperature
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Product colour Black
RGB LED pin header Y
S/PDIF out port Y
Summary MSI MPG B550 Gaming Plus. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H
Top Wi-Fi standard Not available
TPM connector Y
Unit Calculated Volume 0.008568
Unit Calculated Weight 1.91
Units per Shipping Box 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Процессор
Compatible processor series AMD Ryzen 3000 Series
Processor manufacturer AMD
Сокет процессора AM4
Память
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400
Supported memory types DDR4-SDRAM
Unbuffered memory Y
Тип памяти DDR4
Запоминающее устройство
RAID levels 0/1/10
RAID support Y
Supported storage drive interfaces SATA III
Supported storage drive types HDD & SSD

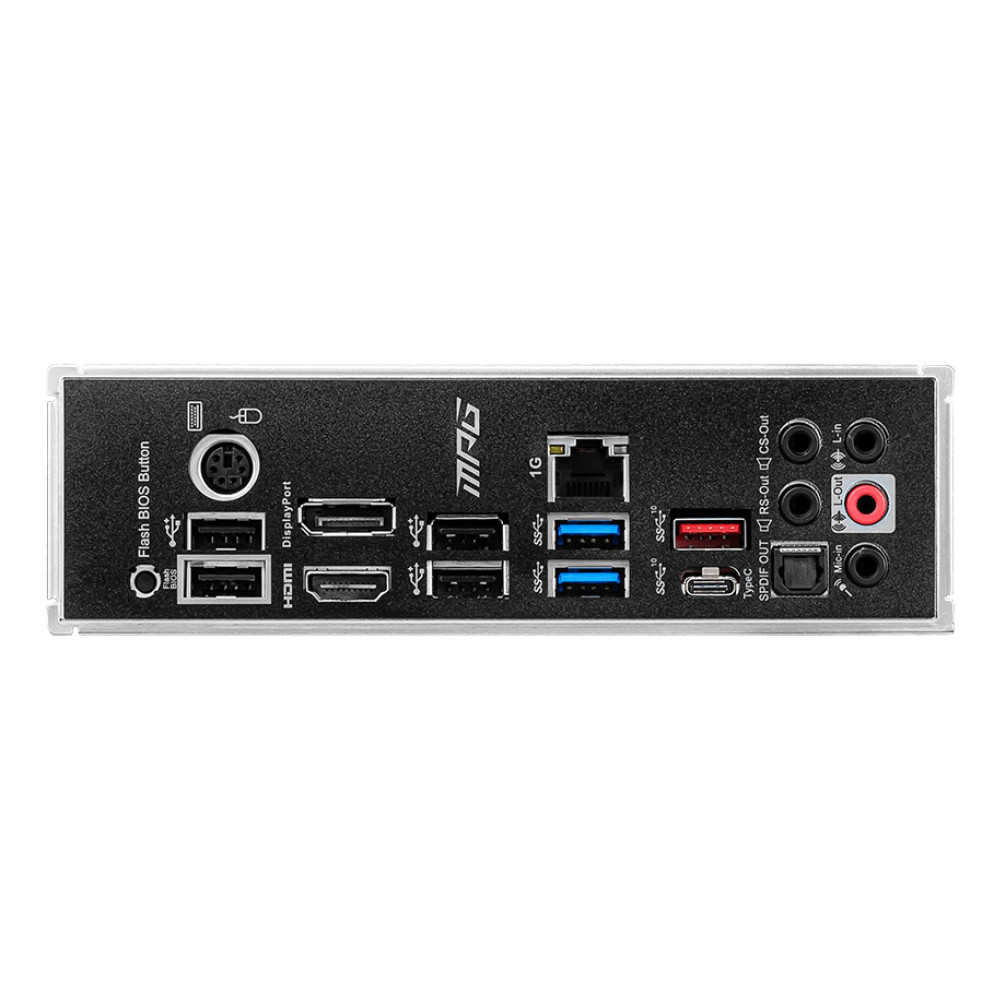

Порты
DisplayPorts quantity 1
USB 2.0 connectors 2
USB 2.0 ports quantity 4
Количество портов HDMI 1
Подключения
Ethernet interface type Gigabit Ethernet
Ethernet LAN Y
LAN controller Realtek 8111H
Wi-Fi N
Порты локальной сети Ethernet (RJ-45) 1
Спецификация
ATX Power connector (24-pin) Y
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Drivers included Y
Form factor ATX
Maximum resolution 4096 x 2160
Motherboard chipset AMD B550
Motherboard form factor ATX
Number of memory slots 4
PS/2 ports quantity 1
Weight 1000
Высота 65
Глубина 244
Кабели в комплекте SATA
Чипсет B550
Ширина 305
