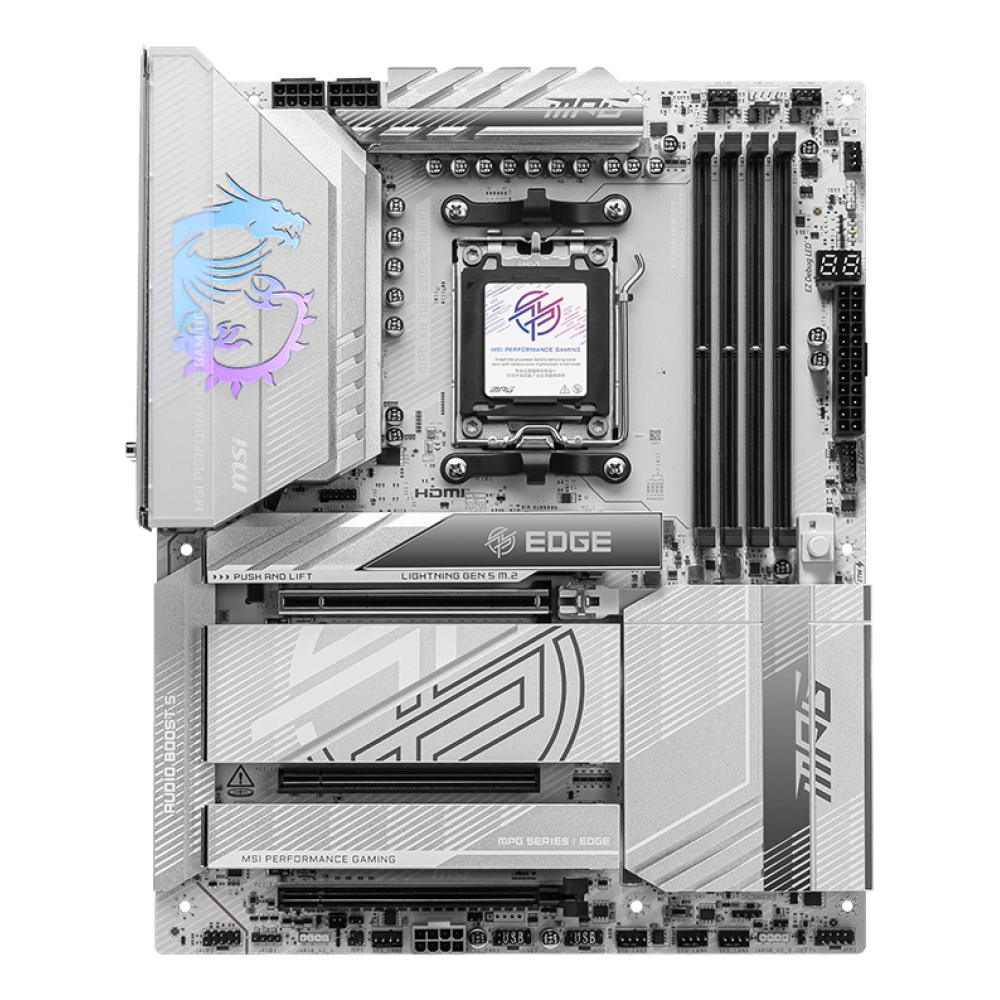

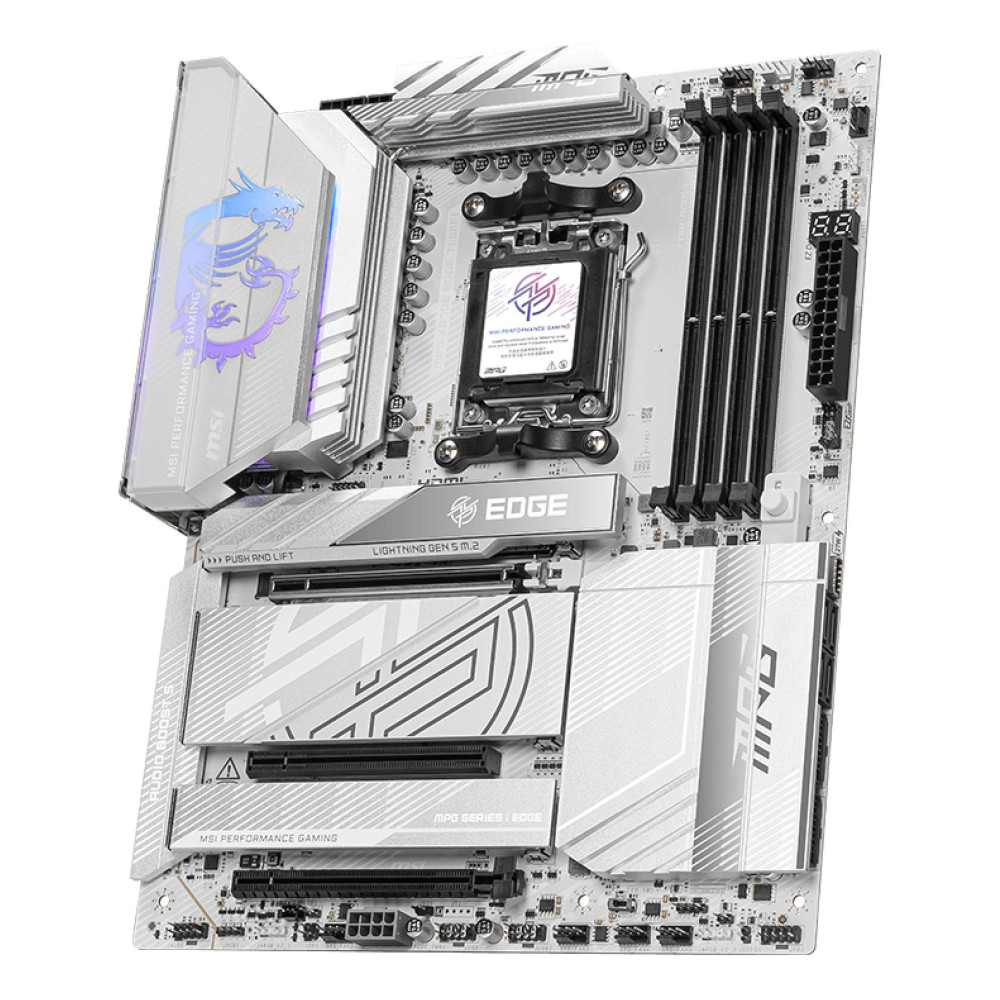

Mainboard, MSI, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 4xM.2, 1xHDMI, 1xAudio-In, 1xAudio-Out, 4xUSB 2.0, 5xUSB 3.2, 3xUSB-C, 1xOptical S/PDIF, 1xRJ45, MPGX870EEDGETIWIFI

Популярный

Отзывы:

(0)

Наименование:

MSI MPG X870E EDGE TI WIFI

Бренд: MSI
Модель: MPG X870E EDGE TI WIFI
EAN: 4711377290630
Наличие: 9

401.85€

Без PVN: 332.11€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

1st M.2 highest PCI Express generation 5.0

1st M.2 largest key size 22110

2nd M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 2280

3rd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 2280

4th M.2 highest PCI Express generation 4.0

4th M.2 largest key size 2280

CPU fan connector Yes

ECC сompatibility Non-ECC

Motherboard chipset family AMD

Number of HDDs supported 4

Number of M.2 (M) slots 4

Number of SATA III connectors 4

On-board graphics card No

PC health monitoring CPU/Fan/Temperature/Voltage

PCI Express x16 (Gen 3.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Product colour White

S/PDIF out port Yes

Summary MSI MPG X870E EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Supported memory clock speed (max) 8400

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Total number of SATA connectors 4

Unit Calculated Volume 0.007116

Unit Calculated Weight 2.41

Units per Shipping Box 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB4 Gen 2x2 ports quantity 1

Процессор

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer AMD

Сокет процессора AM5

Память

Maximum internal memory 256

Maximum internal memory supported by processor 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5600/8400

Supported memory types DDR5-SDRAM

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 8

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

Порты

DisplayPort version 1.4

DisplayPorts quantity 2

HDMI version 2.1

Microphone in Yes

USB 2.0 connectors 4

USB 2.0 ports quantity 4

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 5 Gigabit Ethernet

Ethernet LAN Yes

LAN controller Realtek RTL8126

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Версия Bluetooth 5.4

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

Component for PC

EPS power connector (8-pin) Yes

Form factor ATX

Model MPG X870E EDGE TI WIFI

Motherboard chipset AMD X870E

Motherboard form factor ATX

Number of memory slots 4

Supported processor sockets Socket AM5

Глубина 304.8

Чипсет X870

Ширина 243.84
