DELL TECHNOLOGIES DELL-9RN4R

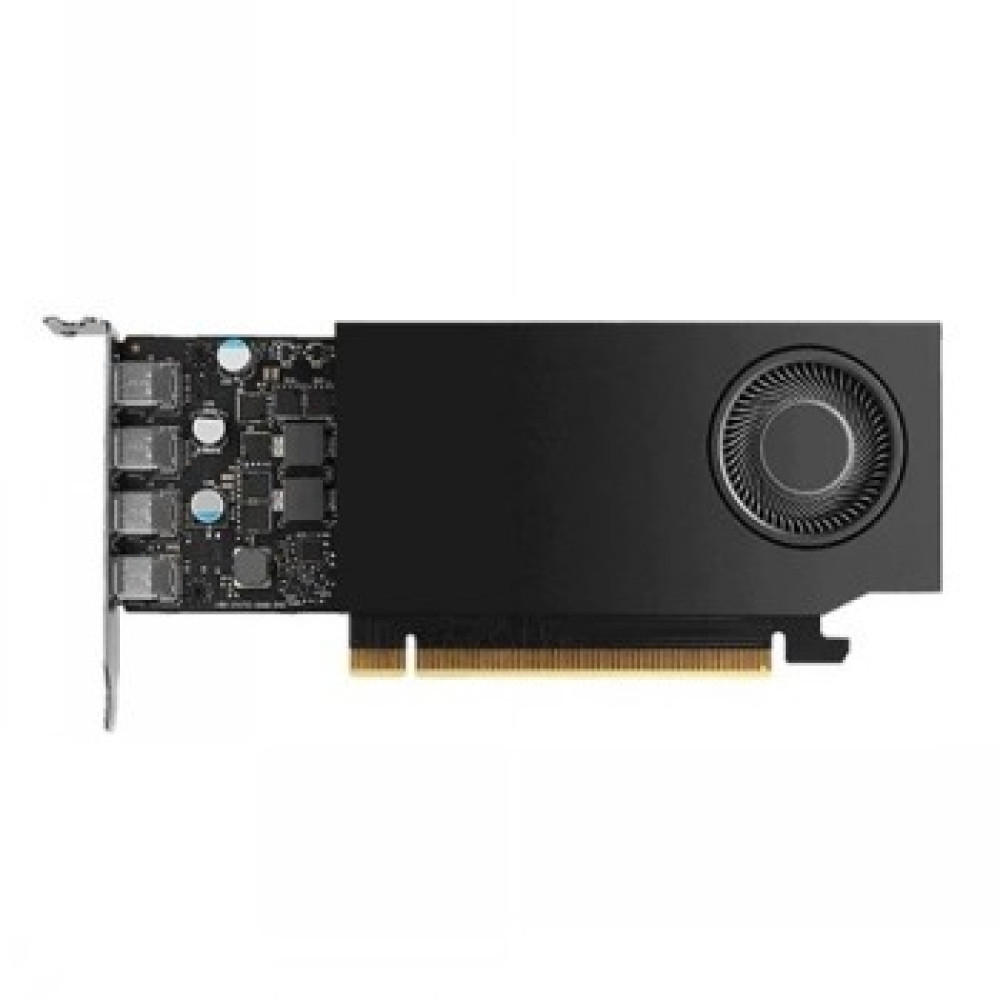

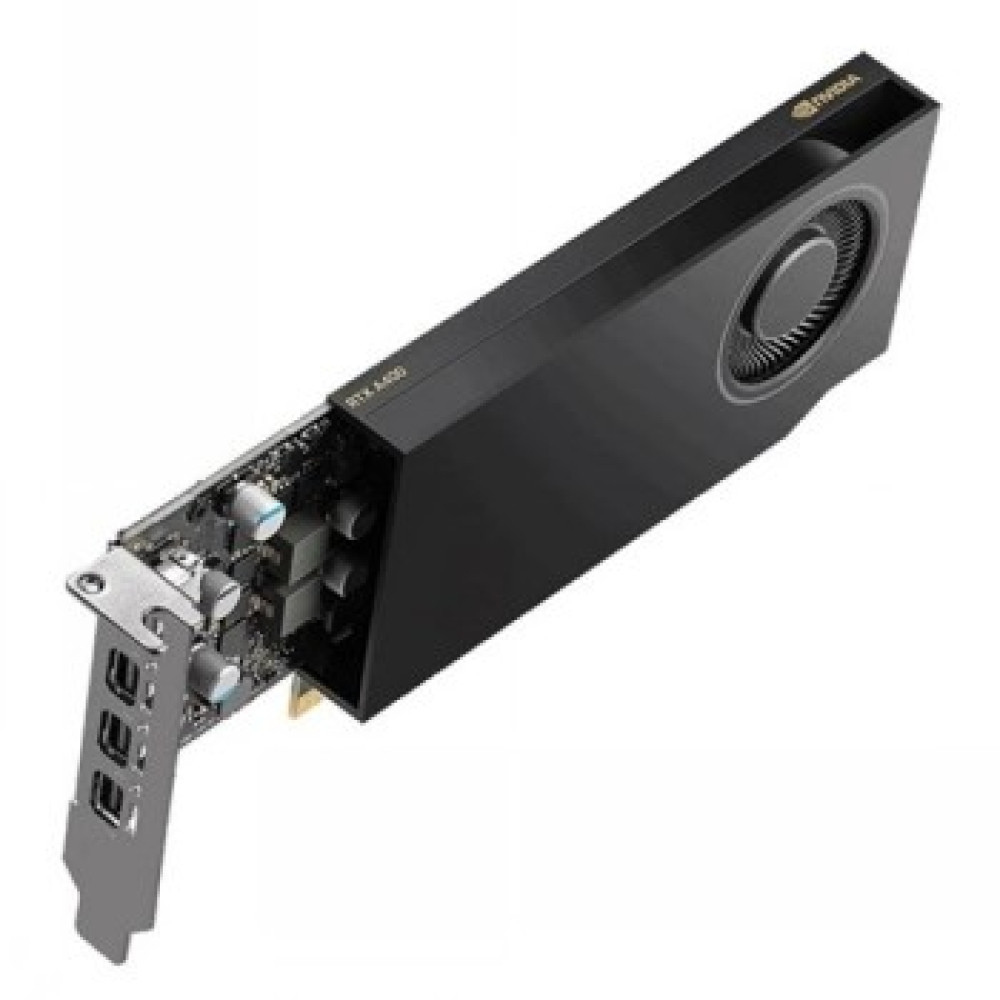

Dell NVIDIA RTX A400 4GB (DELL-9RN4R)

The Dell NVIDIA RTX A400 is a compact professional graphics card designed for AI-assisted workflows, 3D design, visualization, and multi-display environments.

Key Features:

• GPU Architecture: NVIDIA Ampere
• CUDA Cores: 768
• Tensor Cores: 24, 3rd Generation
• RT Cores: 6, 2nd Generation
• Graphics Memory: 4GB GDDR6
• System Interface: PCIe 4.0 x8
• Display Connectors: 4 x Mini DisplayPort 1.4a
• AV1 Support: AV1 decode

Technical Specifications:

• Graphics Processor: NVIDIA RTX A400
• Graphics Memory: 4GB GDDR6
• Memory Interface: 64-bit
• Memory Bandwidth: 96 GB/s
• CUDA Cores: 768
• Tensor Cores: 24
• RT Cores: 6
• Single-Precision Performance: 2.7 TFLOPS
• RT Core Performance: 5.4 TFLOPS
• FP16 Tensor Performance: 21.7 TFLOPS
• Peak INT8 Tensor Performance: 43.3 TOPS
• System Interface: PCIe 4.0 x8
• Power Consumption: 50W Total Board Power
• Cooling: Active
• Form Factor: Single Slot
• Dimensions: 2.7" H x 6.4" L

Display Features:

• Display Connectors: 4 x Mini DisplayPort 1.4a
• Maximum Simultaneous Displays: 4
• Maximum Resolution: 4 x 4096 × 2160 @ 120 Hz, 4 x 5120 × 2880 @ 60 Hz
• Audio Support: DisplayPort Audio
• HDCP: HDCP 2.2

Video and Software Support:

• Encode/Decode: 1 x encode, 1 x decode, AV1 decode
• Graphics APIs: DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3
• Compute APIs: CUDA 11.6, OpenCL 3.0, DirectCompute
• NVIDIA RTX Experience: Supported
• NVIDIA RTX Desktop Manager: Supported
• NVIDIA RTX IO: Supported
• NVIDIA Mosaic: Supported

Dell Technologies
