Lenovo 11NA001NMT

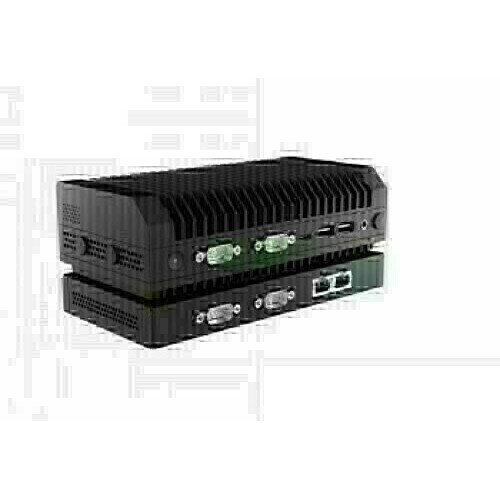

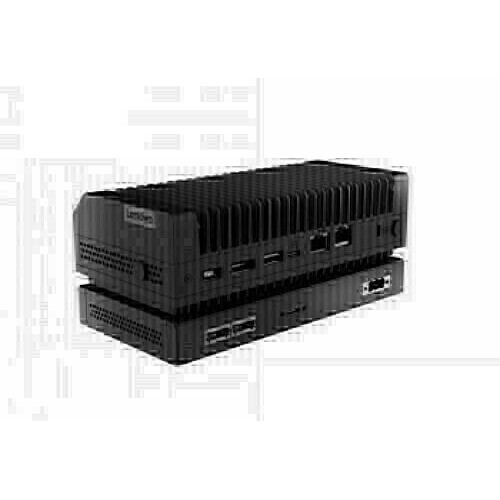

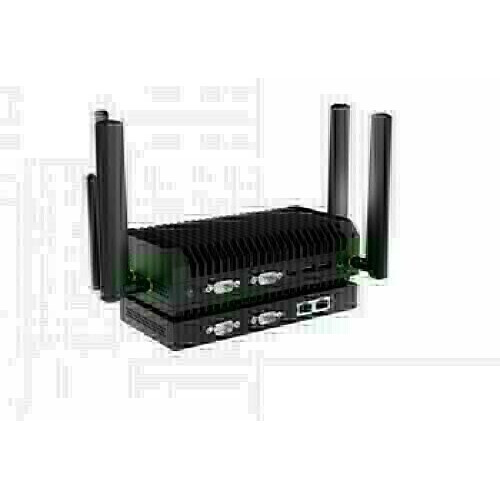

Lenovo ThinkEdge SE30 is an IoT endpoint designed to provide versatile and reliable connectivity and integration into production environments. Two fixed Ethernet ports, along with wireless WLAN and 4G mobile connectivity, allow it to function as a bridge and ensure continuous connection maintenance. You can connect sensors, counters, or other smart devices in an intelligent production environment to the two serial ports, and with the optional IO BOX expansion module, you gain even broader connectivity options, such as Digital I/O and PoE connections, as well as 9-36 VDC power supply.

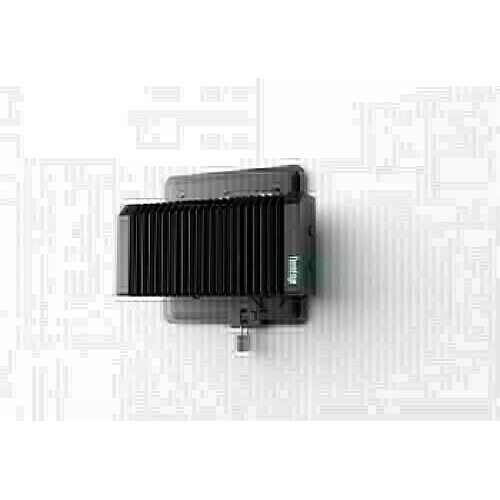

Its robust, compact, and fanless design ensures reliable operation in extreme conditions, and various mounting options (VESA, DIN rail, and wall mounting) make it easy to position in production facilities. Windows 10 IoT Enterprise LTSC guarantees long lifecycle support for the operating system, advanced device management, and enterprise-level security.

Key Features:

• Operating System: Windows 10 IoT Enterprise 64-bit LTSC
• Processor: Intel Core i3-1115GRE (2C/4T, 1.7/3.0GHz, 6MB)
• Graphics: Integrated Intel UHD Graphics
• Integrated Memory: 8GB DDR4 3200MHz
• Memory: Not expandable
• Storage: 256GB SSD M.2 2230 PCIe 3.0 NVMe
• 1x Gigabit Ethernet + 1x 2.5 Gigabit Ethernet
• Intel 9260 11AC 2x2 WLAN and Bluetooth 5.1
• Quectel EM160R-GL, CAT16 4G LTE
• Passive cooling

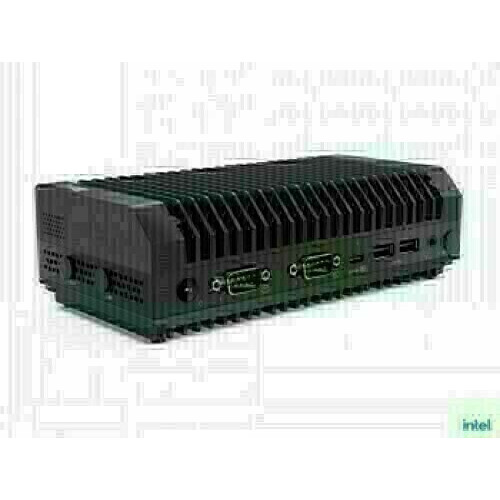

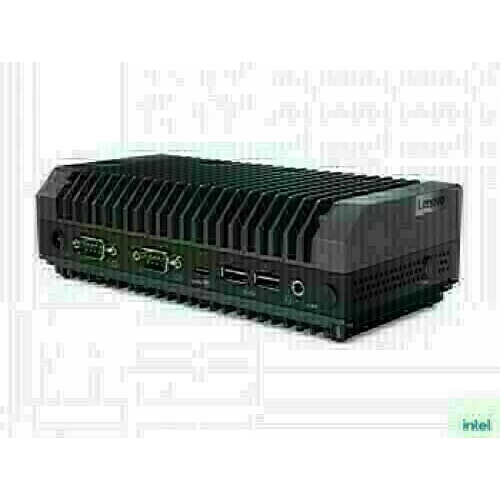

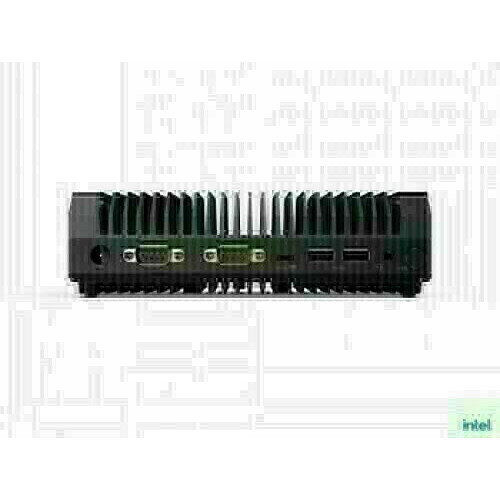

• Front panel connections: 2x USB-A 3.2 Gen2, 1x USB-C 3.2 Gen2 (display support), 3.5mm audio combo, 2x serial (RS-232/422/485)

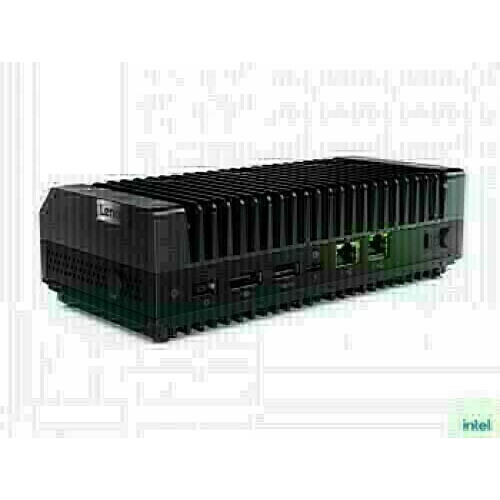

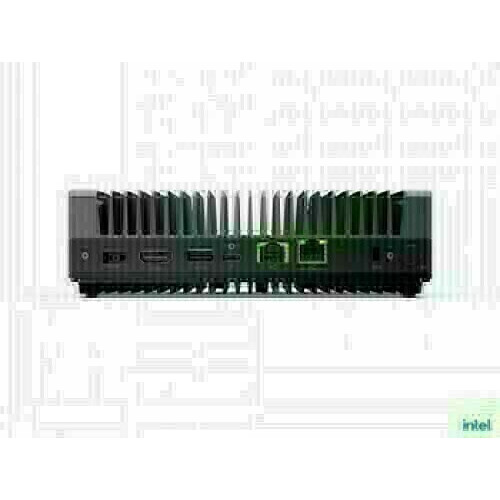

• Back panel connections: 1x HDMI 1.4b, 2x RJ45, 1x USB-A 3.2 Gen2, 1x Thunderbolt 4/USB 4.0 (Power delivery 5V@3A, display support), Slim Tip power connector
• Supports three displays (HDMI + 2x USB-C)
• TPM 2.0 security chip, Kensington lock slot
• Includes USB keyboard and mouse (Nordic layout)
• External wide-temperature power supply: 65W
• Weight: approximately 1kg
• Dimensions: 179 x 88 x 51.5mm
• Basic warranty: 3 years on-site

Operating Environment:

• Temperature: IEC60068-2-1 Test A: Cold, IEC 60068-2-2 Test B: Dry heat, -20°C to 60°C with 0.7 m/s airflow
• Relative humidity: IEC 60068-2-66 Damp heat, steady state 95%@40°C non-condensing
• Shock protection: IEC 60068-2-27, shock, operating, 30G / 11ms, half sine
• Vibration protection: IEC 60068-2-64, Vibration, Operating, 3Grms, random, 5 ~ 500Hz, 1hr/axis
• MIL-SPEC 810H military-grade durability
