Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Новый
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Отзывы:
(0)
    Наименование:

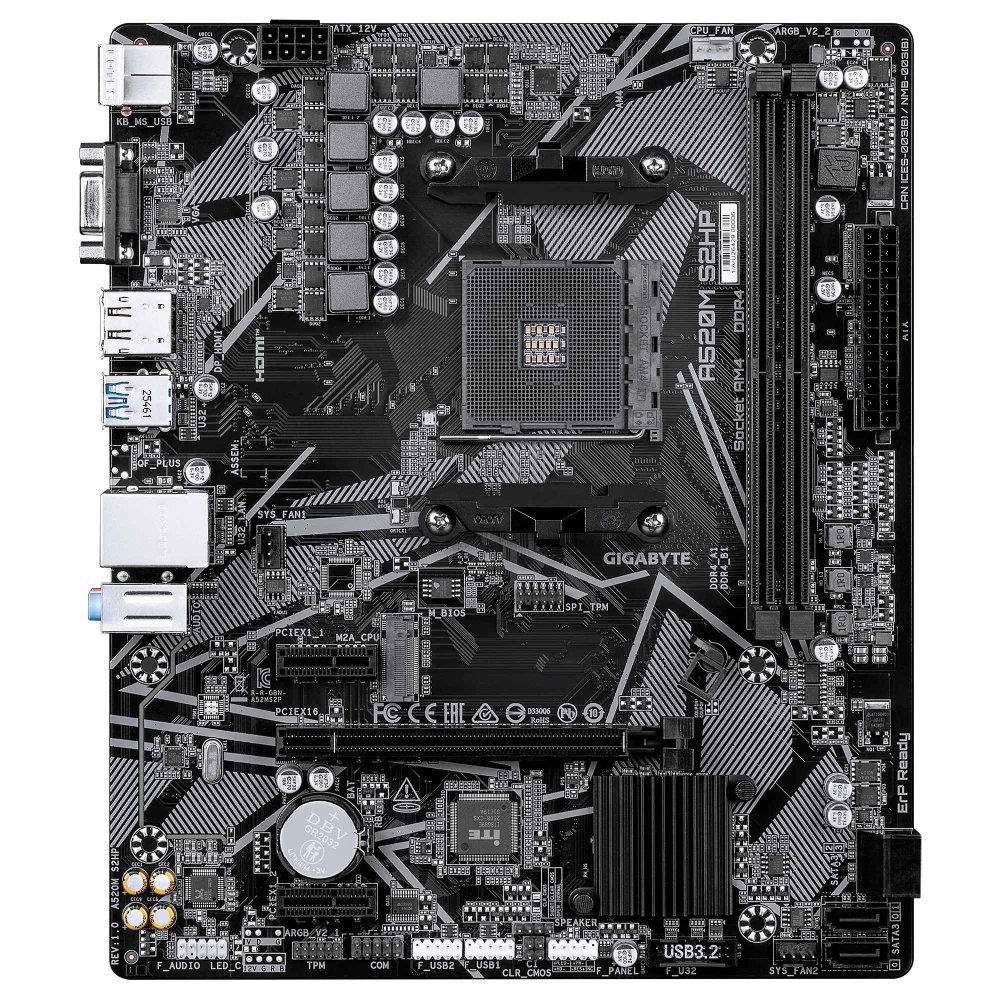

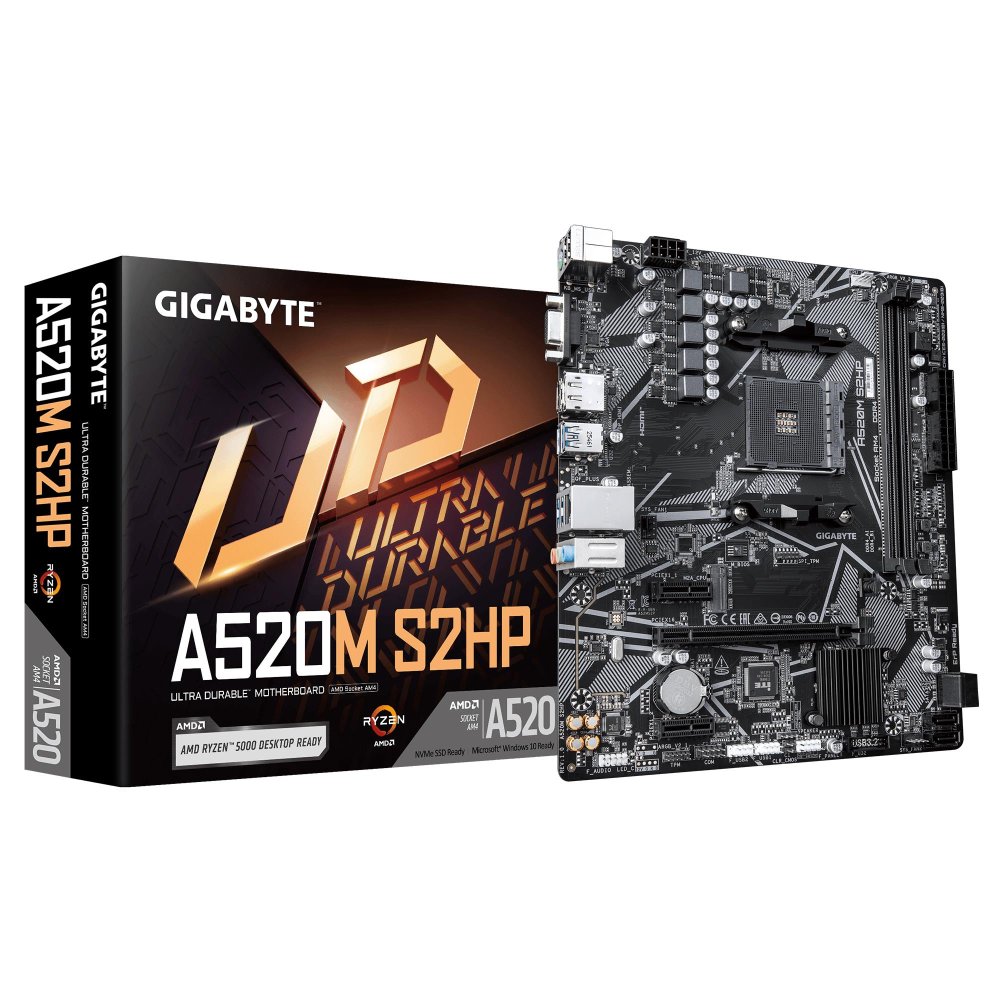

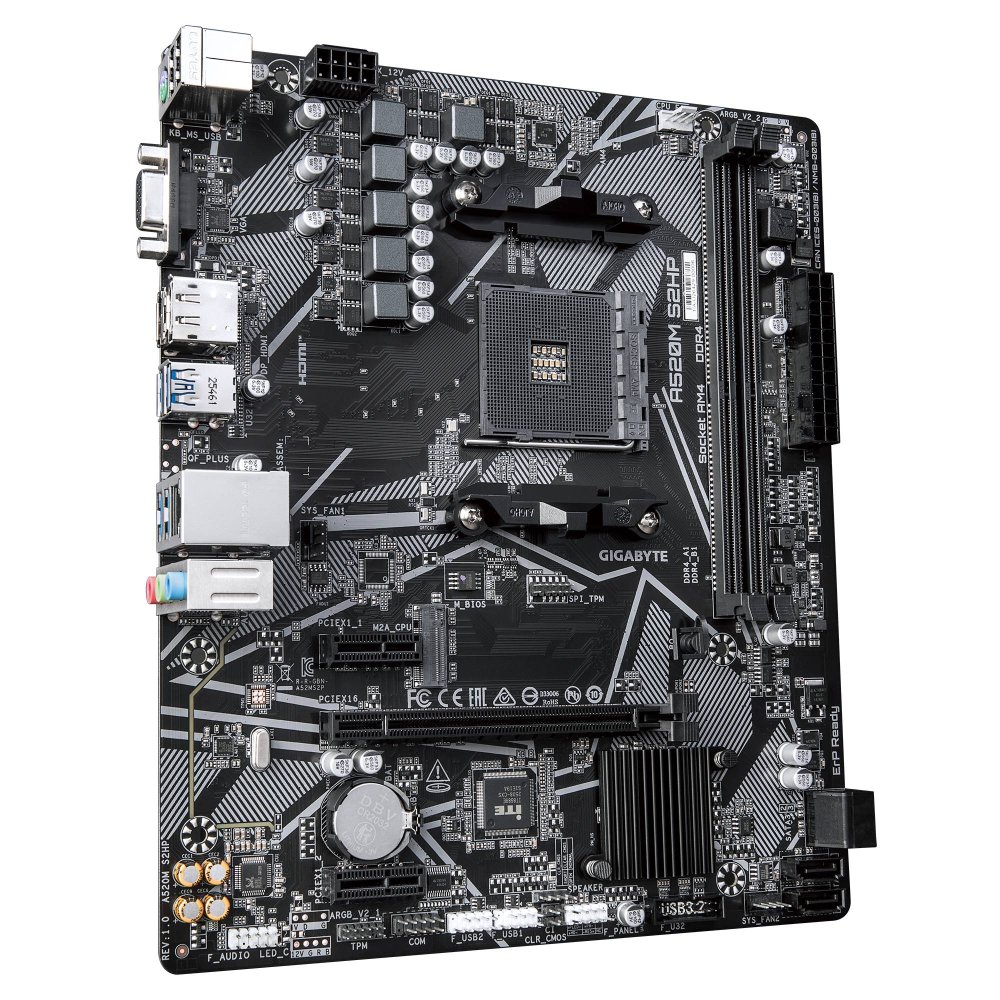

    Gigabyte A520M S2HP 1.0

  • Бренд: Gigabyte
  • Модель: A520M S2HP 1.0
  • EAN: 4719331882457
  • Наличие: 30
66.85€
Без PVN: 55.25€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for AMD CPUs

Характеристики
Основные параметры
Форм-фактор mATX
Производитель процессора AMD
Тип оперативной памяти DDR4
Чипсет A520
Сокет процессора AM4
Слоты памяти 2
Макс. объём памяти 64 GB
Слоты M.2 1
Порты SATA 4
Модуль Wi-Fi Нет
Скорость сети (LAN) 1 Gbit/s
Specification
Name MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE
Specifikācija
ACPI version 5.0
BIOS memory size 128
Clear CMOS button Yes
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Lithium weight per battery 0.07
Maximum number of SMP processors 1
Motherboard chipset family AMD
Number of chassis fan connectors 2
Number of M.2 (M) slots 1
Number of RGB LED pin headers 4
Number of SATA III connectors 4
On-board graphics card No
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
Power fan connector Yes
Product colour Black
Products per shipping (inner) case 1
RGB LED pin header Yes
Summary GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Supported memory clock speed (max) 3200
System Management BIOS (SMBIOS) version 2.7
Unit Calculated Volume 0.004187
Unit Depth 27
Unit Height 5.5
Unit Width 23
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Warranty period 3
Процессор
Compatible processor series AMD Ryzen 3000 Series
Processor manufacturer AMD
Сокет процессора Socket AM4
Память
Maximum internal memory 64
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 2133/2400/2667/2933/3200/3333/3600/4866
Supported memory types DDR4-SDRAM
Запоминающее устройство
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 3.0,SATA

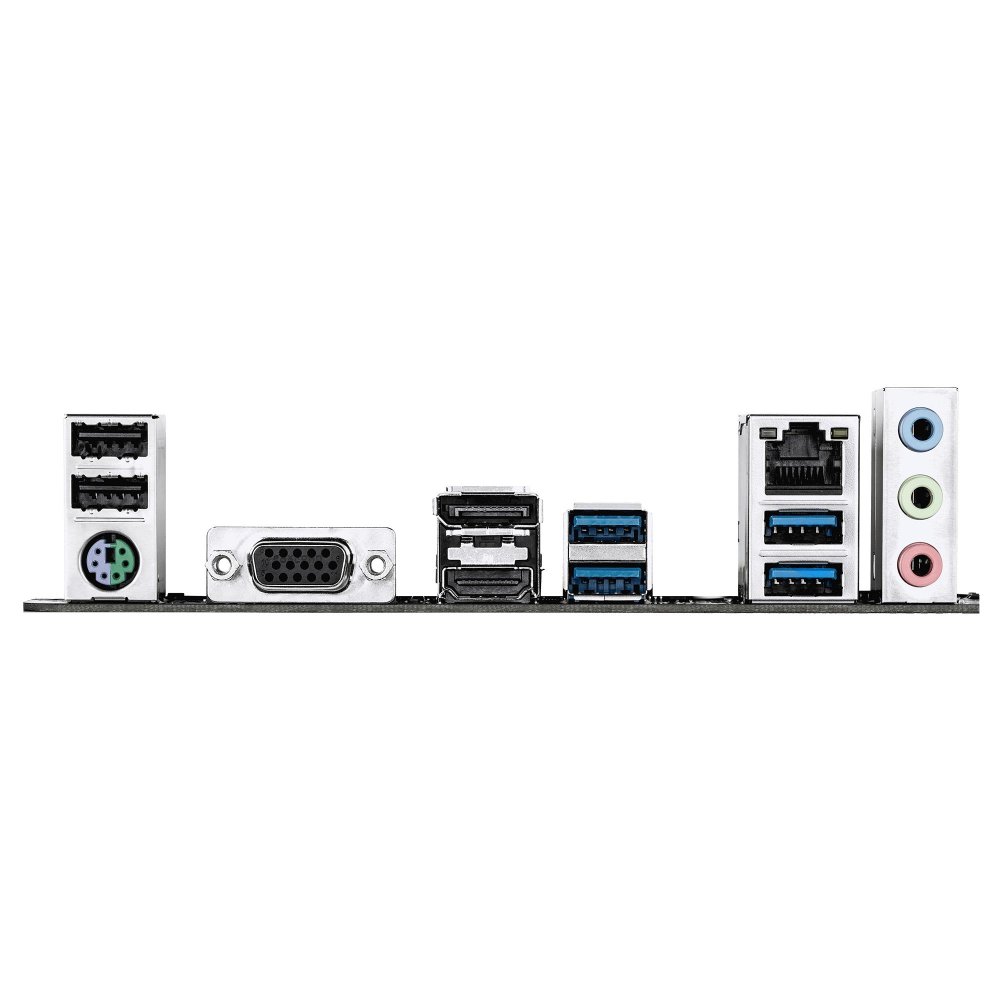

Порты
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Количество портов HDMI 1
Подключения
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
Порты локальной сети Ethernet (RJ-45) 1
Батарея
Batteries included Yes
Battery capacity 220
Battery type CR2032
Battery weight 3
Количество ячеек батареи 1
Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Country of origin China
HDCP Yes
Motherboard chipset AMD A520
Motherboard form factor micro ATX
Number of memory slots 2
Package depth 235
Package height 52
Package weight 772
Package width 265
PS/2 ports quantity 1
Supported processor sockets Socket AM4
Высота 35
Глубина 205
Ширина 244
