Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, A520MDS3HWF6E
Новый
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, A520MDS3HWF6E
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, A520MDS3HWF6E
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, A520MDS3HWF6E
Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, A520MDS3HWF6E
Отзывы:
(0)
    Наименование:

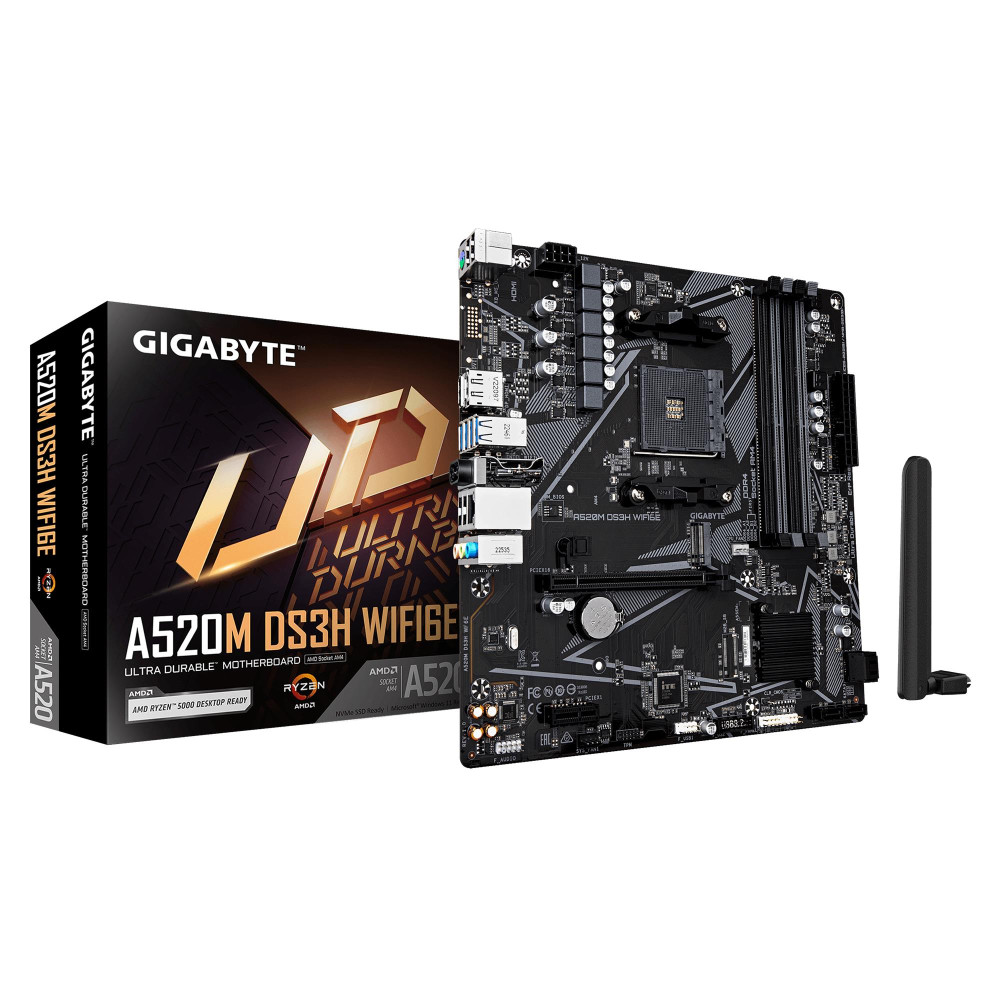

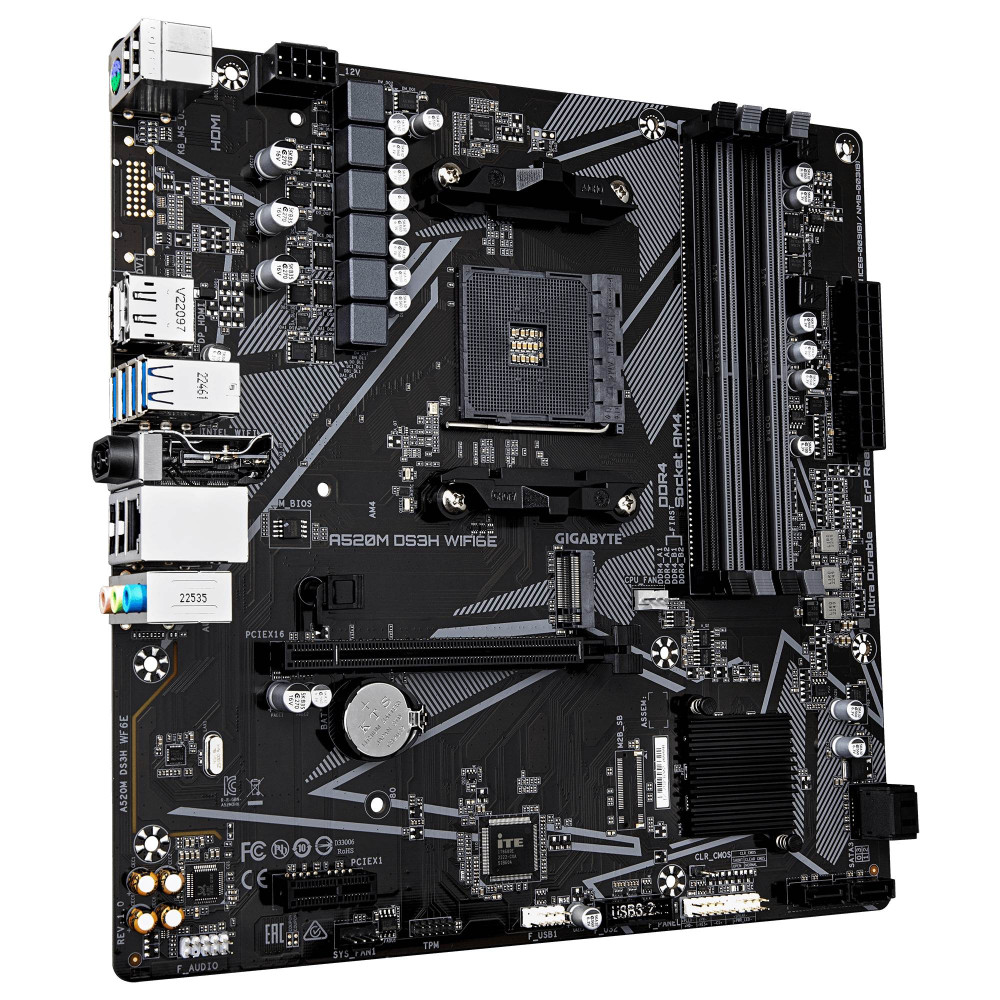

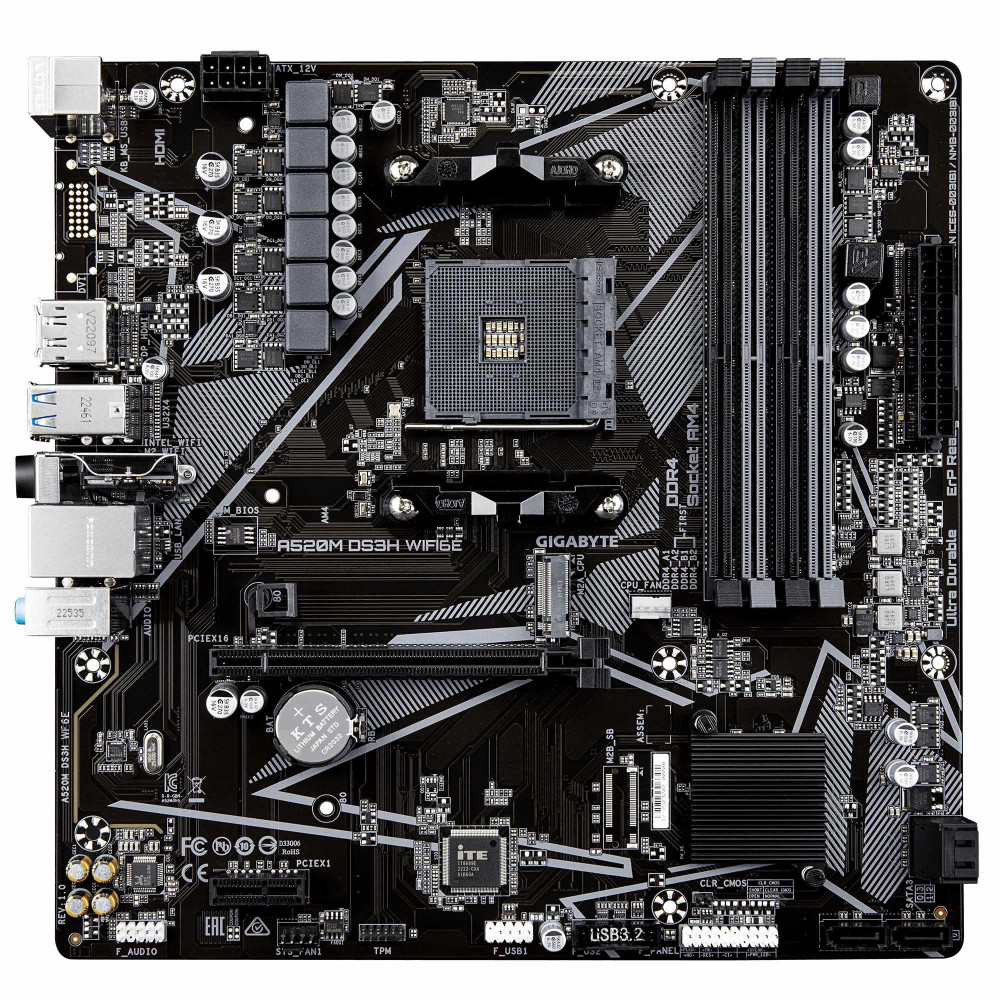

    Gigabyte A520M DS3H WF6E

  • Бренд: Gigabyte
  • Модель: A520M DS3H WF6E
  • EAN: 4719331880743
  • Наличие: 10
80.09€
Без PVN: 66.19€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for AMD CPUs

Характеристики
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 3.0
1st M.2 largest key size 2280
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 128
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
HDCP version 2.3
Lithium weight per battery 0.07
Maximum internal memory per slot 32
Motherboard chipset family AMD
Number of chassis fan connectors 1
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 1
Number of SATA III connectors 4
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
Product colour Dark brown
Products per shipping (inner) case 1
Screws included Yes
Summary GIGABYTE A520M DS3H WIFI6E Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI 6E, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) 4733
System Management BIOS (SMBIOS) version 2.7
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.006222
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model MediaTek MT7902
Процессор
Compatible processor series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor manufacturer AMD
Сокет процессора AM4
Память
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Тип памяти DDR4
Запоминающее устройство
Number of storage drives supported 5
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

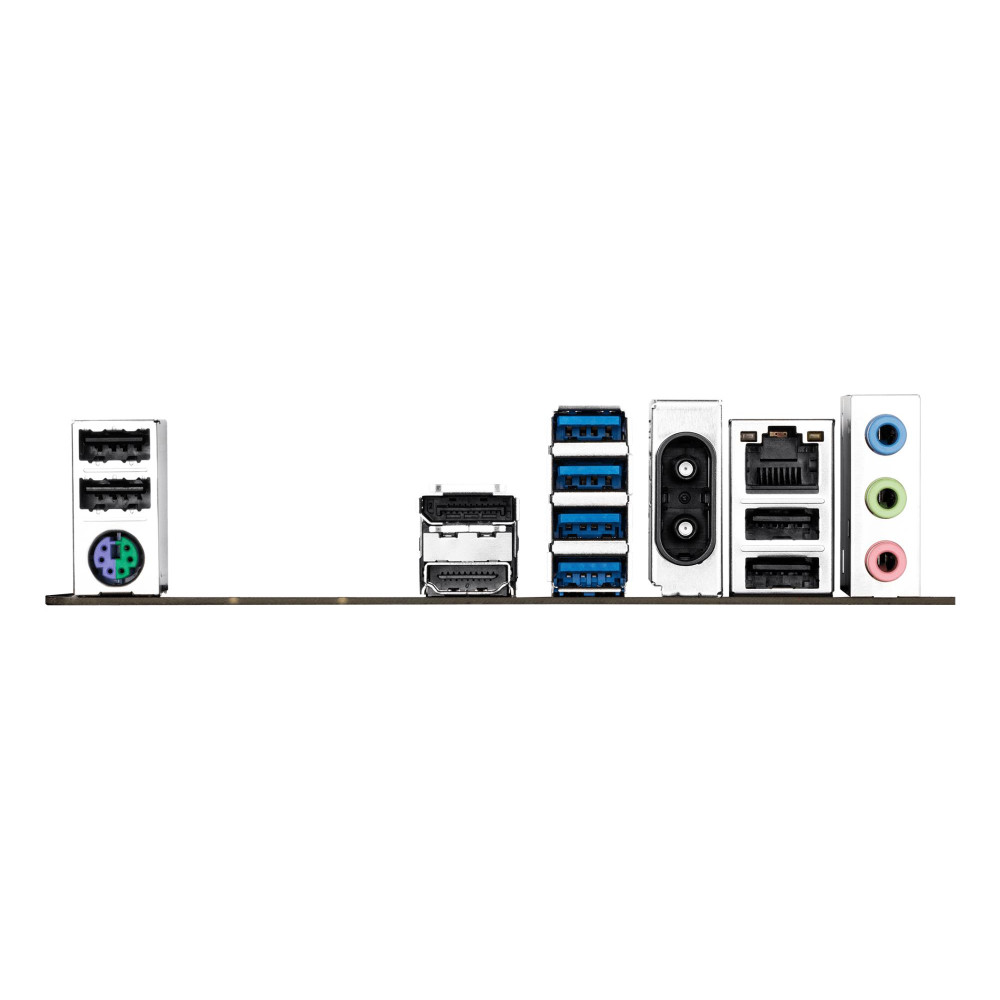

Порты
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 1
USB 2.0 ports quantity 4
Количество портов HDMI 1
Подключения
Bluetooth Yes
Ethernet interface type Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Версия Bluetooth 5.3
Порты локальной сети Ethernet (RJ-45) 1
Батарея
Batteries included Yes
Battery capacity 220
Battery type CR2032
Battery weight 3
Количество ячеек батареи 1
Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
Drivers included Yes
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Line-in Yes
Maximum resolution 5120 x 2880
Motherboard chipset AMD A520
Motherboard form factor micro ATX
Number of memory slots 4
Package depth 268
Package height 68
Package weight 972
Package width 270
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets Socket AM4
Weight 880
Windows operating systems supported Windows 10 x64/Windows 11 x64
Высота 35
Глубина 244
Чипсет A520
Ширина 244
