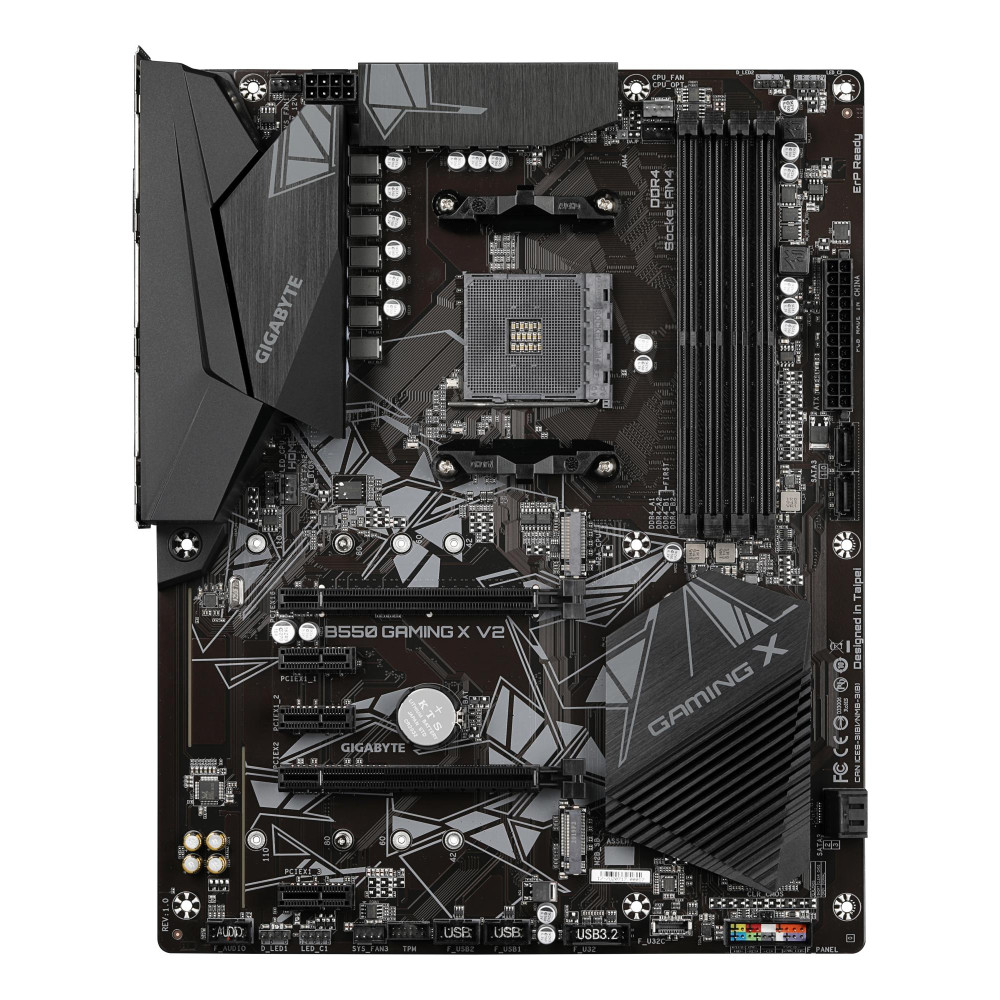

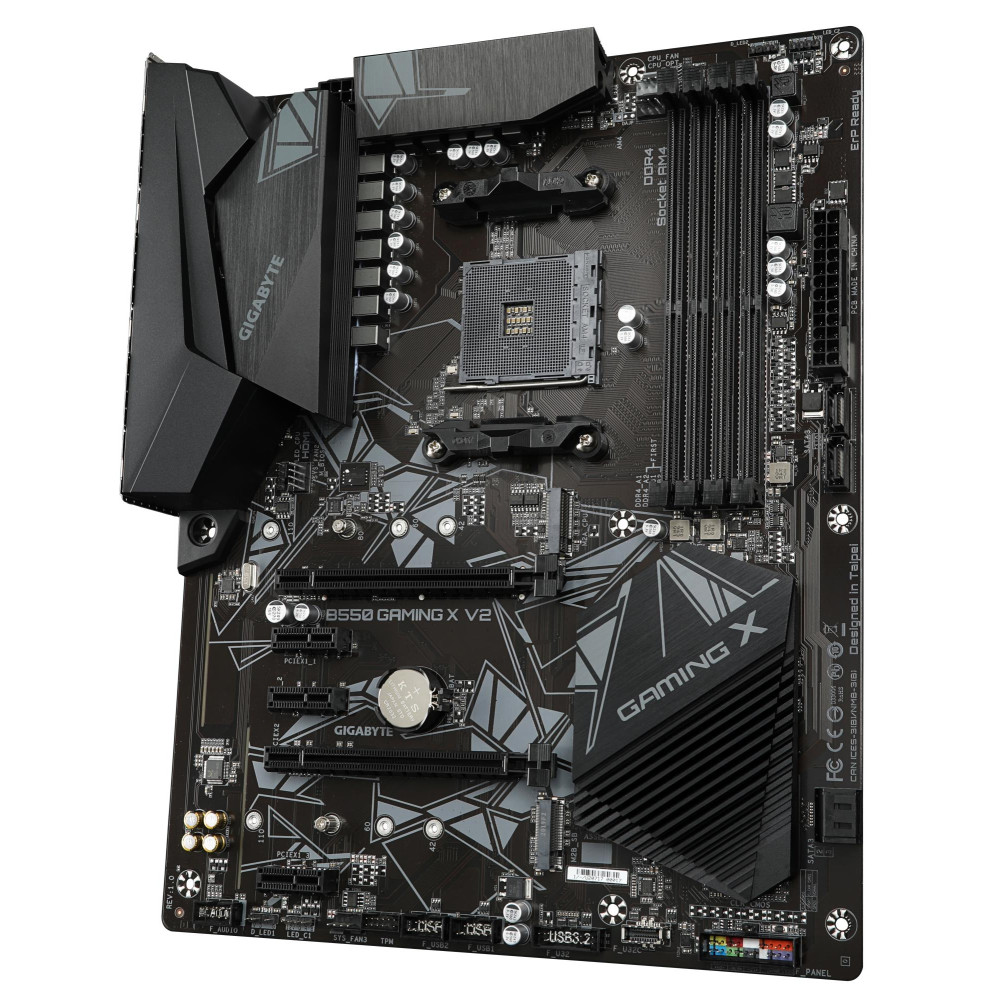

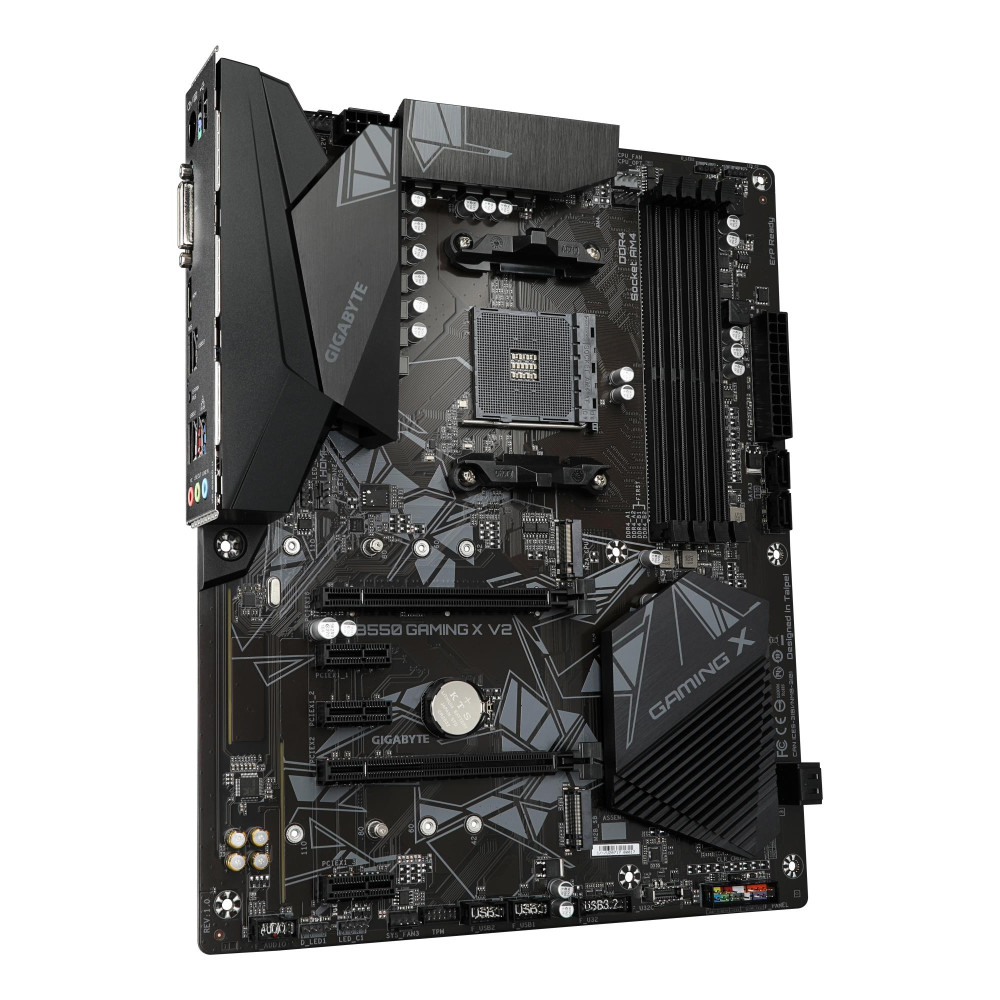

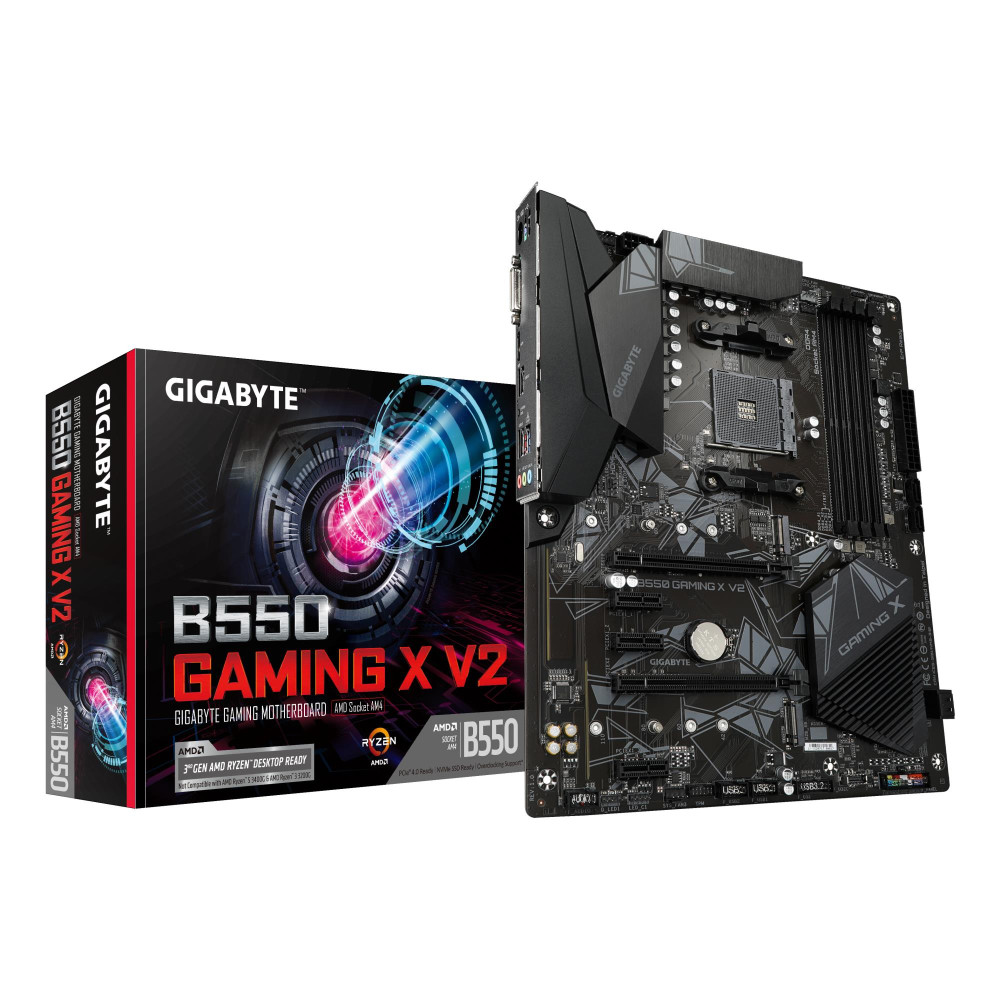

Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Популярный
Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 3.0 2x, 1xPCI-Express 4.0 16x, 2xM.2, 1xDVI-D, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550GAMINGXV21.3
Отзывы:
(0)
    Наименование:

    Gigabyte B550GAMINGXV21.3

  • Бренд: Gigabyte
  • Модель: B550GAMINGXV21.3
  • EAN: 4719331810702
  • Наличие: 50
106.78€
Без PVN: 88.25€
  • Обзор товара
  • Характеристики
  • Отзывы (0)
  • Похожие товары

Mainboards for AMD CPUs

Характеристики
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 22110
2nd M.2 highest PCI Express generation 3.0
2nd M.2 largest key size 22110
ACPI version 5.0
Audio chip Realtek ALC897
BIOS memory size 128
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Harmonized System (HS) code 84733020
Lithium weight per battery 0.07
Maximum internal memory per slot 32
Maximum number of SMP processors 1
Motherboard chipset family AMD
Number of chassis fan connectors 3
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of RGB LED pin headers 5
Number of SATA III connectors 4
Number of water pump connectors 4
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 3
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Product colour Brown
Products per shipping (inner) case 1
RGB LED pin header Yes
Screws included Yes
Summary GIGABYTE B550 Gaming X V2 Motherboard - AMD Ryzen 5000 CPUs, 10+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Supported memory clock speed (max) 4733
System Management BIOS (SMBIOS) version 2.7
TPM connector Yes
Unit Calculated Volume 0.01006
Unit Calculated Weight 1.7
Units per Shipping Box 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Warranty period 3
Процессор
Compatible processor series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor manufacturer AMD
Сокет процессора AM4
Память
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Тип памяти DDR4
Запоминающее устройство
Number of storage drives supported 6
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

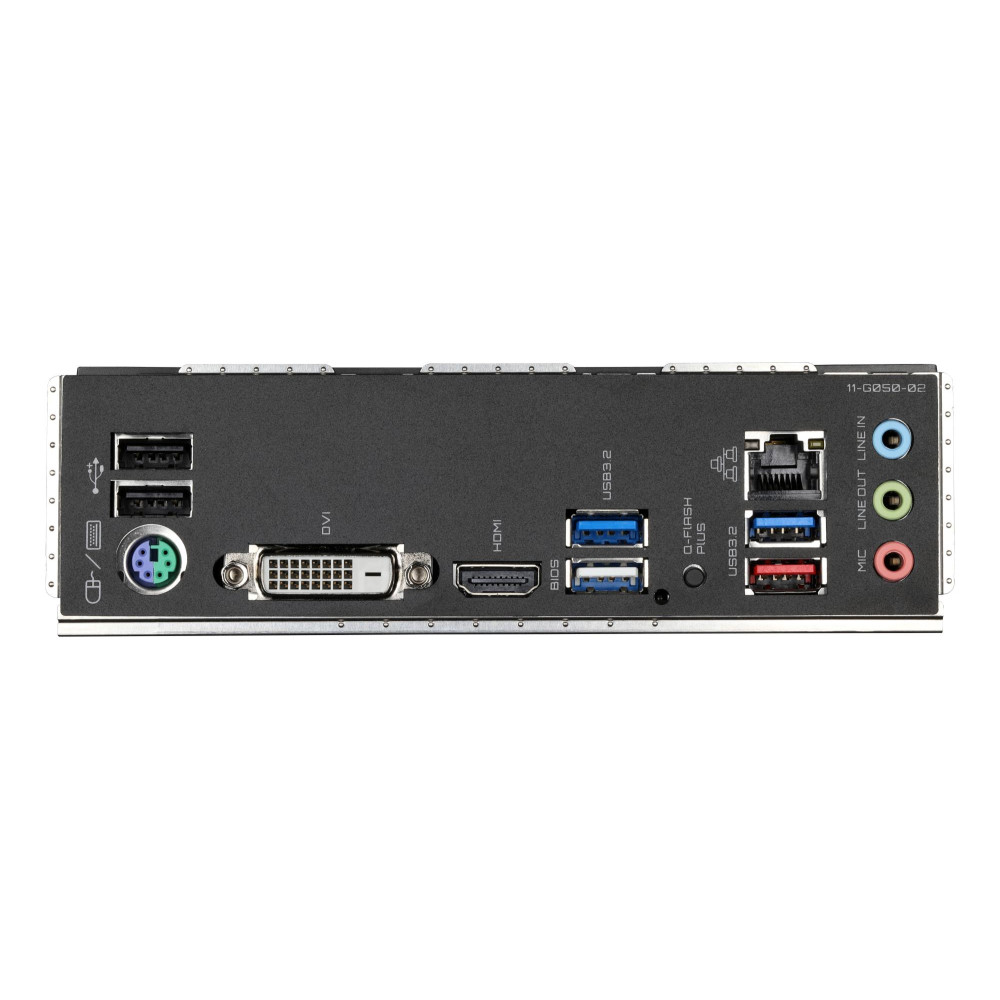

Порты
DVI port Yes
DVI-D ports quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Количество портов HDMI 1
Подключения
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Wi-Fi No
Порты локальной сети Ethernet (RJ-45) 1
Батарея
Batteries included Yes
Battery type CR2032
Battery weight 3
Количество ячеек батареи 1
Технология аккумуляторов Lithium-Manganese Dioxide (LiMnO2)
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
EPS power connector (8-pin) Yes
Form factor ATX
HDCP Yes
Line-in Yes
Model B550 GAMING X V2 (rev. 1.3)
Motherboard chipset AMD B550
Motherboard form factor ATX
Number of memory slots 4
Package depth 270
Package height 80
Package weight 1710
Package width 335
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets Socket AM4
Weight 1120
Windows operating systems supported Windows 10 x64/Windows 11 x64
Высота 35
Глубина 244
Чипсет B550
Ширина 305
