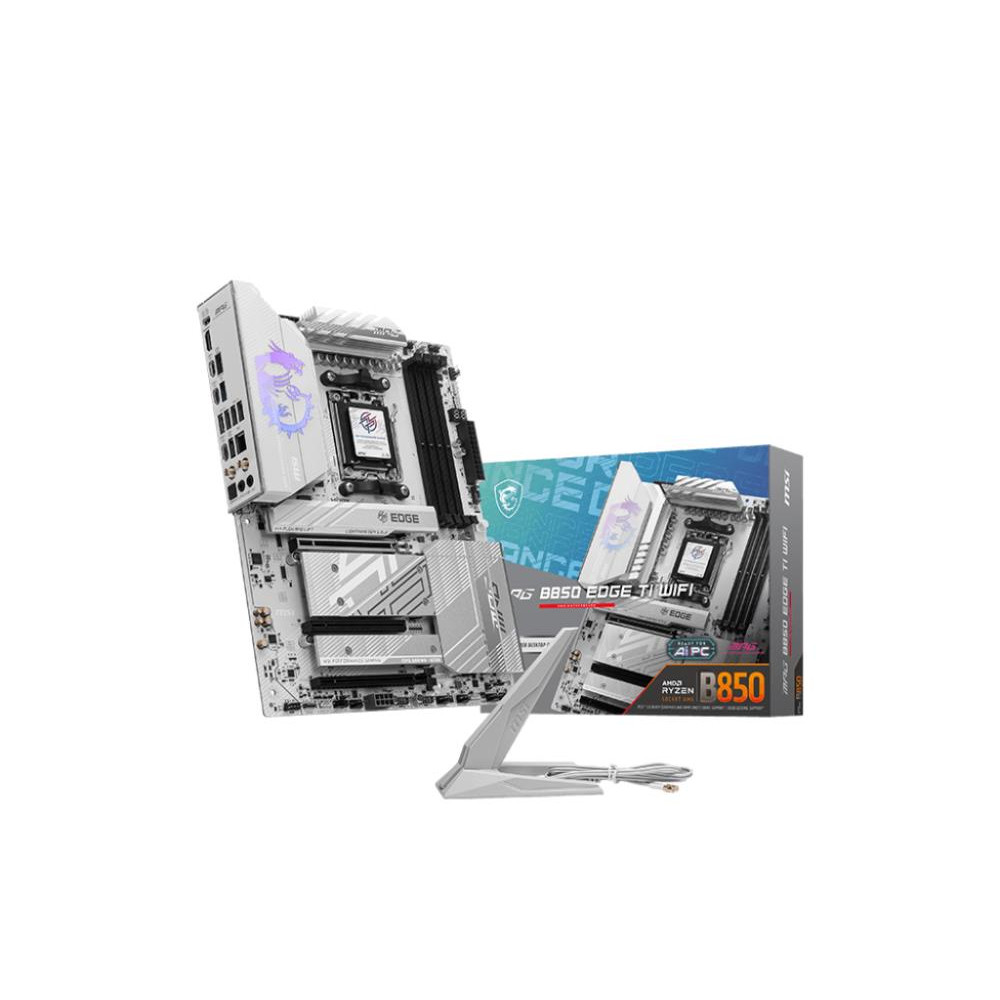

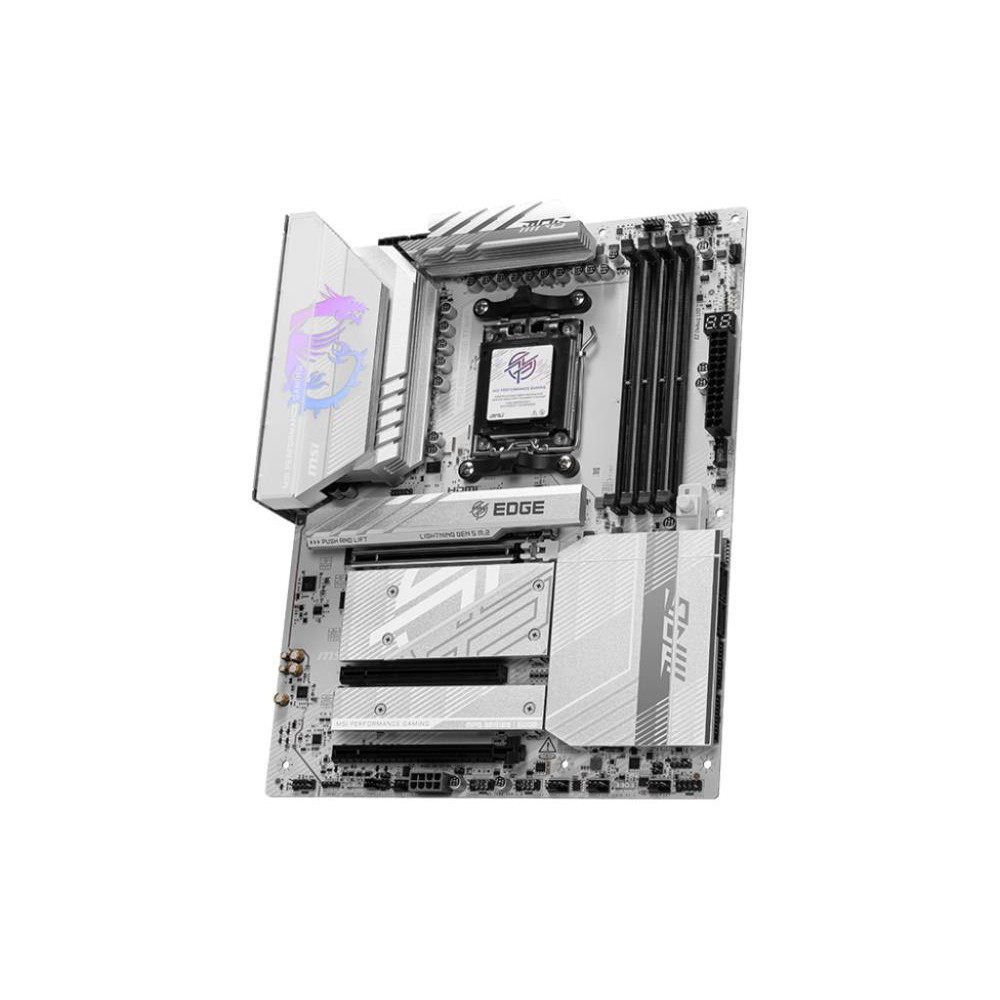

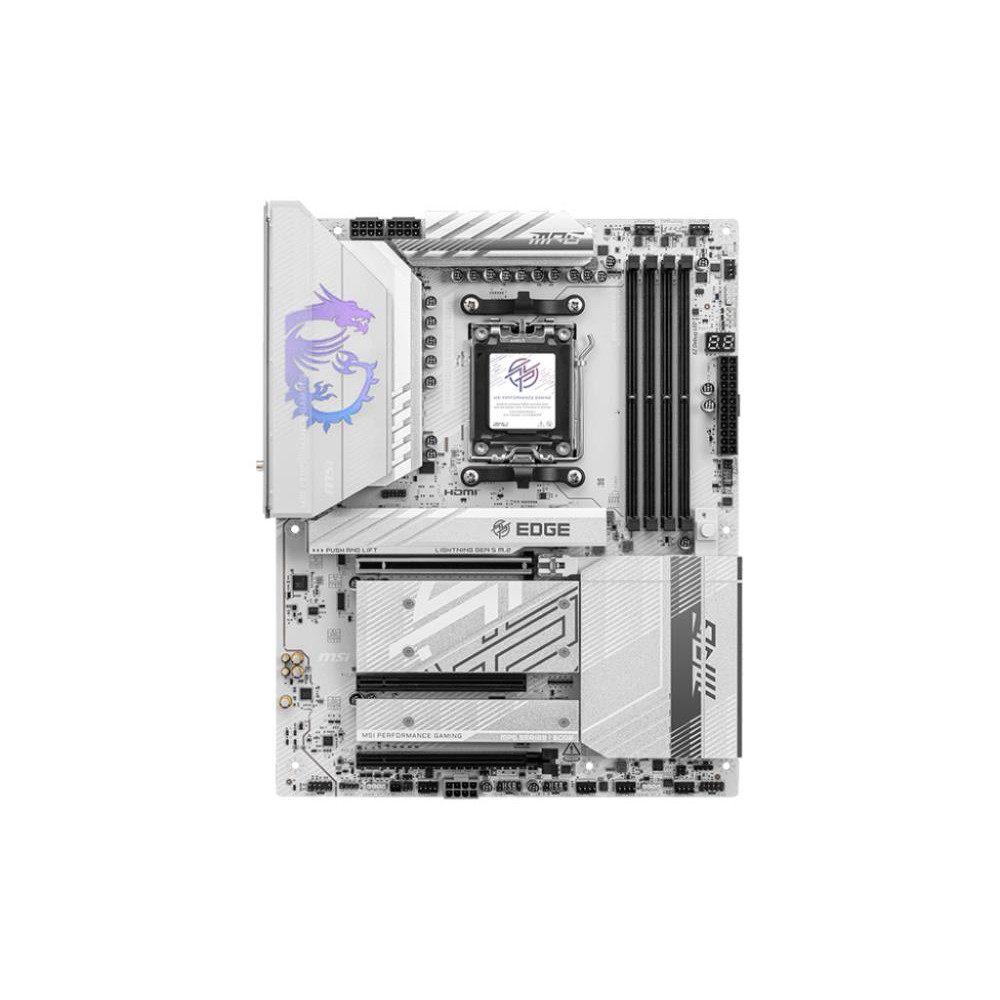

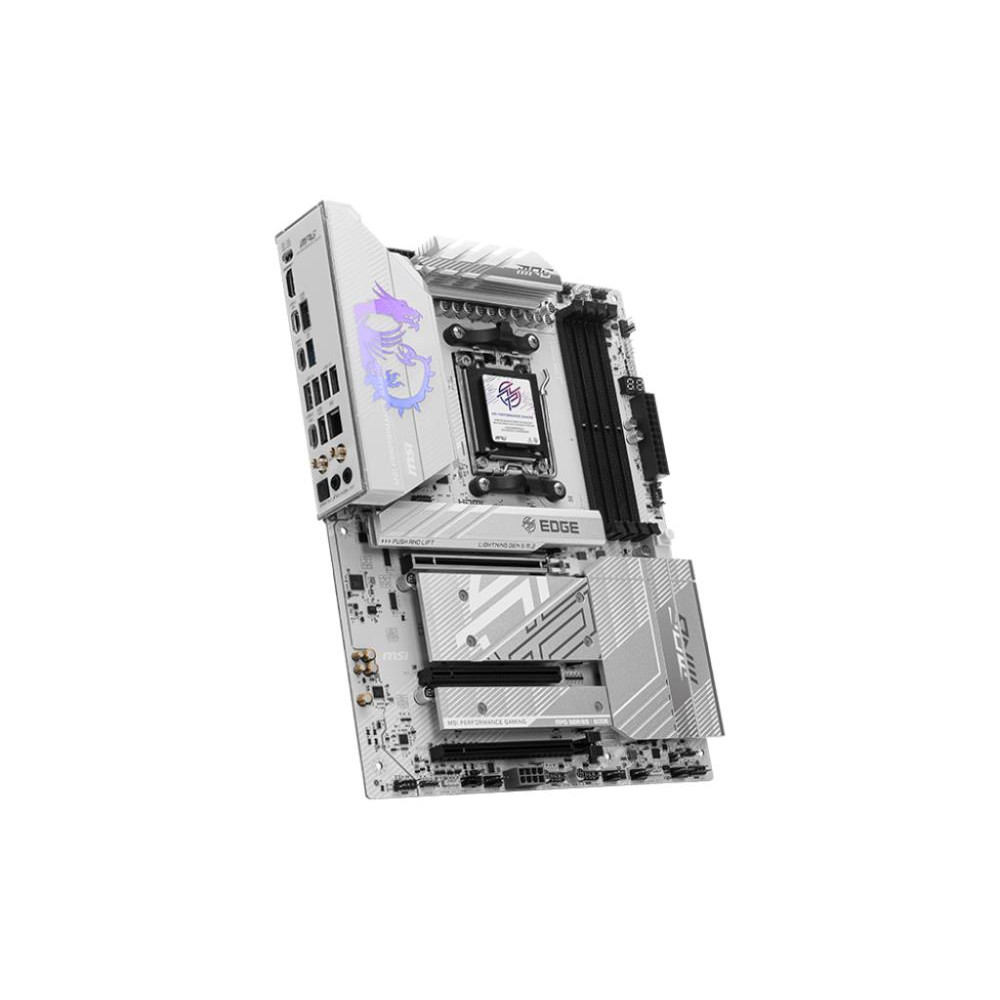

Mainboard, MSI, AMD B850, SAM5, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 4xM.2, 1xHDMI, 1xAudio-In, 1xAudio-Out, 4xUSB 2.0, 1xUSB 3.0, 2xUSB 3.2, 3xUSB-C, 1xOptical S/PDIF, 1xRJ45, MPGB850EDGETIWIFI

Популярный

Отзывы:

(0)

Наименование:

MSI MPG B850 EDGE TI WIFI

Бренд: MSI
Модель: MPG B850 EDGE TI WIFI
EAN: 4711377290616
Наличие: 30

312.33€

Без PVN: 258.12€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

1st M.2 highest PCI Express generation 5.0

1st M.2 largest key size 22110

2nd M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 2280

3rd M.2 highest PCI Express generation 4.0

3rd M.2 largest key size 2280

4th M.2 highest PCI Express generation 4.0

4th M.2 largest key size 2280

Audio chip Realtek ALC4080

CPU fan connector Y

ECC ?ompatibility non-ECC

Motherboard chipset family AMD

Number of CPU fan connectors 6

Number of HDDs supported 4

Number of M.2 (M) slots 4

Number of RGB LED pin headers 3

Number of SATA III connectors 4

Number of water pump connectors 1

On-board graphics card N

PCI Express x16 (Gen 3.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Product colour White

RGB LED pin header Y

Summary MSI MPG B850 EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Supported memory clock speed (max) 8400

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Total number of SATA connectors 4

Unit Calculated Volume 0.007116

Unit Calculated Weight 2.25

Units per Shipping Box 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3

Процессор

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer AMD

Сокет процессора AM5

Память

Maximum internal memory 256

Maximum internal memory supported by processor 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5600/8400

Supported memory types DDR5-SDRAM

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 8

RAID levels 0/1/10

RAID support Y

Supported storage drive interfaces M.2,Micro SATA III

Supported storage drive types HDD & SSD

Порты

HDMI version 2.1

USB 2.0 connectors 4

USB 2.0 ports quantity 4

Количество портов HDMI 1

Подключения

Bluetooth Y

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Y

Wi-Fi Y

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Версия Bluetooth 5.4

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

Audio output channels 7.1

Component for PC

Form factor ATX

Model MPG B850 EDGE TI WIFI

Motherboard chipset AMD B850

Motherboard form factor ATX

Number of memory slots 4

Supported processor sockets Socket AM5

Windows operating systems supported Windows 11 x64

Глубина 243.84

Чипсет B850

Ширина 304.8
