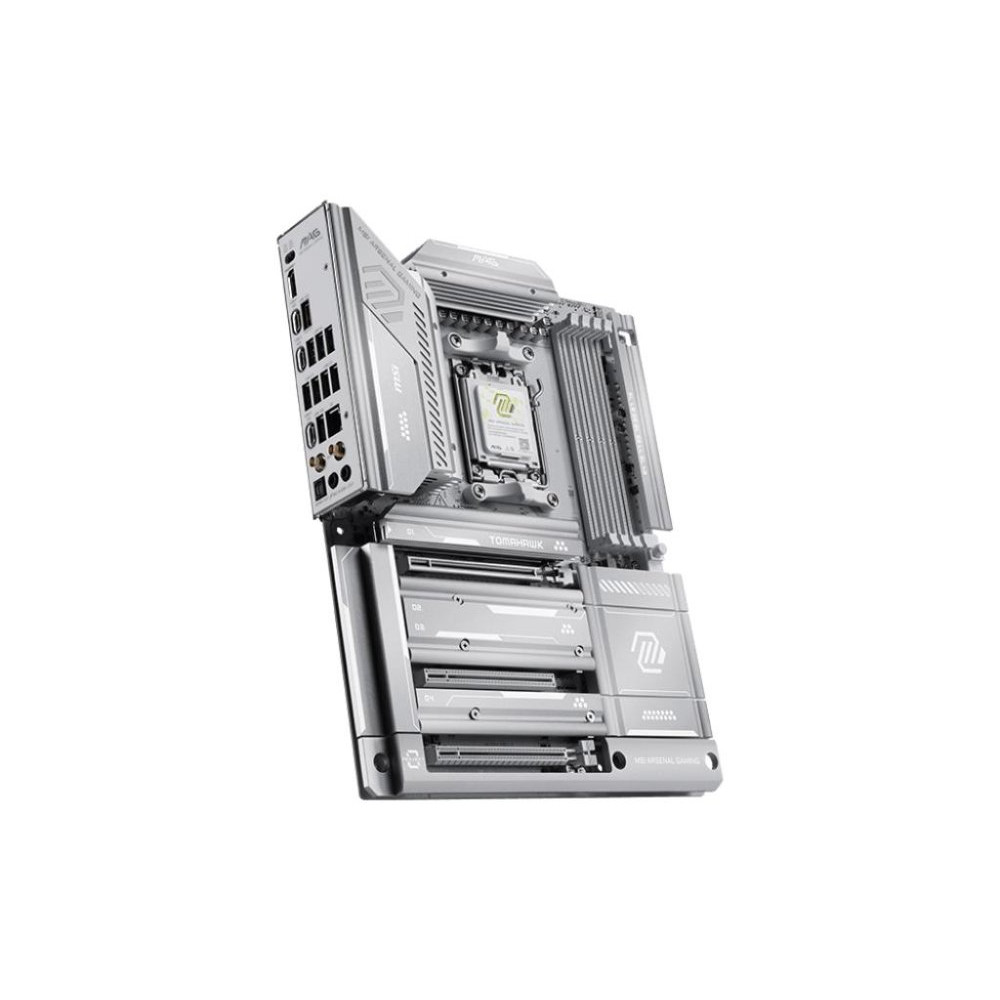

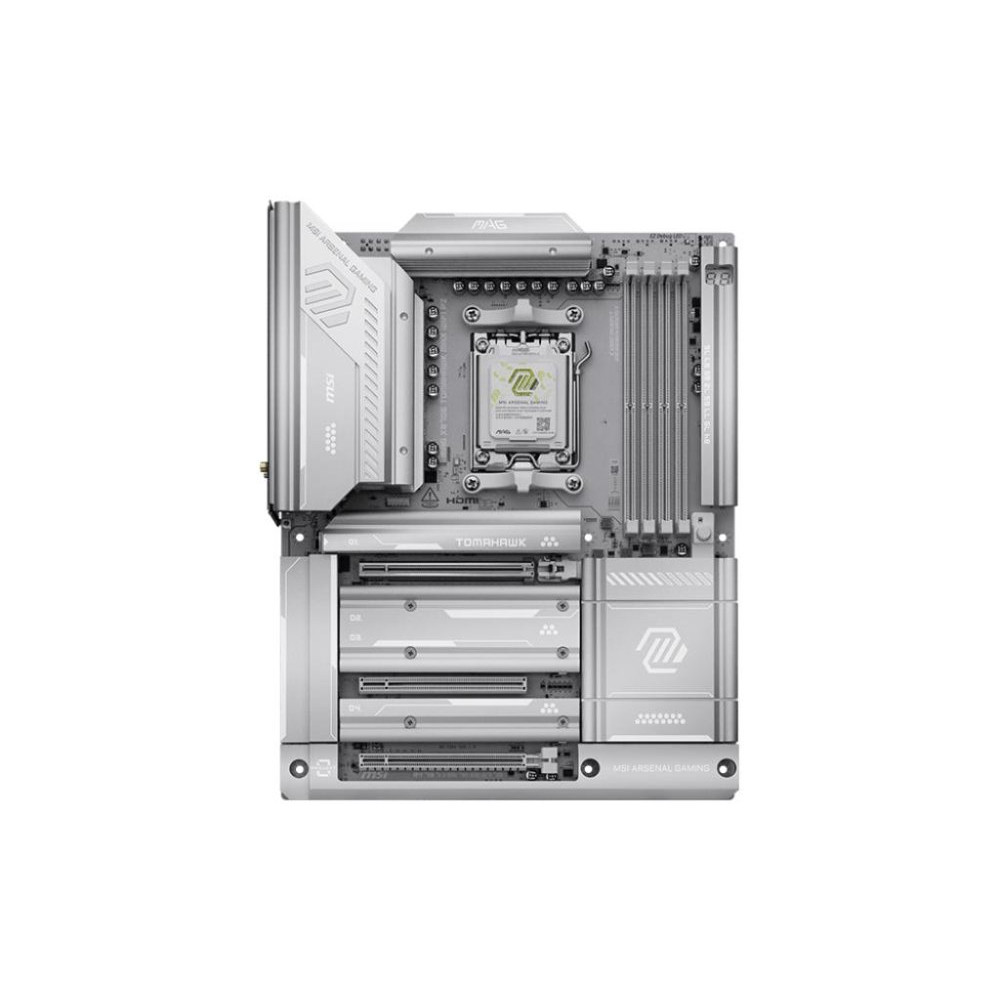

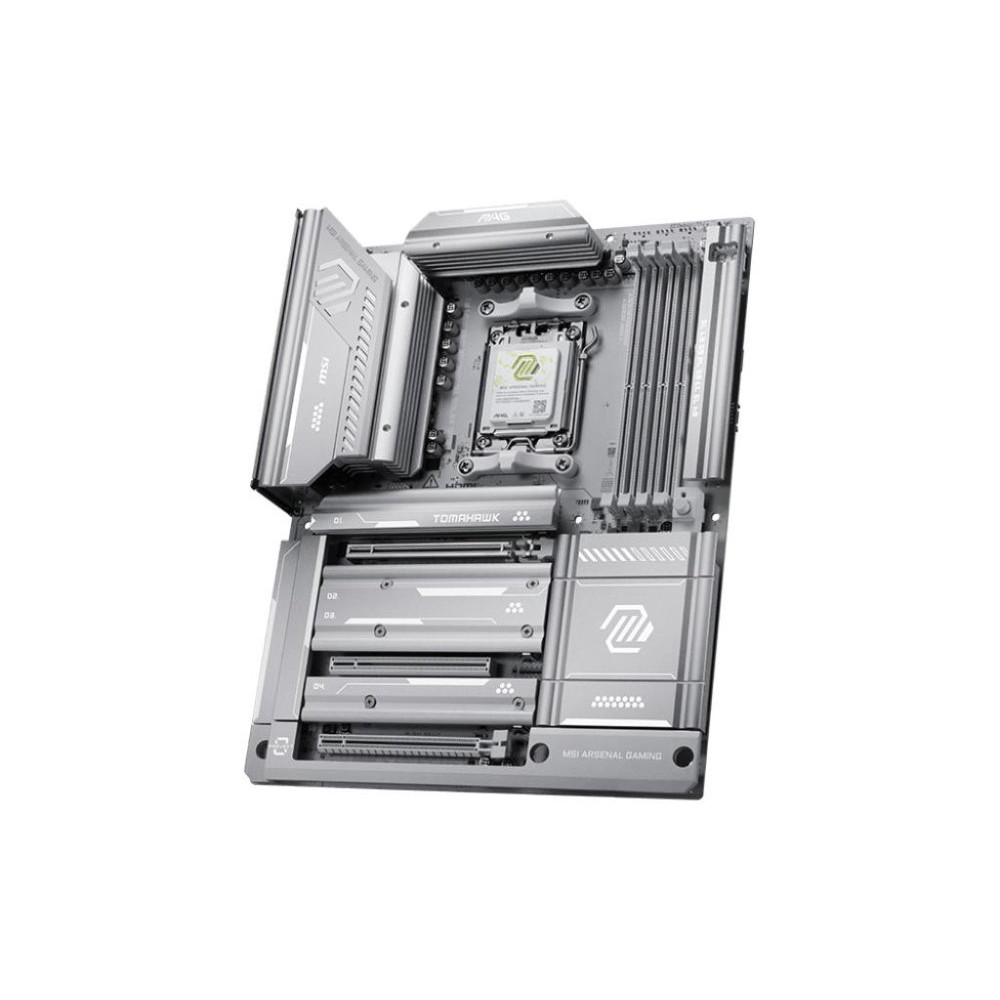

Mainboard, MSI, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 4xNumber of M.2 (M) slots, X870ETOMAHAWKMAXWIFIPZ
- Бренд: MSI
- Модель: MAG X870E TOMAHAWK MAX WIFI PZ
- EAN: 4711377391283
- Наличие: 5
Наименование:
MSI MAG X870E TOMAHAWK MAX WIFI PZ
369.99€
Без PVN: 305.78€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Основные параметры
Форм-фактор
ATX
Производитель процессора
AMD
Тип оперативной памяти
DDR5
Чипсет
X870E
Сокет процессора
AM5
Слоты памяти
4
Макс. объём памяти
256 GB
Слоты M.2
4
Порты SATA
4
Модуль Wi-Fi
Да
Скорость сети (LAN)
5 Gbit/s
Specification
Name
MB AMD X870E SAM5 ATX/X870E TOMAHAWK MAX WIFI PZ MSI
Specifikācija
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
ACPI version
6.5
BIOS memory size
512
CPU fan connector
Yes
ECC сompatibility
Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Motherboard chipset family
AMD
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of SATA III connectors
4
On-board graphics card
No
PC health monitoring
CPU/Fan/Temperature/Voltage
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
White
S/PDIF out port
Yes
Summary
MSI MAG X870E TOMAHAWK MAX WIFI PZ. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Supported memory clock speed (max)
8400
System Management BIOS (SMBIOS) version
3.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Total number of SATA connectors
4
Unit Calculated Volume
0.00986
Unit Depth
35
Unit Height
29
Unit Width
7.5
Units per Shipping Box
5
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
Процессор
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Сокет процессора
Socket AM5
Память
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4800/5600/6400/8400
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Запоминающее устройство
Number of storage drives supported
8
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD
Порты

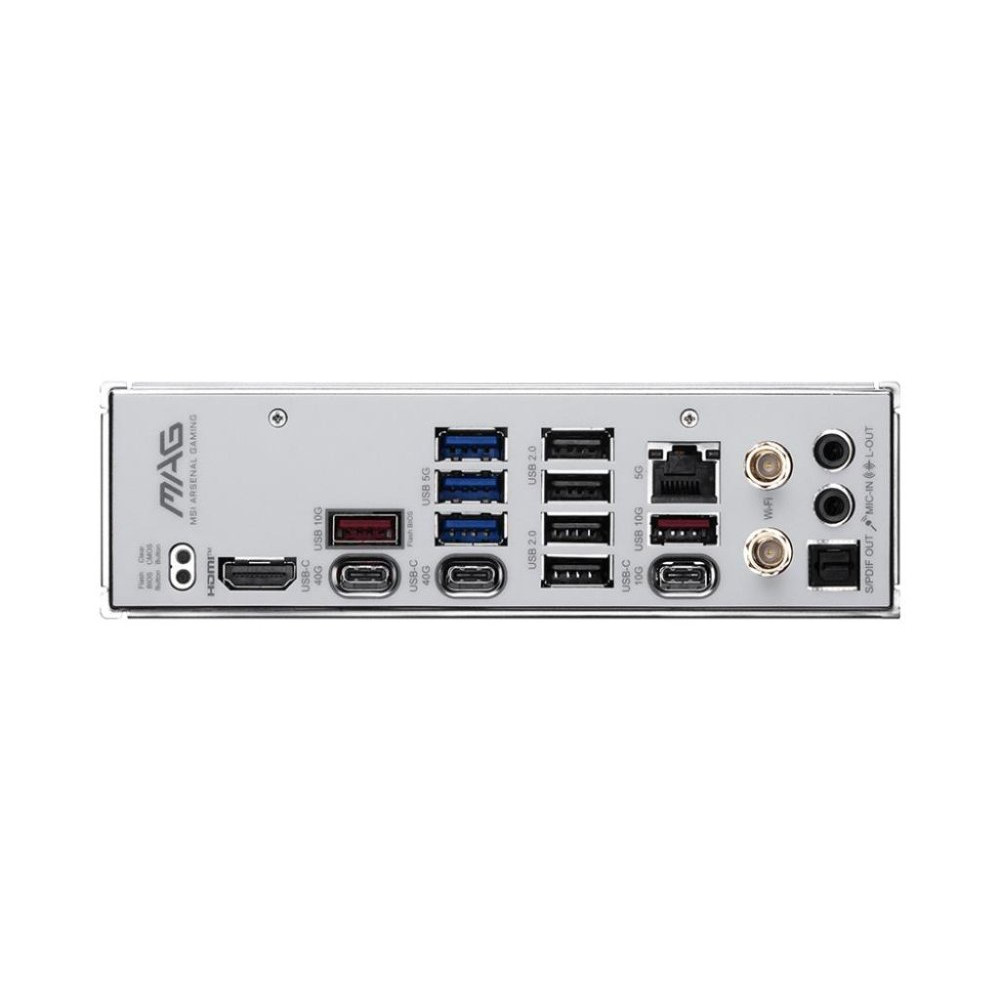

DisplayPort version
1.4
DisplayPorts quantity
2
HDMI version
2.1
Microphone in
Yes
USB 2.0 connectors
4
USB 2.0 ports quantity
4
Количество портов HDMI
1
Подключения
Bluetooth
Yes
Ethernet interface type
5 Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8126
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Версия Bluetooth
5.4
Порты локальной сети Ethernet (RJ-45)
1
Спецификация
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI
Component for
PC
EPS power connector (8-pin)
Yes
Motherboard chipset
AMD X870E
Motherboard form factor
ATX
Number of memory slots
4
Supported processor sockets
Socket AM5
Глубина
304.8
Ширина
243.84
