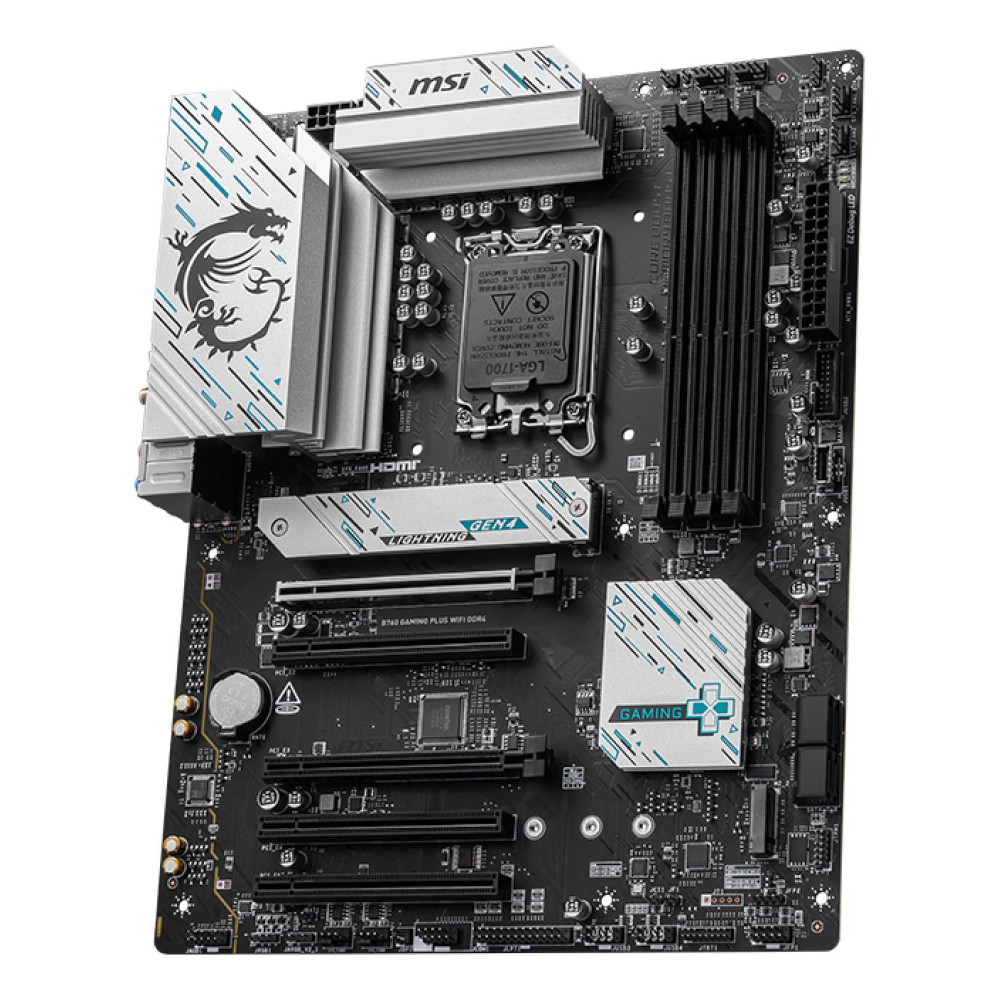

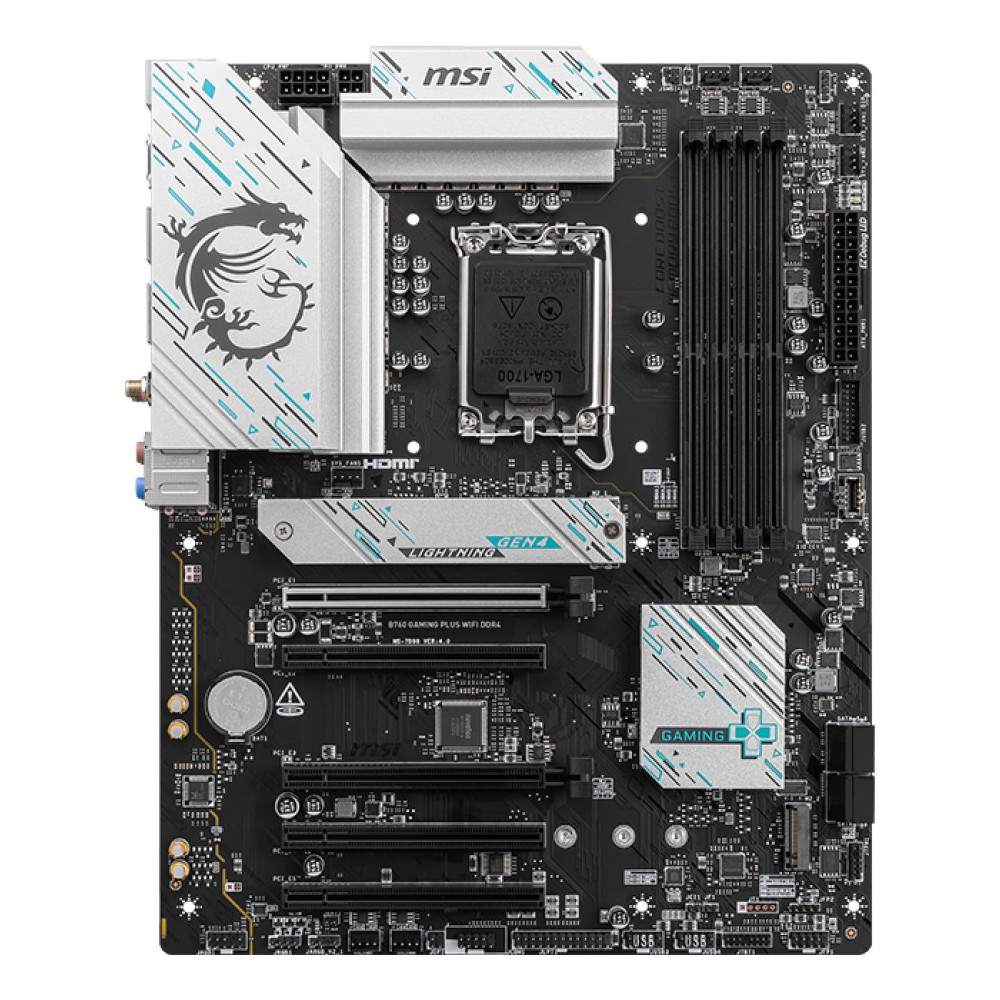

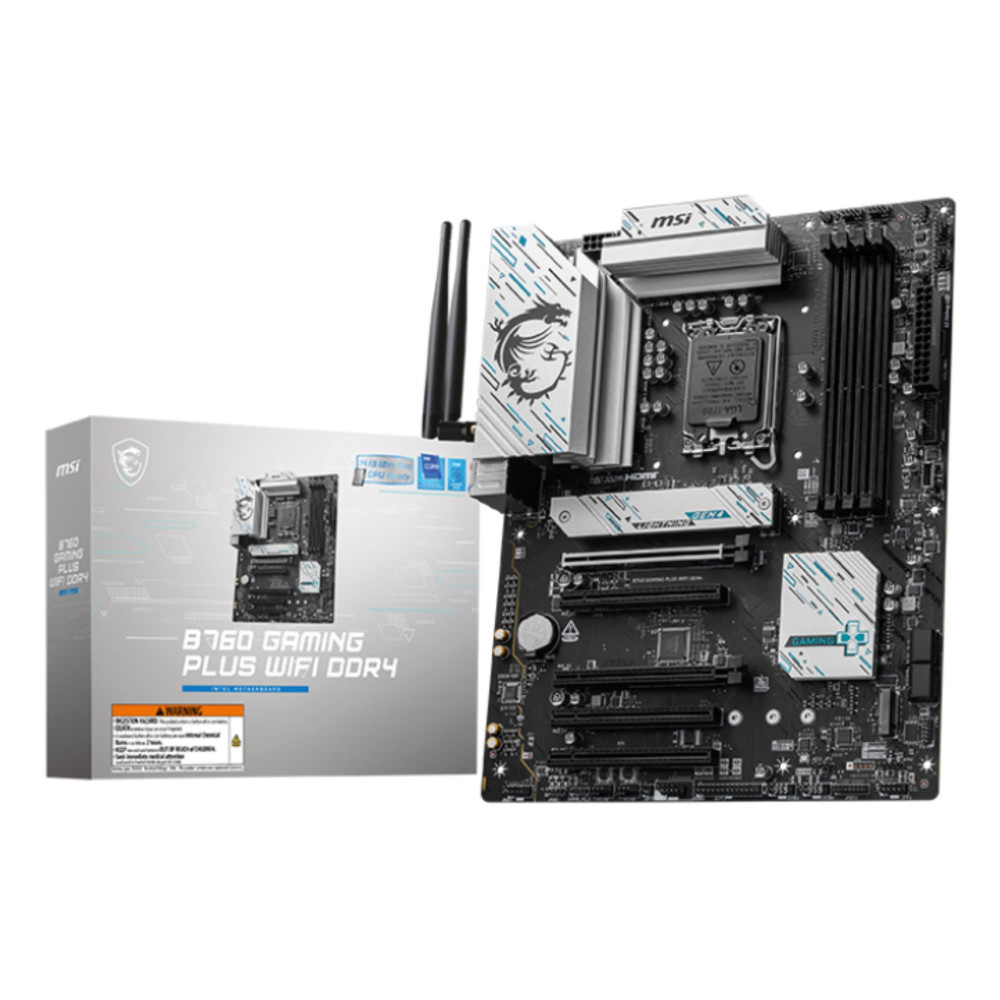

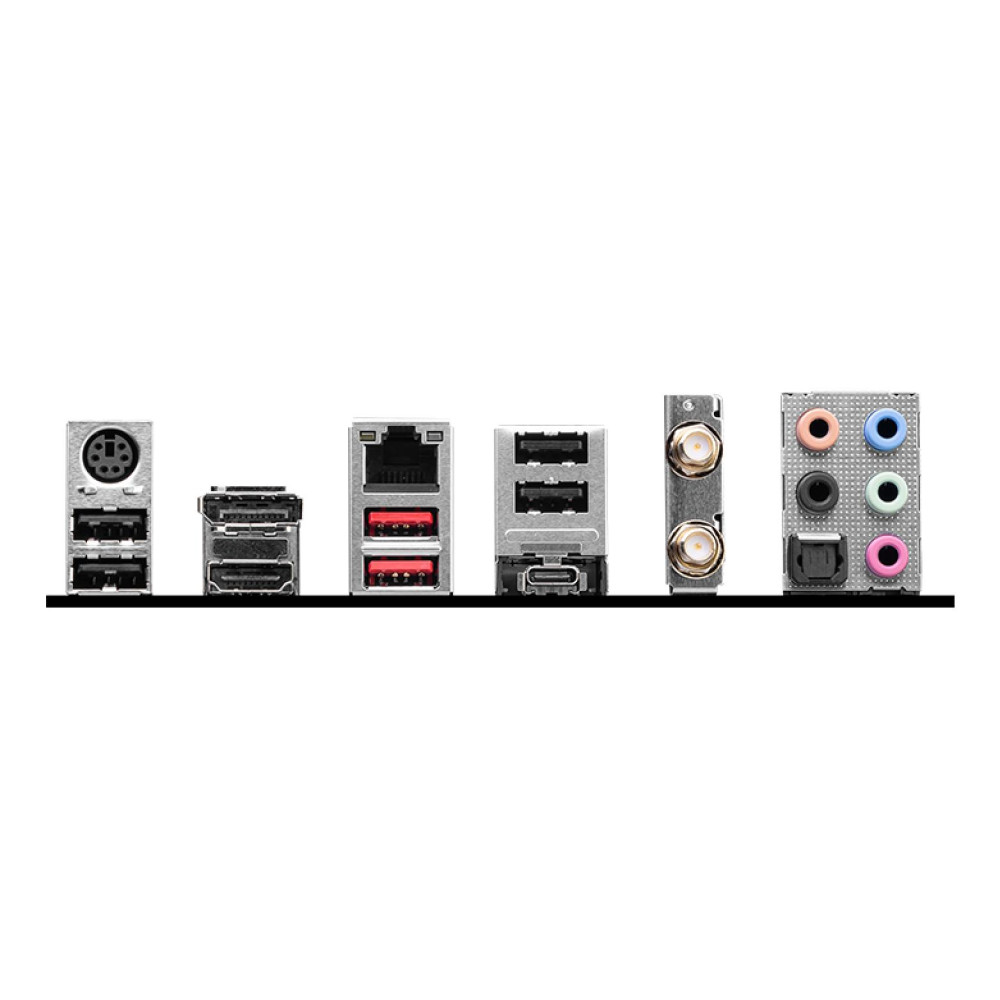

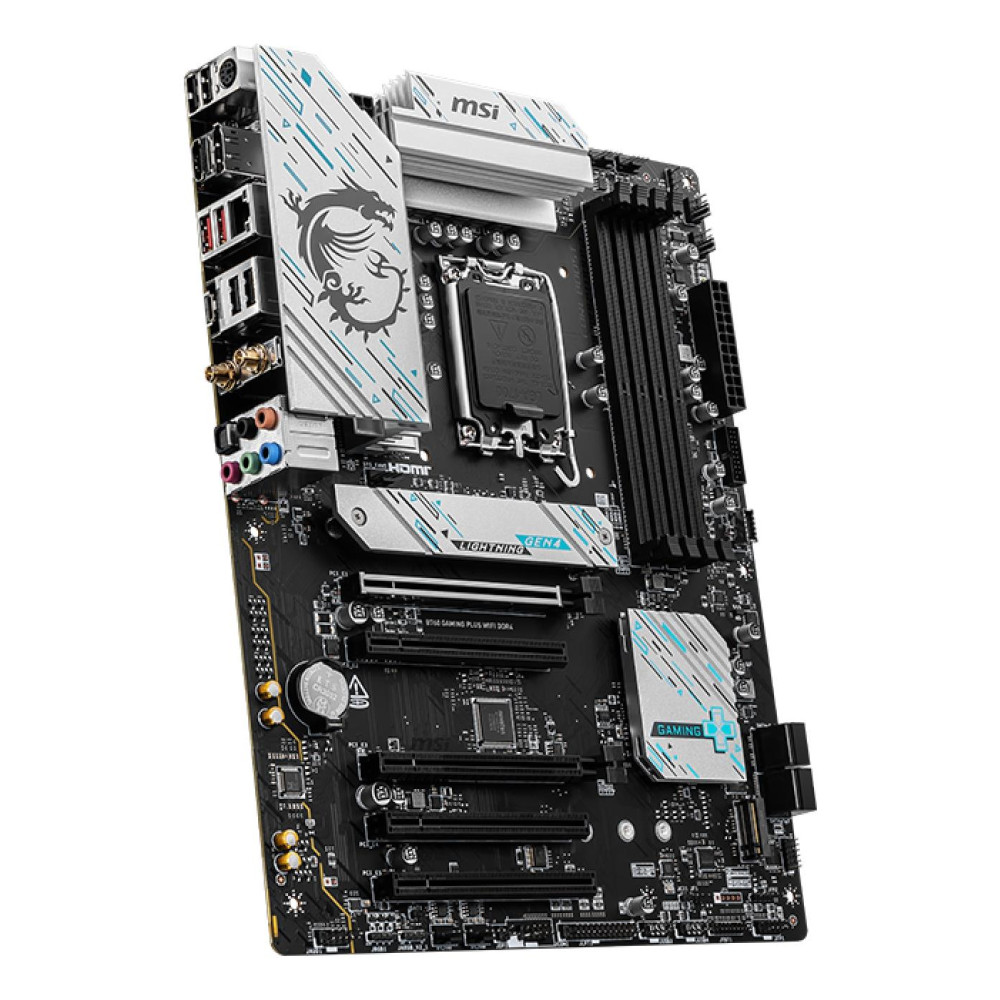

Mainboard, MSI, Intel B760 Express, LGA1700, ATX, Memory DDR4, Memory slots 4, 5xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xUSB-C, 1xPS/2, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, B760GAMPLUSWIFIDDR4
Популярный
Последнее
- Бренд: MSI
- Модель: B760 GAMING PLUS WIFI DDR4
- EAN: 4711377247900
- Наличие: 1
Наименование:
MSI B760 GAMING PLUS WIFI DDR4
182.18€
Без PVN: 150.56€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Основные параметры
Форм-фактор
ATX
Производитель процессора
Intel
Тип оперативной памяти
DDR4
Чипсет
B760
Сокет процессора
LGA1700
Слоты памяти
4
Макс. объём памяти
128 GB
Слоты M.2
2
Порты SATA
4
Модуль Wi-Fi
Да
Скорость сети (LAN)
2.5 Gbit/s
Specification
Name
MB B760 S1700 ATX/B760 GAMING PLUS WIFI DDR4 MSI
Specifikācija
ACPI version
6.4
Audio chip
Realtek ALC897
BIOS memory size
256
ECC сompatibility
Non-ECC
Motherboard chipset family
Intel
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of SATA III connectors
4
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 4.x) slots
2
Product Net Weight
1.2
RGB LED pin header
Yes
S/PDIF out connector
Yes
S/PDIF out port
Yes
Summary
MSI B760 GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Total number of SATA connectors
4
TPM connector
Yes
Unit Calculated Volume
0.007252
Unit Depth
27
Unit Height
34.8
Unit Width
6.6
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Процессор
Compatible processor series
Intel® Celeron®/Intel® Pentium® Gold
Processor manufacturer
Intel
Сокет процессора
LGA 1700
Память
Maximum internal memory
128
Maximum internal memory supported by processor
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333
Supported memory types
DDR4-SDRAM
Запоминающее устройство
Number of storage drives supported
6
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2,SATA
Порты
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.1
USB 2.0 connectors
4
USB 2.0 ports quantity
4
Количество портов HDMI
1
Подключения
Bluetooth
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Dragon RTL8125BG
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Версия Bluetooth
5.3
Порты локальной сети Ethernet (RJ-45)
1
Спецификация
Audio output channels
7.1
BIOS Type
UEFI AMI
Component for
PC
Model
B760 GAMING PLUS WIFI DDR4
Motherboard chipset
Intel B760
Motherboard form factor
ATX
Number of memory slots
4
PCI Express x1 slots
3
PCI Express x16 slots
2
Supported processor sockets
LGA 1700
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Глубина
304.8
Ширина
243.84
