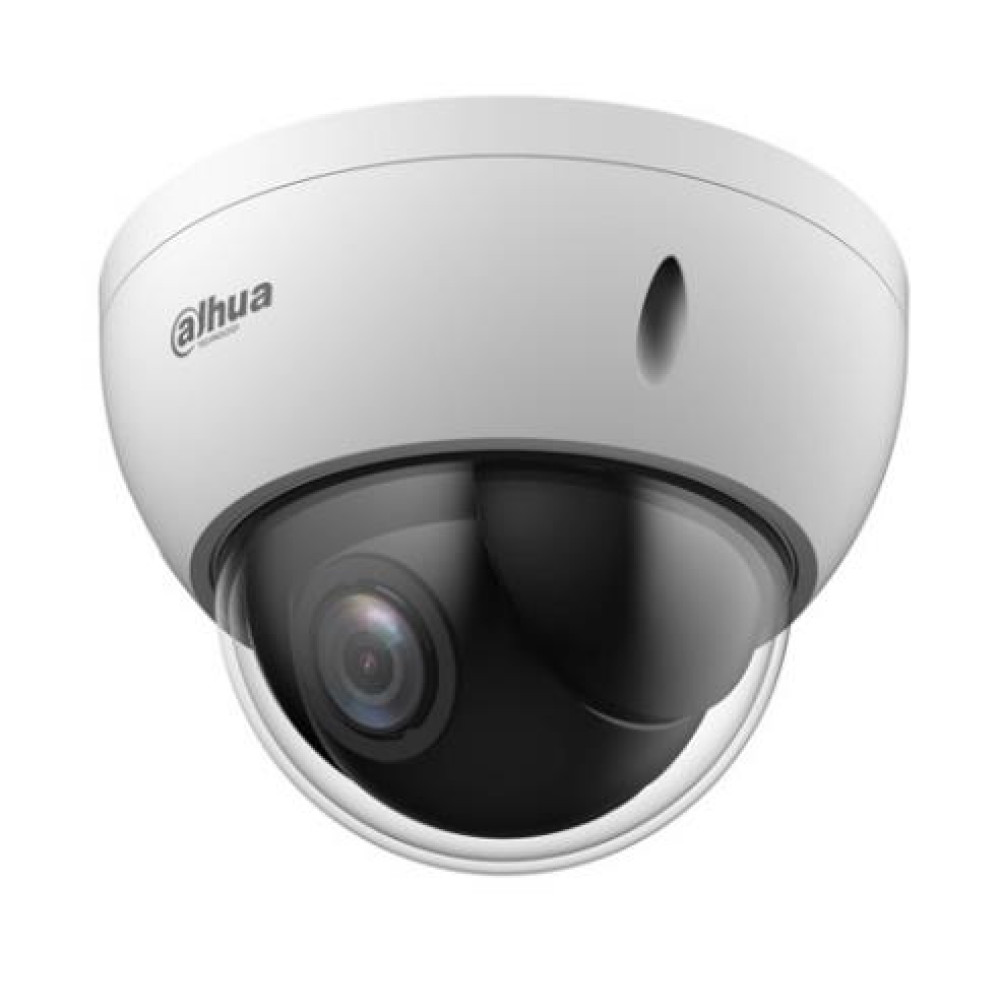

NET CAMERA 2MP PTZ DOME/SD22204DB-GC DAHUA
Популярный
- Бренд: DAHUA
- Модель: SD22204DB-GC
- EAN: 6923172591319
- Наличие: Нет в наличии
Наименование:
DAHUA SD22204DB-GC
281.75€
Без PVN: 232.85€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
Back Light Compensation (BLC)
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
BNC output ports
1
Camera pan control
Yes
Camera tilt control
Yes
Day/night mode
Yes
DC output current
1
Detect distance
151.7
Digital Wide Dynamic Range (DWDR)
Yes
Focal length range
2.7 - 11
Gain control type
Auto/Manual
Highlight Compensation (HLC)
Yes
Identify distance
15.2
IK code
IK10
LED type
IR
Lens viewing angle, diagonal
117.7
Lens viewing angle, horizontal
99.1
Lens viewing angle, vertical
53.4
Noise reduction technology
2D noise reduction,3D noise reduction
Number of cameras
1
Number of effective pixels (H x V)
1920 x 1080
Observe distance
59.9
Pan preset speed
100
Pan range
0 - 355
Pan speed
100
Preset points
Yes
Product colour
White
Progressive scan
Yes
PTZ control
Yes
PTZ modes
8 Tour/Preset sequence
PTZ protocols
Pelco-P/D
Recognize distance
30.3
Region of Interest (ROI) encoding
Yes
ROM capacity
128
RS-485 ports
1
Summary
Dahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 99.1°, Lens viewing angle, vertical: 53.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8), Number of effective pixels (H x V): 1920 x 1080 pixels. Optical zoom: 4x, Digital zoom: 16x, Detect distance: 151.7 m
Tilt angle range
0 - 90
Tilt speed
60
Unit Calculated Volume
0.003584
Units per Shipping Box
1
Video motion detection
Yes
Video streaming
Yes
Память
Встроенная память
256
Запоминающее устройство
Built-in HDD
No
Подключения
Bluetooth
No
Connectivity technology
Wired
Ethernet LAN
No
Wi-Fi
No
Спецификация
Bit rate
448K - 8192Kbps, 5120K - 10240Kbps
Camera shutter speed
1/1 - 1/30000
Camera shutter type
Electronic
Certification
CE: EN55032/EN55024/EN50130-4 FCC: Parte 15subparte B, ANSI C63.4-2014 UL:UL60950-1+CAN/CSA C22.2, No.60950-1
DC output voltage
12
DC-in jack
Yes
Diameter
122
Digital zoom
16
Focus
Motorized/Manual
Form factor
Dome
Frame rate
30
International Protection (IP) code
IP66
Maximum resolution
1920 x 1080
Minimum illumination
0.0005
Model
SD22204DB-GC
Mounting type
Ceiling
Night vision
Yes
Noise reduction
Yes
Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
-30 - 60
Optical sensor size
1/2.8
Optical zoom
4
Package type
Box
Package weight
650
Placement supported
Indoor & outdoor
Power consumption (max)
9
Power consumption (typical)
7
Power source type
DC
Sensor type
CMOS
Signal-to-Noise Ratio (SNR)
50
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-30 - 60
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/352 x 240/352 x 288/704 x 480/704 x 576
Supported video modes
1080p/720p
Total megapixels
2
Type
CCTV security camera
Video compression formats
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Weight
600
White balance
ATW/Auto/Indoor/Manual/Outdoor
Wide Dynamic Range (WDR)
Yes
Zoom capability
Yes
Высота
88.9
