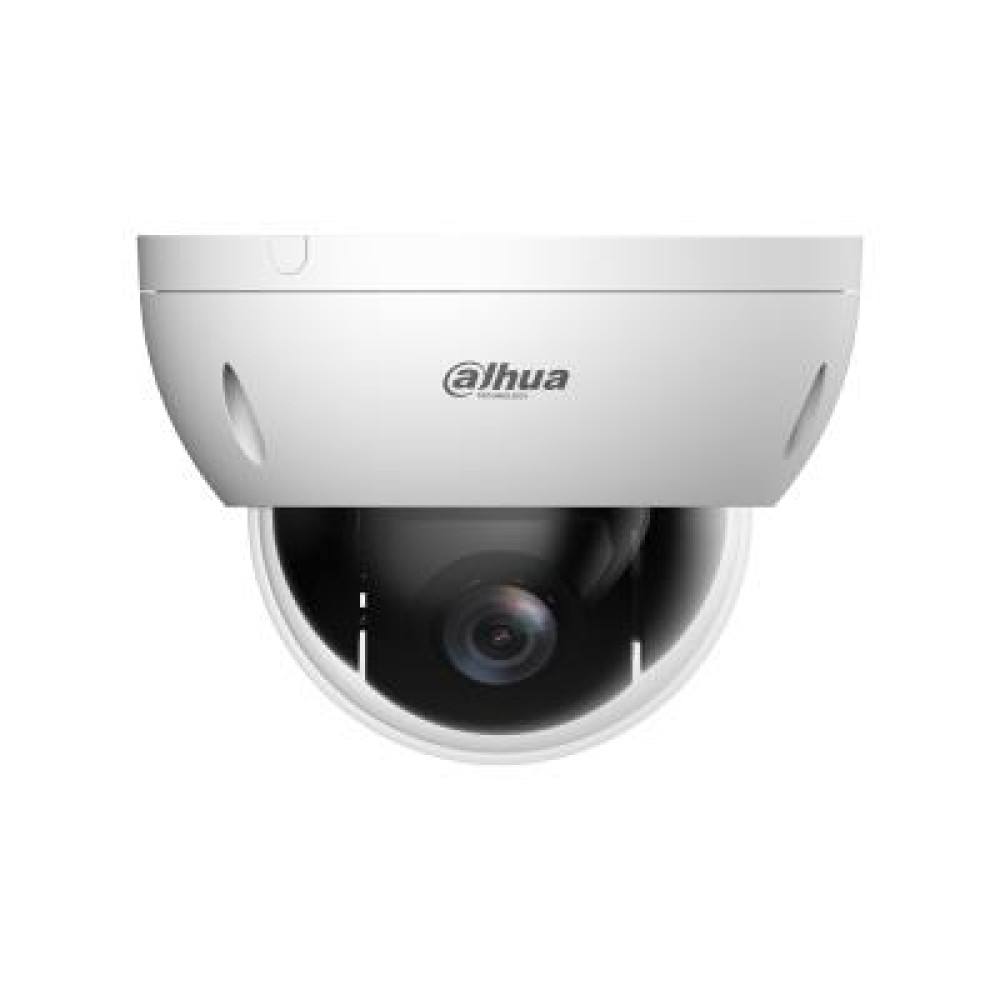

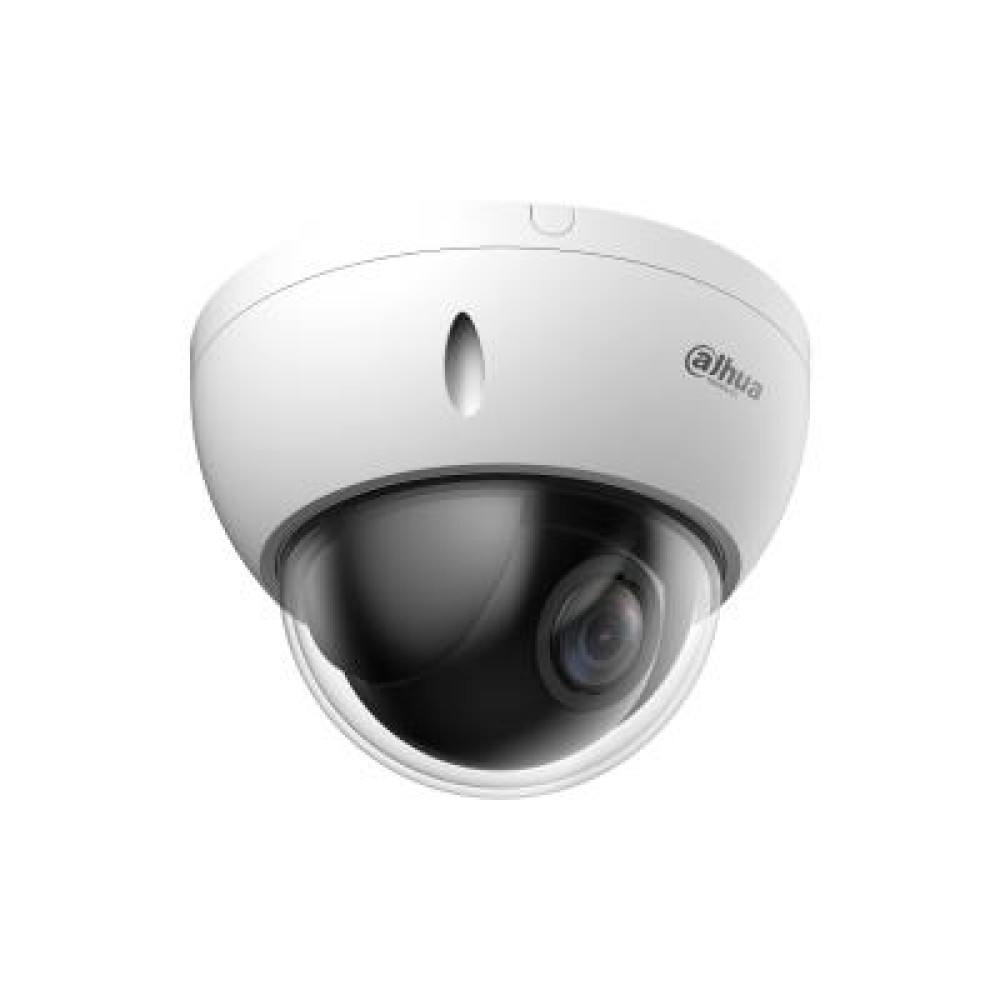

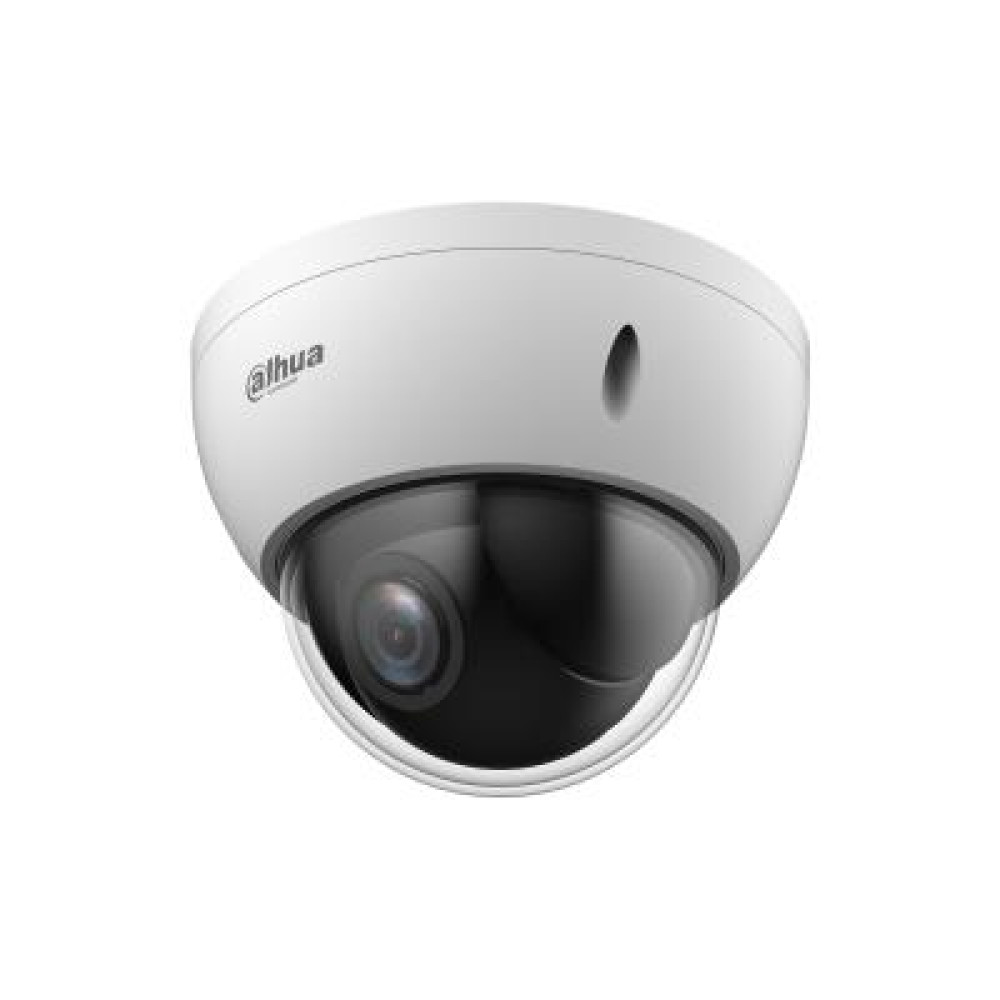

NET CAMERA 4MP PTZ DOME/SD22404DB-GNY DAHUA
Популярный
- Бренд: DAHUA
- Модель: DH-SD22404DB-GNY
- EAN: 6923172536334
- Наличие: 7
Наименование:
DAHUA DH-SD22404DB-GNY
271.92€
Без PVN: 224.73€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specification
RAM Capacity
512
Specifikācija
Active tampering alarm
Yes
Back Light Compensation (BLC)
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera pan control
Yes
Camera tilt control
Yes
Day/night mode
Yes
DC output current
1
Detect distance
240
Digital Wide Dynamic Range (DWDR)
Yes
Focal length range
2.8 - 12
Fog proof
Yes
Gain control type
Auto/Manual
Highlight Compensation (HLC)
Yes
Identify distance
24
IK code
IK10
Intelligent Video Surveillance (IVS) system features
Abandoned object/Crossing line/Face detection/Intrusion/Missing object/Moving object/Tripwire/Vehicle detection
LED type
IR
Lens viewing angle, diagonal
105.7 - 33.6
Lens viewing angle, horizontal
90.3 - 29.4
Lens viewing angle, vertical
48.5 - 16.6
Noise reduction technology
2D noise reduction,3D noise reduction
Number of cameras
1
Number of lenses
1
Observe distance
94.8
Pan manual speed
0.1 - 100
Pan preset speed
100
Pan range
0 - 355
Preset points
Yes
Product colour
White
Progressive scan
Yes
PTZ control
Yes
PTZ modes
5 Pattern/8 Tour
PTZ protocols
Pelco-P/D
Recognize distance
48
Region of Interest (ROI) encoding
Yes
ROM capacity
128
Streaming method
Multicast/Unicast
Summary
Dahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
Tilt angle range
0 - 90
Tilt manual speed
0.1 - 60
Tilt preset speed
60
Tour recording
Yes
Unit Calculated Volume
0.003243
Unit Calculated Weight
0.71
Units per Shipping Box
1
Video motion detection
Yes
Video streaming
Yes
Запоминающее устройство
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
512
Встроенный кард-ридер
Yes
Подключения
Bluetooth
No
Connectivity technology
Wired
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Порты локальной сети Ethernet (RJ-45)
1
Камера
Auto focus
Yes
Управление
Web browser
Yes
Спецификация
Bit rate
H.264: 2816Kbps - 13056Kbps; H.265: 1024Kbps - 7936Kbps
Camera shutter speed
1 - 1/30000
Closest focusing distance
1.5
DC output voltage
12
Diameter
122
Digital zoom
16
Form factor
Dome
Image stabilizer
Yes
International Protection (IP) code
IP66
Maximum aperture number
3
Maximum resolution
2560 x 1440
Minimum aperture number
1.6
Minimum illumination
0.0005
Model
SD22404DB-GNY
Mounting type
Ceiling/Wall/Pole
Night vision
Yes
Noise reduction
Yes
Number of users
20
Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
-30 - 60
Optical sensor size
1/2.8
Optical zoom
4
Package weight
700
Placement supported
Outdoor
Power consumption (max)
6.1
Power consumption (typical)
2.3
Power source type
DC,PoE
Quality of Service (QoS) support
Yes
Sensor type
CMOS
Signal-to-Noise Ratio (SNR)
55
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-30 - 60
Supported graphics resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Total megapixels
4
Type
IP security camera
Video compression formats
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Web-based management
Yes
Weight
500
White balance
ATW/Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Zoom capability
Yes
Высота
89
