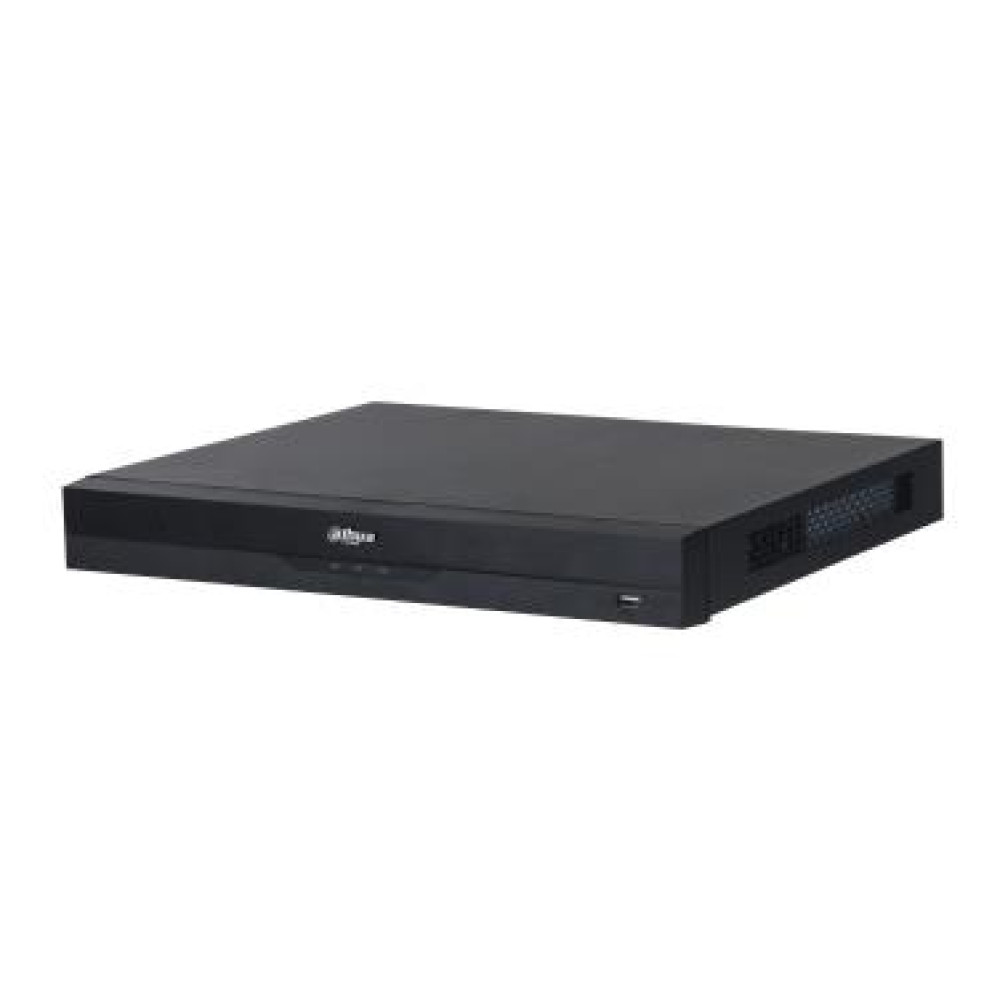

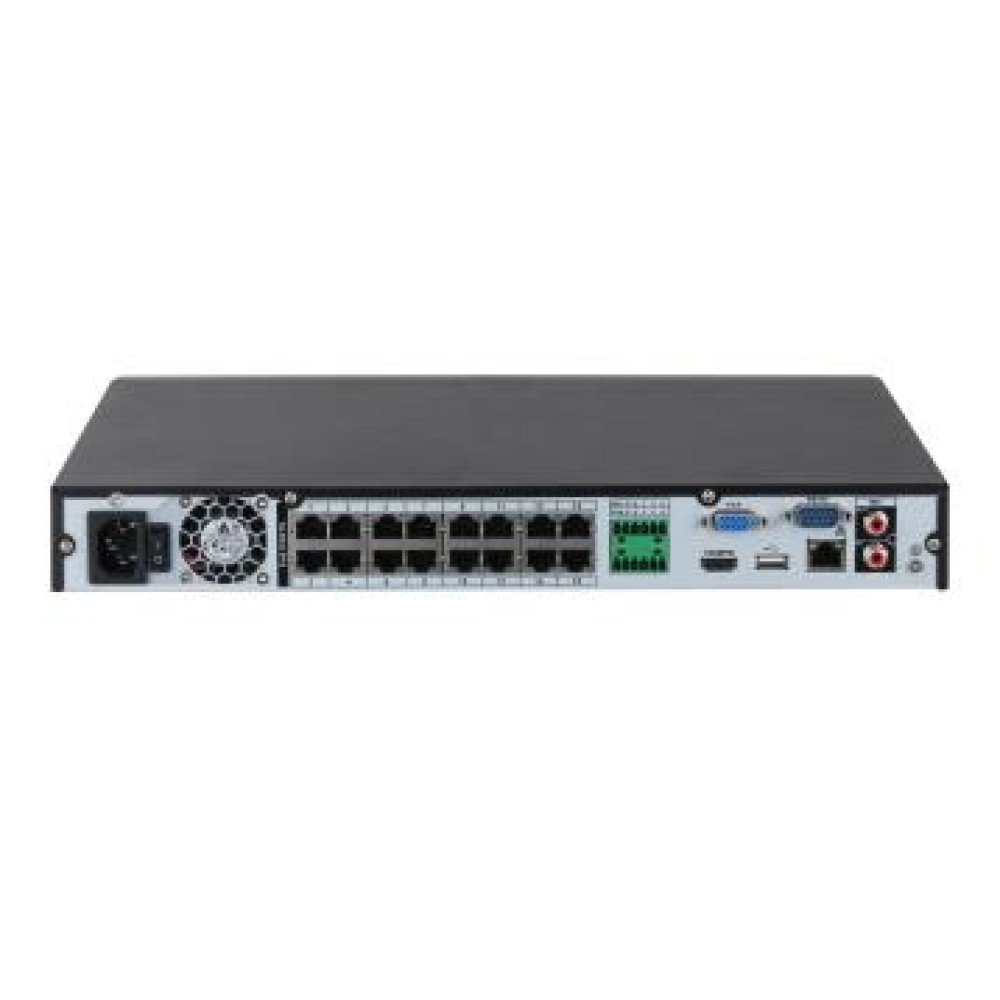

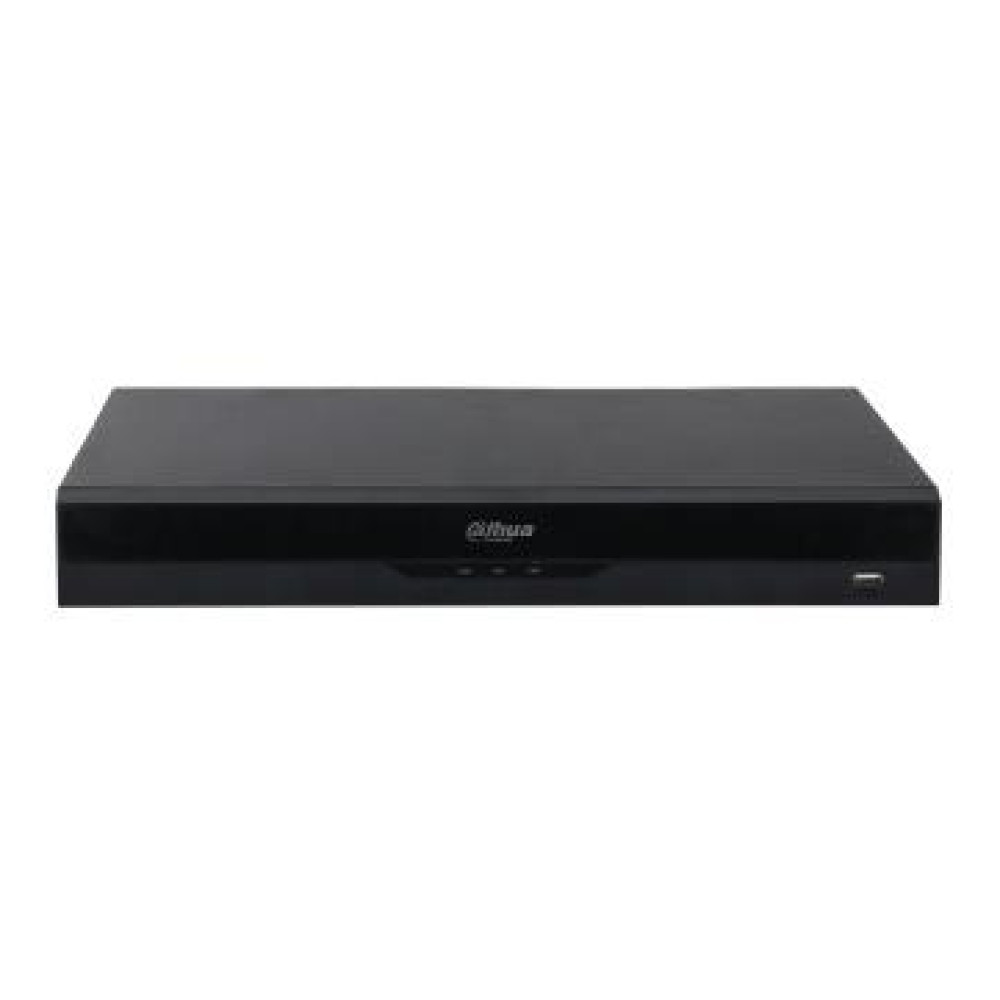

NET VIDEO RECORDER 16CH 16POE/NVR4216-16P-EI DAHUA

Популярный

Отзывы:

(0)

Наименование:

DAHUA NVR4216-16P-EI

Бренд: DAHUA
Модель: NVR4216-16P-EI
EAN: 6923172585790
Наличие: 14

602.59€

Без PVN: 498.01€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

Alarm input channels 4

Alarm output channels 2

Audio RCA inputs 1

Audio RCA outputs 1

Backup function Yes

HDMI output Yes

Internal SATA ports quantity 2

Number of HDDs supported 2

Number of motion detection zones 396

Playback controls Yes

Product colour Black

PTZ control Yes

Rack capacity 1U

RS-232 interface Yes

Snapshot Yes

Split screen Yes

Summary Dahua Technology Lite NVR4216-16P-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768. Maximum storage capacity: 16 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP. Rack capacity: 1U, Brand compatibility: Any brand, Product colour: Black. Power consumption (typical): 30 W, AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz

Two-way talk Yes

Unit Calculated Volume 0.03102

Units per Shipping Box 5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1

Video loss detection Yes

Video motion detection Yes

Экран

On Screen Display (OSD) Yes

Процессор

Built-in processor Yes

Процессорные ядра 2

Запоминающее устройство

Maximum storage capacity 16

Порты

USB 2.0 ports quantity 1

VGA (D-Sub) output ports 1

Количество портов HDMI 1

Подключения

Ethernet LAN data rates 10/100/1000

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

AC input frequency 47/63

AC input voltage 100 - 240

Bit rate 8192

Brand compatibility Any brand

Maximum resolution 1920 x 1080

Mobile operating systems supported Android/iOS

Model NVR4216-16P-EI

Networking standards IEEE 802.3af/IEEE 802.3at

Number of users 128

Operating relative humidity (H-H) 10 - 93

Operating system installed Embedded LINUX

Operating temperature (T-T) -10 - 55

Package depth 425

Package height 147

Package weight 3800

Package width 451

Playback modes Backup selection,Digital zoom,Forward,Full screen,Next camera,Pause,Play,Previous camera,Repeat,Reverse,Shuffle,Speed Adjust,Stop

Power consumption (typical) 30

Power over Ethernet (PoE) Yes

Power over Ethernet (PoE) ports quantity 16

Power over Ethernet (PoE) power per port 25.5

Rack mounting Yes

Recording modes Manual,Schedule,Stop

Recording time 120

Storage temperature (T-T) -20 - 60

Supported network protocols HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP

Supported resolutions 1920x1080, 1280x1024, 1280x720, 1024x768

Total Power over Ethernet (PoE) budget 130

Video formats supported H.264/M-JPEG

Video input channels 16

Weight 2600

Высота 53

Глубина 329.3

Название модели NVR4216-16P-EI

Ширина 375
