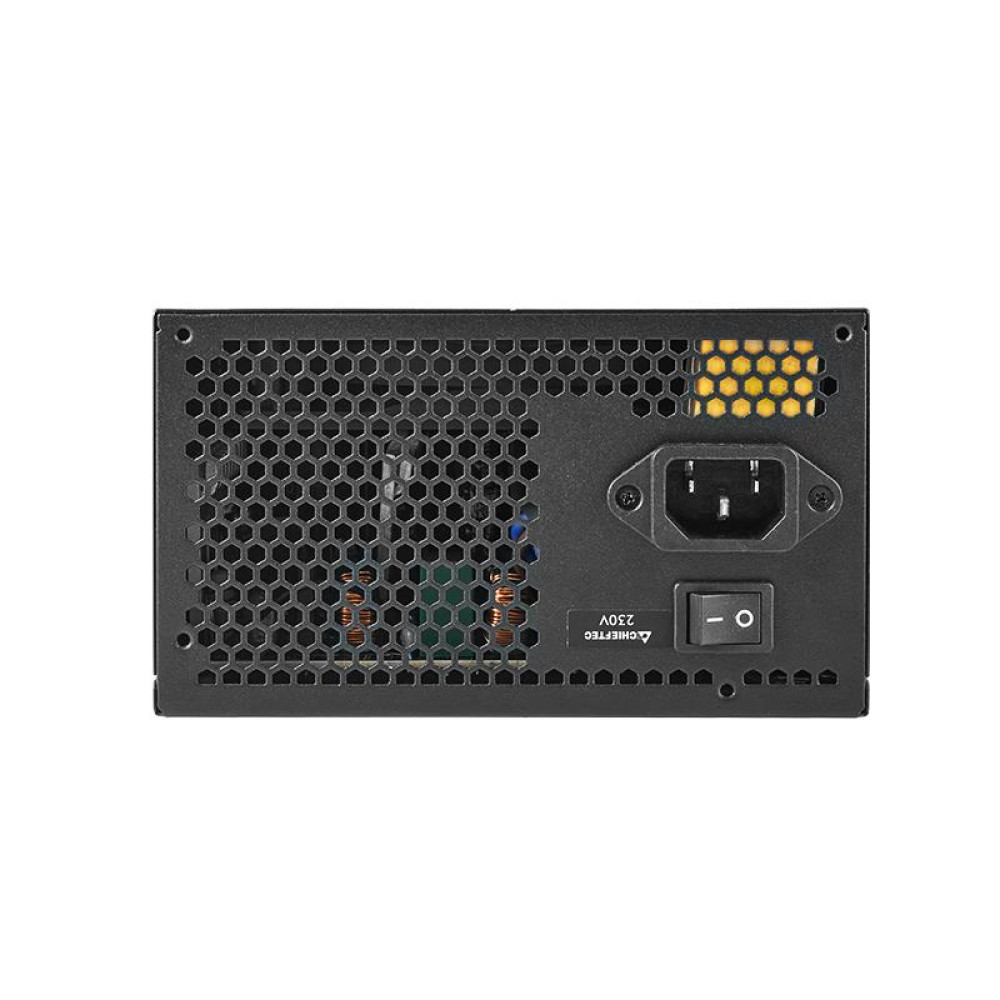

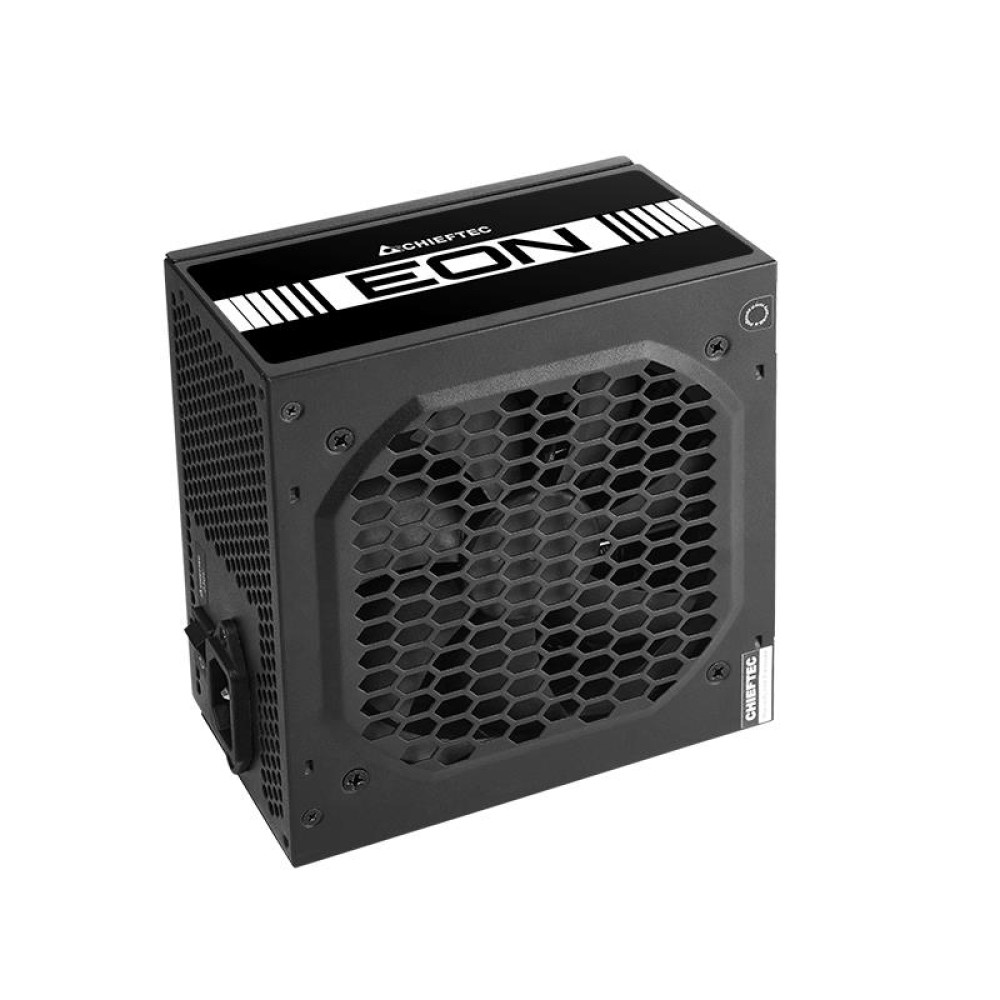

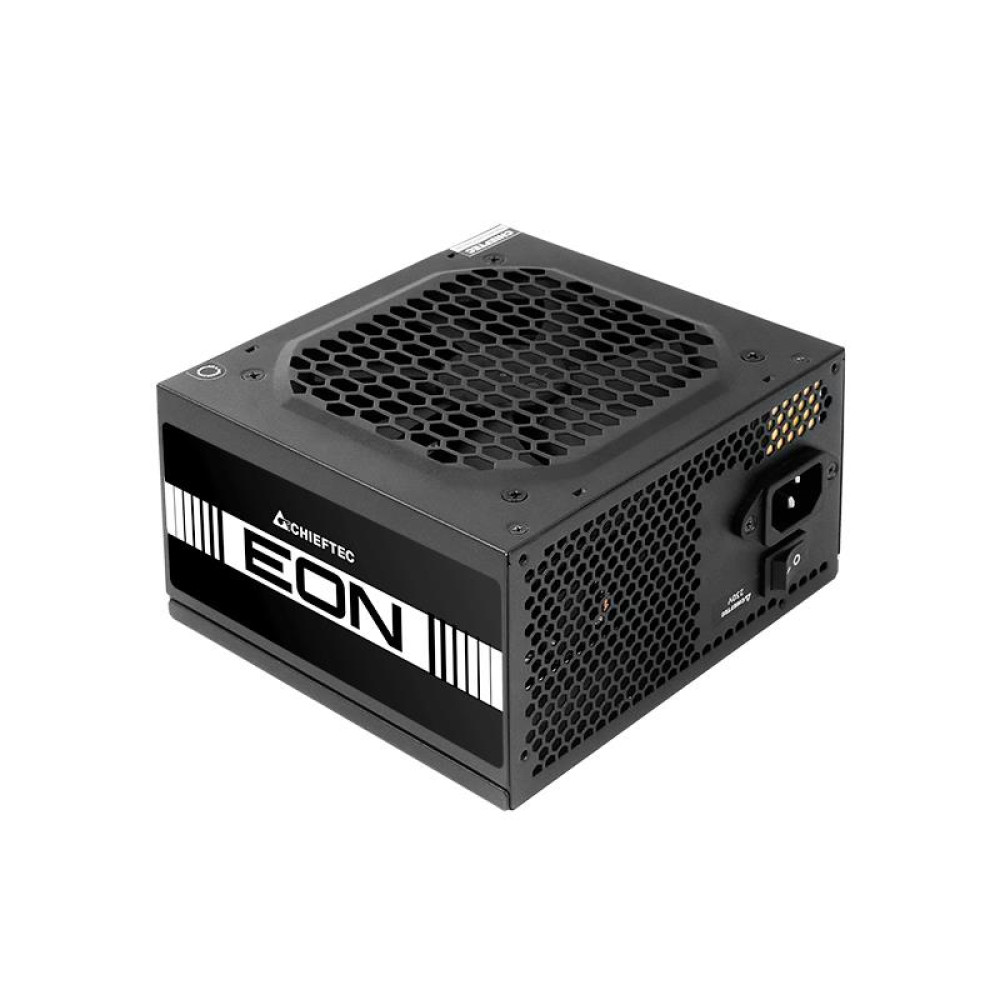

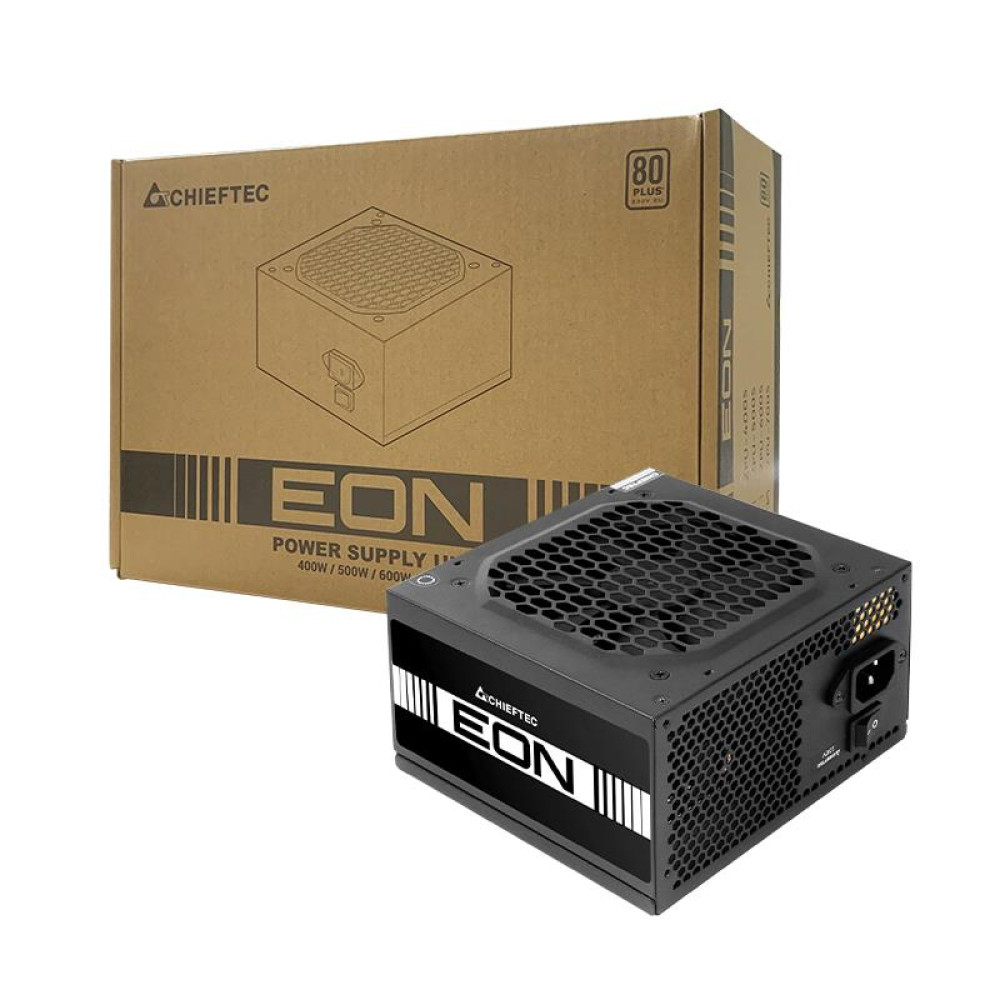

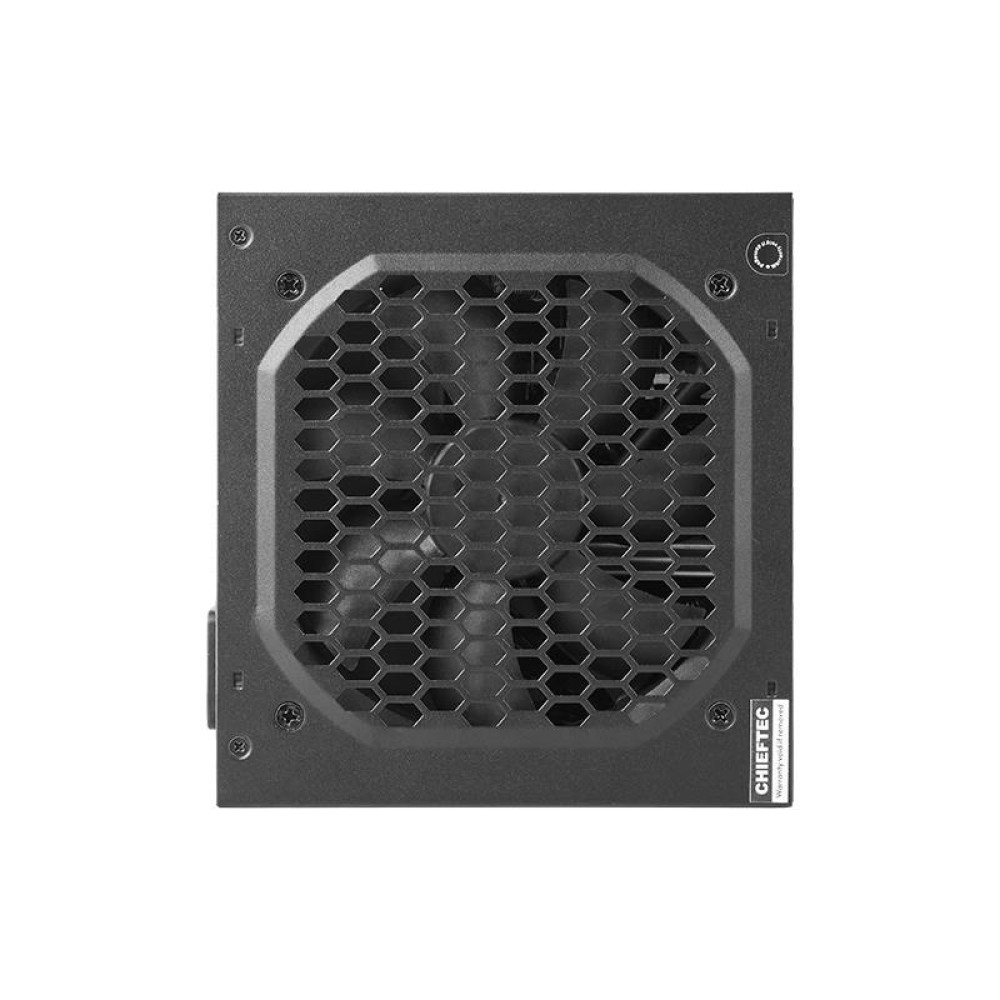

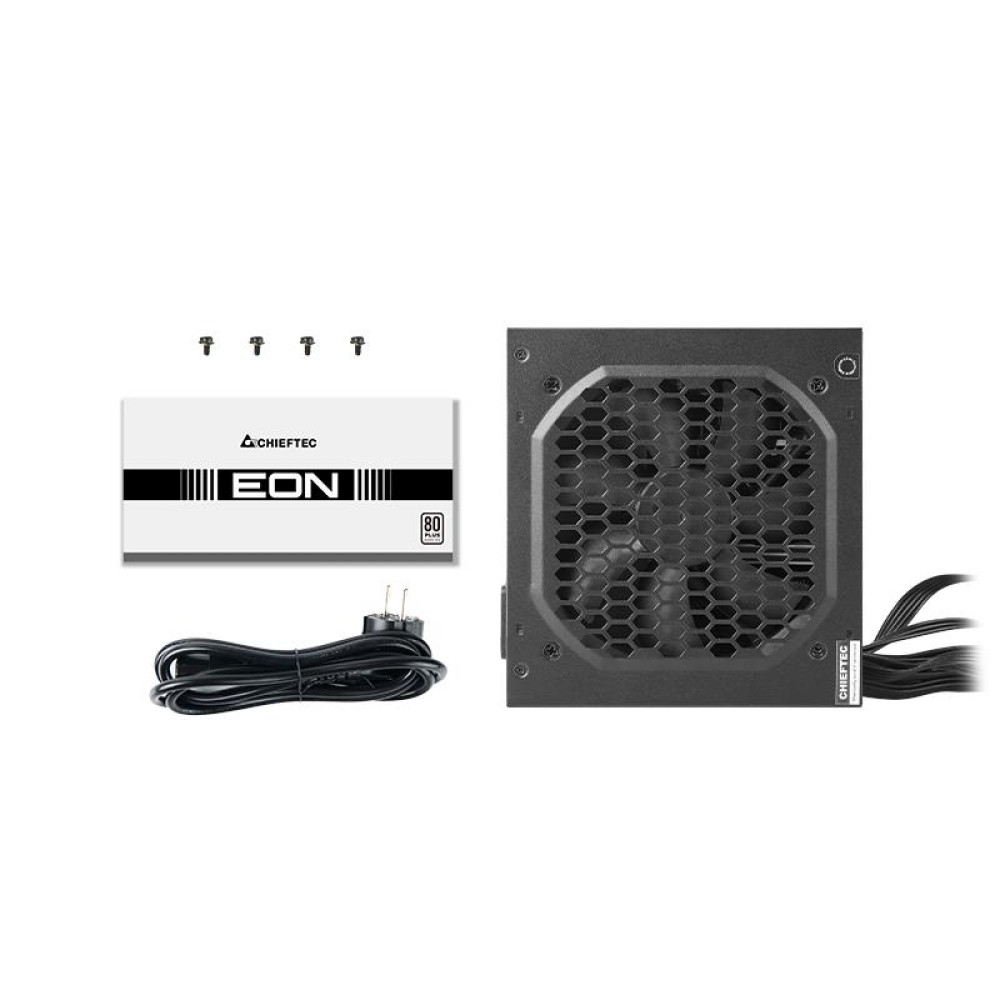

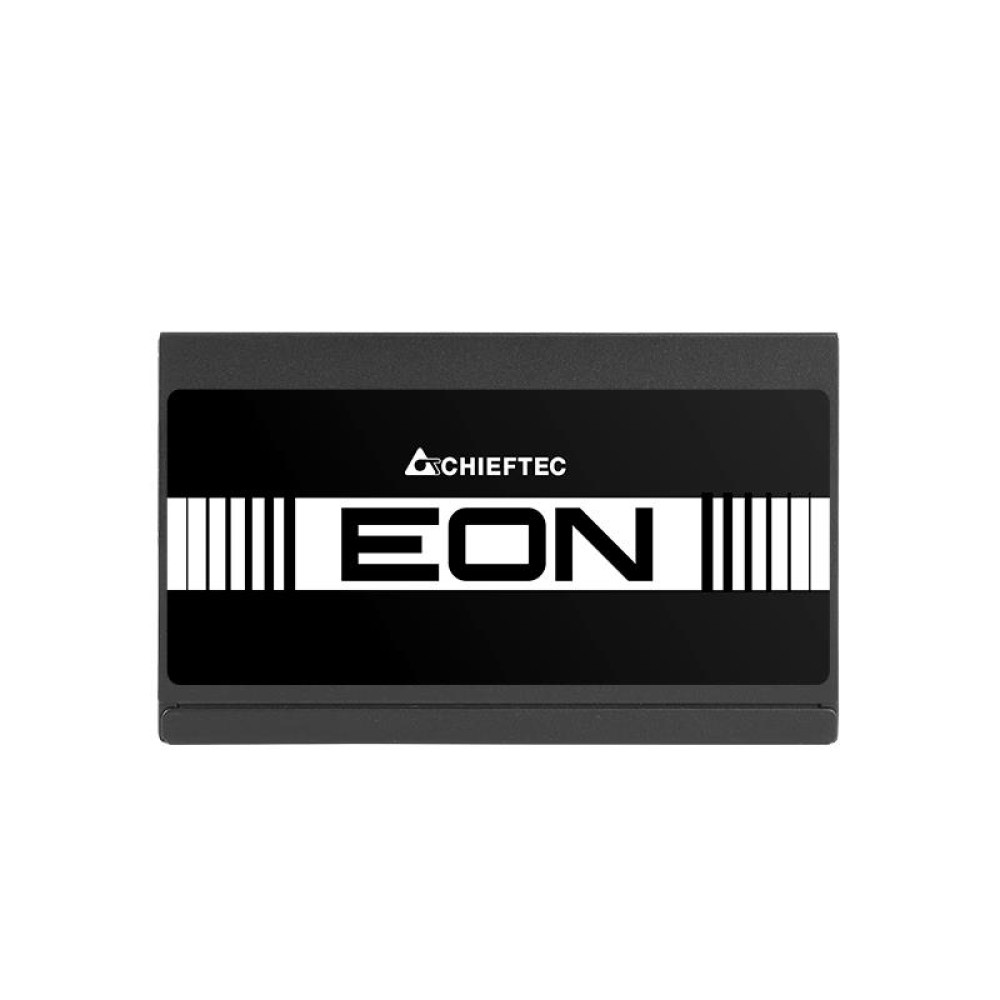

Power Supply, CHIEFTEC, 700 Watts, Efficiency 80 PLUS, PFC Active, ZPU-700S
Популярный
- Бренд: CHIEFTEC
- Модель: ZPU-700S
- EAN: 753263078445
- Наличие: 50
Наименование:
CHIEFTEC ZPU-700S
46.55€
Без PVN: 38.47€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
Cabling type
Non-Modular
EPS power connector (4+4 pin)
Yes
Max output current (+12V1)
53
Maximum input current (@220V)
5.5
Motherboard power cable length
650
Peripheral (Molex) power cable length
450/600/750
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC/Server
SATA power cable length
450/600/750
Summary
Chieftec EON . Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Unit Calculated Volume
0.005469
Unit Calculated Weight
1.76
Units per Shipping Box
10
Warranty period
2
Процессор
CPU power connector (4+4 pin)
Yes
Запоминающее устройство
Number of SATA power connectors
4
Спецификация
80 PLUS certification
80 PLUS
AC input frequency
50
AC input voltage
200 - 240
ATX power connector (20+4 pin)
Yes
ATX version
2.3
Combined power (-12V)
4.8
Fan diameter
120
Input current
5.5
Max output current (+3.3V)
20
Max output current (+5V)
20
Max output current (+5Vsb)
2.5
Max output current (-12V)
0.4
Motherboard power connector
20+4 pin ATX
On/off switch
Yes
PCI Express power connectors (6+2 pin)
2
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Short circuit/Surge and inrush/Surge protection
Supported motherboard form factors
ATX
Total power
700
Weight
1400
Высота
86
Глубина
140
Название модели
ZPU-700S
Ширина
150
