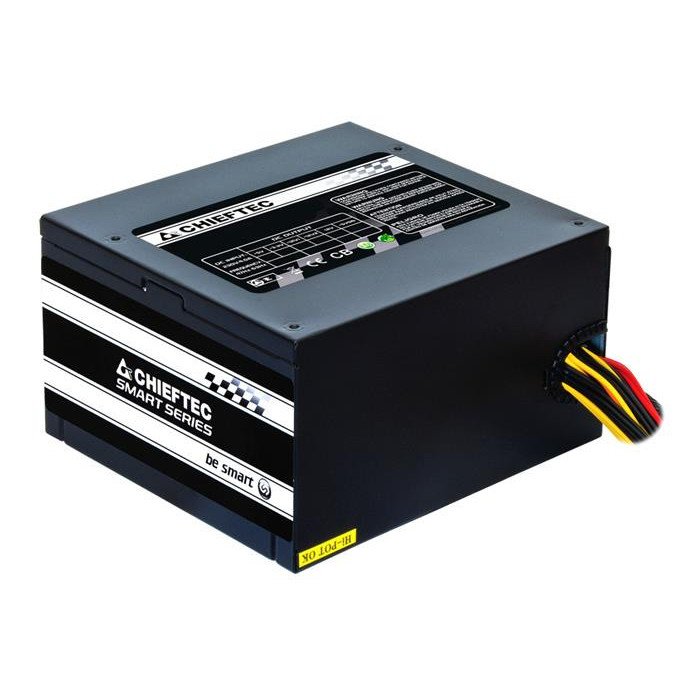

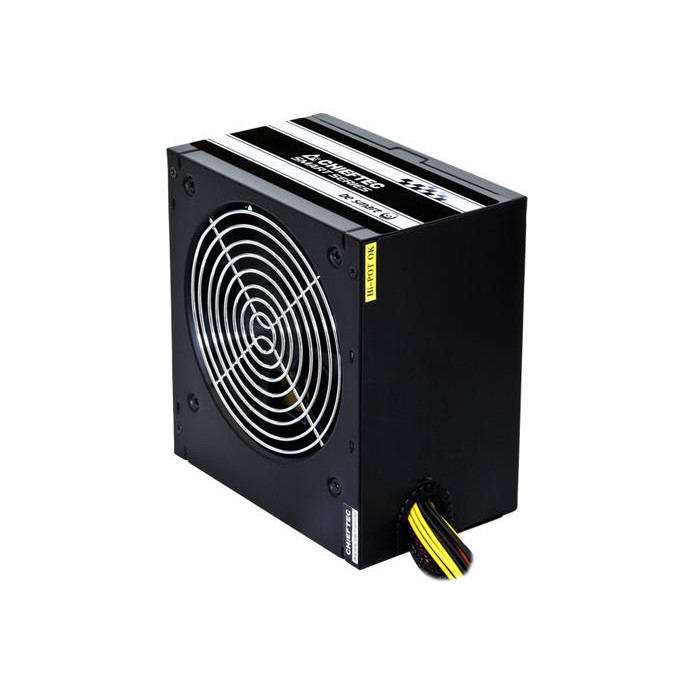

Power Supply, CHIEFTEC, ATX, PC, 230 V, 500 W, GPS-500A8
Популярный
- Бренд: CHIEFTEC
- Модель: GPS-500A8
- EAN: 4710713239531
- Наличие: 12
Наименование:
CHIEFTEC GPS-500A8
39.23€
Без PVN: 32.42€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specification
Name
CASE PSU ATX 500W/GPS-500A8 CHIEFTEC
Specifikācija
Cabling type
Non-Modular
Max output current (+12V1)
24
Max output current (+12V2)
21
Peripheral (Molex) power cable length
150/500
Power supply unit (PSU) form factor
ATX
Product colour
Black
Product Net Weight
1.2
Purpose
PC
SATA power cable length
150/500
Summary
Chieftec Smart GPS-500A8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Unit Calculated Volume
0.005105
Unit Depth
23.5
Unit Height
9.5
Unit Width
17
Units per Shipping Box
10
Запоминающее устройство
Number of SATA power connectors
3
Порты
Connector(s)
20+4 PIN ATX 18 PIN EPS(4+4) 18 PIN PCIe (6+2) 1SATA 3MOLEX/FLOPPY 2/1
Спецификация
80 PLUS certification
No
AC input frequency
47 - 63
AC input voltage
230
ATX version
2.3
Combined power (+12V)
408
Combined power (+3.3V)
130
Combined power (+5V)
130
Combined power (-12V)
3.6
Cooling type
Active
Efficiency
80
Fan diameter
120
Floppy drive power connector
1
Max output current (+12V)
12.5
Max output current (+3.3V)
22
Max output current (+5V)
19
Max output current (+5Vsb)
3
Max output current (-12V)
0.3
Motherboard power connector
20+4 pin ATX
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power protection features
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Total power
500
Высота
87
Глубина
140
Ширина
150
