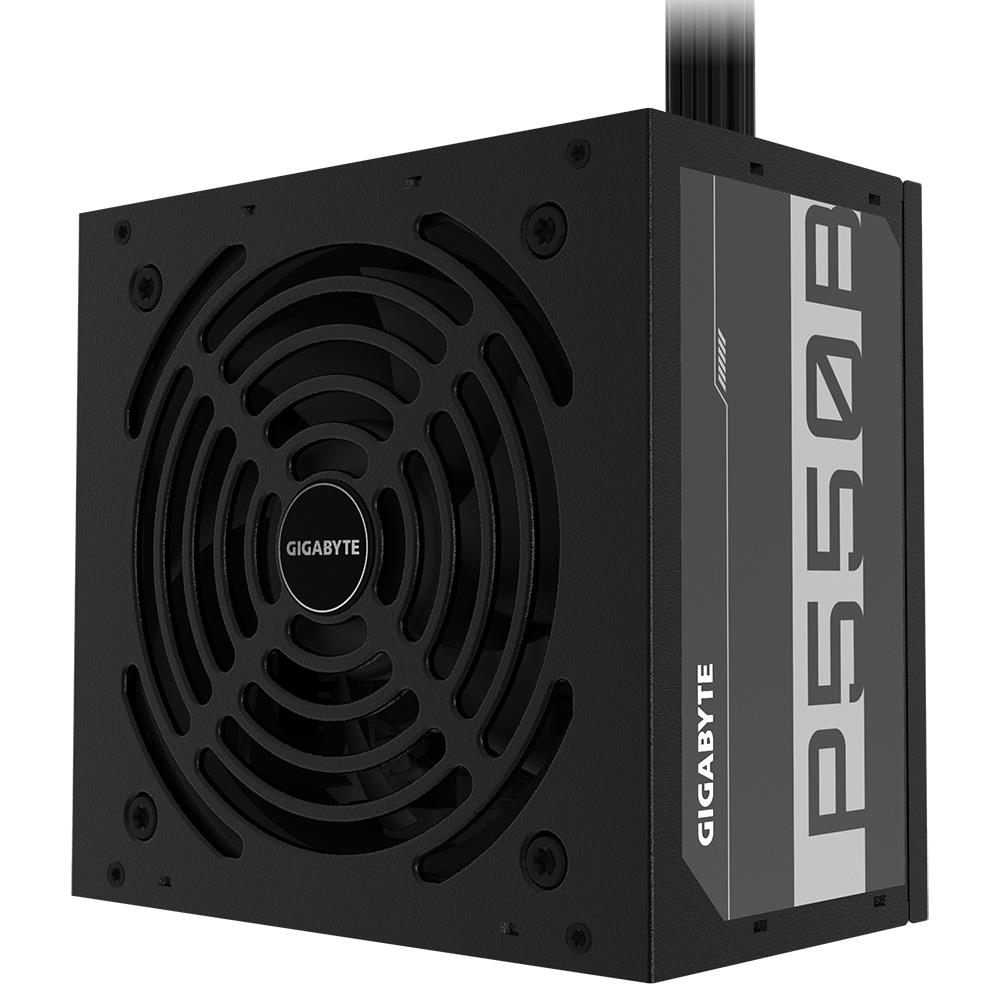

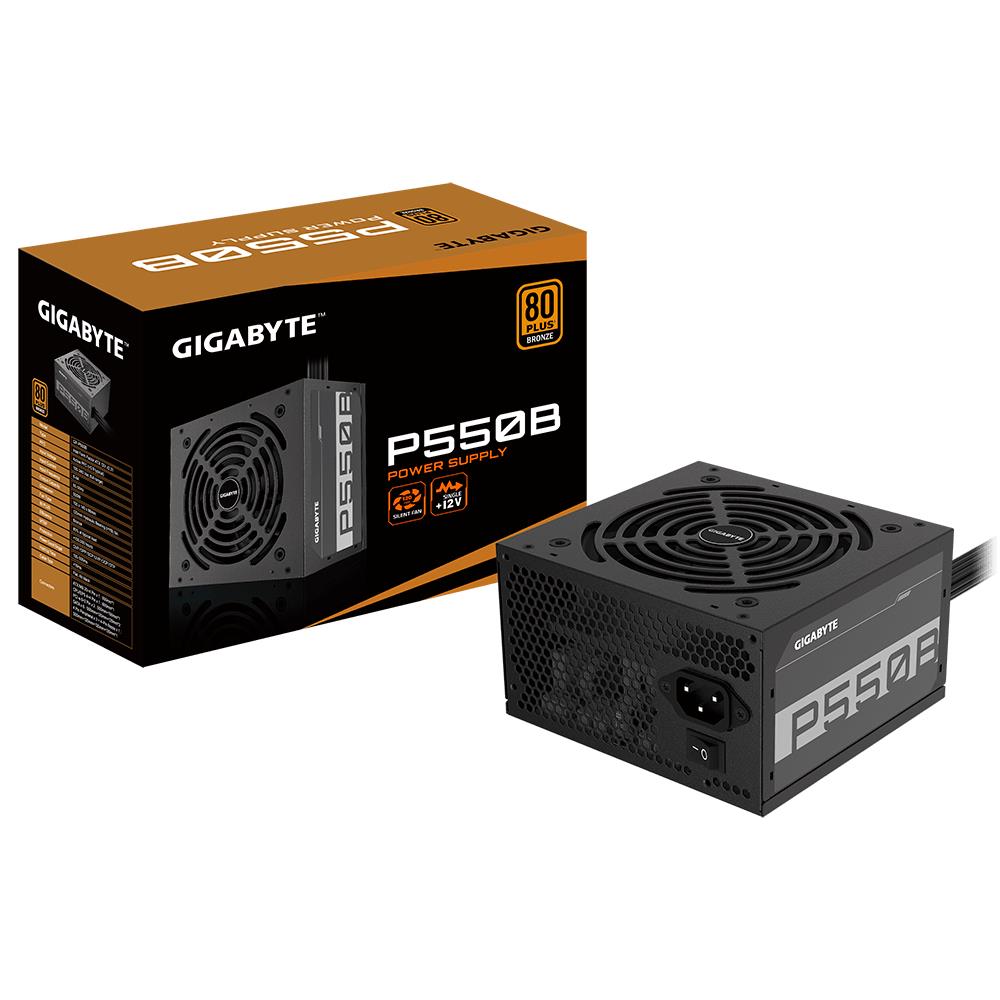

Power Supply, GIGABYTE, 550 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MTBF 100000 hours, P550B
Популярный
- Бренд: Gigabyte
- Модель: P550B
- EAN: 4719331551490
- Наличие: Нет в наличии
Наименование:
Gigabyte P550B
45.08€
Без PVN: 37.26€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
Cabling type
Non-Modular
CPU power cable length
600
Harmonized System (HS) code
84733020
Hold time
16
Motherboard power cable length
550
PCI Express power cable length
550
Peripheral (Molex) power cable length
500
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
500
Summary
GIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Unit Calculated Volume
0.008447
Unit Calculated Weight
2.19
Units per Shipping Box
10
Процессор
CPU power connector (4+4 pin)
Yes
Запоминающее устройство
Number of SATA power connectors
6
Спецификация
80 PLUS certification
80 PLUS Bronze
AC input frequency
50 - 60
AC input voltage
100 - 240
ATX power connector (20+4 pin)
Yes
ATX version
2.31
Bearing technology
HDB
Combined power (+12V)
522
Combined power (+3.3V)
108
Combined power (+5V)
108
Combined power (+5Vsb)
15
Combined power (-12V)
3.6
Cooling type
Active
Efficiency
85

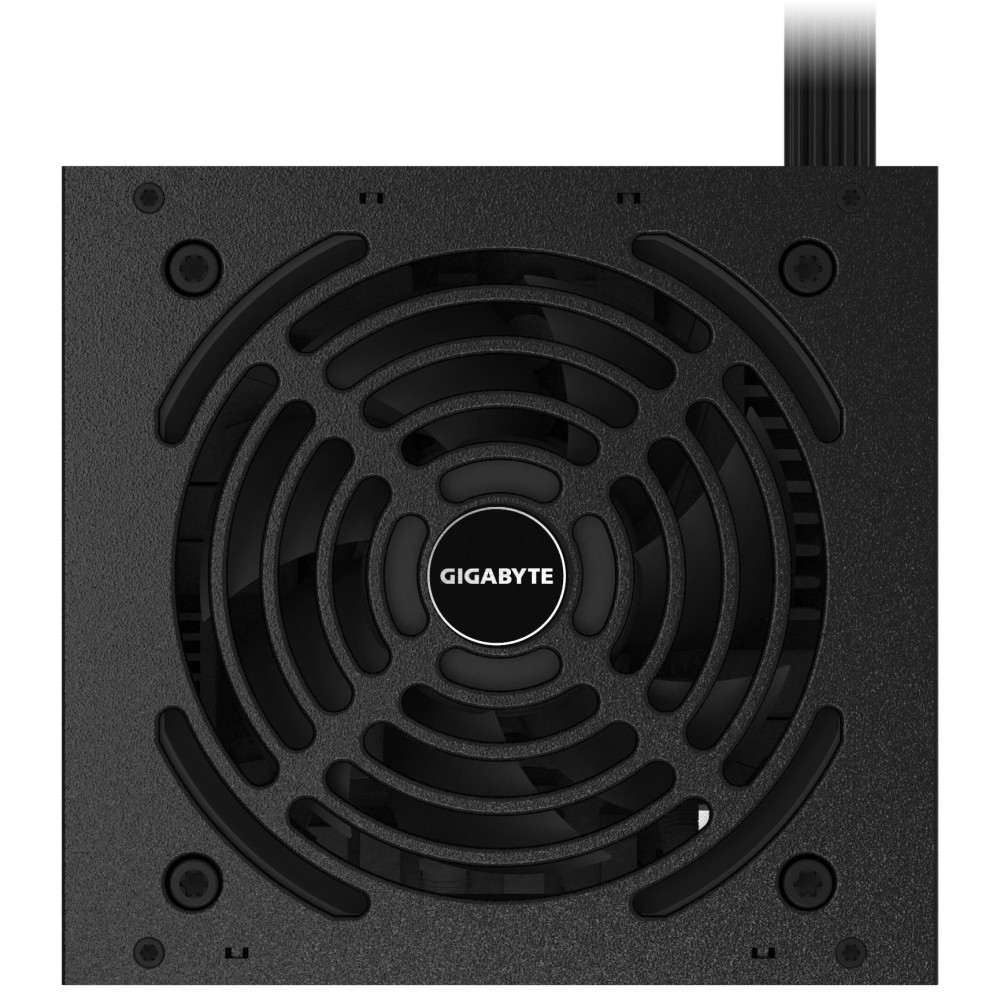

Fan diameter
120
Fan location
Top
Floppy disk drive connector
Yes
Floppy drive power connector
1
Input current
8 - 4
Max output current (+12V)
43.5
Max output current (+3.3V)
18
Max output current (+5V)
15
Max output current (+5Vsb)
3
Max output current (-12V)
0.3
Mean time between failures (MTBF)
100000
Motherboard power connector
20+4 pin ATX
Number of fans
1

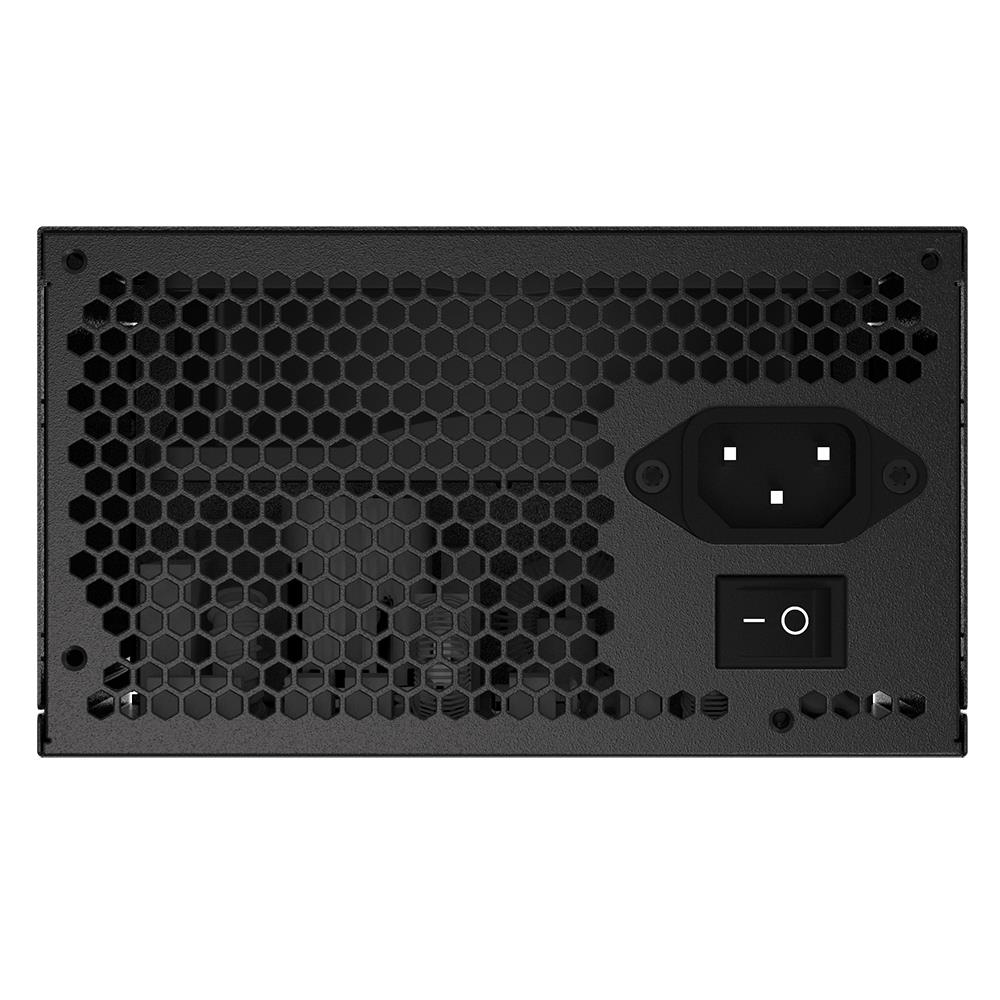

On/off switch
Yes
PCI Express connector
Yes
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power
550
Высота
86
Глубина
140
Название модели
P550B
Ширина
150
