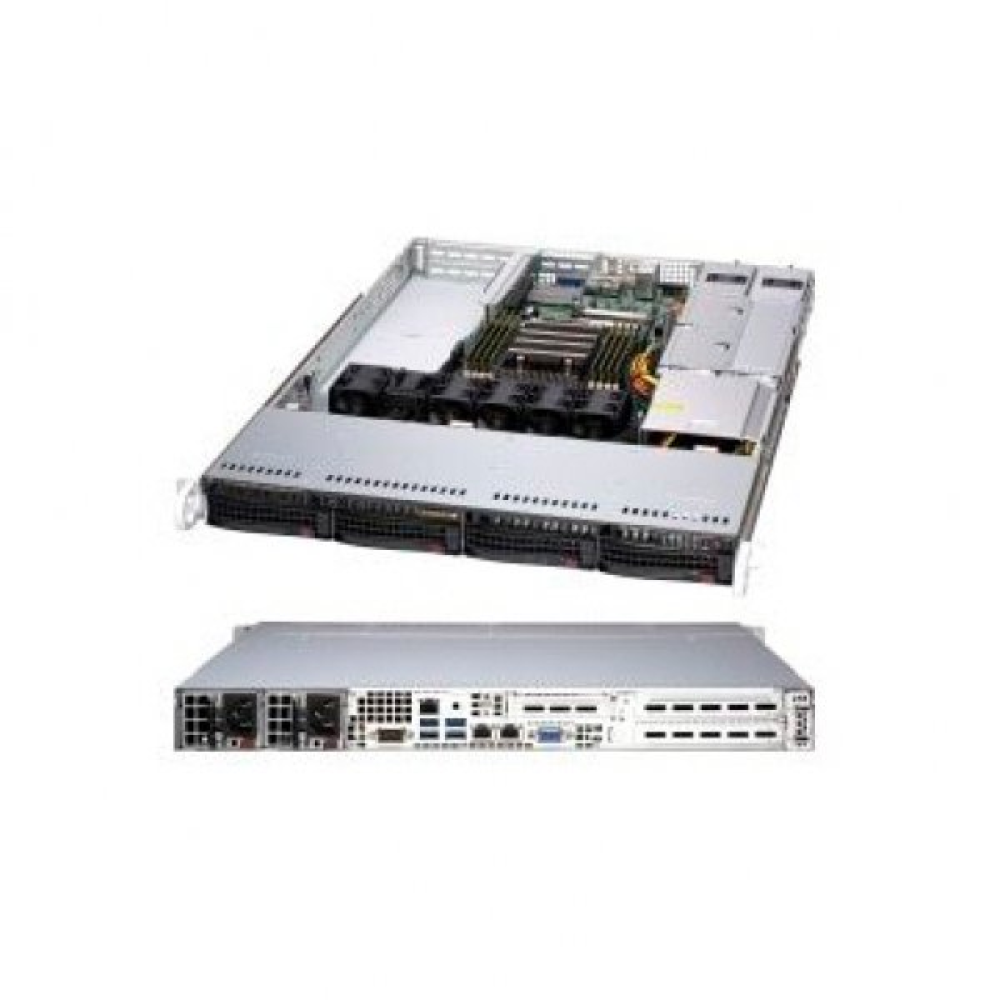

Supermicro AS-1014S-WTRT 1U, 1xSocket SP3, TDP 240W, 8xDDR4, 4x3.5'' Hot-swap, 3xPCI-E 4.0 x16, 2xRJ45 10GBase-T, 1xRJ45 IPMI, 5xUSB 3.0, 1xVGA, 2x500W
Популярный
- Бренд: SUPERMICRO
- Модель: AS-1014S-WTRT
- Наличие: Нет в наличии
Наименование:
SUPERMICRO AS-1014S-WTRT
1 576.58€
Без PVN: 1 302.96€
- Обзор товара
- Характеристики
- Отзывы (0)
Supermicro AS-1014S-WTRT 1U, 1xSocket SP3, TDP 240W, 8xDDR4, 4x3.5'' Hot-swap, 3xPCI-E 4.0 x16, 2xRJ45 10GBase-T, 1xRJ45 IPMI, 5xUSB 3.0, 1xVGA, 2x500W
Характеристики
Specification
External Color
Black
Number of Slim External Drive Bays
1
PCI Express 4.0 x16
3
PCI Express 4.0 x2
1
Процессор
CPU Socket Standard
Socket SP3
Supported CPUs
EPYC 7002 Series
Память
Maximum Installable System Memory Storage Capacity
2 TB
Memory features
Registered , Load Reduced , 3DS Load Reduced
Memory form factor
DIMM 288-pin
Memory Slot Total Quantity
8
Memory Speed
3200MHz(PC4-25600)
Provides Error Checking Method
ECC
Тип памяти
DDR4 SDRAM
Видеокарта
Video Controller Form Factor
Integrated
Видео процессор
Aspeed AST2500
Запоминающее устройство
Number of 3.5-inch Hot-Swap Drive Bays
4
Порты
USB 3.0
4 (USB 3.0 (type A))
VGA
1 (15-pin D-sub)
Подключения
Data Link Protocol Supports
10 Gbps
LAN
10G Ethernet, 2 (RJ-45)
LAN Chipset
Broadcom BCM57416
Спецификация
Depth (mm)
597 mm
Height (mm)
43 mm
Input frequency
50/60 Hz
Input voltage
AC 100-240 V
Integrated
<b>Storage Controller:</b>, SATA III-600 (2), <b>Remote Management Controller:</b>, Gigabit Ethernet (RJ-45),
Management Port
1 (RJ-45)
Maximum Operating Ambient Temperature
35 °C
Maximum Operating Humidity
90 %
Maximum Output Power
500 W
Minimum Operating Ambient Temperature
10 °C
Minimum Operating Humidity
8 %
Mounting Capability
Rackmount
Networking Form Factor
Integrated
Nominal Weight
20.9 kg
Pack Weight Brutto (kg)
20.9 kg
Pack Weight Netto (kg)
0 kg
Package type
Retail
Packs in Box
1
Pieces in pack
1
Power Device Installed Quantity
1;
Power Device Location
Internal
Power Device Type
Power Supply - redundant
Quantity of Mainboards Supported
1
Retail Packaging Net Weight Carton
0 kg
Retail Packaging Net Weight Plastic
0 kg
Standard Rack Height
1 U
System Form Factor
1U Rackmount
System Type
Server Barebone
Warranty Products Returnable
Yes
Warranty Term (month)
12 mēneši
Warranty validation Criteria
Serial Number
Width (mm)
437 mm
Чипсет
System on Chip (SoC)
