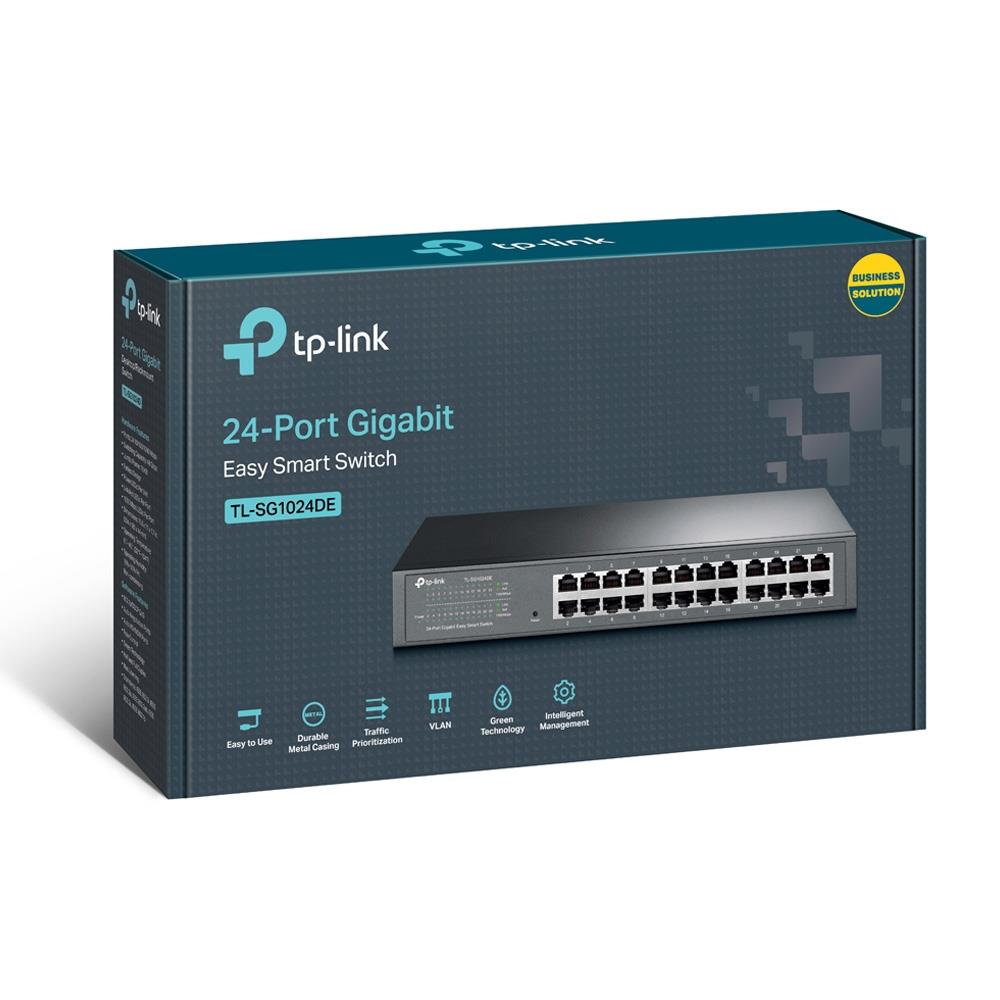

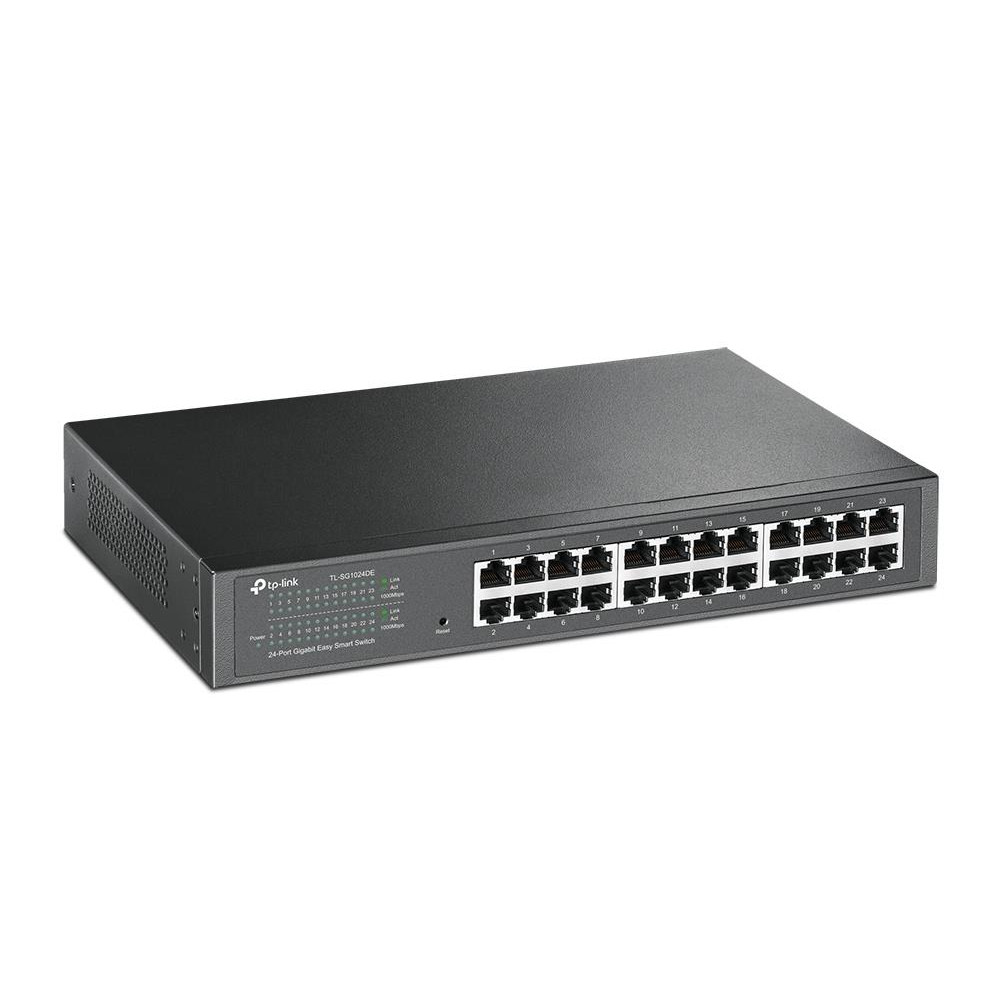

Switch, TP-LINK, 24x10Base-T / 100Base-TX / 1000Base-T, TL-SG1024DE

Популярный

Отзывы:

(0)

Наименование:

TP-LINK TL-SG1024DE

Бренд: TP-LINK
Модель: TL-SG1024DE
EAN: 6935364021245
Наличие: 7

102.83€

Без PVN: 84.98€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

Cable types supported Cat3/Cat5/Cat6

Harmonized System (HS) code 85176990

Loop protection Yes

Number of queues 4

Product colour Black

Rack mount kit Yes

Rate limiting Yes

Summary TP-Link 24-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

Unit Calculated Volume 0.0081

Unit Calculated Weight 2.12

Units per Shipping Box 1

Virtual LAN features Port-based VLAN/Tagged VLAN

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Спецификация

AC input frequency 50 - 60

AC input voltage 100 - 240

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Broadcast storm control Yes

Certification FCC, CE, RoHS

Compatible operating systems Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux

Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T

Flow control support Yes

Form factor 1U

Forwarding rate 35.7

Gigabit Ethernet (copper) ports quantity 24

Heat dissipation 114.37

IGMP snooping Yes

Jumbo frames 9216

Jumbo frames support Yes

LED indicators Yes

Link aggregation Yes

MAC address table 8000

Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Number of VLANs 32

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40

Package depth 400

Package height 80

Package type Box

Package weight 2020

Package width 250

Packet buffer memory 0.512

Port mirroring Yes

Power consumption (max) 14.86

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Rack mounting Yes

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch layer L2

Switch type Managed

Switching capacity 48

User guide Yes

VLAN support Yes

Web-based management Yes

Высота 44

Глубина 180

Кабели в комплекте AC

Ширина 294
