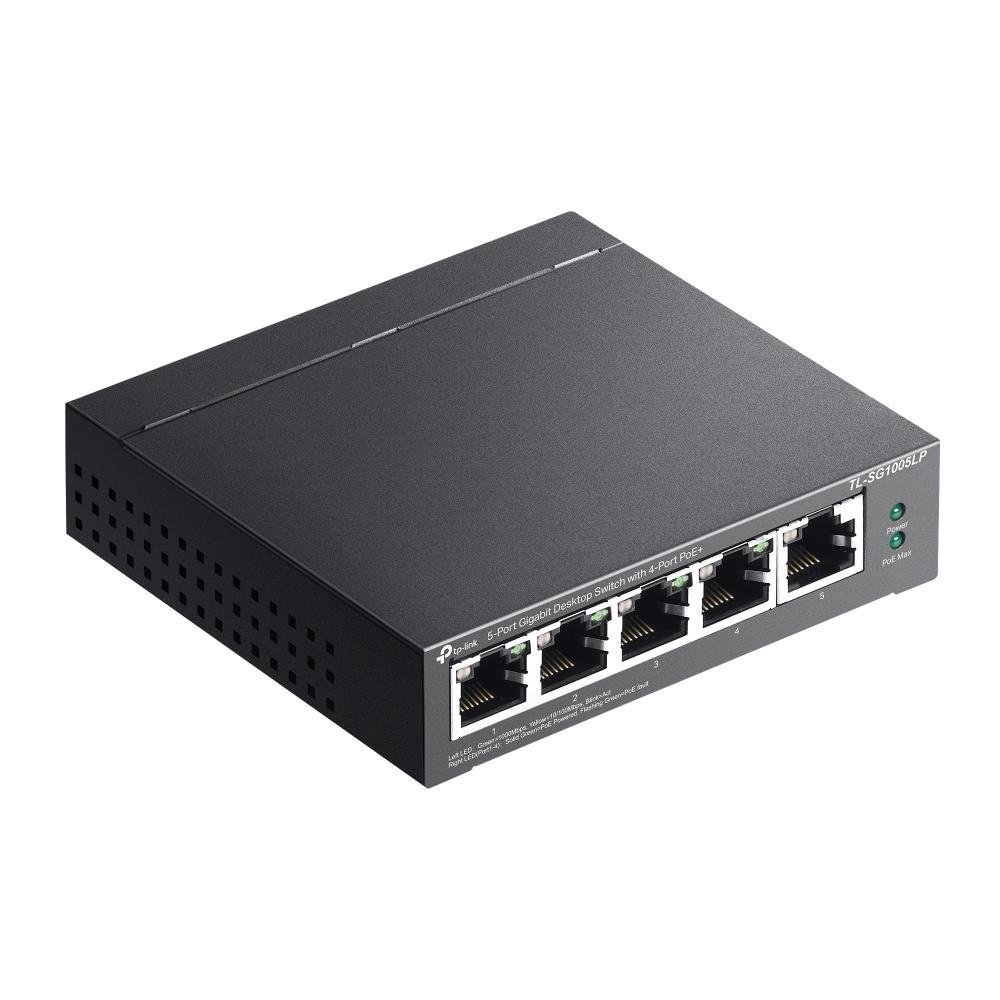

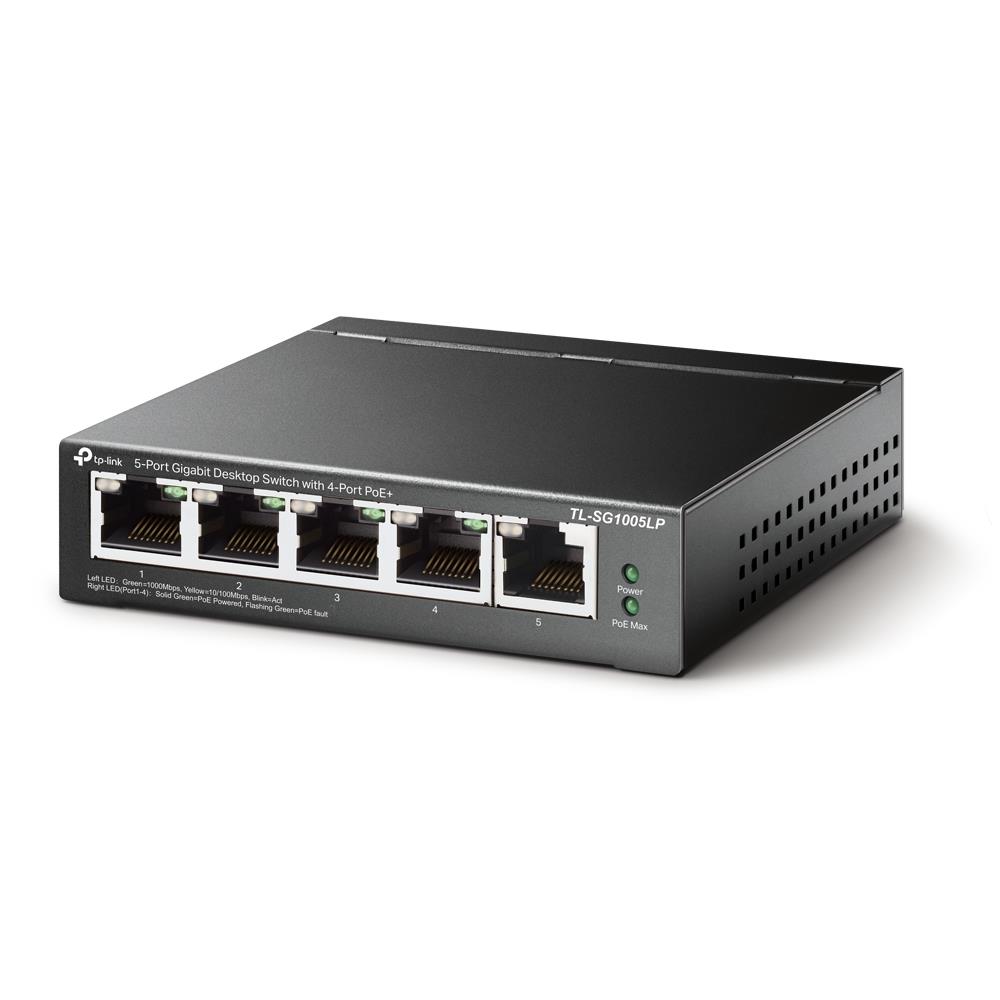

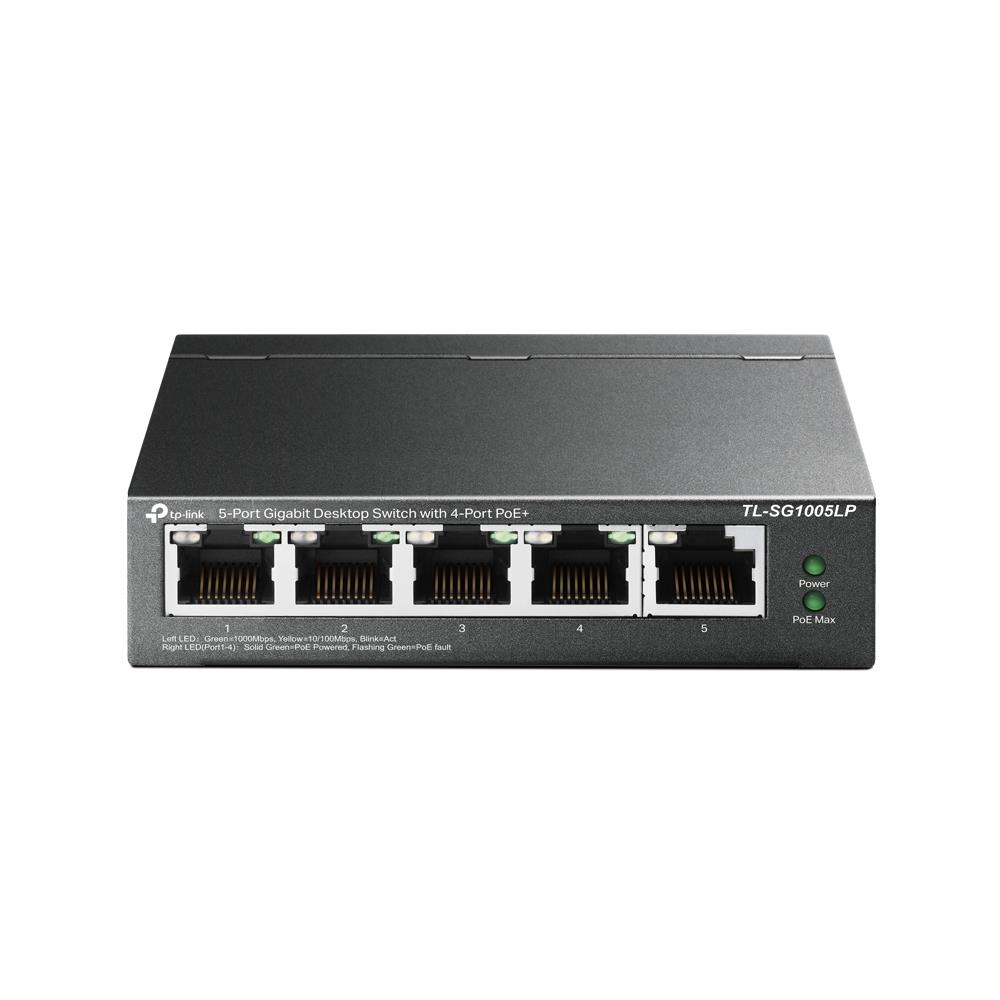

Switch, TP-LINK, Desktop/pedestal, 5x10Base-T / 100Base-TX / 1000Base-T, PoE ports 1, TL-SG1005LP

Популярный

Отзывы:

(0)

Наименование:

TP-LINK TL-SG1005LP

Бренд: TP-LINK
Модель: TL-SG1005LP
EAN: 6935364052720
Наличие: 23

28.79€

Без PVN: 23.79€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)
Похожие товары

Manufacturer page

Характеристики

Specifikācija

Cable types supported Cat3/Cat4/Cat5/Cat5e/Cat6

Compliance certificates CE/Federal Communications Commission (FCC)/RoHS

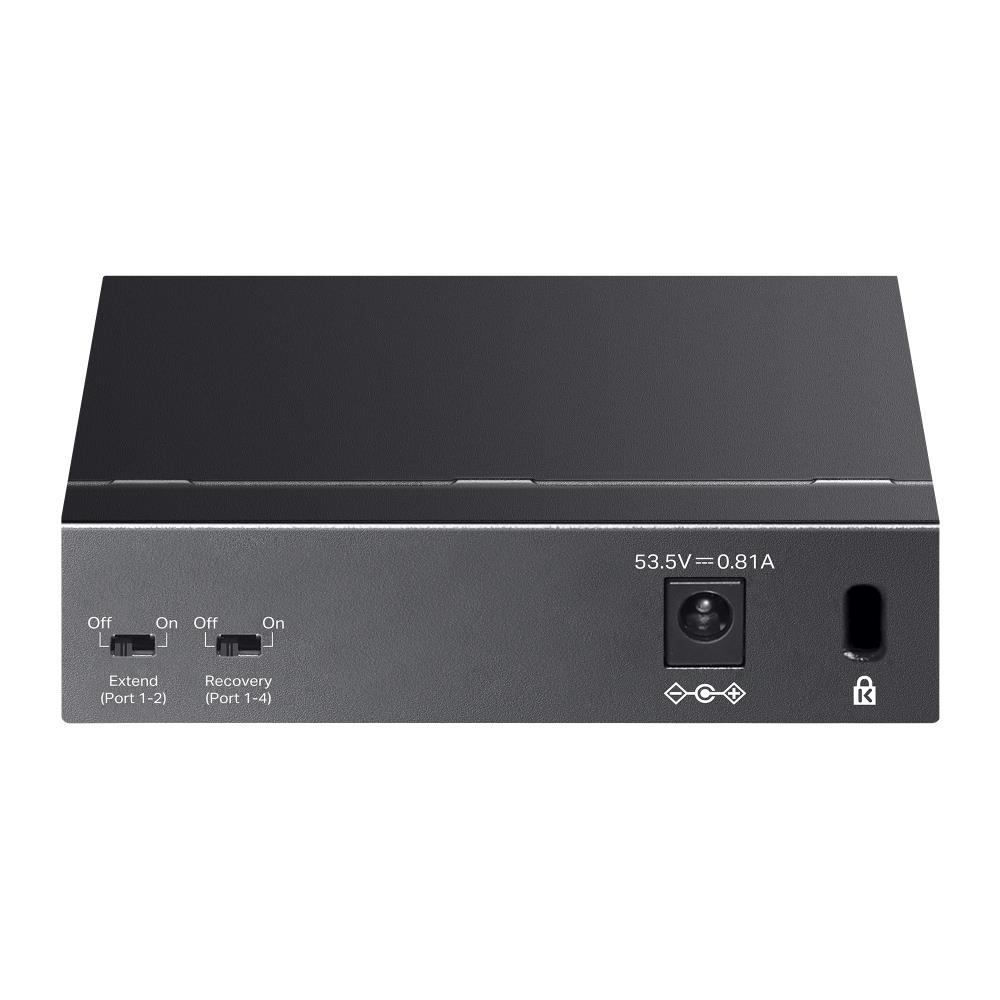

DC input voltage 53.5

Fanless Yes

Harmonized System (HS) code 85176990

MAC address auto-aging supported Yes

MAC address auto-learning supported Yes

Product colour Black

Store-and-forward Yes

Summary TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Sustainability compliance Yes

Unit Calculated Volume 0.003042

Unit Calculated Weight 0.74

Units per Shipping Box 1

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 5

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Спецификация

AC input frequency 50/60

AC input voltage 100 - 240

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Certification FCC, CE, RoHS

Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T

Flow control support Yes

Forwarding rate 7.44

Gigabit Ethernet (copper) ports quantity 5

Heat dissipation 161.98

IGMP snooping Yes

Input current 0.81

Jumbo frames 16000

Jumbo frames support Yes

LED indicators Yes

MAC address table 2000

Maximum cable length 100

Model TL-SG1005LP

Networking standards IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40

Package depth 196

Package height 121

Package type Box

Package weight 730

Package width 131

Power consumption (max) 47.5

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 4

Power source DC/PoE

Power supply included Yes

Quality of Service (QoS) support Yes

Rack mounting No

Stackable No

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch type Unmanaged

Switching capacity 10

Total Power over Ethernet (PoE) budget 40

User guide Yes

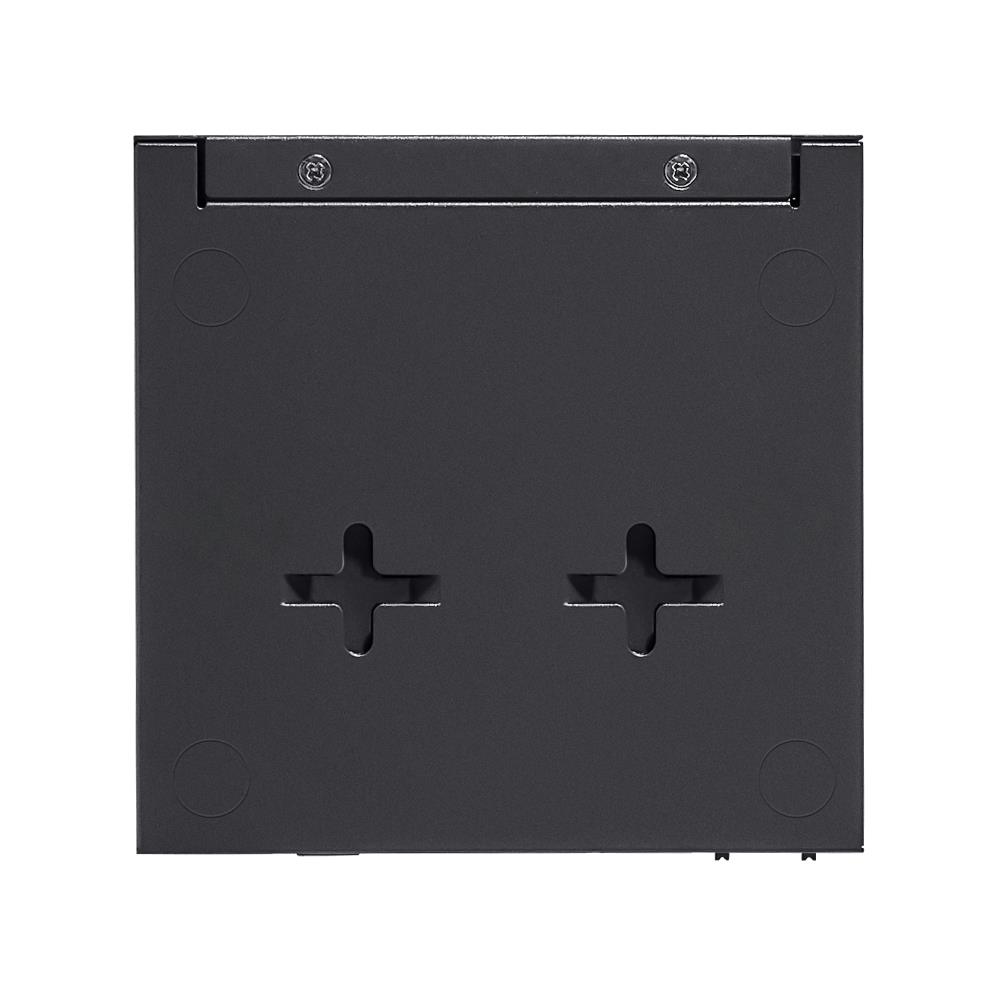

Wall mountable Yes

Высота 25

Глубина 98

Ширина 99.8
