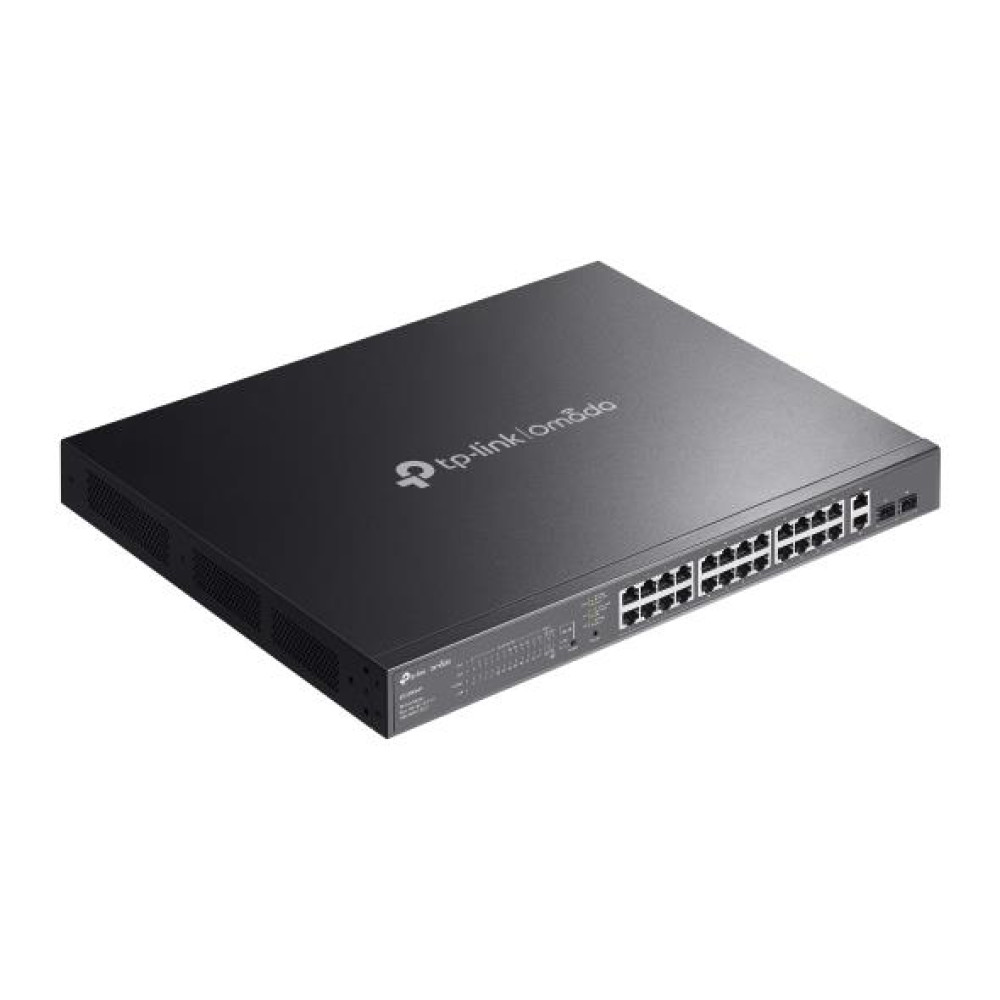

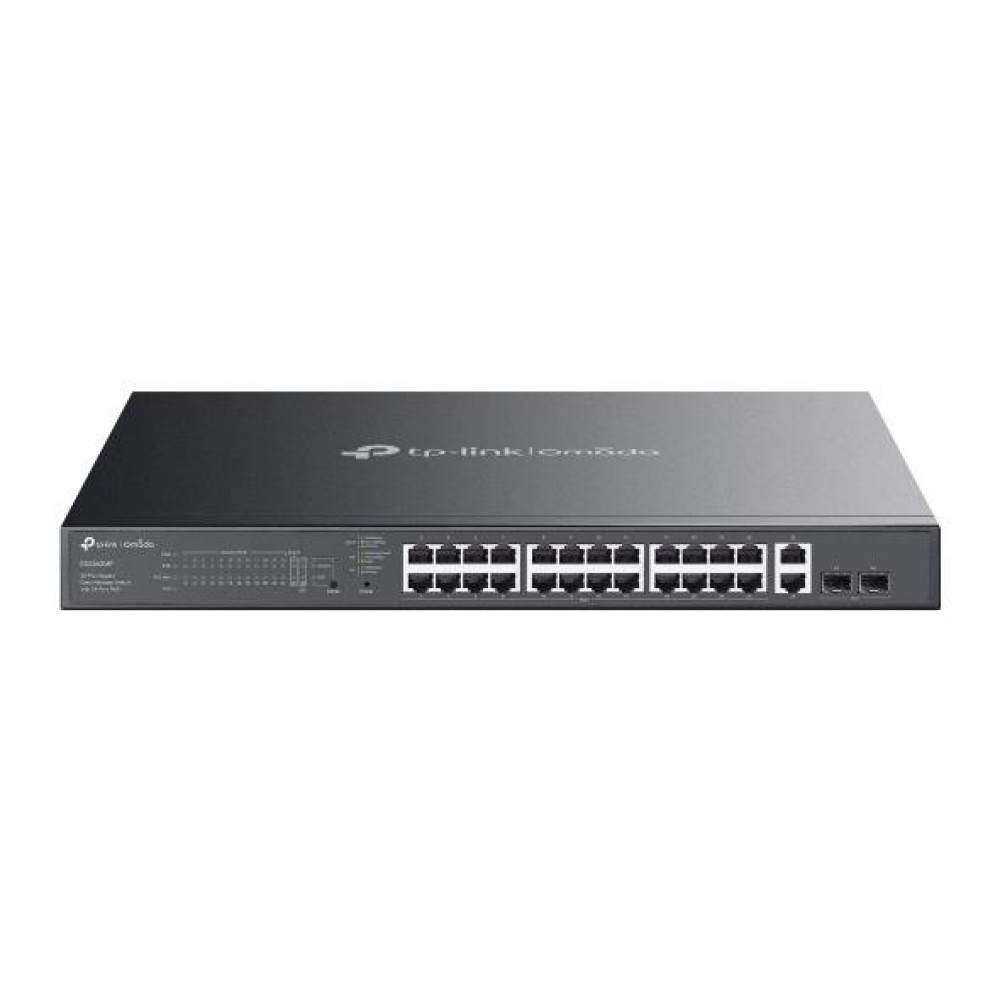

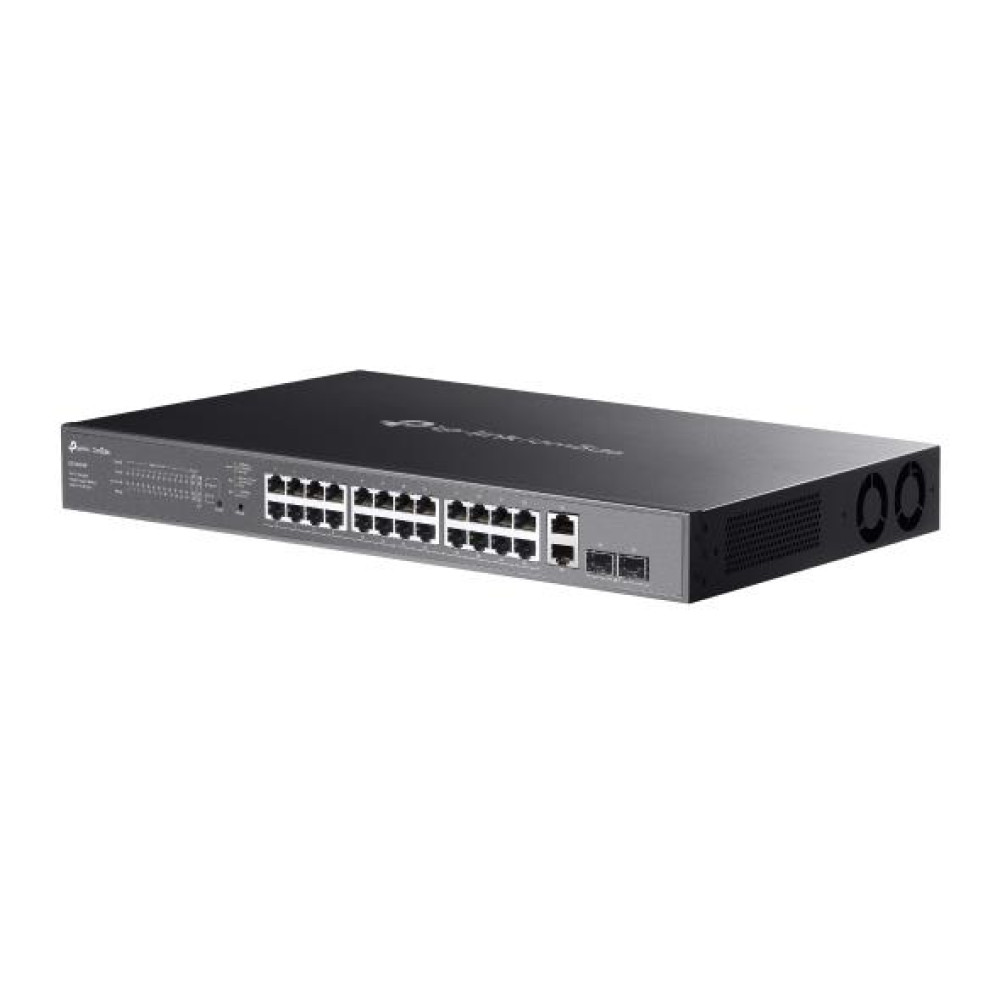

Switch, TP-LINK, Omada, SG2428P, Type L2+, 384 Watts, ES228GMP

Популярный

Отзывы:

(0)

Наименование:

TP-LINK ES228GMP

Бренд: TP-LINK
Модель: ES228GMP
EAN: 1210002600989
Наличие: 10

315.33€

Без PVN: 260.60€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specification

Noise level 46.2

Specifikācija

Cloud-managed Yes

Compliance certificates CE/Federal Communications Commission (FCC)/RoHS

DHCP features DHCP client

Fanless No

Fast leave Yes

Power over Ethernet (PoE) type supported PoE+

Product colour Black

Queue scheduling algorithms Weighted Round Robin (WRR)

Rack mount kit Yes

Store-and-forward Yes

Summary TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i,.... Power over Ethernet (PoE). Rack mounting

Surge protection voltage 6

Unified static configuration Yes

Unit Calculated Volume 0.02491

Unit Calculated Weight 6.125

Units per Shipping Box 1

Virtual LAN features MTU VLAN/Port-based VLAN/Tagged VLAN

Запоминающее устройство

Flash memory 64

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 26

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Ethernet LAN data rates 10,100,1000

SFP module slots quantity 2

Спецификация

AC input frequency 50/60

AC input voltage 100 - 240

Auto MDI/MDI-X Yes

Broadcast storm control Yes

Certification FCC, CE, RoHS

Copper ethernet cabling technology 1000BASE-T/1000BASE-X/100BASE-X/10BASE-T

Firmware upgradeable Yes

Flow control support Yes

Forwarding rate 41.66

Gigabit Ethernet (copper) ports quantity 26

Heat dissipation 1546.15

Housing material Metal

IGMP snooping Yes

Jumbo frames 15000

Jumbo frames support Yes

LED indicators Yes

Link aggregation Yes

MAC address table 8000

Manual Yes

Mean time between failures (MTBF) 224143

Multicast support Yes

Networking standards IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Number of fans 2

Number of VLANs 32

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) -5 - 45

Packet buffer memory 4

Port mirroring Yes

Power consumption (max) 454.8

Power over Ethernet (PoE) Yes

Power over Ethernet (PoE) power per port 30

Power over Ethernet plus (PoE+) ports quantity 24

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Quick start guide Yes

Rack mounting Yes

Series Omada

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Surge protection Yes

Switch layer L2

Switch type Managed

Switching capacity 56

Total Power over Ethernet (PoE) budget 384

VLAN support Yes

Web-based management Yes

Высота 44

Глубина 330

Кабели в комплекте AC

Название модели SG2428P

Ширина 440
