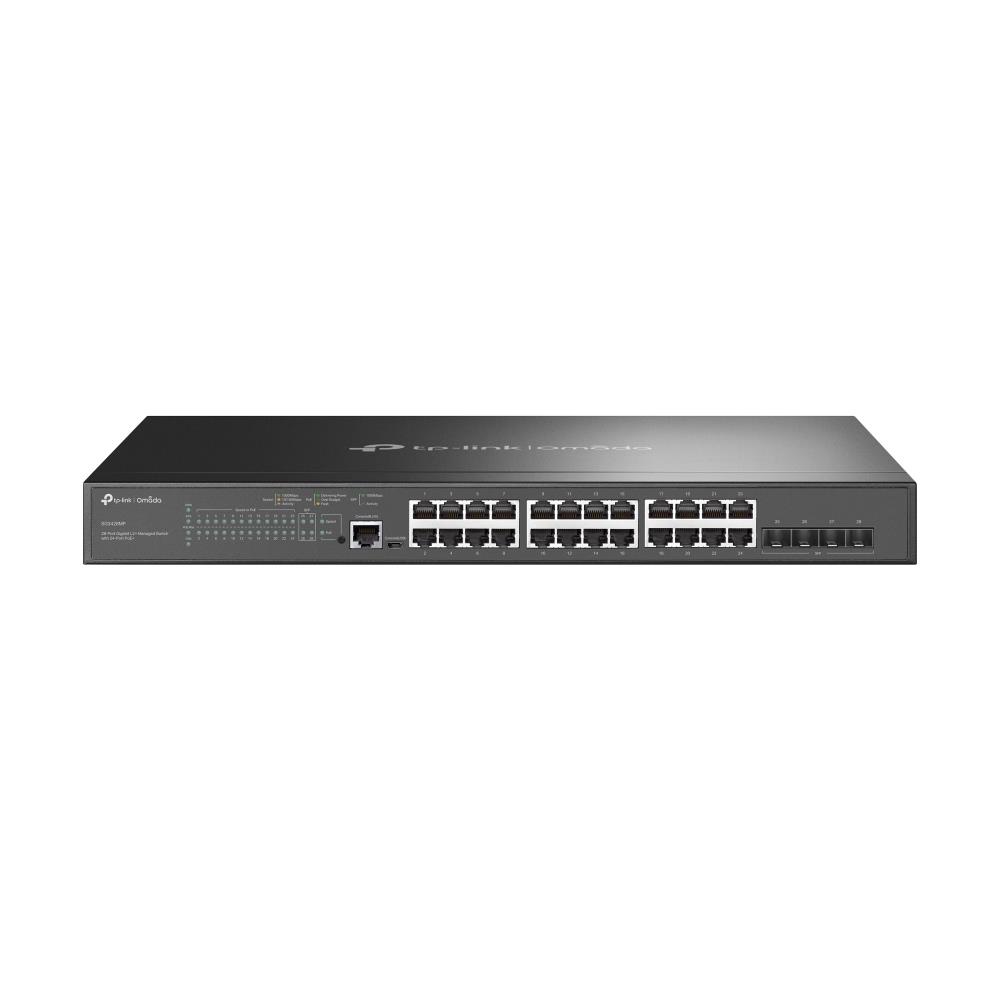

Switch, TP-LINK, Omada, TL-SG3428MP, Rack, 4xSFP, 1xConsole, 1, 384 Watts, TL-SG3428MP

Популярный

Отзывы:

(0)

Наименование:

TP-LINK TL-SG3428MP

Бренд: TP-LINK
Модель: TL-SG3428MP
EAN: 6935364010737
Наличие: 4

418.16€

Без PVN: 345.59€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

Active link detection Yes

Authentication MAC-based authentication,Port-based authentication

BPDU filtering/protection Yes

Cloud-managed Yes

Configuring Location Settings (CLI) Yes

DHCP features DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping

Export Control Classification Number (ECCN) EAR99

GARP VLAN Registration Protocol (GVRP) Yes

Head-of-line (HOL) blocking Yes

IP-MAC-Port binding Yes

Loop protection Yes

Product colour Black

Rate limiting Yes

Store-and-forward Yes

Summary TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

System event log Yes

Unit Calculated Volume 0.0288

Unit Calculated Weight 6.59

Units per Shipping Box 4

Virtual LAN features MAC address-based VLAN/Port-based VLAN/Private VLAN/Tagged VLAN/Voice VLAN

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Ethernet LAN data rates 10,100,1000

SFP module slots quantity 4

Спецификация

AC input frequency 50/60

AC input voltage 100 - 240

Access Control List (ACL) Yes

ARP inspection Yes

Broadcast storm control Yes

Certification CE, FCC, RoHS

Console port RJ-45/micro-USB

Copper ethernet cabling technology 1000BASE-T/10BASE-T

Flow control support Yes

Form factor 1U

Forwarding rate 41.66

Gigabit Ethernet (copper) ports quantity 24

Heat dissipation 1637.14

IGMP snooping Yes

IP routing Yes

Jumbo frames 9000

Jumbo frames support Yes

LED indicators Yes

Link aggregation Yes

MAC address filtering Yes

MAC address table 16000

Management protocols SNMPv1/v2c/v3, LLDP/LLDP-MED

Multicast support Yes

Networking standards IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Number of fans 2

Number of VLANs 4000

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 45

Packet buffer memory 12

Port mirroring Yes

Power connector AC-in jack

Power consumption (max) 480.1

Power over Ethernet (PoE) Yes

Power over Ethernet (PoE) power per port 30

Power over Ethernet plus (PoE+) ports quantity 24

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Quick start guide Yes

Rack mounting Yes

Security algorithms SSH/SSL/TLS

Series Omada

Spanning tree protocol Yes

SSH/SSL support Yes

Static port security Yes

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch layer L2+

Switch type Managed

Switching capacity 56

Total Power over Ethernet (PoE) budget 384

User guide Yes

VLAN support Yes

Web-based management Yes

Высота 44

Глубина 330

Название модели TL-SG3428MP

Ширина 440
