SATEL GSM-X

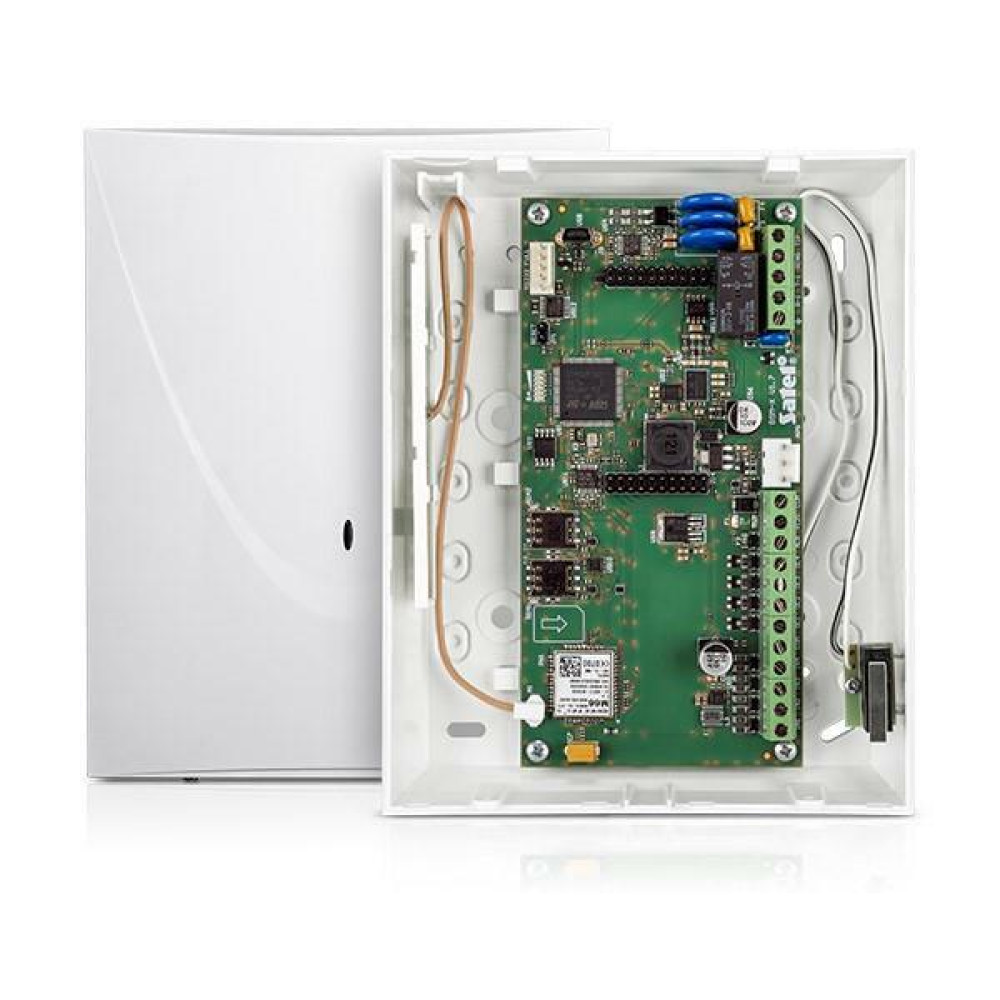

• GSM-X is a multi-purpose communication module that offers extensive functionality and support for multiple communication paths.It can easily find numerous applications, some of which can be implemented in parallel. - Dual Path Reporting support according to EN 50136* for DP4 category - conversion of telephone reporting into audio/SMS/Ethernet*/GPRS formats - sending notifications to max. 8 phone numbers - notification: audio/SMS/PUSH/CLIP - conversion of PAGER messages into SMS - telephone line simulation via GSM - GSM gateway - switching to GSM in case of telephone line failure - compatibility with INTEGRA and INTEGRA Plus control panels: - fast data transfer through RS-232 - conversion of RS-232/TCP/IP reporting - automatic composition of notification content (INTEGRA Plus) - ability to remotely connect to DLOADX and GUARDX programs - SMS and CLIP receiver for STAM-2 monitoring station - 4 programmable inputs (NO, NC) - 4 outputs (OC) controlled by SMS/CLIP/DTMF/GX CONTROL/GX Soft - dual SIM card support - possibility to check the pre-paid account balance and send notification if it drops below required minimum - configuration using GX Soft software: - locally via USB - remotely via Ethernet* or GPRS - interaction with GX CONTROL mobile application - remote firmware update capability - possibility of connecting a dedicated power supply unit: APS-612 or APS-412 - expansion capability by adding GSM-X-ETH Ethernet module*when used with GSM-X-ETHEnclosure OPU-2 B and antenna ANT-GSM-I included
• Max. number of zones 4,PSU requirements 12 V DC,Dimensions 126 x 158 x 46mm,Unit Brutto Volume 0.001623 cubm




Manufacturer page

Tags: Additional Modules
