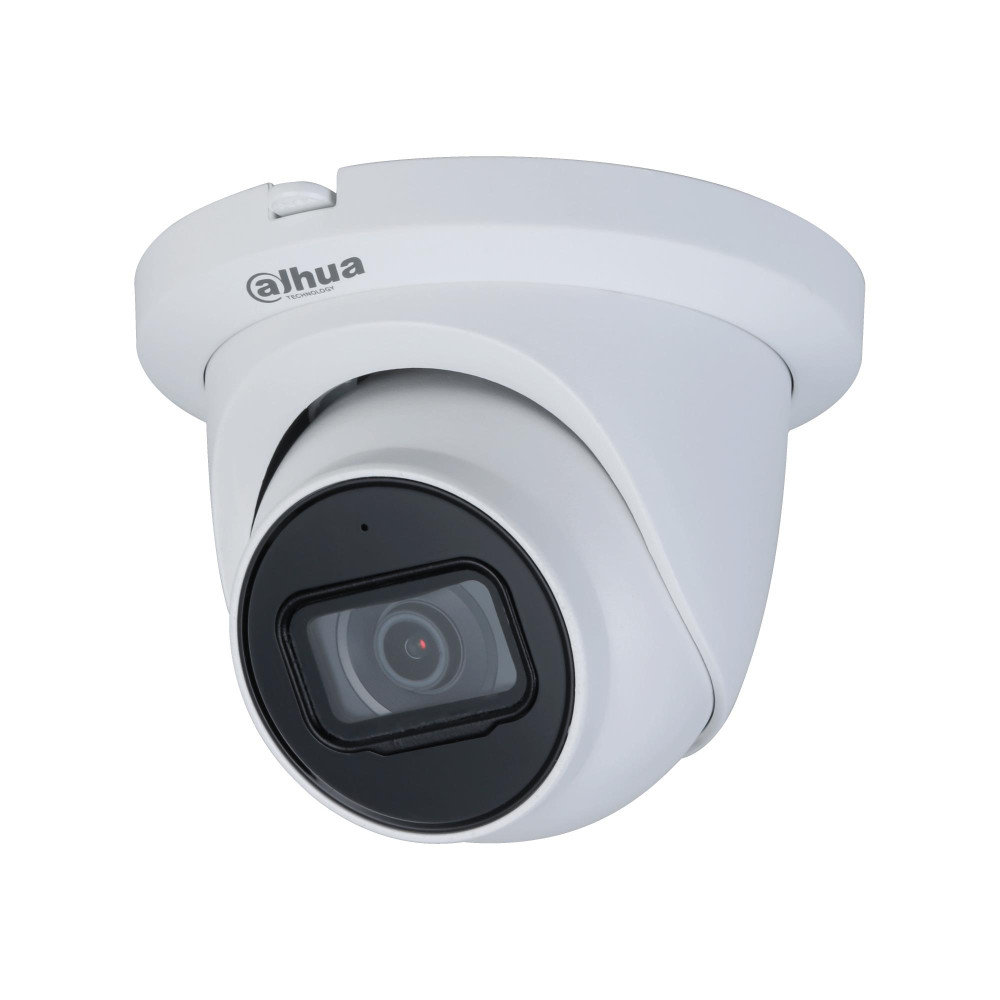

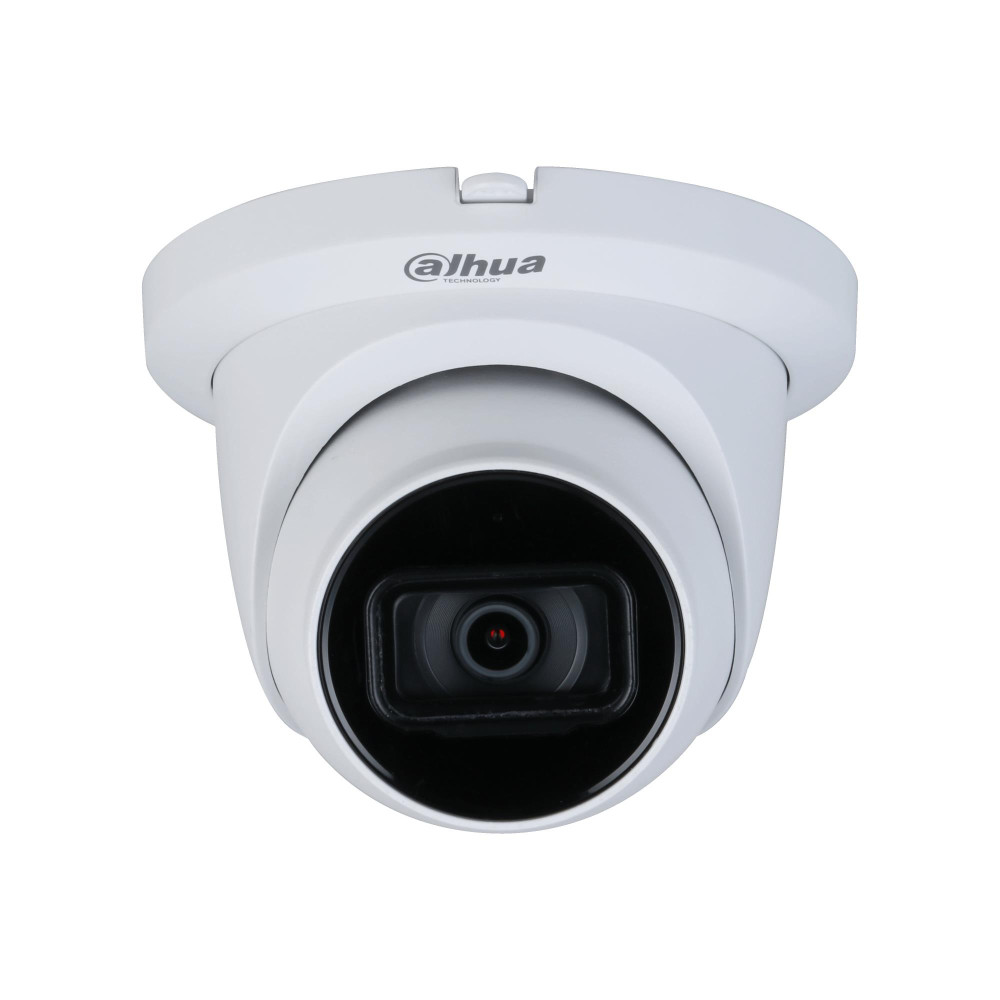

CAMERA HDCVI 5MP EYEBALL/HDW2501TMQ-A-0280B-S2 DAHUA
Popular
- Brand: DAHUA
- Product Code: DH-HAC-HDW2501TMQ-A-0280B-S2
- EAN: 6939554944918
- Availability: 5
Name:
DAHUA DH-HAC-HDW2501TMQ-A-0280B-S2
115.00€
Ex Tax: 95.04€
- Product overview
- Specification
- Reviews (0)
Specifications
Specifikācija
Angle of rotation
360
Back Light Compensation (BLC)
Yes
BNC output ports
1
Camera pan control
Yes
Camera tilt control
Yes
Day/night mode
Yes
Detect distance (wide)
63.6
Dynamic range
120
Flip & mirror
Yes
Gain control type
Auto/Manual
Highlight Compensation (HLC)
Yes
Identify distance (wide)
6.4
LED type
IR
Lens viewing angle, diagonal
58
Lens viewing angle, horizontal
132
Lens viewing angle, vertical
111
Noise reduction technology
2D noise reduction
Number of cameras
1
Number of lenses
1
Observe distance (wide)
25.4
Pan range
0 - 360
Privacy masking
Yes
Product colour
White
Progressive scan
Yes
Recognize distance (wide)
12.7
Smart IR
Yes
Summary
Dahua Technology Pro HAC-HDW2501TMQ-A-0280B-S2. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 132°, Lens viewing angle, vertical: 111°. Sensor type: CMOS. Fixed focal length: 2.8 mm, Detect distance (wide): 63.6 m, Observe distance (wide): 25.4 m
Tilt angle range
0 - 78
Unit Calculated Volume
0.002929
Unit Calculated Weight
0.61
Units per Shipping Box
1
Storage parameters
Built-in HDD
No
Connections types
Bluetooth
No
Connectivity technology
Wired
Ethernet LAN
No
Wi-Fi
No
Specifications
Built-in microphone
Yes
Camera shutter type
Electronic
Certification
CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Closest focusing distance
0.9
DC output voltage
12
Diameter
121.9
Fixed focal length
2.8
Form factor
Turret
Frame rate
30
Height
99.1
Maximum aperture number
1.6
Maximum resolution
2880 x 1620
Mounting type
Ceiling/Wall/Pole
Night vision
Yes
Night vision distance
60
Noise reduction
Yes
Number of illumination LEDs
2
Number of languages
11
Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
-40 - 60
Package weight
730
Placement supported
Indoor & outdoor
Power consumption (typical)
5.9
Power source type
DC
Sensor type
CMOS
Signal-to-Noise Ratio (SNR)
65
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-40 - 60
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
Supported video modes
1440p/1620p/480p/576p
Total megapixels
5
Type
CCTV security camera
Weight
540
White balance
ATW
Wide Dynamic Range (WDR)
Yes
