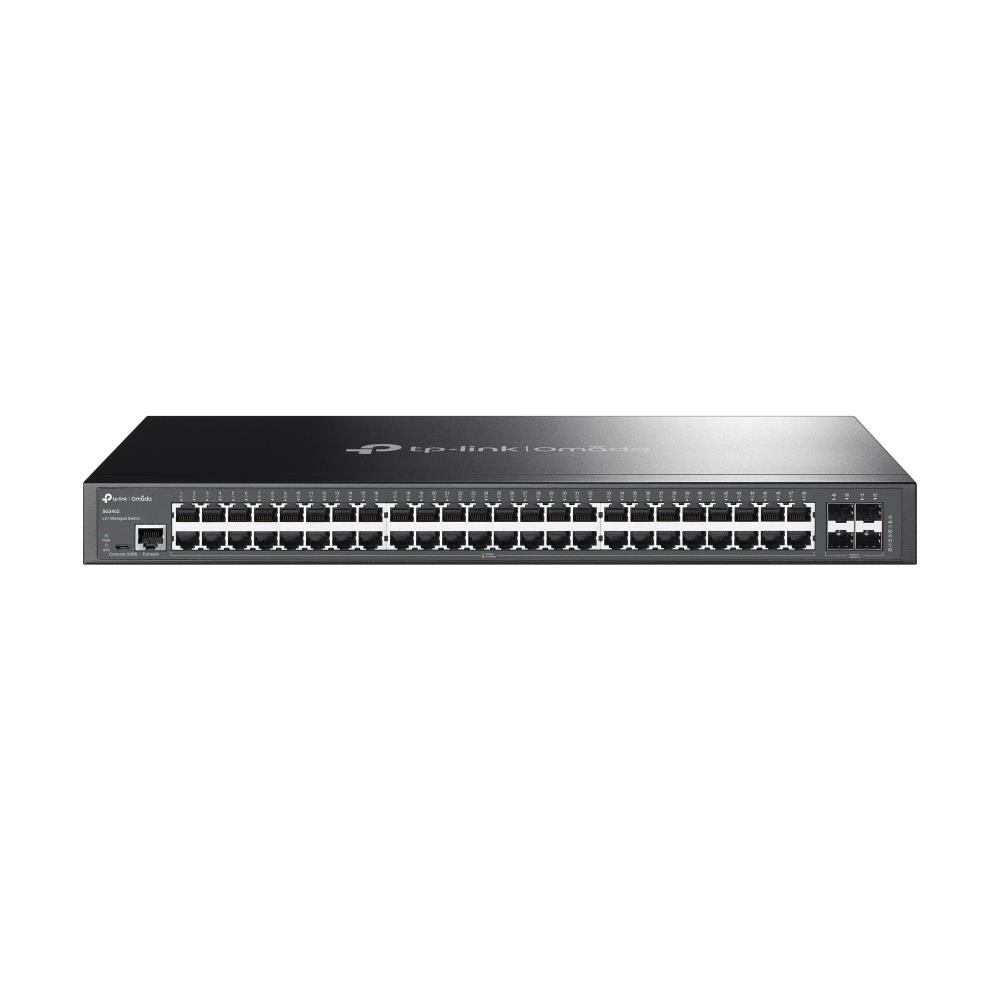

Switch, TP-LINK, Omada, TL-SG3452, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3452

Popular

Last thing

Switch, TP-LINK, Omada, TL-SG3452, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3452

Reviews:

(0)

Name:

TP-LINK TL-SG3452

Brand: TP-LINK
Product Code: TL-SG3452
EAN: 6935364010751
Availability: 1

394.85€

Ex Tax: 326.32€

Product overview
Specification
Reviews (0)

Manufacturer page

Tags: Switches

Specifications

Specifikācija

Authentication MAC-based authentication,Port-based authentication

Authentication type AAA,RADIUS,TACACS+

BPDU filtering/protection Yes

Cloud-managed Yes

Configuring Location Settings (CLI) Yes

DHCP features DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 snooping

Fanless Yes

GARP VLAN Registration Protocol (GVRP) Yes

Head-of-line (HOL) blocking Yes

IP-MAC-Port binding Yes

IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert

IPv4 routes 48

IPv6 routes 48

Loop protection Yes

Multicast Listener Discovery (MLD) snooping Y

Policy-based routing Yes

Product colour Black

Rack mount kit Yes

Static route Yes

Store-and-forward Yes

Summary TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE.... Rack mounting, Form factor: 1U

System event log Yes

Unit Calculated Volume 0.02104

Unit Calculated Weight 4.53

Units per Shipping Box 4

Virtual LAN features Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN

Memory parameters

Internal memory 256

Storage parameters

Flash memory 32

Connections types

10G support No

Basic switching RJ-45 Ethernet ports quantity 48

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Ethernet LAN data rates 10,100,1000

SFP module slots quantity 4

Specifications

AC input frequency 50/60

AC input voltage 100 - 240

Access Control List (ACL) Yes

ARP inspection Yes

Broadcast storm control Yes

Cables included AC

Certification CE, FCC, RoHS

Console port RJ-45/micro-USB

Depth 220

Flow control support Yes

Form factor 1U

Forwarding rate 77.38

Gigabit Ethernet (copper) ports quantity 48

Heat dissipation 118.94

Height 44

IGMP snooping Yes

IP routing Yes

Jumbo frames 9000

Jumbo frames support Yes

Link aggregation Yes

MAC address filtering Yes

MAC address table 16000

Management protocols SNMPv1/v2c/v3, SNTP

MIB support Yes

Model name TL-SG3452

Multicast support Yes

Networking standards IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Number of VLANs 4000

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40

Port mirroring Yes

Power consumption (max) 34.86

Power over Ethernet (PoE) No

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Quick start guide Yes

Rack mounting Yes

Series Omada

Spanning tree protocol Yes

SSH/SSL support Yes

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch layer L2+

Switch type Managed

Switching capacity 104

VLAN support Yes

Web-based management Yes

Width 440
