Switch, TP-LINK, Desktop/pedestal, 28x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 24, 250 Watts, TL-SG1428PE

Популярный

Отзывы:

(0)

Наименование:

TP-LINK TL-SG1428PE

Бренд: TP-LINK
Модель: TL-SG1428PE
EAN: 6935364072209
Наличие: 3

246.78€

Без PVN: 203.95€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)
Похожие товары

Manufacturer page

Характеристики

Specifikācija

Bullet Points <ul<li24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots</li<liPoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems</li<liPriority Mode helps to guarantee the quality of sensitive application like video monitoring</li<liPoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices</li<liQoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV</li<liIntelligent power management can protect the switch from overload</li</ul

Cable types supported Cat3/Cat4/Cat5/Cat5e/Cat6

Fiber ethernet cabling technology 1000BASE-X

Harmonized System (HS) code 85176990

Long Description TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Number of queues 4

Product colour Black

Rack mount kit Yes

Rate limiting Yes

Store-and-forward Yes

Unit Calculated Volume 0.01802

Unit Calculated Weight 3.98

Units per Shipping Box 1

Virtual LAN features Port-based VLAN/Tagged VLAN

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 26

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

SFP module slots quantity 2

Спецификация

AC input frequency 50 - 60

AC input voltage 100 - 240

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Broadcast storm control Yes

Certification CE, FCC, RoHS

Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T

Flow control support Yes

Form factor 1U

Forwarding rate 41.7

Gigabit Ethernet (copper) ports quantity 26

IGMP snooping Yes

Jumbo frames 10000

Jumbo frames support Yes

Link aggregation Yes

MAC address table 8000

Model TL-SG1428PE

Multicast support Yes

Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x

Number of fans 2

Number of VLANs 32

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 50

Package depth 528

Package height 100

Package weight 3940

Package width 336

Packet buffer memory 4.1

Port mirroring Yes

Power consumption (max) 1039.03

Power over Ethernet (PoE) Yes

Power over Ethernet (PoE) power per port 30

Power over Ethernet plus (PoE+) ports quantity 24

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Rack mounting Yes

Security algorithms SNMP/SNMPv2/SNMPv3

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch layer L2

Switch type Managed

Switching capacity 56

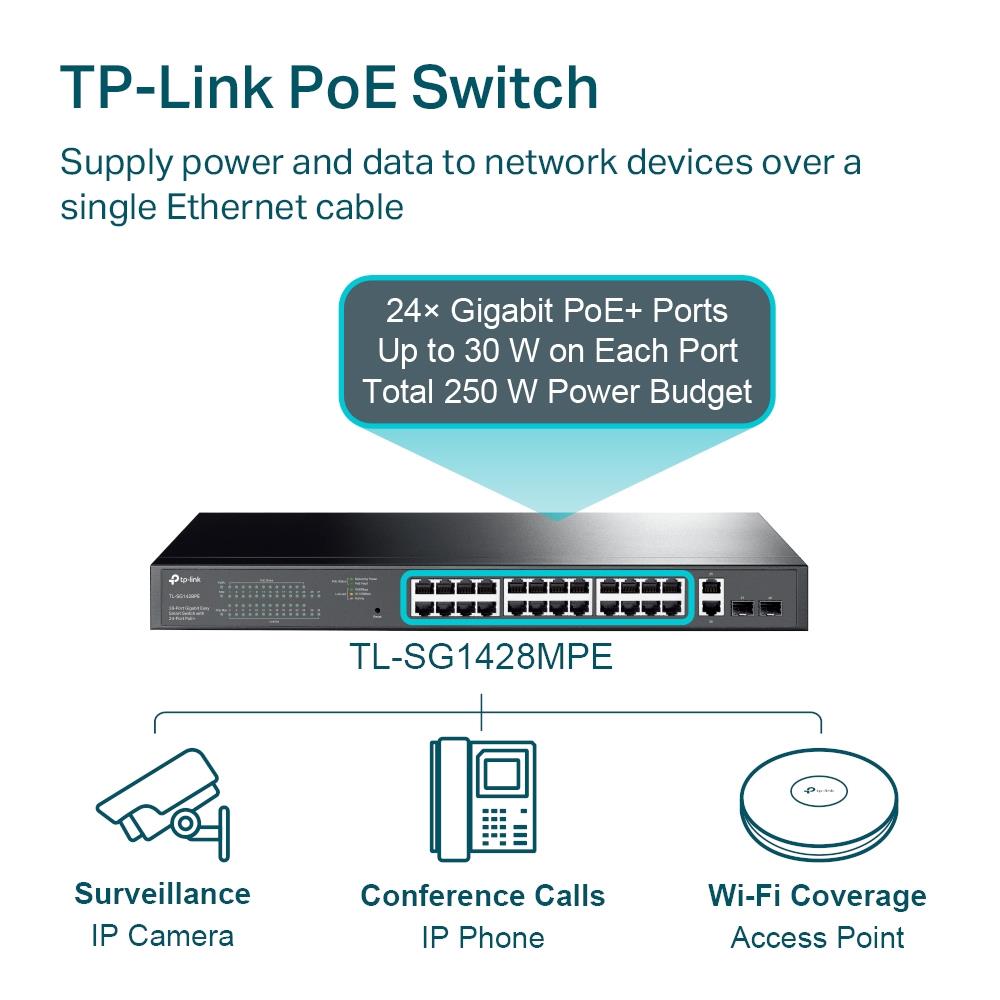

Total Power over Ethernet (PoE) budget 250

User guide Yes

VLAN support Yes

Web-based management Yes

Высота 44

Глубина 220

Кабели в комплекте AC

Название модели 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Ширина 440
