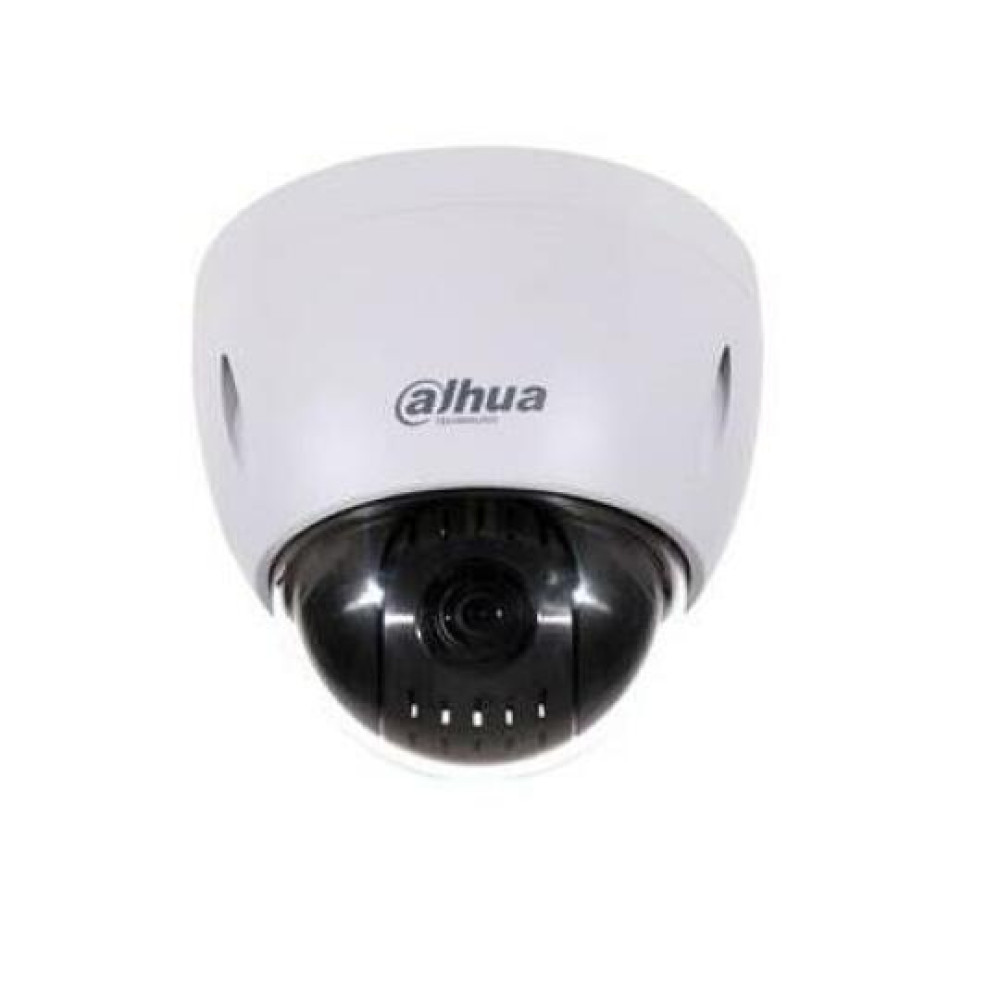

DAHUA DH-SD42212I-HC

348.76€

Ex Tax: 288.23€

HDCVI is an optimal solution for megapixel high definition application, featuring non-latent long-distance transmission at lower cost over standard RG-75 type cable. It incorporates both cameras and DVRs, and the system is star topology structured. DVR is served as a node to have an over coax P2P (Point-to-Point) transmission to camera. Cable selection is based on transmission distance: cable 75-3 and 75-5 are recommended for transmission within 500 meters, cable 75-5 and above for over 500 meters. Connector or jointing technology could be applied for connecting and the installation is exactly the same as that of conventional analog devices, which posts no special requirements either for indoor or outdoor scenarios with better anti-interference capability offered.
- Type PTZ,Sensor size 1/2.8” Sony Exmor CMOS,Focal Length 5.1mm - 61.2mm,Min. Illumination 0.05 Lux,Effective pixels 1944(H) x 1092(V),1xAudio-In,1xBNC,1xRS-485,2xAlarm In,1xAlarm Out,Power supply requirements AC24V/1.5A(±10%), 10W max; 24 VAC PSU included,Dimensions Φ186mm×234mm
Tags: HDCVI Cameras

Specifications

Ports types

Audio-In 1

Connections types

RS-485 1

Camera parameters

Net camera resolution 2 - 4MP

Network Camera Type PTZ

Specifications

Alarm In 2

Alarm Out 1

BNC 1

Camera design Dome

Dimensions Φ186mm×234mm

Effective pixels 1944(H) x 1092(V)

Focal length Varifocal

IR Illumination Yes

Min. Illumination 0.05 Lux

Pixel Resolution 2 Mega Pixel

Power consumption 10 Watts

Power supply requirements AC24V/1.5A(±10%), 10W max; 24 VAC PSU included

Sensor size 1/2.8” Sony Exmor CMOS

Unit Box Height 0.25

Unit Box Length 0.25

Unit Box Width 0.25

Unit Net Weight 2.3 kg
