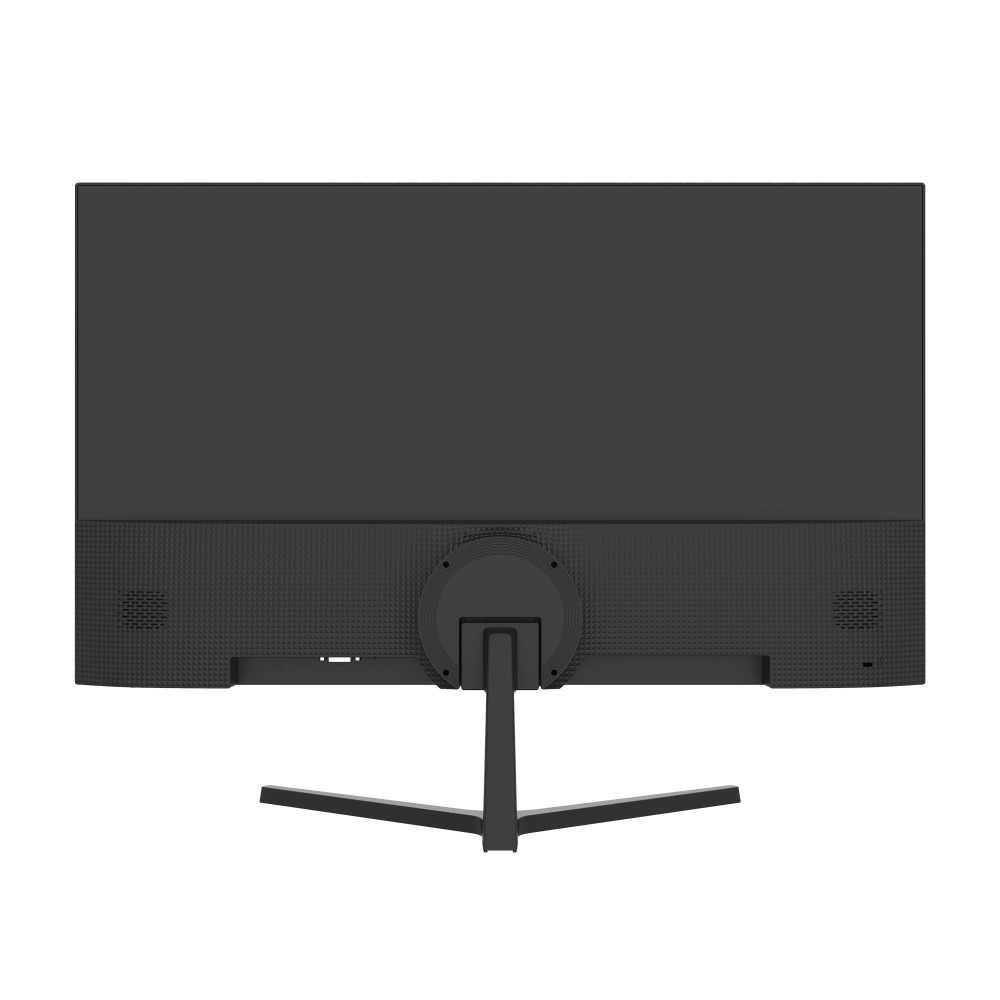

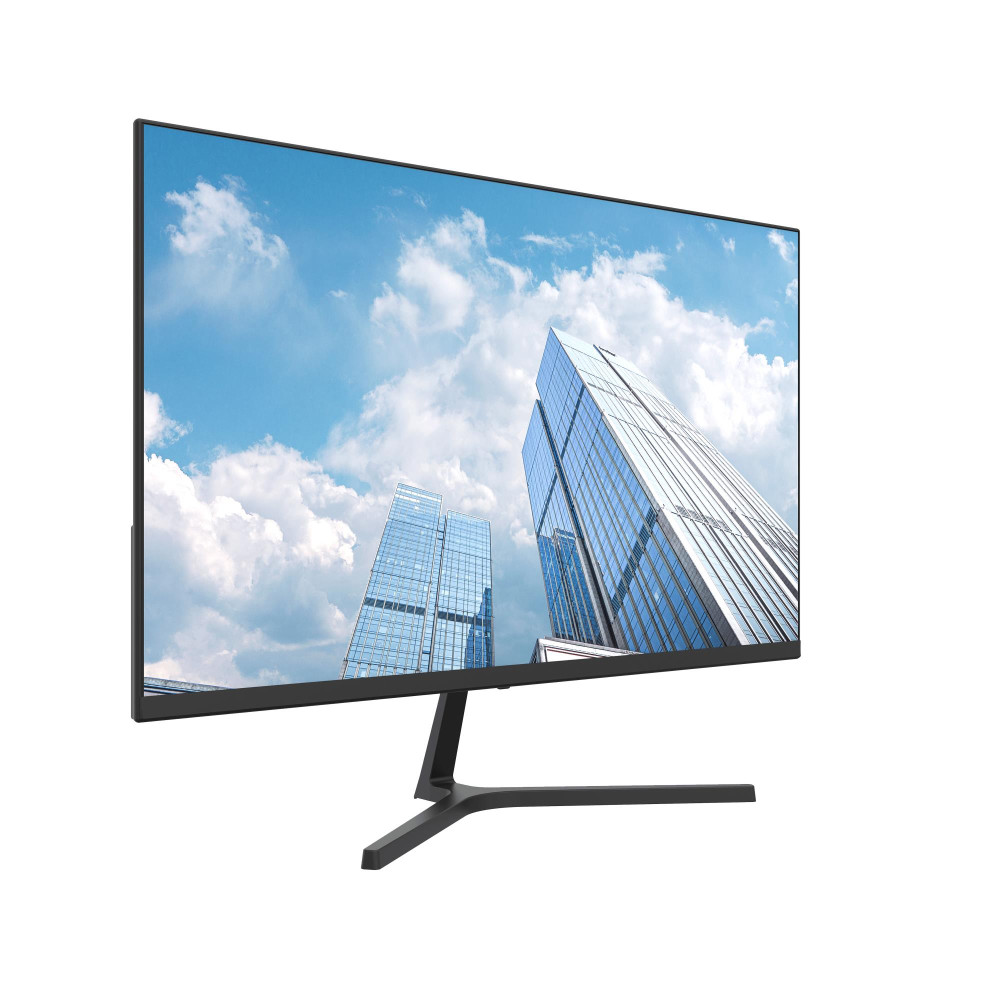

LCD Monitor, DAHUA, DHI-LM22-B201S, 21.45, Business, Panel IPS, 1920x1080, 16:9, 75Hz, 5 ms, Speakers, Colour Black, LM22-B201S
Popular
- Product overview
- Specification
- Reviews (0)
Specifications
Main parameters
Screen size
≤22"
Display diagonal
21.5
Display resolution
1920x1080
Panel type
IPS
Refresh rate
75 Hz
Refresh rate class
60–75 Hz
Touchscreen
No
Resolution class
Full HD
Response time
4 ms
Brightness
250 cd/m²
Aspect ratio
16:9
Curved screen
No
Built-in speakers
Yes
HDMI ports
1
VESA mount
75x75
Specification
Name
MONITOR LCD 22/DHI-LM22-B201S DAHUA
Panel type
IPS
Specifikācija
AC adapter output voltage
12
Data Sheet (Link)
https://eprel.ec.europa.eu/api/product/1538618/fiches?language=EN
Display brightness (typical)
250
Energy consumption (SDR) per 1000 hours
15
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
EPREL Registration Number
1538618
EPREL Version Number
1
Market positioning
Home
Panel mounting interface
75 x 75
Product colour
Black
Product Net Weight
2
Summary
Dahua Technology LM22-B201S. Display diagonal: 54.5 cm (21.4), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
Unit Calculated Volume
0.02109
Unit Depth
60
Unit Height
37
Unit Width
9.5
Units per Shipping Box
1
Weight (with stand)
2180
Display parameters
Contrast ratio (typical)
1000:1
Display diagonal
21.45
Display number of colours
16.7 million colours
Display technology
LCD
HD type
Full HD
Response time
4
Screen shape
Flat
Viewing angle, horizontal
178
Viewing angle, vertical
178
Display resolution
1920 x 1080
Touchscreen
No
Ports types
Built-in USB hub
No
HDMI
Yes
HDMI ports quantity
1
Headphone out
No
VGA (D-Sub) ports quantity
1
Camera parameters
Built-in camera
No
Specifications
Backlight type
LED
Bezel width (bottom)
15.2
Bezel width (side)
3.3
Bezel width (top)
3.3
Built-in speaker(s)
Yes
Cables included
HDMI
Certification
CE
Depth (with stand)
48.4
Energy efficiency class
E
Height (with stand)
284
Maximum refresh rate
75
Model
DHI-LM22-B201S
Model name
LM22-B201S
Native aspect ratio
16:9
Number of speakers
2
Operating relative humidity (H-H)
10 - 85
Operating temperature (T-T)
0 - 40
Package depth
366
Package height
99
Package weight
3120
Package width
598
Power consumption (off)
0.3
Power consumption (standby)
0.5
Power consumption (typical)
22
Power supply type
External
RMS rated power
2
Stand included
Yes
VESA mounting
Yes
Width (with stand)
492.7
