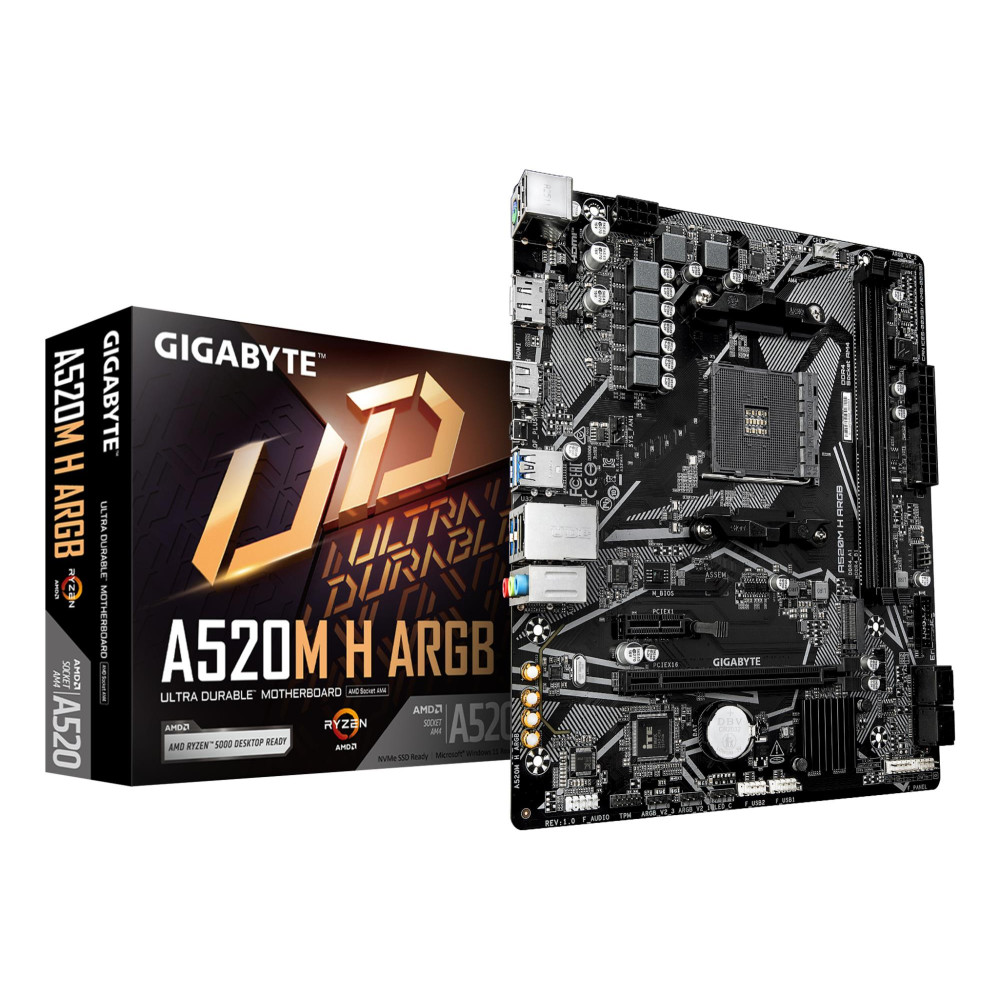

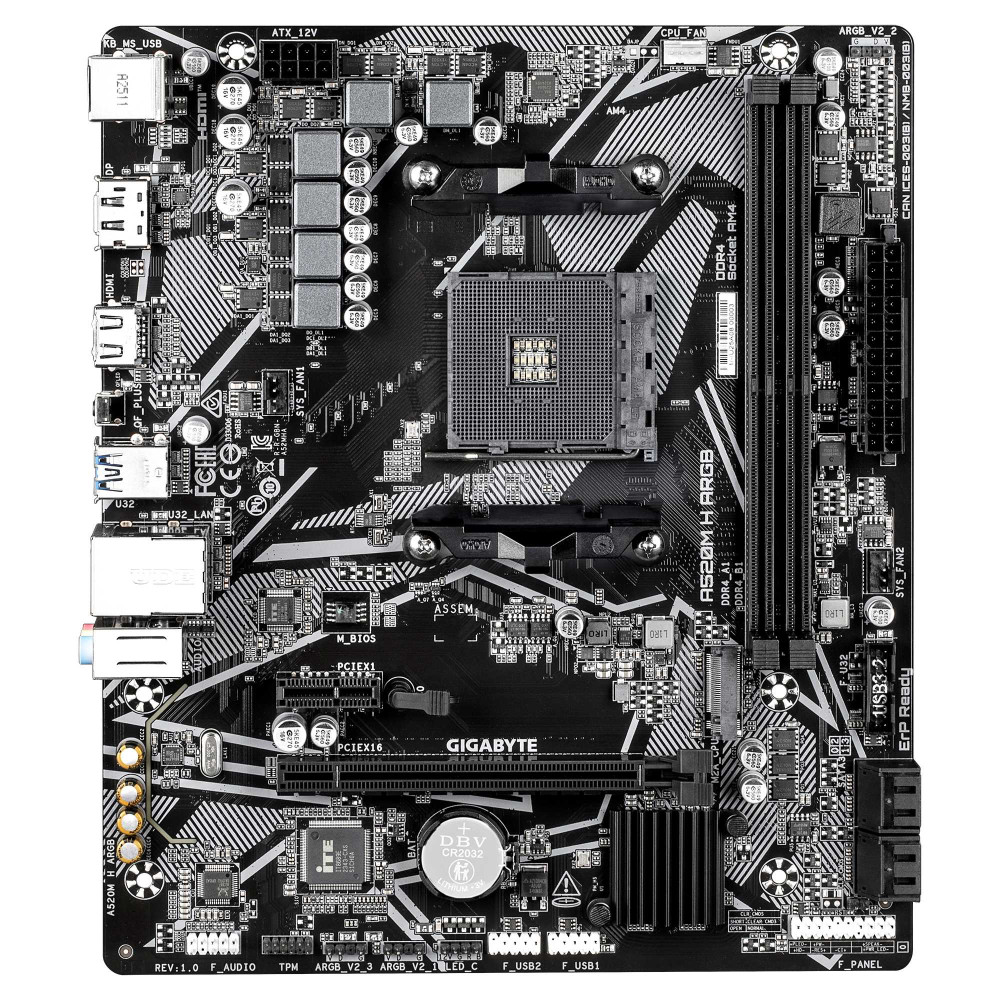

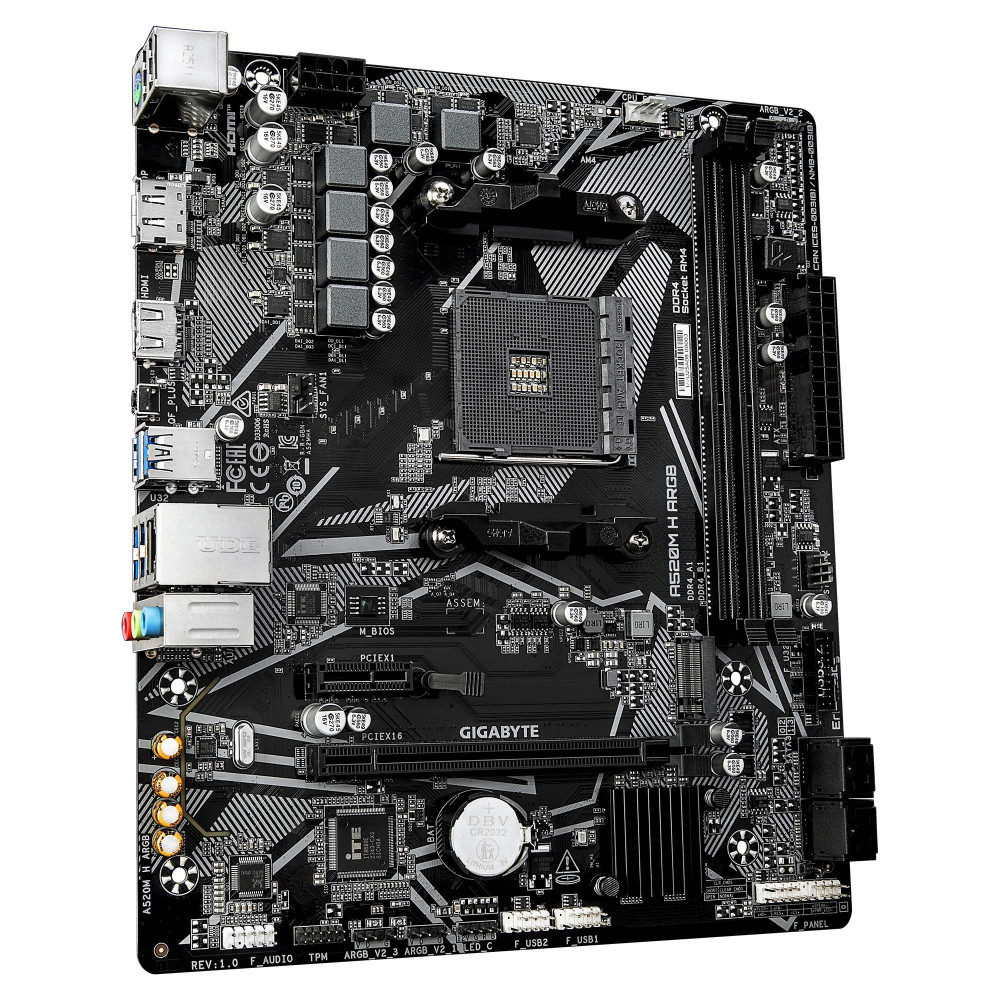

Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MHARGB
Popular
- Brand: Gigabyte
- Product Code: A520M H ARGB
- EAN: 4719331879822
- Availability: 18
Name:
Gigabyte A520M H ARGB
64.98€
Ex Tax: 53.70€
- Product overview
- Specification
- Reviews (0)
Specifications
Main parameters
Form factor
mATX
Processor manufacturer
AMD
RAM type
DDR4
Chipset
A520
CPU socket
AM4
Memory slots
2
Maximum memory
64 GB
M.2 slots
1
SATA ports
4
Wi-Fi module
No
LAN speed
1 Gbit/s
Specification
Name
MB AMD A520 SAM4 MATX/A520M H ARGB GIGABYTE
Specifikācija
12V power connector
Yes
1st M.2 highest PCI Express generation
3.0
1st M.2 largest key size
2280
ACPI version
5.0
Audio chip
Realtek ALC897
BIOS memory size
128
Clear CMOS jumper
Yes
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
HDCP version
2.3
Lithium weight per battery
0.07
Maximum internal memory per slot
32
Motherboard chipset family
AMD
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Parallel processing technology support
Not supported
PC health monitoring
Fan/Temperature/Voltage
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Product colour
Dark brown
Product Net Weight
0.6
Products per shipping (inner) case
1
RGB LED pin header
Yes
Screws included
Yes
Summary
GIGABYTE A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max)
5100
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unit Calculated Volume
0.003172
Unit Depth
27
Unit Height
5
Unit Width
23.5
Units per Shipping Box
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Warranty period
3
Processor parameters
Compatible processor series
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series/AMD Ryzen PRO 3000 Series/AMD Ryzen PRO 4000 Series/AMD Ryzen PRO 5000 Series
Processor manufacturer
AMD
Processor socket
Socket AM4
Memory parameters
Maximum internal memory
64
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100
Supported memory types
DDR4-SDRAM
Unbuffered memory
Yes
Storage parameters
Number of storage drives supported
5
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 3.0,SATA III
Supported storage drive types
HDD & SSD

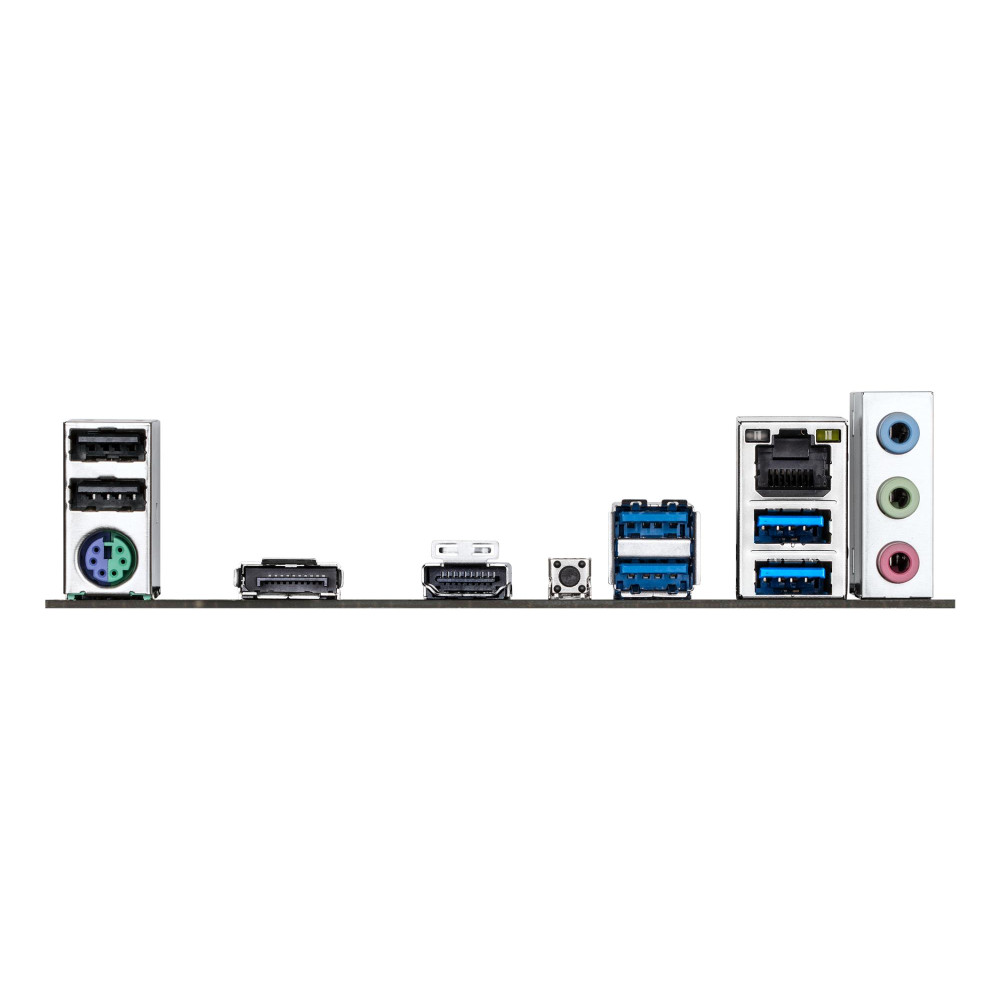

Ports types
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
Connections types
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
LAN controller
Realtek RTL8111H
Wi-Fi
No
Battery parameters
Batteries included
Yes
Battery capacity
220
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3
Number of battery cells
1
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)
Component for
PC
Cooling type
Passive
Country of origin
China
Depth
198
DirectX version
12.0
EPS power connector (8-pin)
Yes
HDCP
Yes
Height
35
Line-in
Yes
Maximum resolution
5120 x 2880
Motherboard chipset
AMD A520
Motherboard form factor
micro ATX
Number of memory slots
2
Package depth
235
Package height
52
Package weight
772
Package width
265
Power source type
ATX
PS/2 ports quantity
1
Supported processor sockets
Socket AM4
Weight
700
Width
233
Windows operating systems supported
Windows 10 x64/Windows 11 x64
