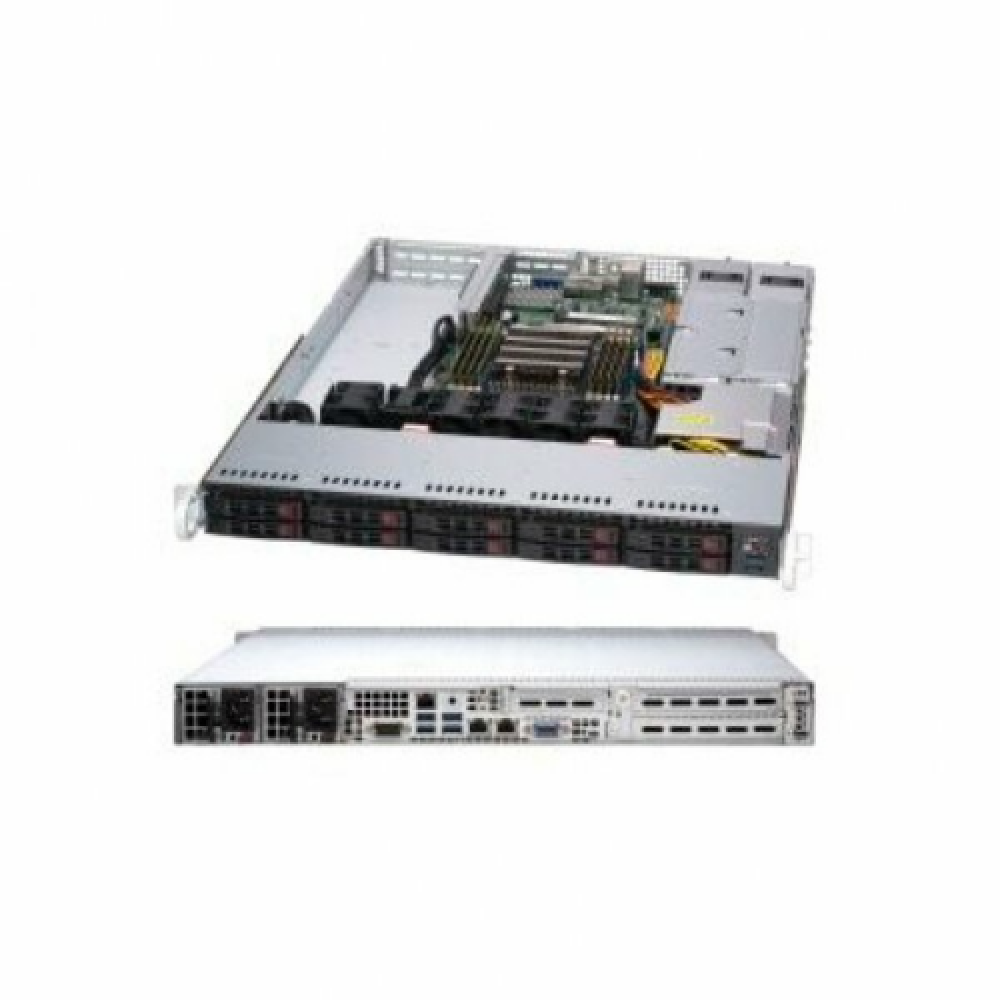

Supermicro AS-1114S-WTRT 1U, 1xSocket SP3, TDP 240W, 8xDDR4, 10x2.5'' Hot-swap, 3xPCI-E 4.0 x16, 2xRJ45 10GBase-T, 1xRJ45 IPMI, 7xUSB 3.0, 1xVGA, 2x500W
Popular
- Brand: SUPERMICRO
- Product Code: AS-1114S-WTRT
- Availability: Out Of Stock
Name:
SUPERMICRO AS-1114S-WTRT
1 707.72€
Ex Tax: 1 411.34€
- Product overview
- Specification
- Reviews (0)
Supermicro AS-1114S-WTRT 1U, 1xSocket SP3, TDP 240W, 8xDDR4, 10x2.5'' Hot-swap, 3xPCI-E 4.0 x16, 2xRJ45 10GBase-T, 1xRJ45 IPMI, 7xUSB 3.0, 1xVGA, 2x500W
Specifications
Specification
External Color
Melna
Number of 2.5-inch Hot-Swap Drive Bays
10
Number of Slim External Drive Bays
1
PCI Express 4.0 x16
2
Processor parameters
CPU Maximum Quantity Supports
1
CPU Socket Standard
Socket SP3
Supported CPUs
EPYC 7002 Series
Memory parameters
Maximum Installable System Memory Storage Capacity
2 TB
Memory features
Registered , Load Reduced , 3DS Load Reduced
Memory form factor
DIMM 288-pin
Memory Slot Total Quantity
8
Memory Speed
3200MHz(PC4-25600)
Memory type
DDR4 SDRAM
Provides Error Checking Method
ECC
Videocard
Video Chipset
Aspeed AST2500
Video Controller Form Factor
Integrated
Ports types
PCI Express 3.0 x16
1
USB 3.0
6 (USB 3.0 (Type A))
VGA
1 (15-pin D-sub)
Connections types
LAN
10G Ethernet, 2 (RJ-45)
LAN Chipset
Broadcom BCM57416
Specifications
Depth (mm)
597 mm
Fans Quantity
4 x 40mm
Height (mm)
43 mm
Input frequency
50/60 Hz
Input voltage
AC 100-240 V
Integrated
<b>Storage Controller:</b>, SATA III-600 (2), <b>Storage Controller:</b>, PCIe 3.0 x2/SATA (2 x M.2),
Management Port
1 (RJ-45)
Maximum Operating Ambient Temperature
35 °C
Maximum Operating Humidity
90 %
Maximum Output Power
500 W
Minimum Operating Ambient Temperature
10 °C
Minimum Operating Humidity
8 %
Modelis
A+ Server 1114S-WTRT
Mounting Capability
Rackmount
Networking Form Factor
Plug-in-card
Pack Weight Brutto (kg)
20.9 kg
Pack Weight Netto (kg)
0 kg
Package type
Retail
Packs in Box
1
Pieces in pack
1
Plug-in-card
<b>Remote Management Controller:</b>, Gigabit Ethernet (RJ-45),
Power Device Installed Quantity
2; Redundant (1+1)
Power Device Location
Internal
Power Device Maximum Quantity Supports
2
Power Device Type
Power Supply - redundant
Quantity of Mainboards Supported
1
Retail Packaging Net Weight Carton
0 kg
Retail Packaging Net Weight Plastic
0 kg
Series
A+
Standard Rack Height
1 U
System Form Factor
1U Rackmount
System Type
Server
Warranty Products Returnable
Yes
Warranty Term (month)
12 mēneši
Warranty validation Criteria
Serial Number
Width (mm)
437 mm
