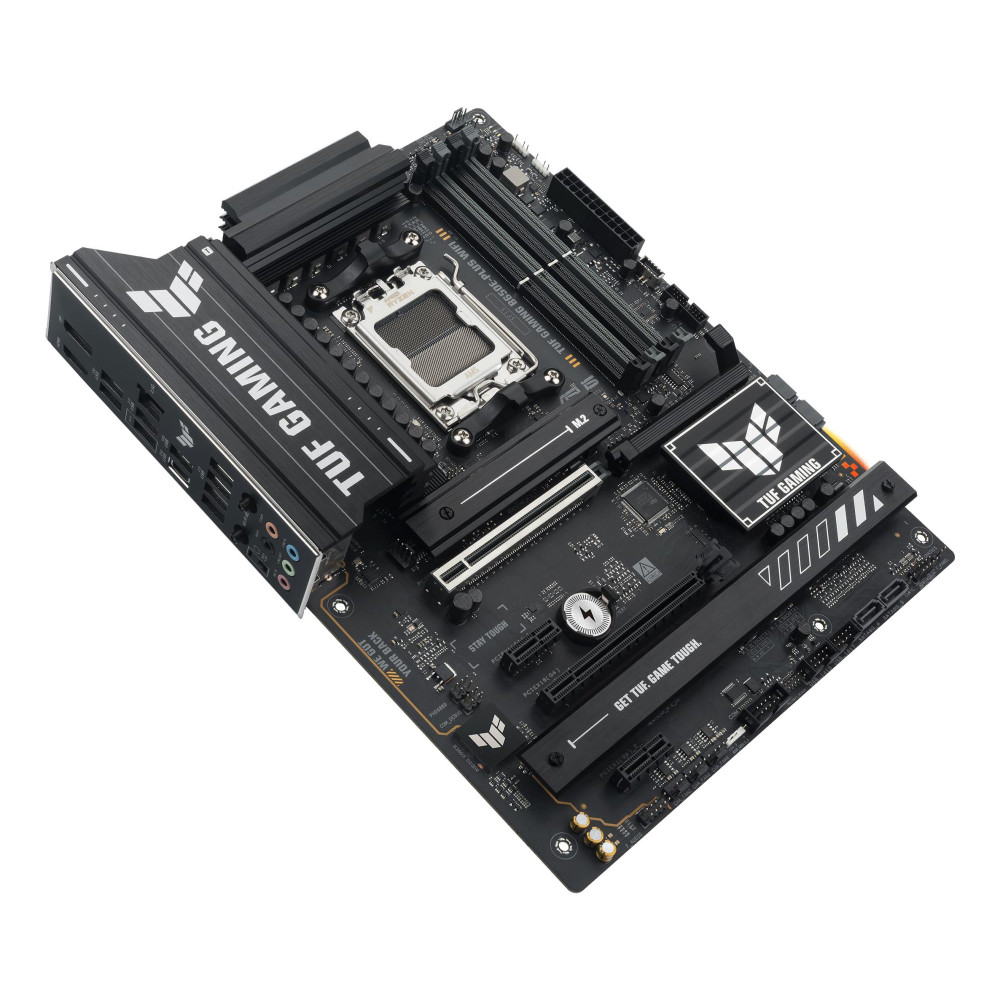

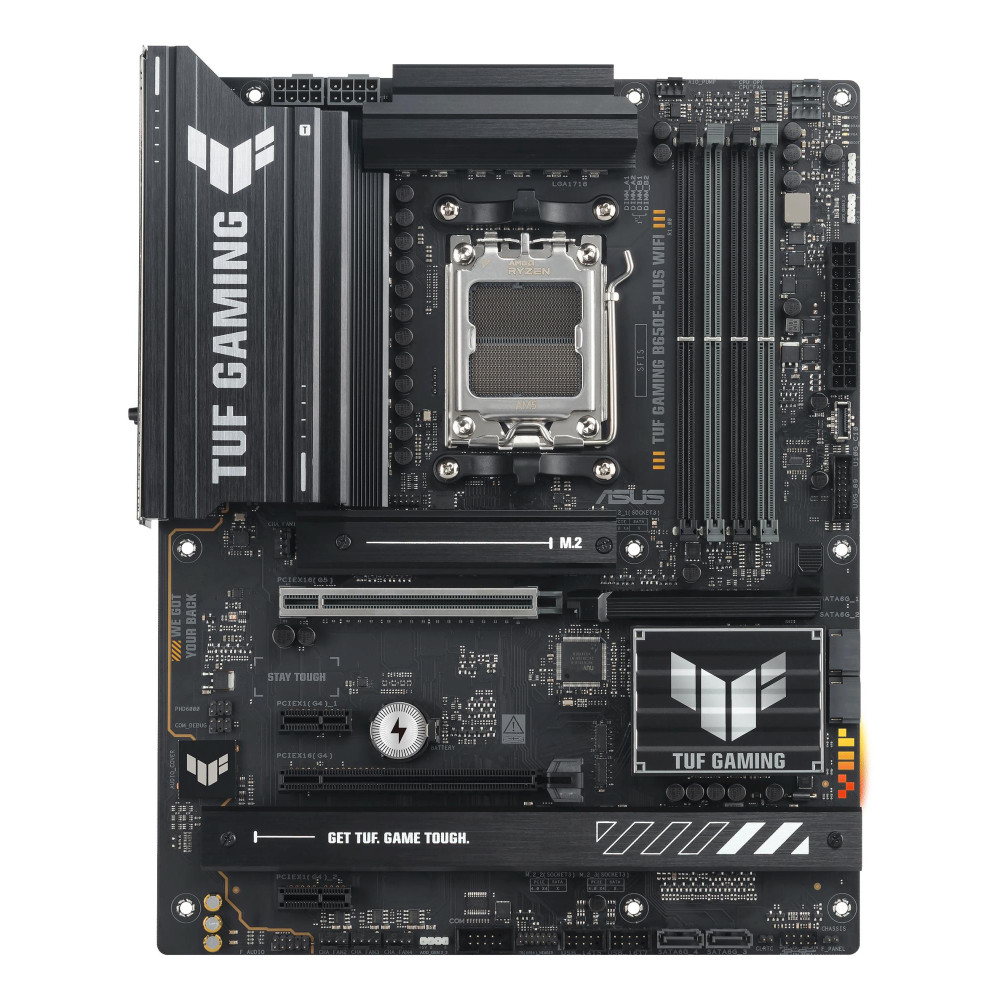

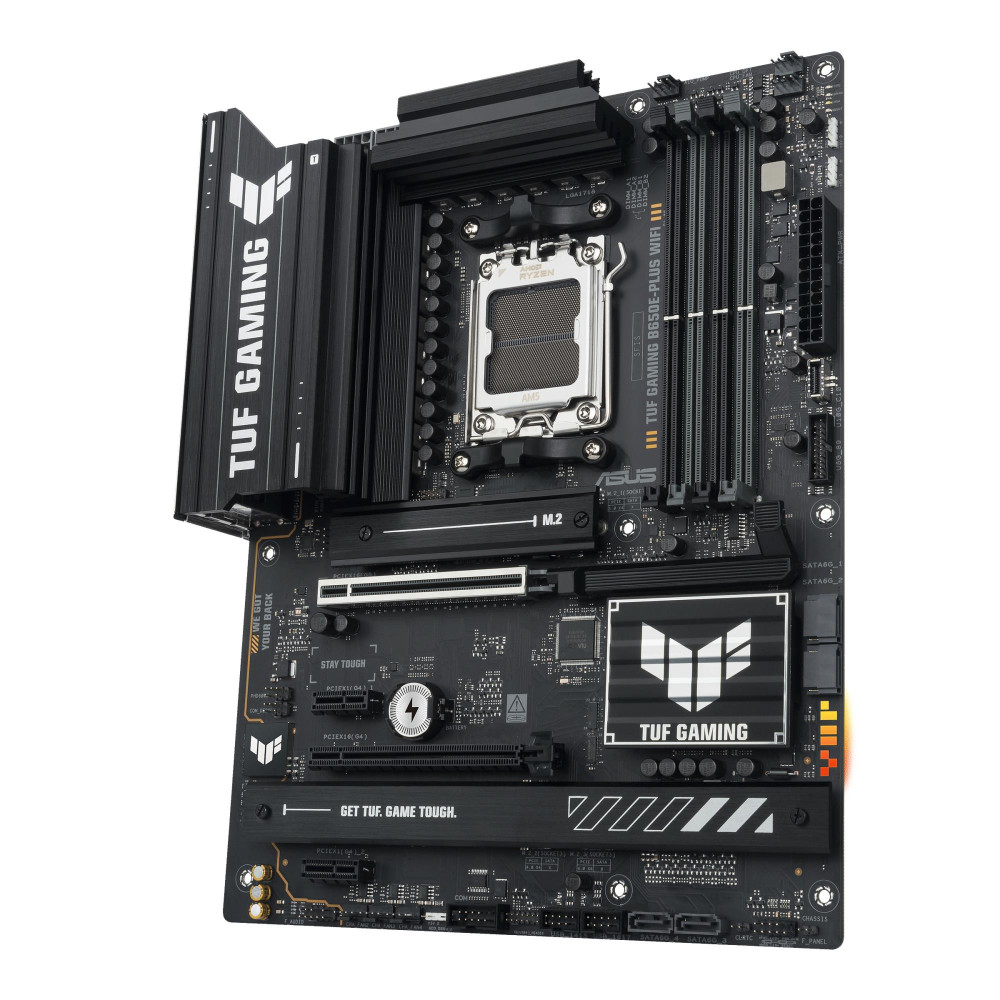

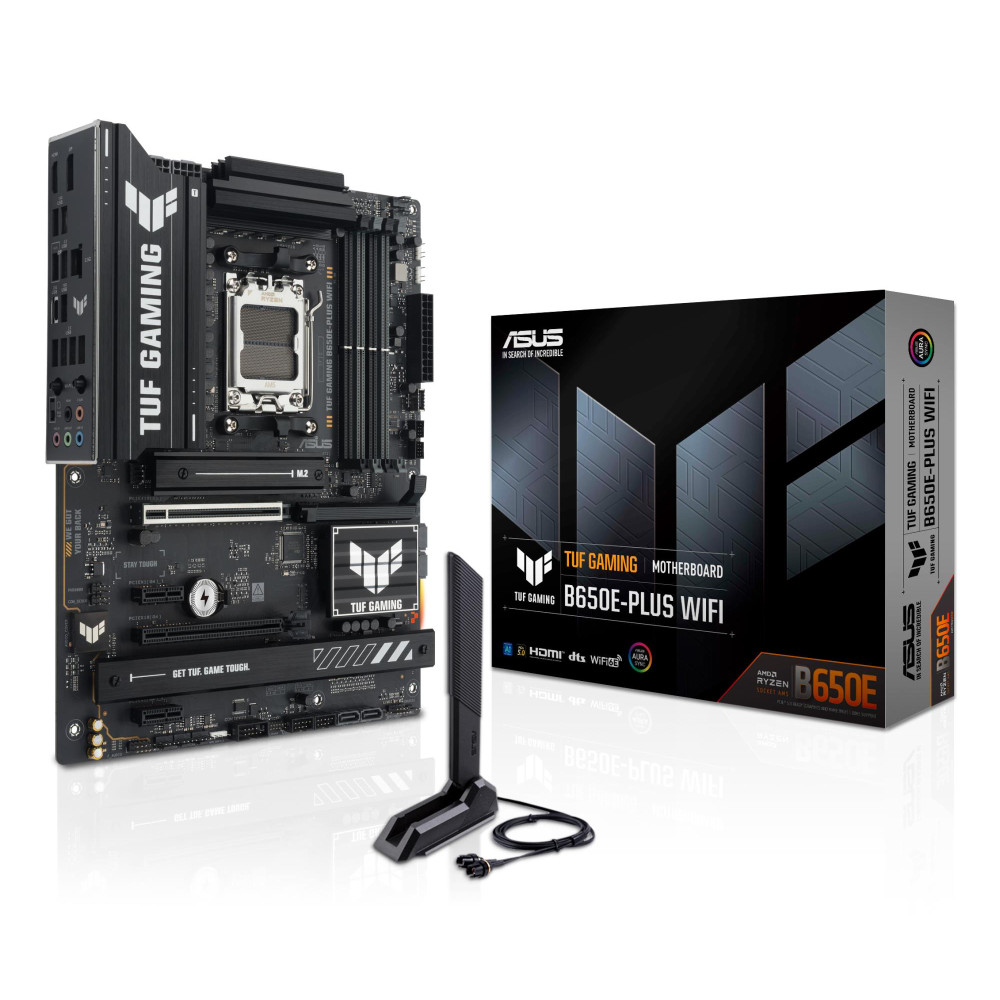

Mainboard, ASUS, AMD B650, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xRJ45, 3xAudio port, TUFGAMINGB650EPLUSWIFI
Popular
- Brand: Asus
- Product Code: TUF GAMING B650E-PLUS WIFI
- EAN: 4711387995488
- Availability: 4
Name:

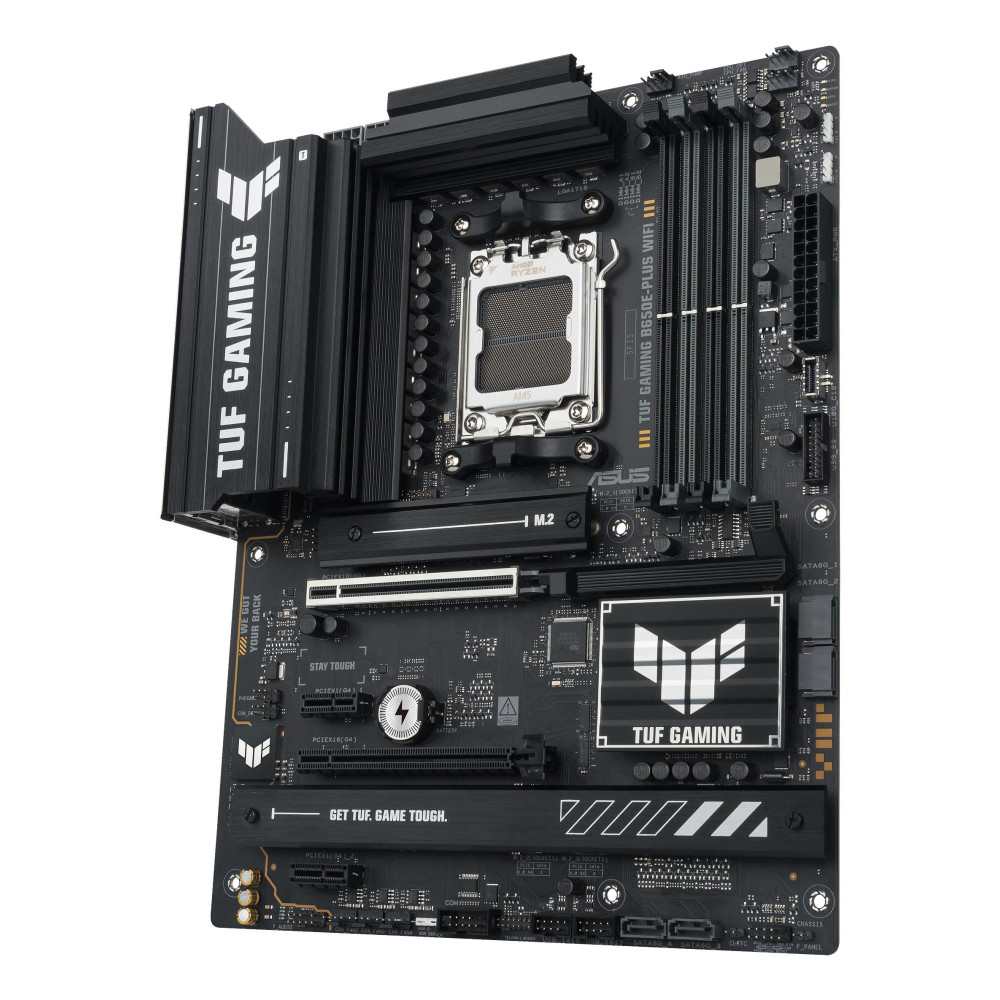

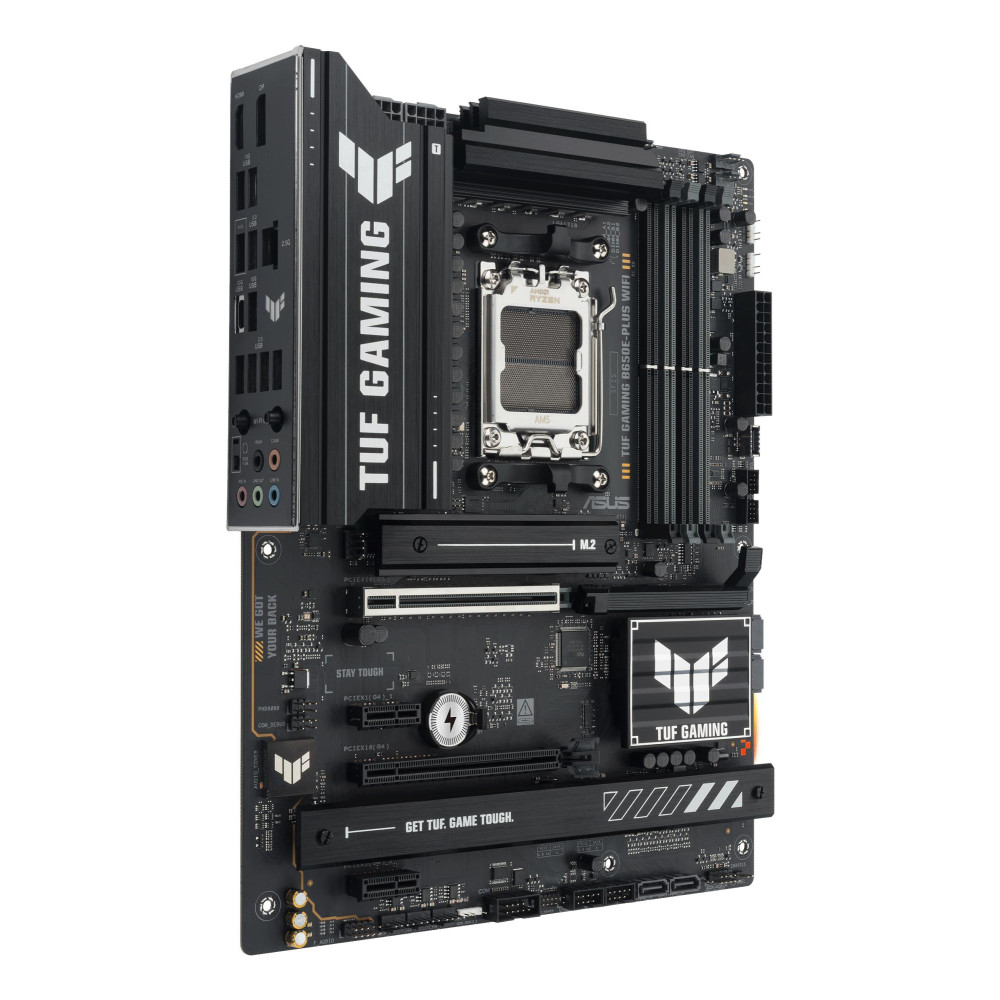

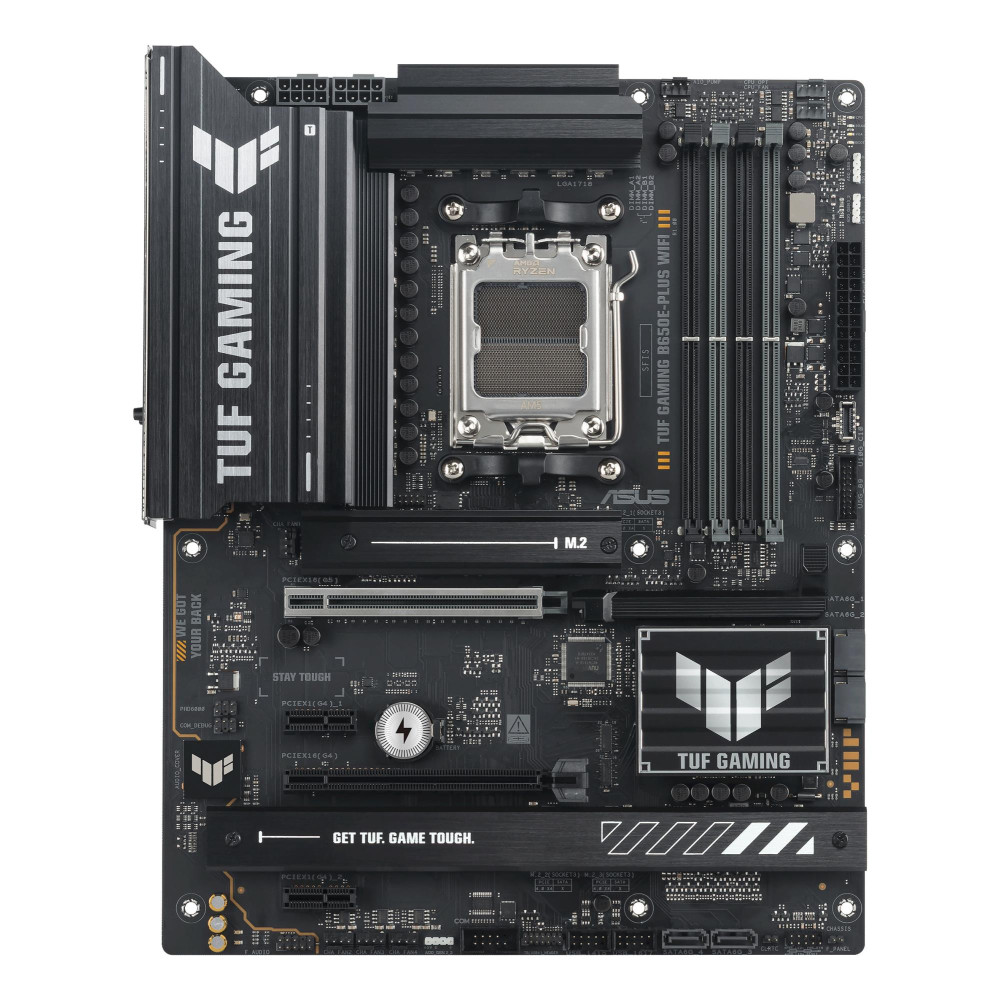

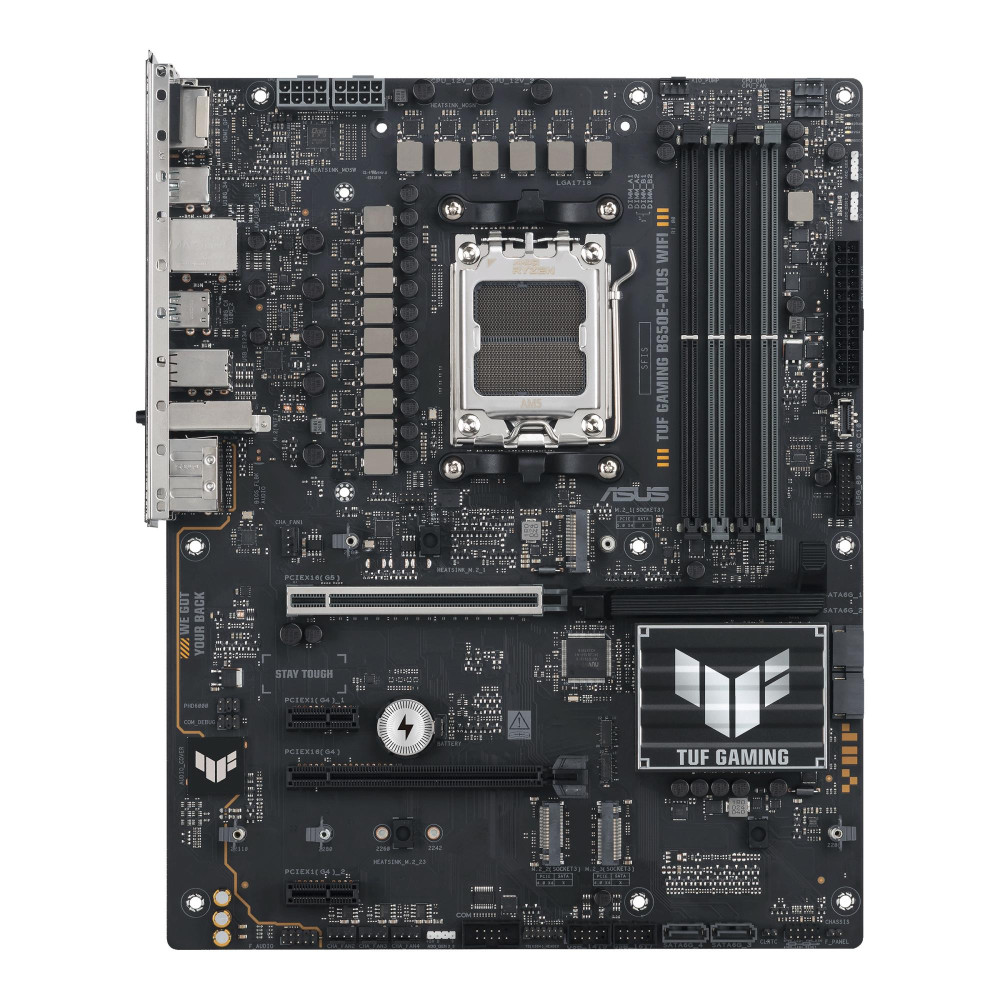

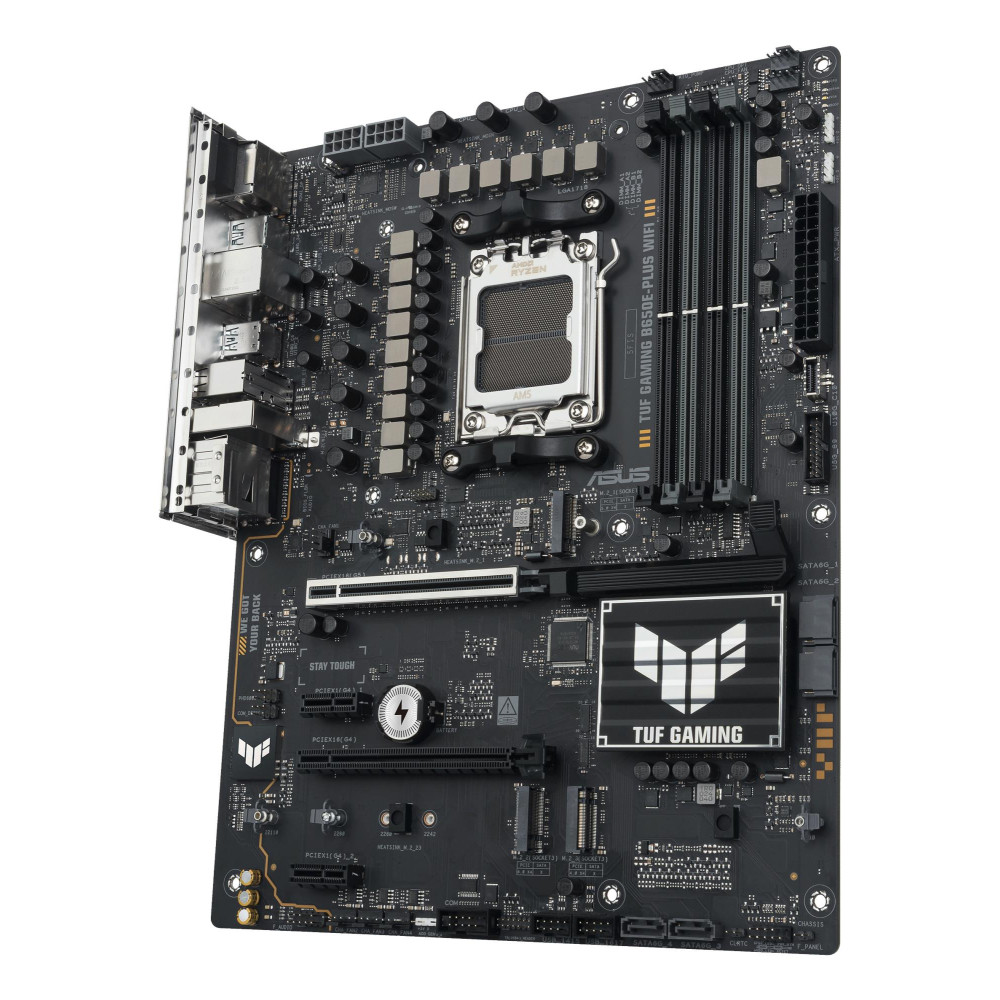

Asus TUF GAMING B650E-PLUS WIFI
218.38€
Ex Tax: 180.48€
- Product overview
- Specification
- Reviews (0)
Specifications
Specifikācija
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280

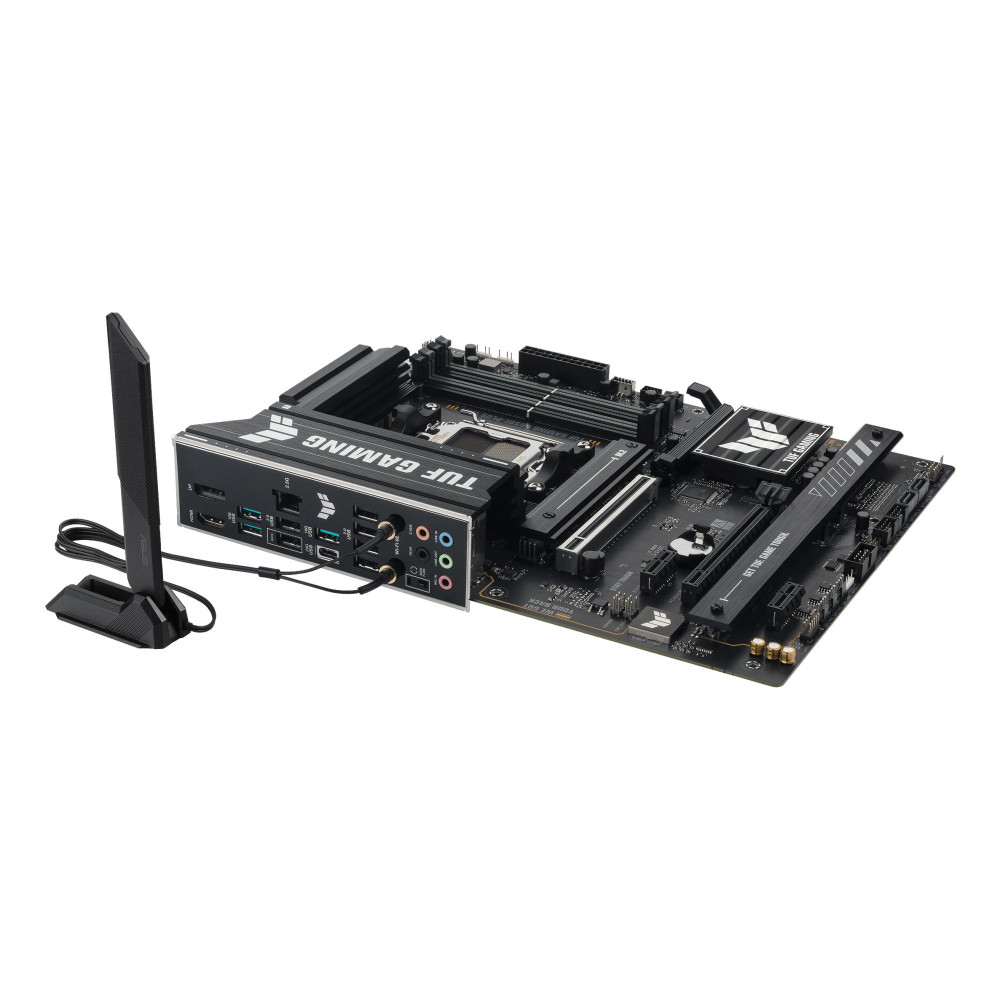

Antenna included
Yes
Audio chip
Realtek ALC1220P
BIOS memory size
256
Chassis intrusion connector
Yes
CPU fan connector
Yes
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Motherboard chipset family
AMD
Number of chassis fan connectors
4
Number of COM connectors
1
Number of CPU fan connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of SATA III connectors
4
On-board graphics card
No
Parallel processing technology support
Not supported
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
Black
Summary
ASUS TUF GAMING B650E-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Thunderbolt headers
1
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Unit Calculated Volume
0.008048
Unit Calculated Weight
2.1
Units per Shipping Box
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2x2 Type-C ports quantity
1
WiFi-AP antenna jack
1
Processor parameters
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Processor socket
AM5
Memory parameters
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Memory type
DDR5
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Storage parameters
Number of storage drives supported
7
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD

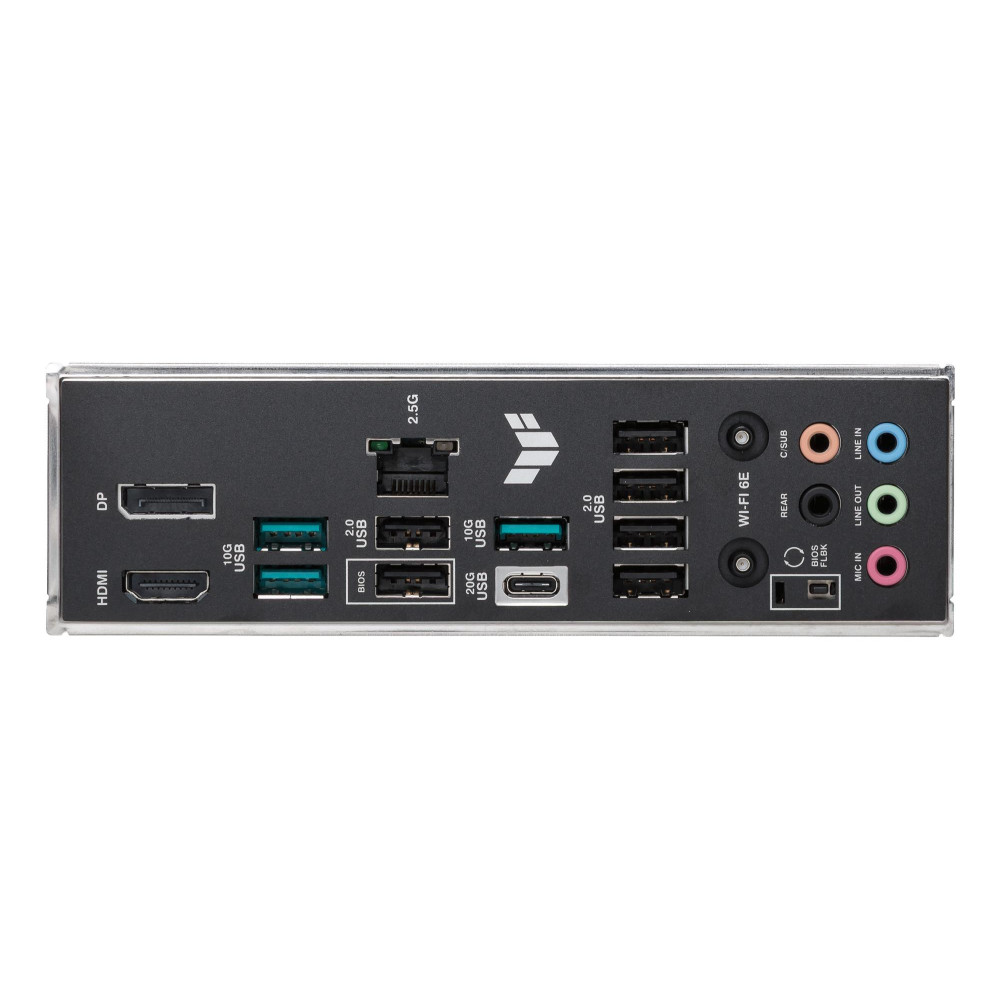

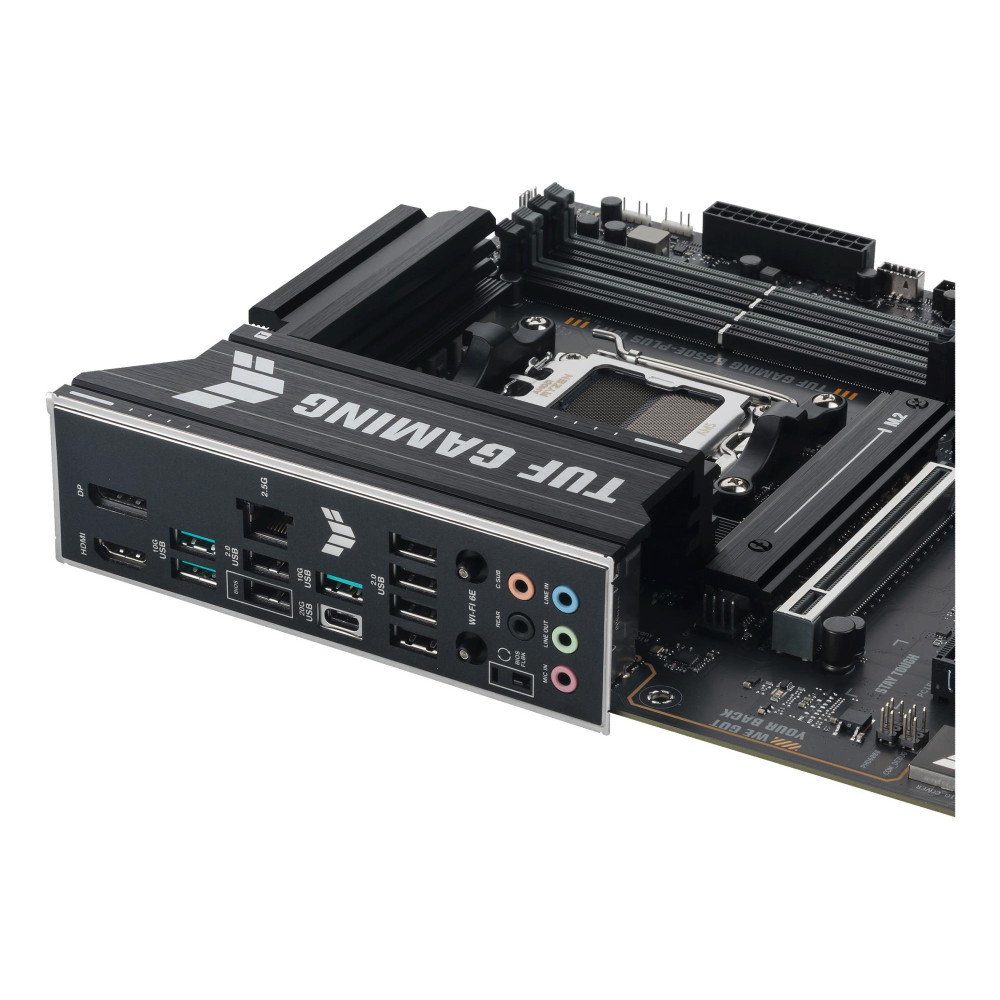

Ports types
DisplayPorts quantity
1
HDMI ports quantity
1
Microphone in
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Connections types
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI

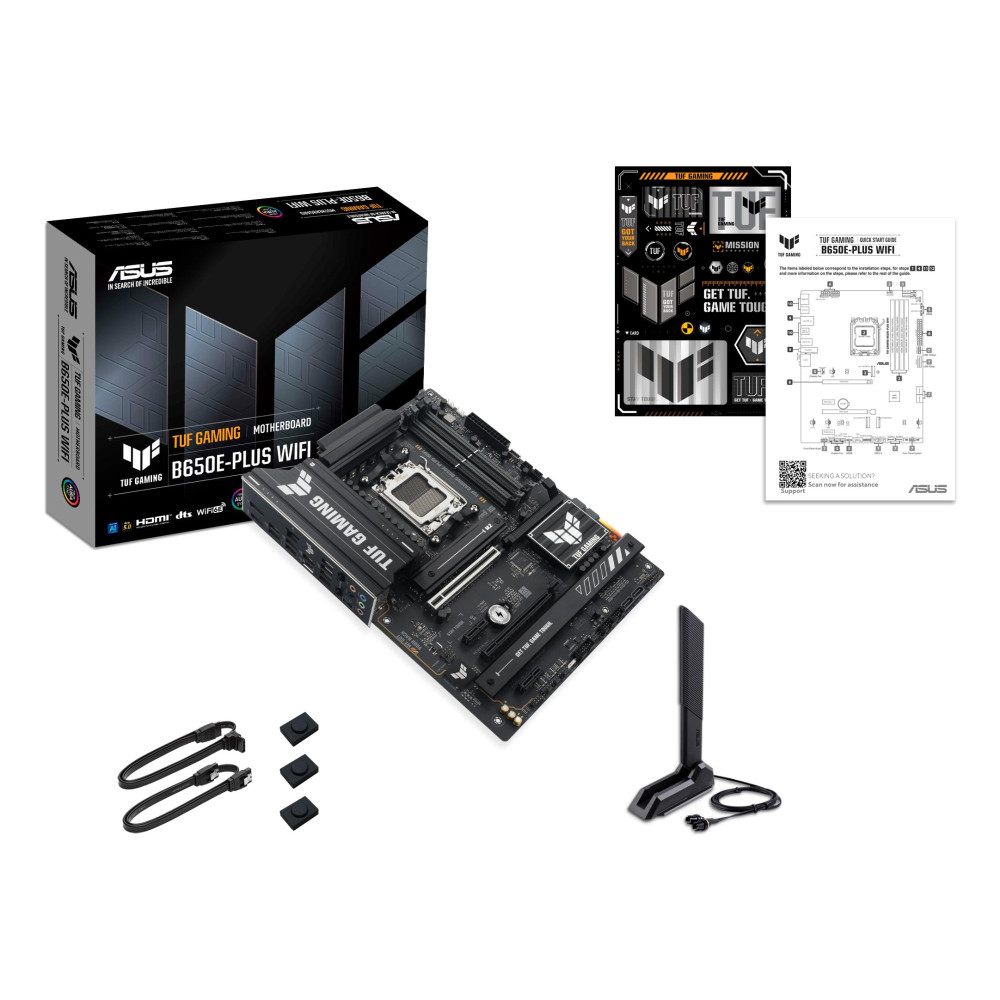

Cables included
SATA
Chipset
B650
Component for
PC
Cooling type
Passive
Depth
244
EPS power connector (8-pin)
Yes
Form factor
ATX
Line-in
Yes
Model
TUF GAMING B650E-PLUS WIFI
Motherboard chipset
AMD B650
Motherboard form factor
ATX
Number of memory slots
4
Package depth
273
Package height
68
Package weight
1393
Package width
353
Supported processor sockets
Socket AM5
Width
305
Windows operating systems supported
Windows 10 x64/Windows 11
Reviews (0)
There are no reviews for this product.
