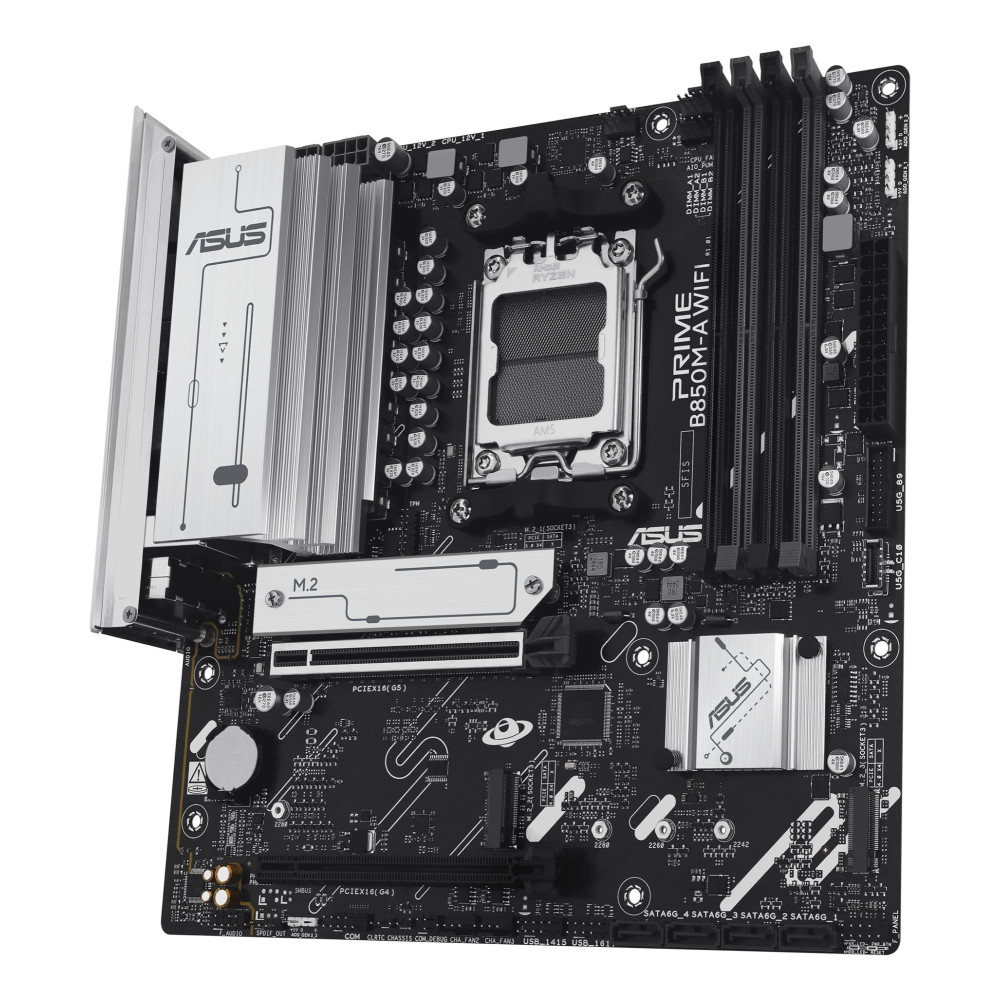

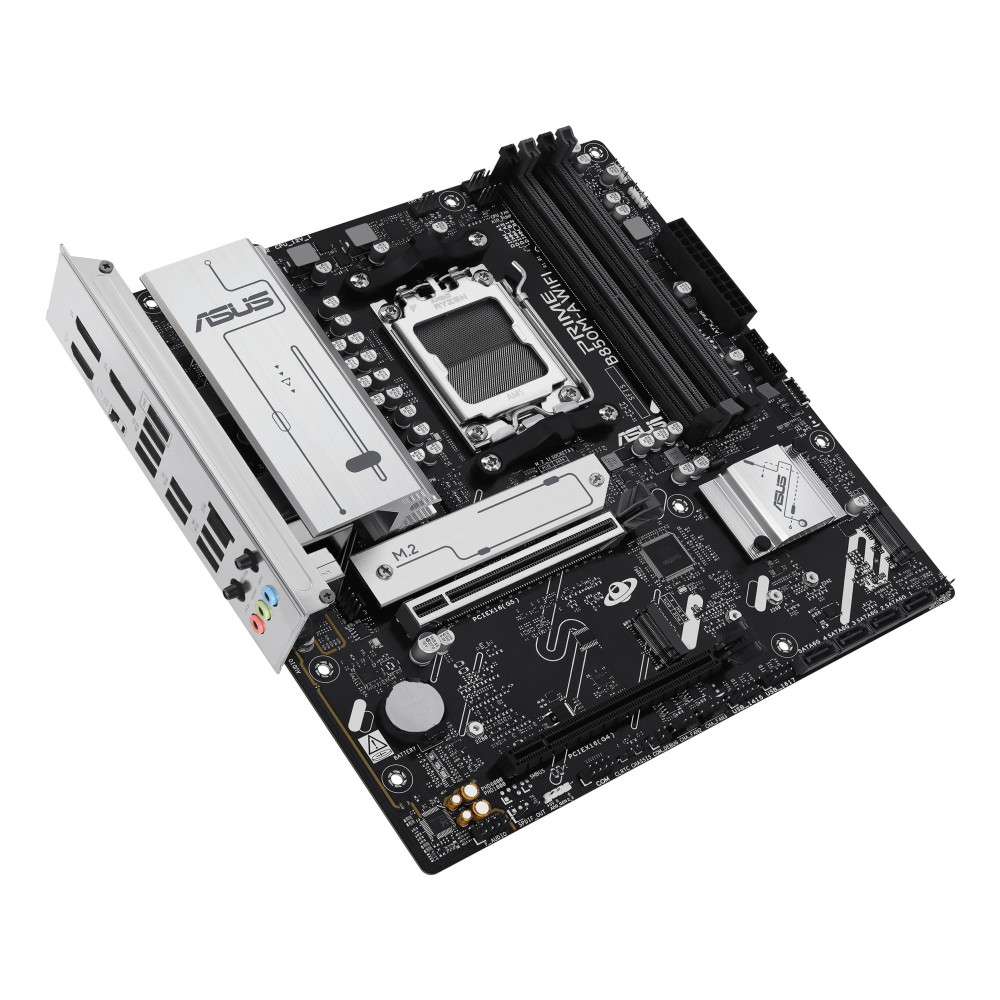

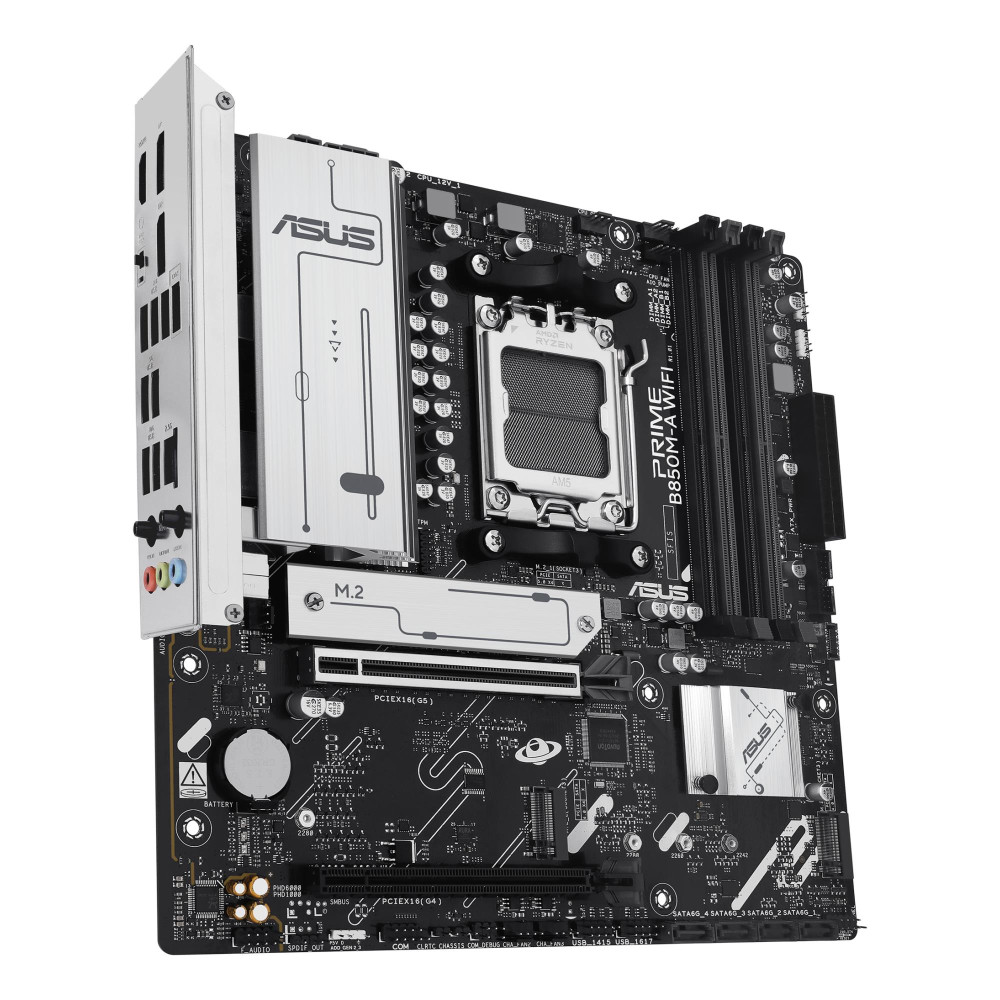

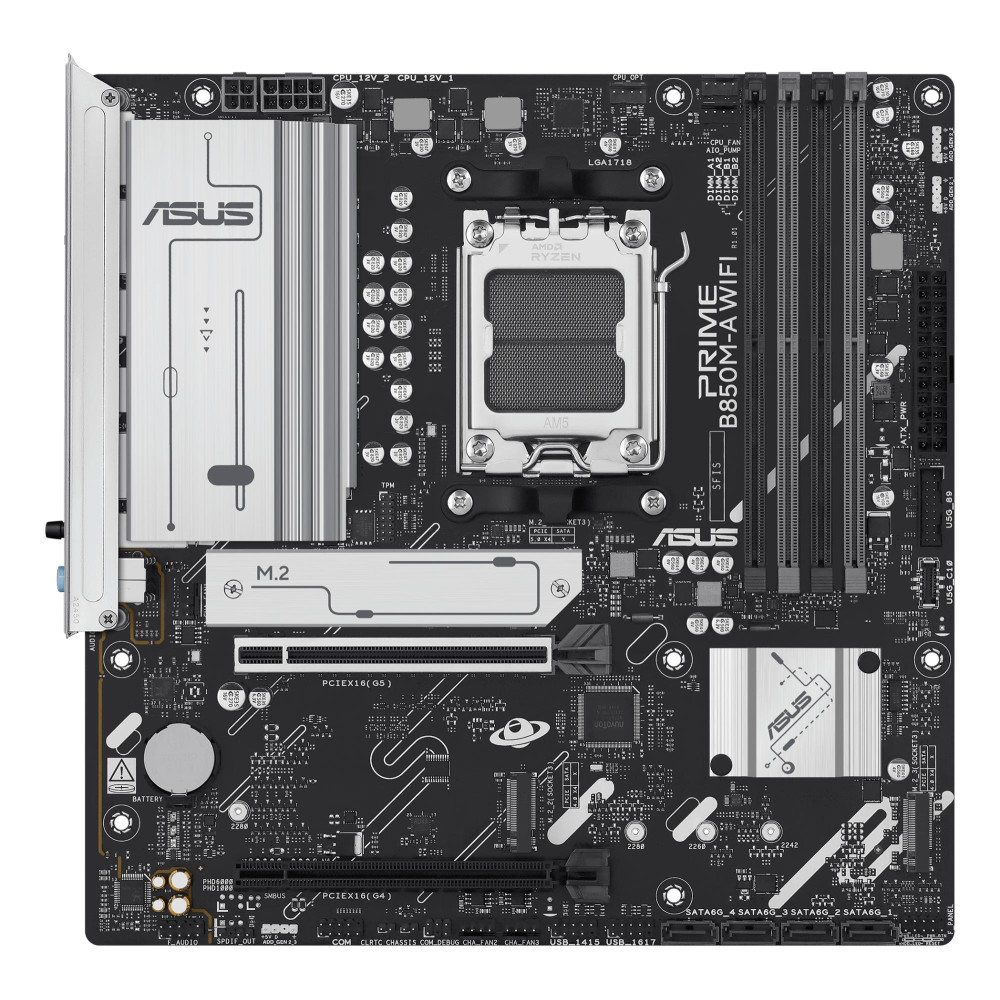

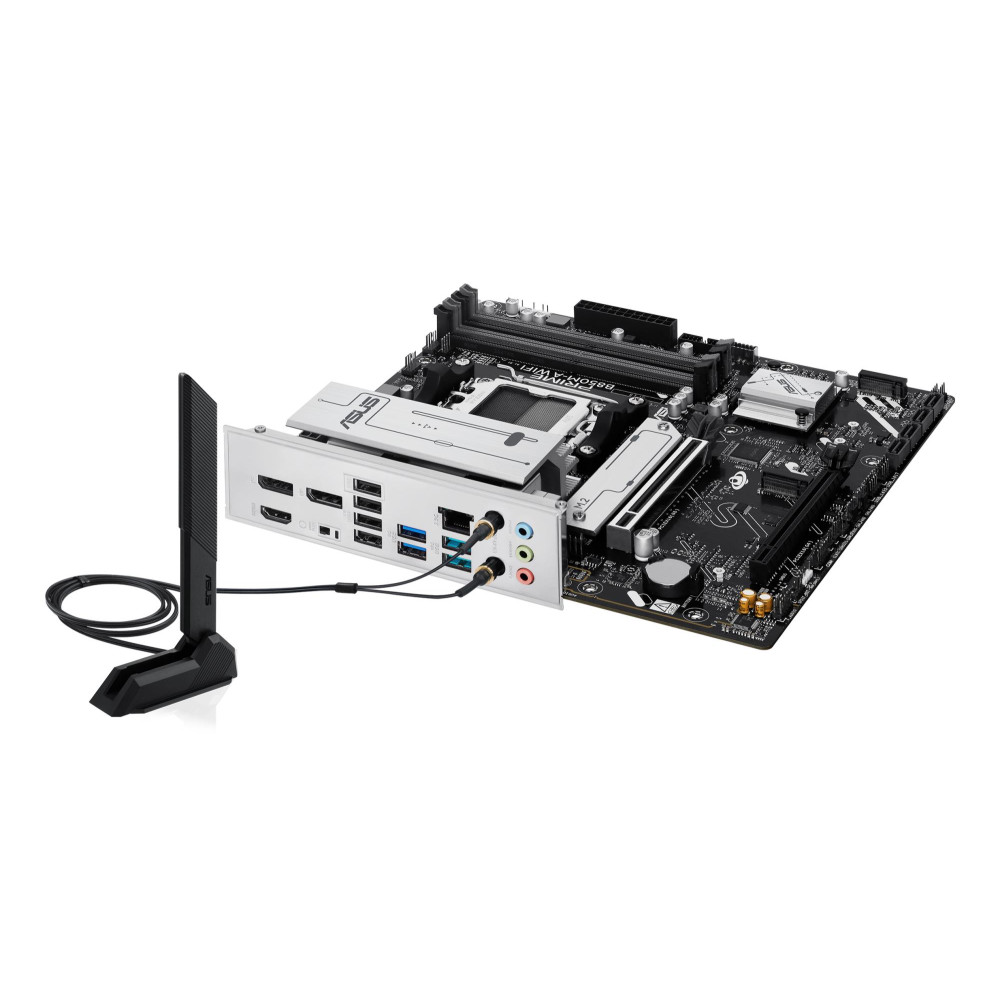

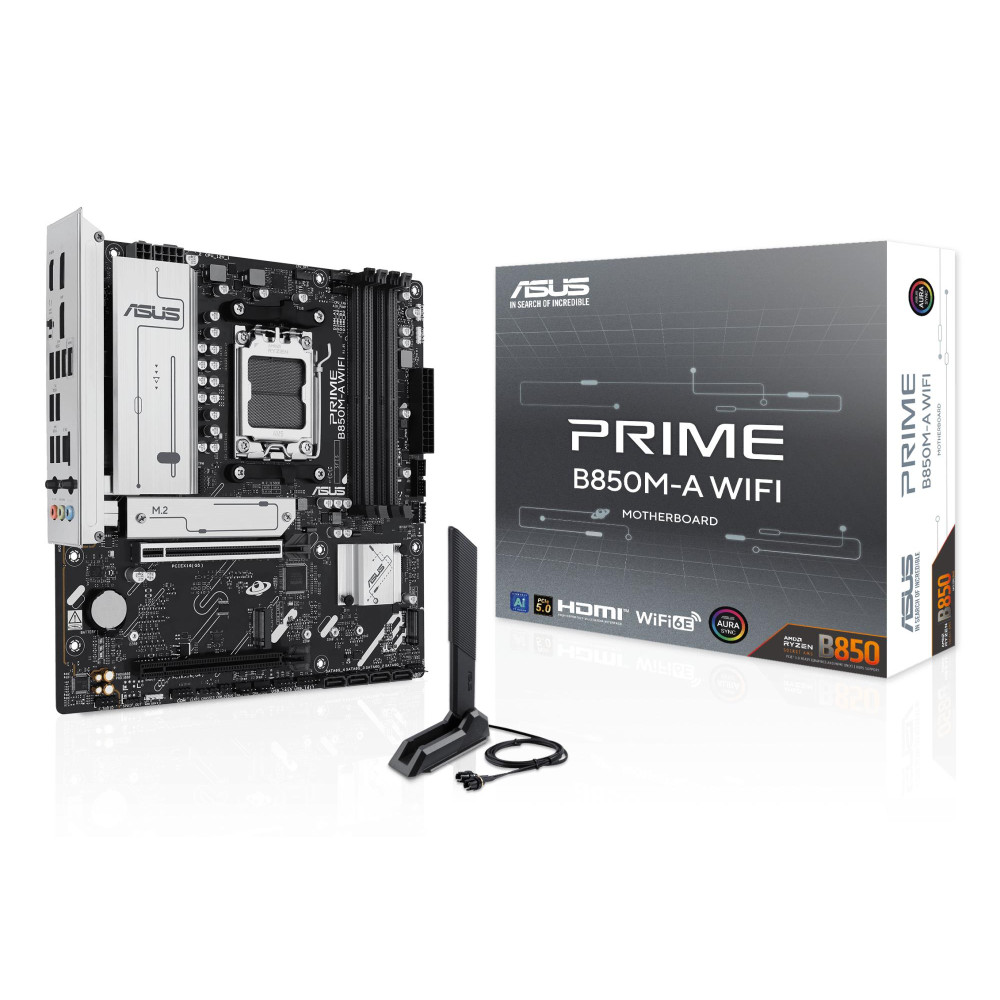

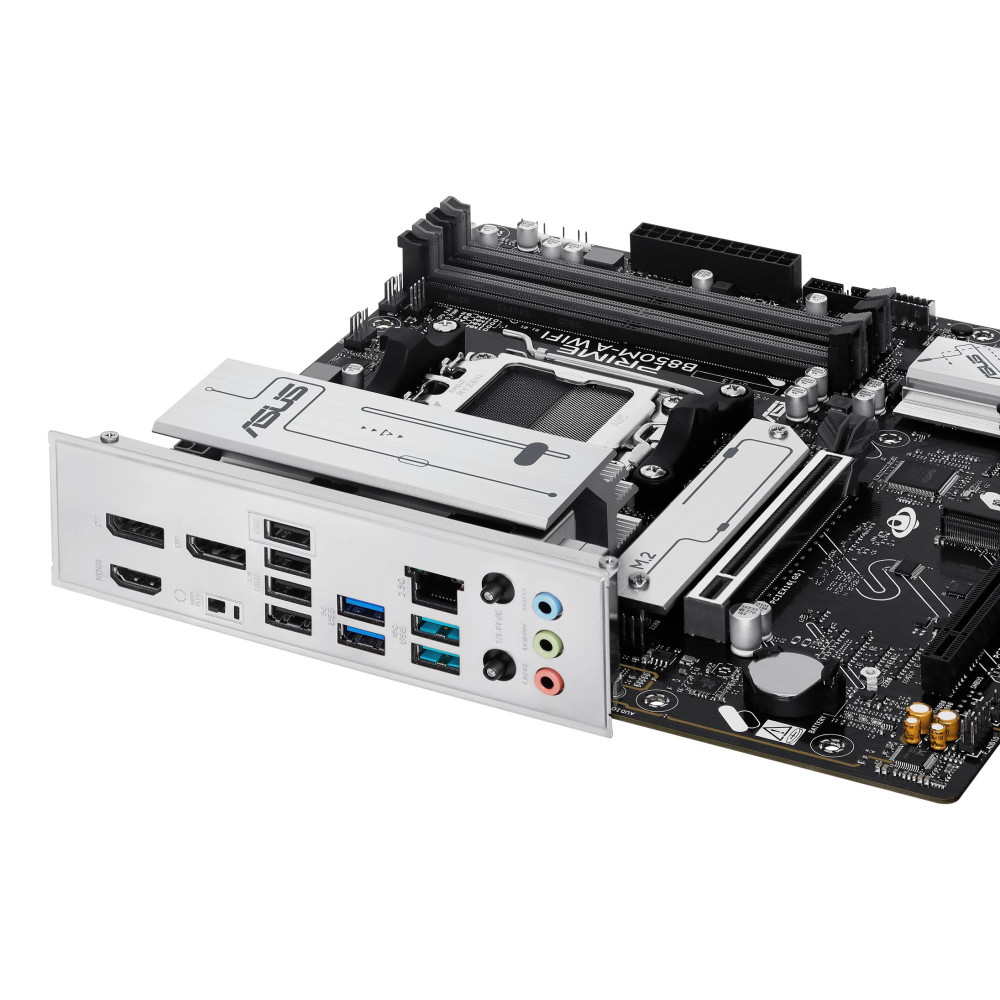

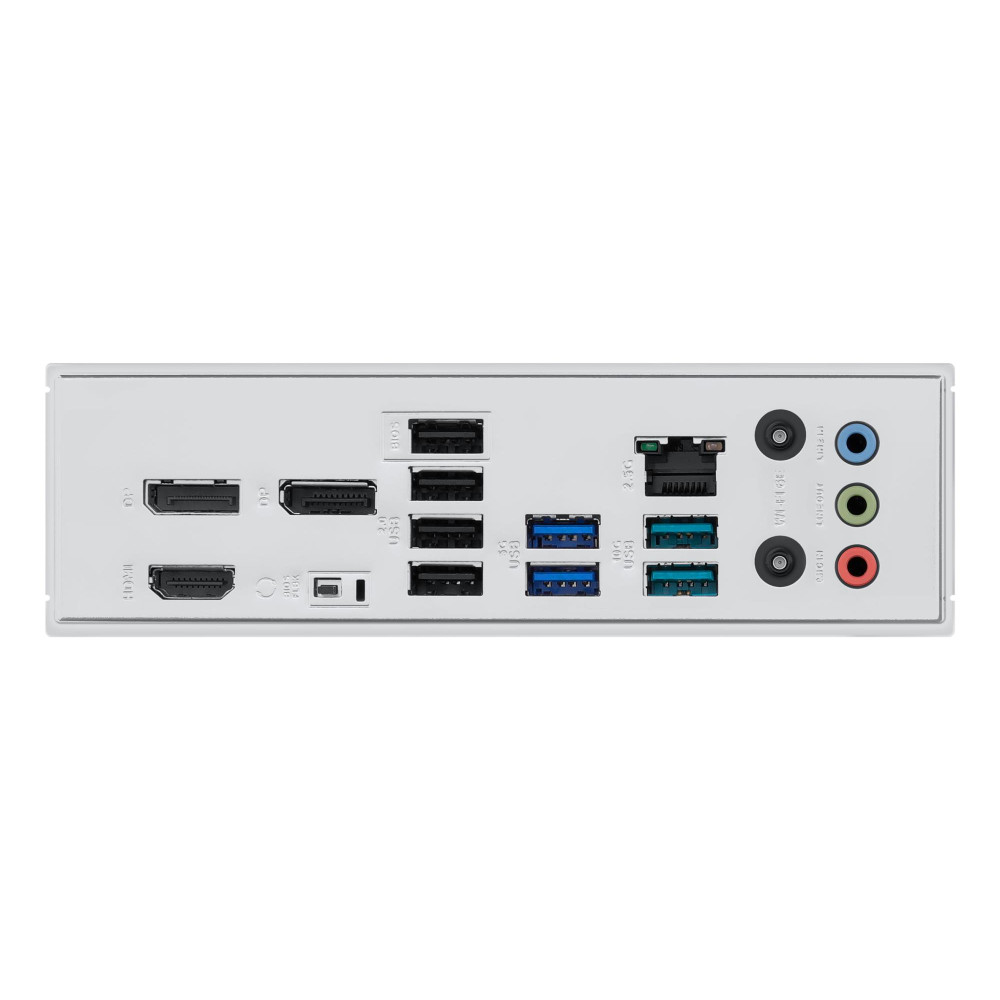

Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 2xDisplayPort, 4xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, PRIMEB850M-AWIFI

Популярный

Отзывы:

(0)

Наименование:

Asus PRIME B850M-A WIFI

Бренд: Asus
Модель: PRIME B850M-A WIFI
EAN: 4711636051125
Наличие: 20

203.80€

Без PVN: 168.43€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

12V power connector Yes

Antenna included Yes

BIOS memory size 256

Chassis intrusion connector Yes

CPU fan connector Yes

ECC сompatibility ECC & Non-ECC

Front panel audio connector Yes

Motherboard chipset family AMD

Number of chassis fan connectors 3

Number of COM connectors 1

Number of CPU fan connectors 1

Number of HDDs supported 4

Number of SATA III connectors 4

Parallel processing technology support Not supported

PCI Express x16 (Gen 4.x) slots 1

Product colour Multicolour

S/PDIF out connector Yes

Summary ASUS PRIME B850M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Supported memory clock speed (max) 8000

Top Wi-Fi standard Wi-Fi 6E (802.11ax)

TPM connector Yes

Unit Calculated Volume 0.006412

Unit Calculated Weight 1.52

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

WiFi-AP antenna jack 2

Процессор

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer AMD

Сокет процессора AM5

Память

Maximum internal memory 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Тип памяти DDR5

Запоминающее устройство

Number of storage drives supported 7

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

Порты

DisplayPorts quantity 2

USB 2.0 connectors 2

USB 2.0 ports quantity 4

Количество портов HDMI 1

Подключения

Bluetooth Yes

Ethernet interface type 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Ethernet LAN Yes

Wi-Fi Yes

Версия Bluetooth 5.3

Порты локальной сети Ethernet (RJ-45) 1

Спецификация

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

EPS power connector (8-pin) Yes

Form factor mATX

Line-in Yes

Model PRIME B850M-A WIFI

Motherboard chipset AMD B850

Motherboard form factor micro ATX

Number of memory slots 4

Package depth 275

Package height 67.5

Package weight 1520

Package width 275

Weight 930

Windows operating systems supported Windows 10 x64/Windows 11

Высота 50

Глубина 244

Чипсет B850

Ширина 244
