Mainboard, BIOSTAR, AMD B650, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, B650MS2-E
Popular
Mainboard, BIOSTAR, AMD B650, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, B650MS2-E
Mainboard, BIOSTAR, AMD B650, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, B650MS2-E
Mainboard, BIOSTAR, AMD B650, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, B650MS2-E
Mainboard, BIOSTAR, AMD B650, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, B650MS2-E
Reviews:
(0)
    Name:

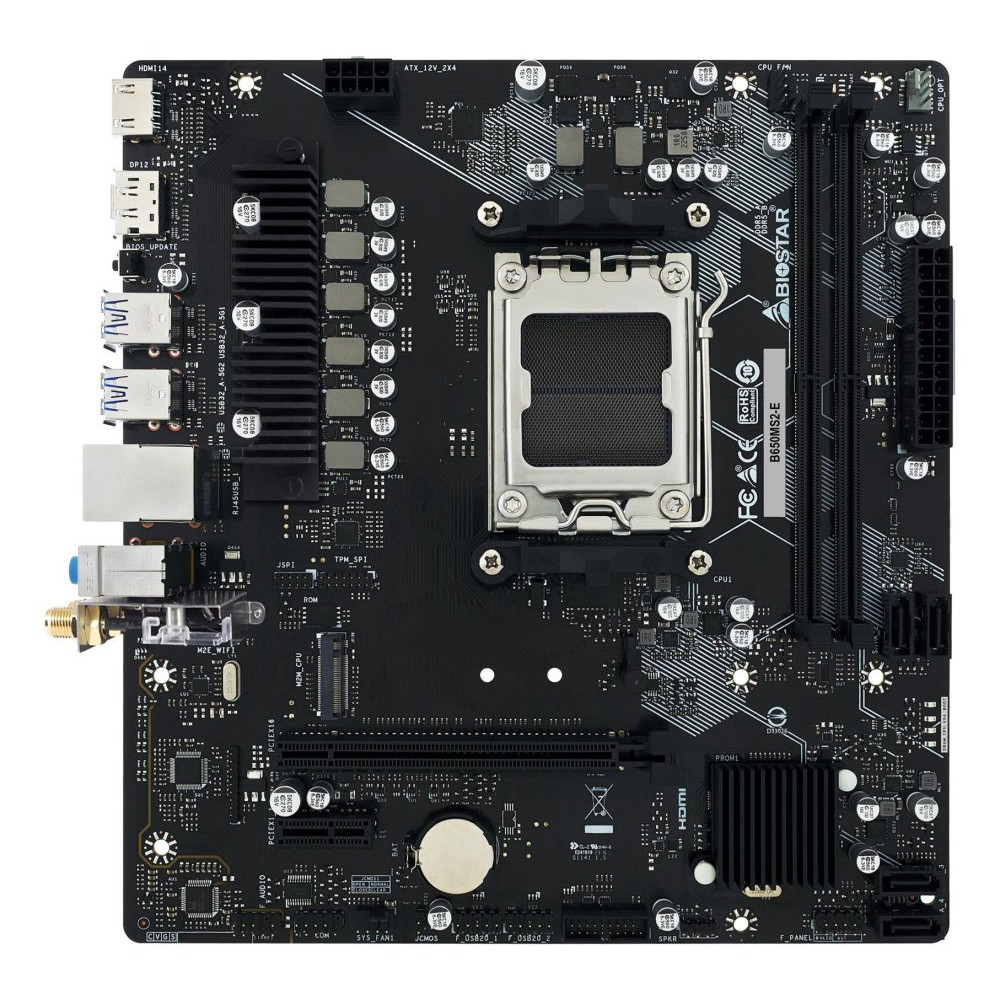

    BIOSTAR B650MS2-E

  • Brand: BIOSTAR
  • Product Code: B650MS2-E
  • EAN: 4712960687905
  • Availability: 50
85.61€
Ex Tax: 70.75€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for AMD CPUs

Specifications
Main parameters
Form factor mATX
Processor manufacturer AMD
RAM type DDR5
Chipset B650
CPU socket AM5
Memory slots 2
Maximum memory 128 GB
M.2 slots 1
SATA ports 4
Wi-Fi module No
LAN speed 2.5 Gbit/s
Specification
Name MB AMD A650 SAM5 MATX/B650MS2-E BIOSTAR
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
Audio chip Realtek ALC897
Audio connector Yes
Clear CMOS jumper Yes
CPU fan connector Yes
ECC сompatibility Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Memory slot pin count 288
Motherboard chipset family AMD
Number of COM connectors 1
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of M.2 (M) slots 1
Number of SATA III connectors 4
Parallel processing technology support Not supported
PC health monitoring CPU/Fan/Temperature/Voltage
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Product colour Black
Product Net Weight 0.8
Summary Biostar B650MS2-E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125BGS
Supported memory clock speed (max) 6000
TPM connector Yes
Unit Calculated Volume 0.003926
Unit Depth 27
Unit Height 24
Unit Width 5.5
Units per Shipping Box 20
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
WiFi-AP antenna jack 2
Processor parameters
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Memory parameters
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Storage parameters
Number of storage drives supported 5
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD
Ports types
DisplayPorts quantity 1
HDMI ports quantity 1
Headphone outputs 3
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
Connections types
Ethernet interface type 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
LAN controller Realtek RTL8125BGS
Wi-Fi No
Specifications
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI
Cables included SATA
Component for PC
Depth 235
DirectX version 12.0
Drivers included Yes
EPS power connector (8-pin) Yes
HDCP Yes
Motherboard chipset AMD B650
Motherboard form factor micro ATX
Number of memory slots 2
Supported processor sockets Socket AM5
Width 221
Windows operating systems supported Windows 10 x64/Windows 11 x64
