Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 5xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MD3HPDDR4
Popular
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 5xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MD3HPDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 5xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MD3HPDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 5xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MD3HPDDR4
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 6xUSB 2.0, 5xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, B760MD3HPDDR4
Reviews:
(0)
    Name:

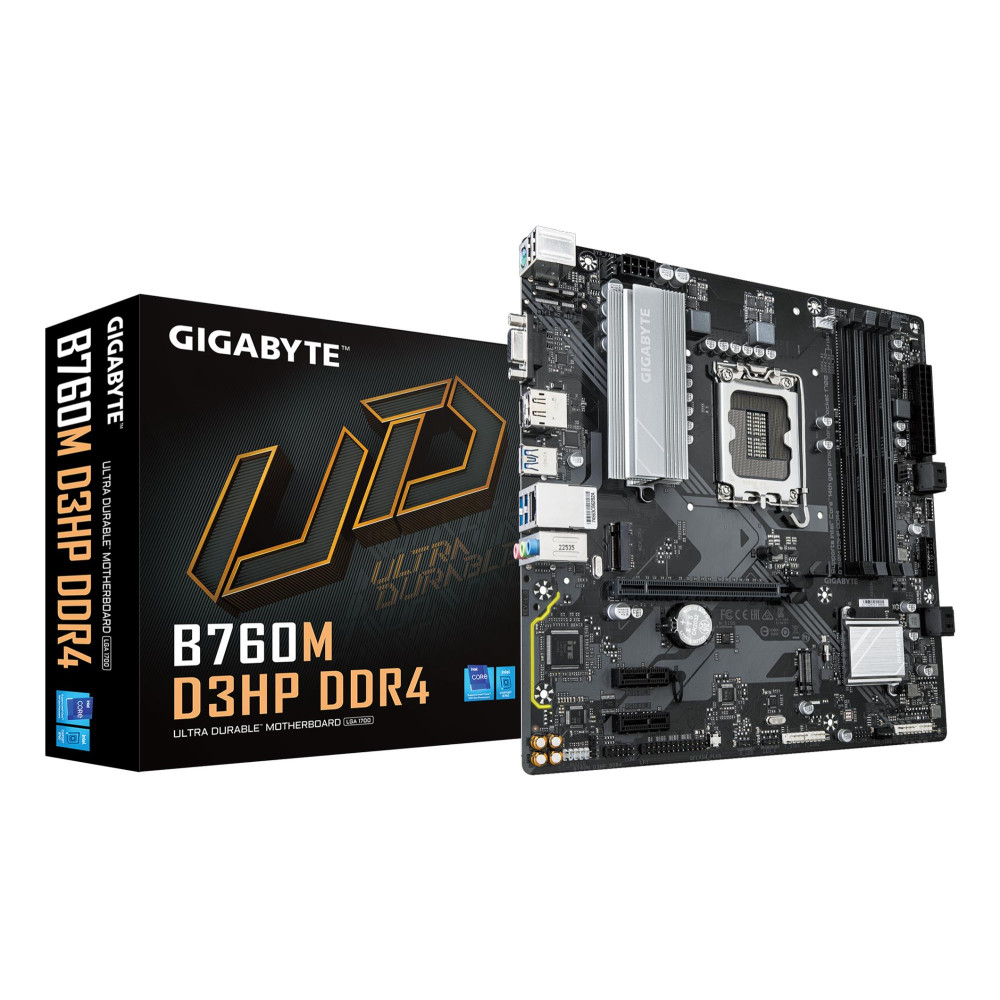

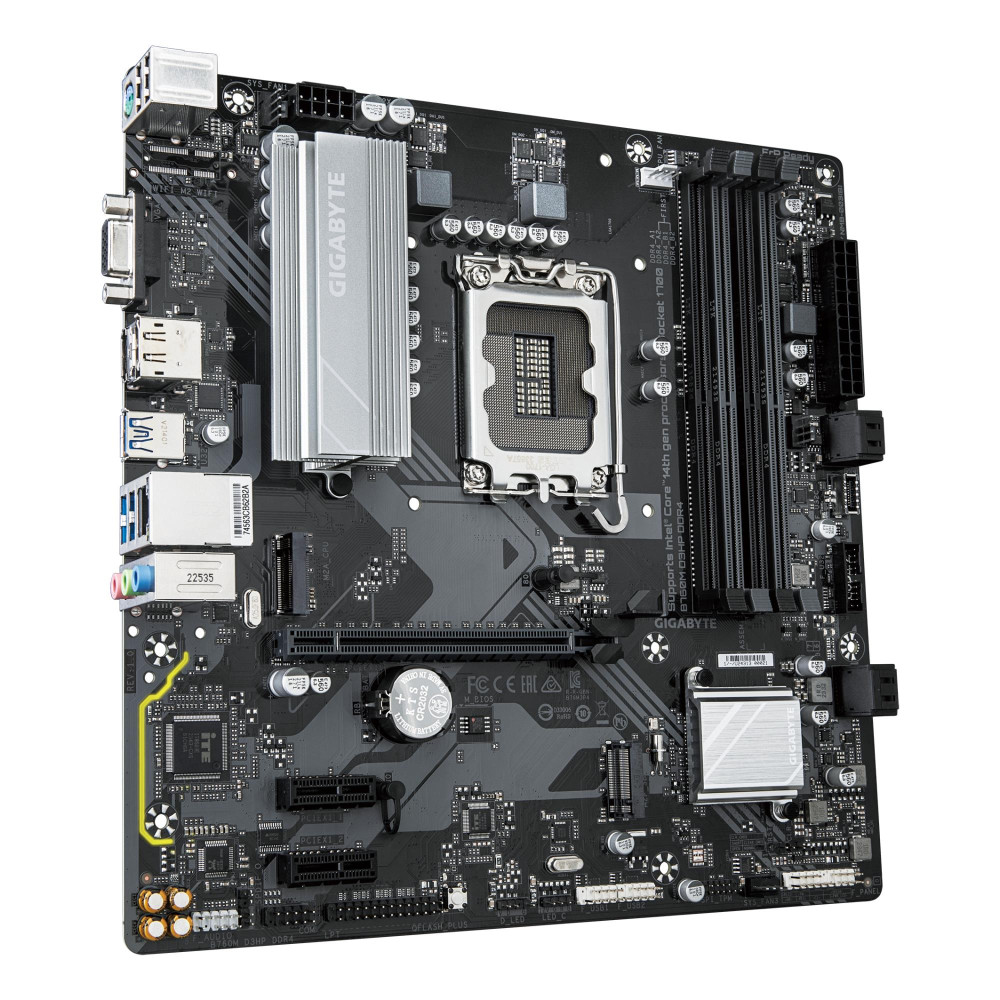

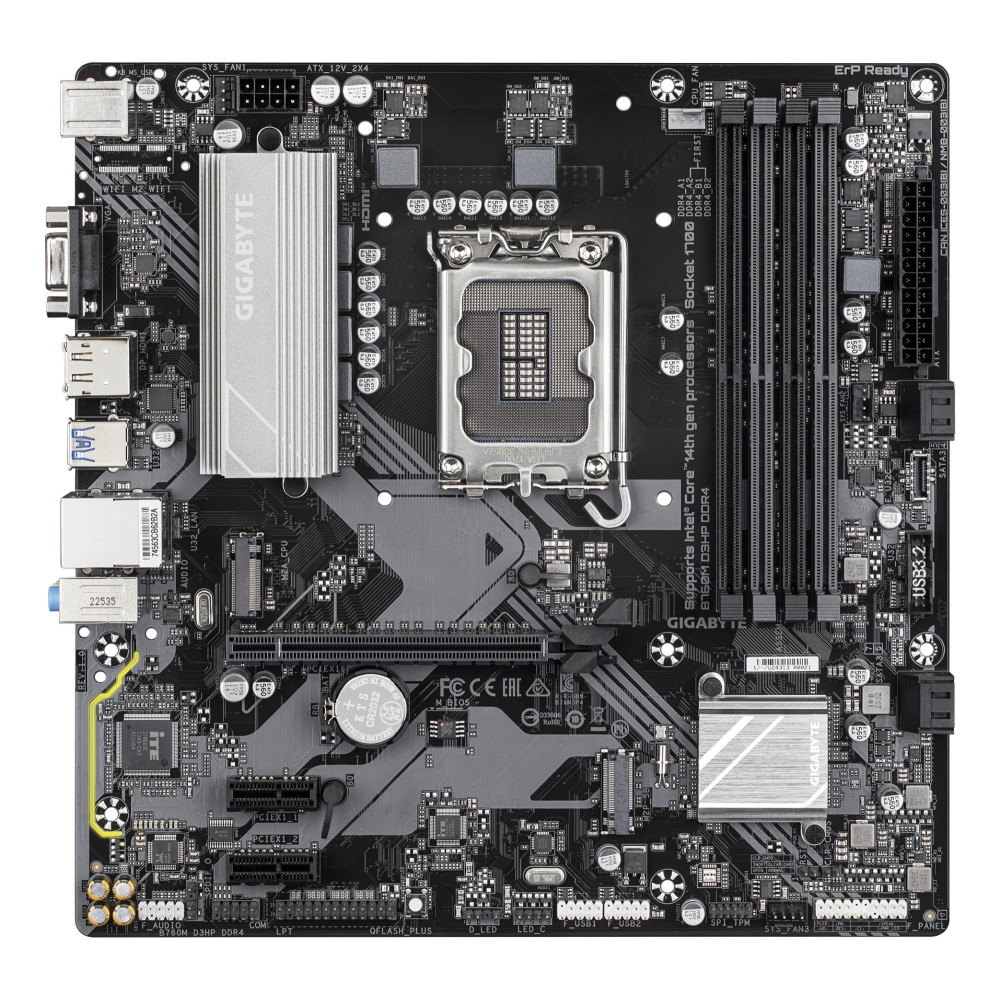

    Gigabyte B760M D3HP DDR4

  • Brand: Gigabyte
  • Product Code: B760M D3HP DDR4
  • EAN: 4719331862848
  • Availability: 30
91.94€
Ex Tax: 75.98€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for Intel CPUs

Specifications
Specifikācija
12V power connector Yes
ACPI version 5.0
Audio connector Yes
BIOS memory size 128
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
Digital audio optical out 3
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Motherboard chipset family Intel
Number of chassis fan connectors 3
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of Parallel ATA connectors 1
Number of SATA III connectors 4
Parallel connector Yes
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x4 slots 1
Power fan connector Yes
Product colour Brown
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Serial port headers 1
Summary GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) 5333
System Management BIOS (SMBIOS) version 2.7
Total number of SATA connectors 4
TPM connector Yes
Unit Calculated Volume 0.004836
Unit Calculated Weight 0.993
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Warranty period 3
Processor parameters
Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Processor manufacturer Intel
Memory parameters
Maximum internal memory 128
Maximum internal memory supported by processor 128
Memory channels Dual-channel
Memory slots type DIMM
Memory type DDR4
Supported memory clock speeds 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Storage parameters
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

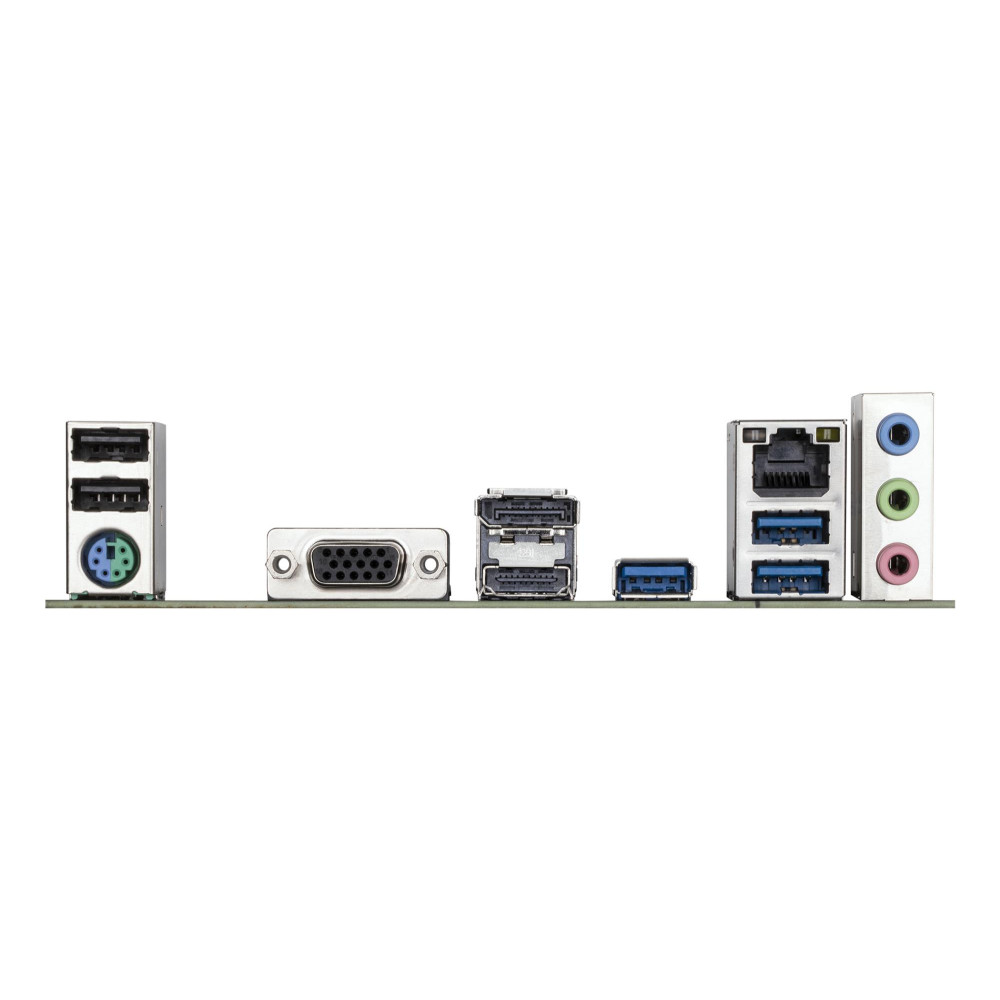

Ports types
DisplayPort version 1.4
DisplayPorts quantity 2
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
VGA (D-Sub) ports quantity 1
Connections types
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi No
Battery parameters
Batteries included Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3
Number of battery cells 1
Specifications
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Bundled software Norton Internet Security
Chipset B760
Component for PC
Country of origin China
Depth 244
DirectX version 12.0
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Height 35
Line-in Yes
Maximum resolution 4096 x 2304
Model B760M D3HP DDR4
Motherboard chipset Intel B760 Express
Motherboard form factor micro ATX
Number of memory slots 4
Package depth 265
Package height 54
Package weight 990
Package width 265
PCI Express x1 slots 1
PCI Express x16 slots 1
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1700
Width 244
Windows operating systems supported Windows 10/Windows 11
