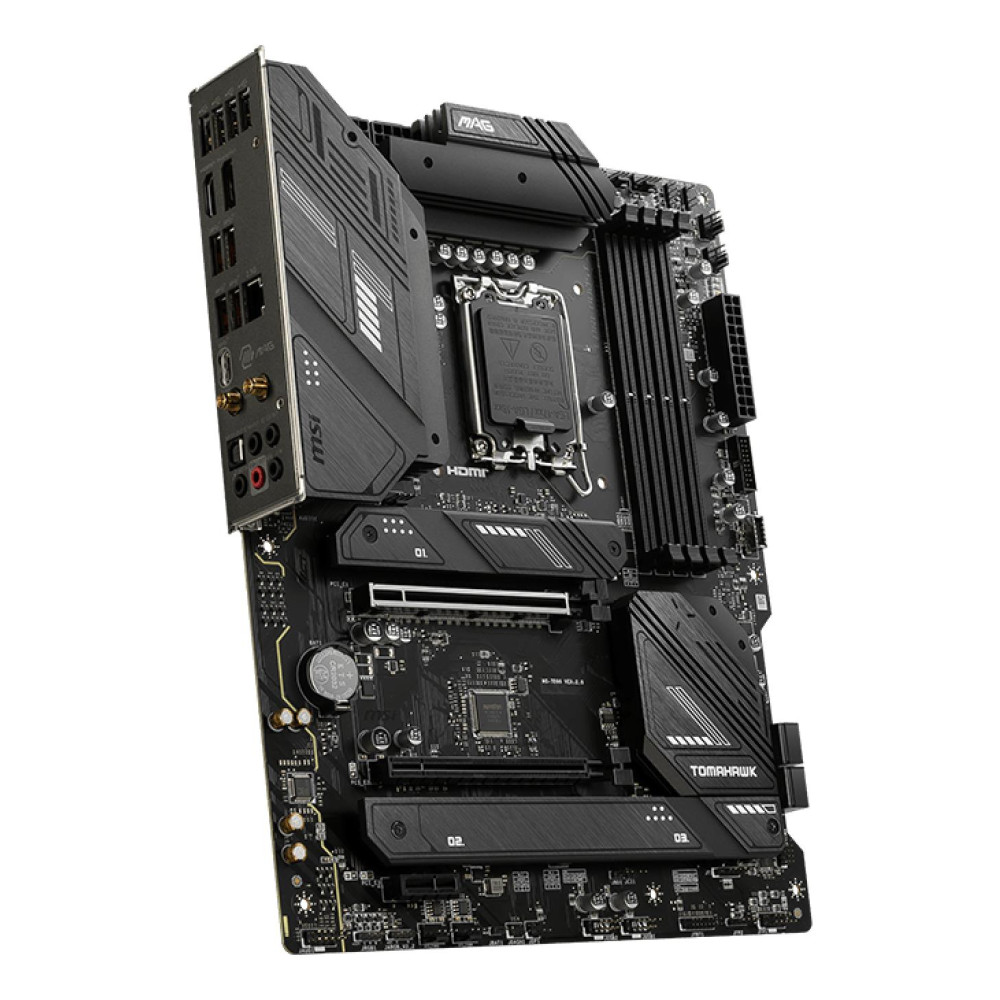

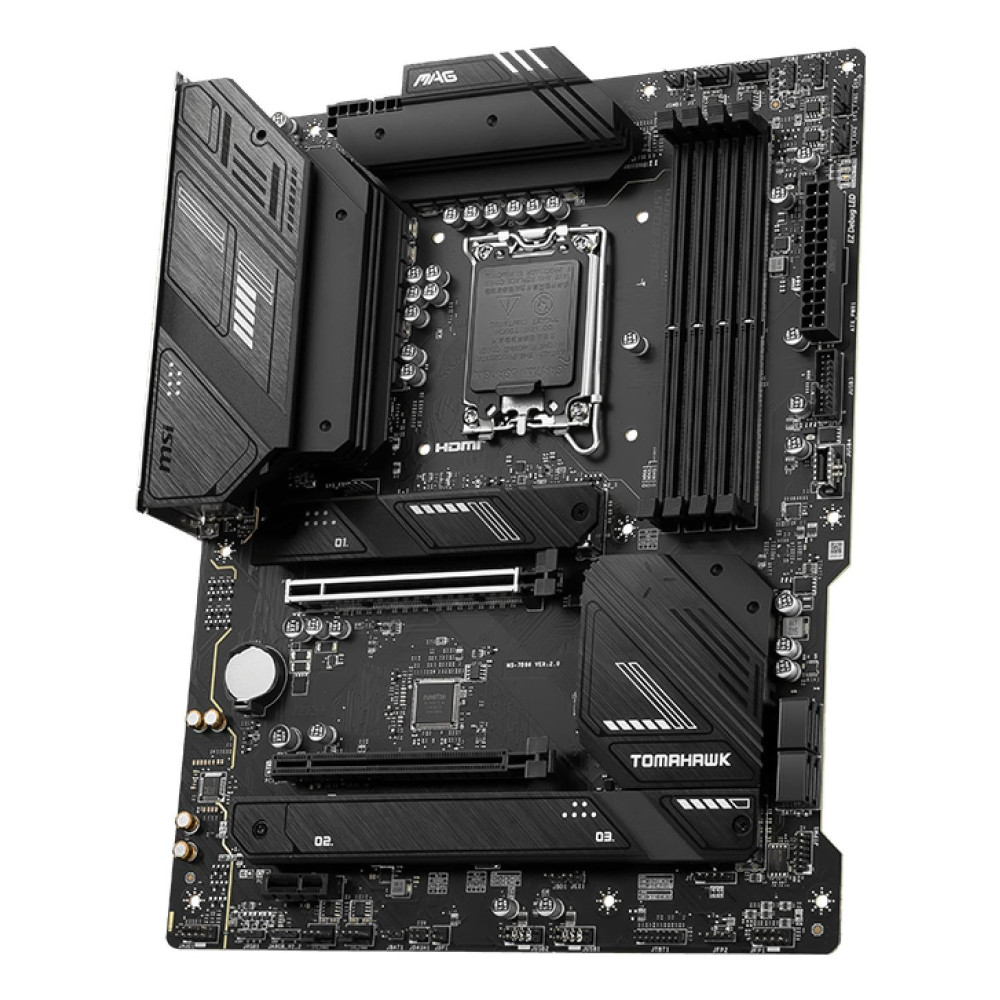

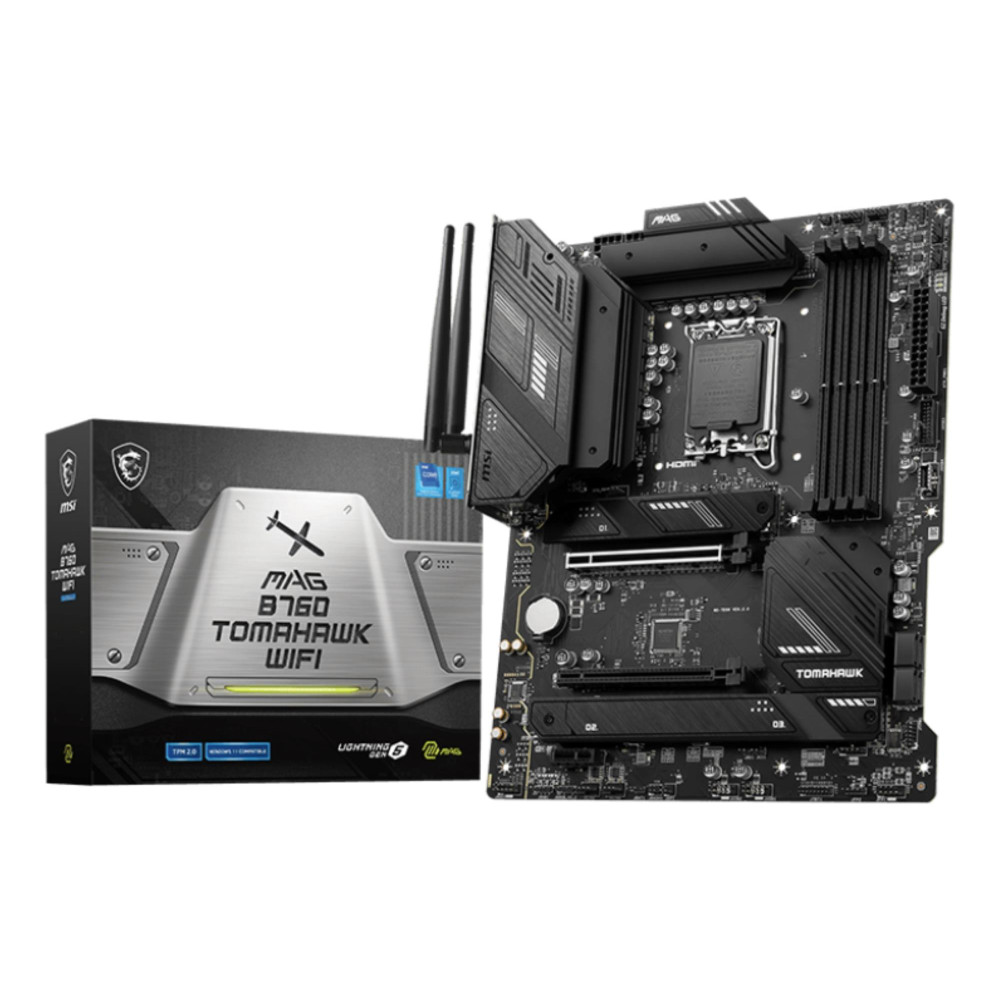

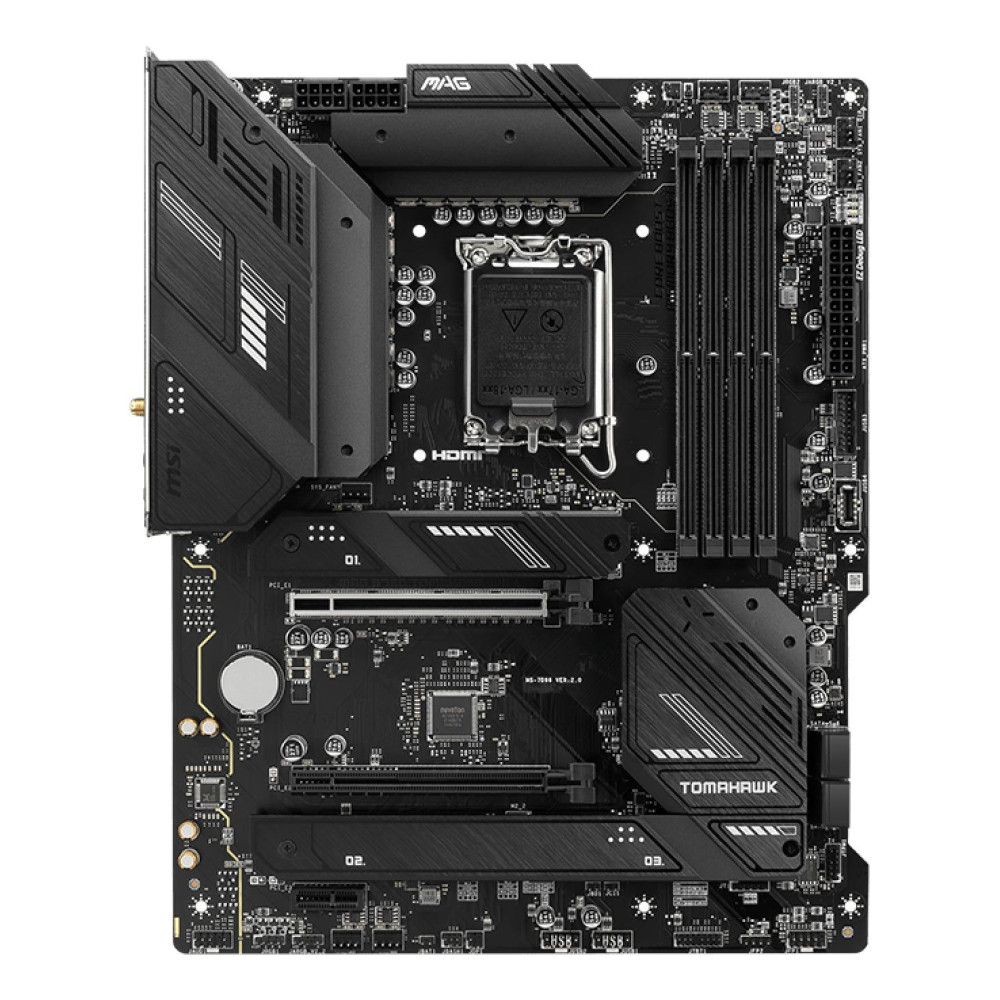

    MSI MAGB760TOMAHAWKWIFI

  • Brand: MSI
  • Product Code: MAGB760TOMAHAWKWIFI
  • EAN: 4711377034210
  • Availability: 30
189.62€
Ex Tax: 156.71€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for Intel CPUs

Specifications
Specifikācija
ACPI version 6.4
Audio chip Realtek ALC897
BIOS memory size 256
CPU fan connector Yes
ECC сompatibility Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Maximum number of SMP processors 1
Motherboard chipset family Intel
Number of M.2 (M) slots 3
Number of SATA III connectors 4
On-board graphics card No
PCI Express x1 (Gen 3.x) slots 1
Product colour Black
RGB LED pin header Yes
S/PDIF out connector Yes
Summary MSI MAG B760 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) 7000
System Management BIOS (SMBIOS) version 3.5
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.0065205
Unit Calculated Weight 1.76
Units per Shipping Box 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2x2 Type-C ports quantity 1
Processor parameters
Compatible processor series Intel® Celeron®/Intel® Pentium® Gold
Processor manufacturer Intel
Memory parameters
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Memory type DDR5
Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000
Supported memory types DDR5-SDRAM
Storage parameters
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III

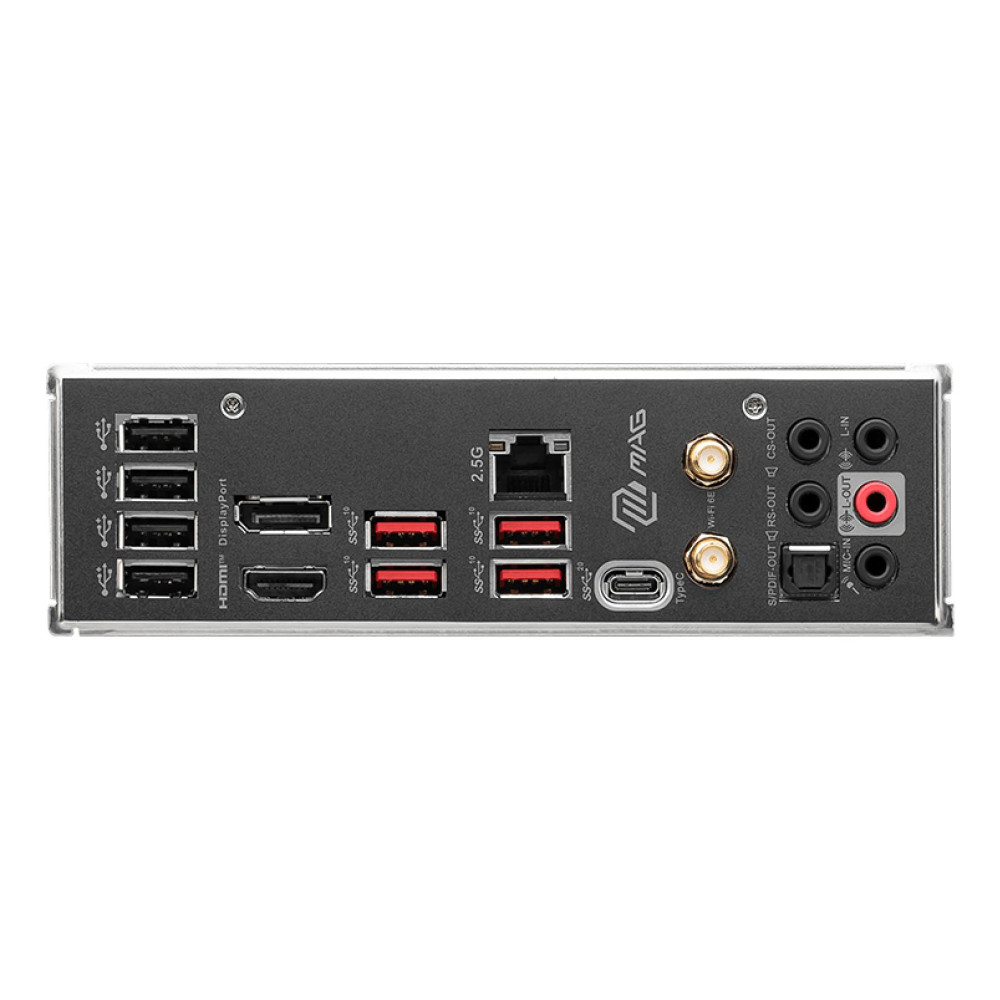

Ports types
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI ports quantity 1
HDMI version 2.1
USB 2.0 connectors 4
USB 2.0 ports quantity 4
Connections types
Bluetooth Yes
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Specifications
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Depth 304.8
Form factor ATX
Model MAG B760 TOMAHAWK WIFI
Motherboard form factor ATX
Number of memory slots 4
PCI Express x16 slots 2
Power source type ATX
Supported processor sockets LGA 1700
Width 243.84
Windows operating systems supported Windows 10/Windows 11
