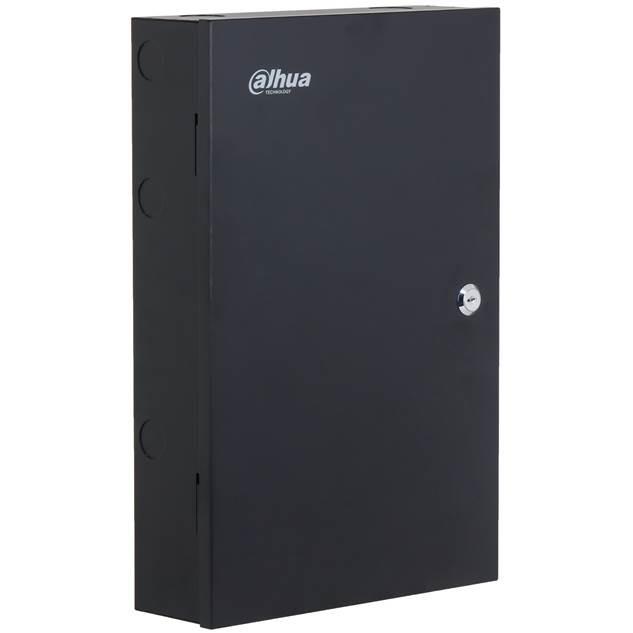

DAHUA ASC4204C-D

• Adopts Linux and comes with a webpage.
  Supports 100,000 users, 100,000 passwords, 100,000 cards, 10,000 fingerprints, and 500,000 access records.
  Supports multiple unlock methods including card, password, fingerprint and QR code. You can also combine them to create your own personal unlock methods.
  Supports RS-485 card reader and Wiegand card reader.
  Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, excessive use of illegal card, mains electricity power failure and undervoltage.
  Supports anti-passback, multi-door interlock, multi-person unlock, first-card unlock and remote verification.
  Supplies power to 4 locks (12 V, 1.2 A or lower) and 8 card readers (12 V, 500 mA or lower) at the same time.
  Supports charging and discharging the battery. The battery is sold separately, but a space was reserved for it that is 157 mm × 127 mm × 75 mm (6.18" × 5.00" × 2.95") (L × W × H).
  Features the fire alarm linkage. The device must be connected to the alarm input port and the corresponding linkage must be configured.
  Fire safety control linkage can be accessed through the independent port.
  Supports TCP/IP connection, auto registration, P2P registration and DHCP.
  Compatible with the platforms of SmartPSS Lite, DSS Pro and DMSS.
