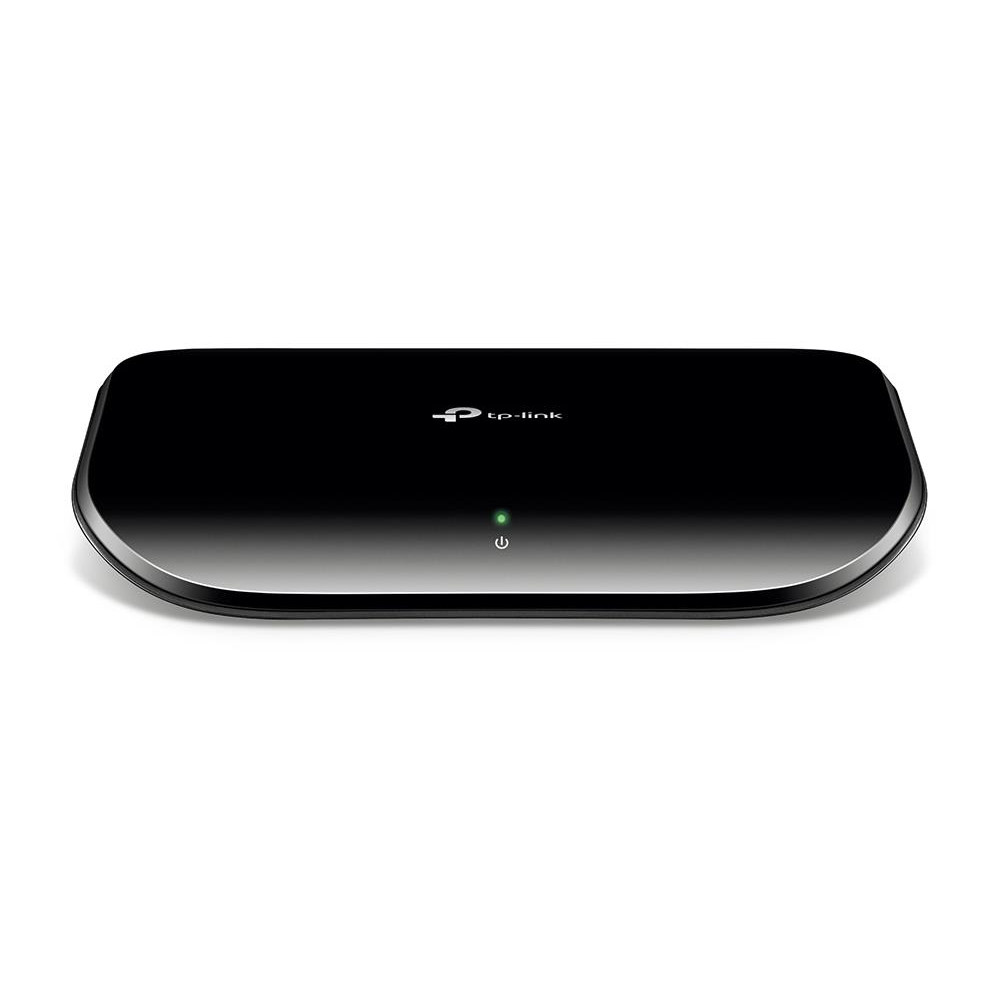

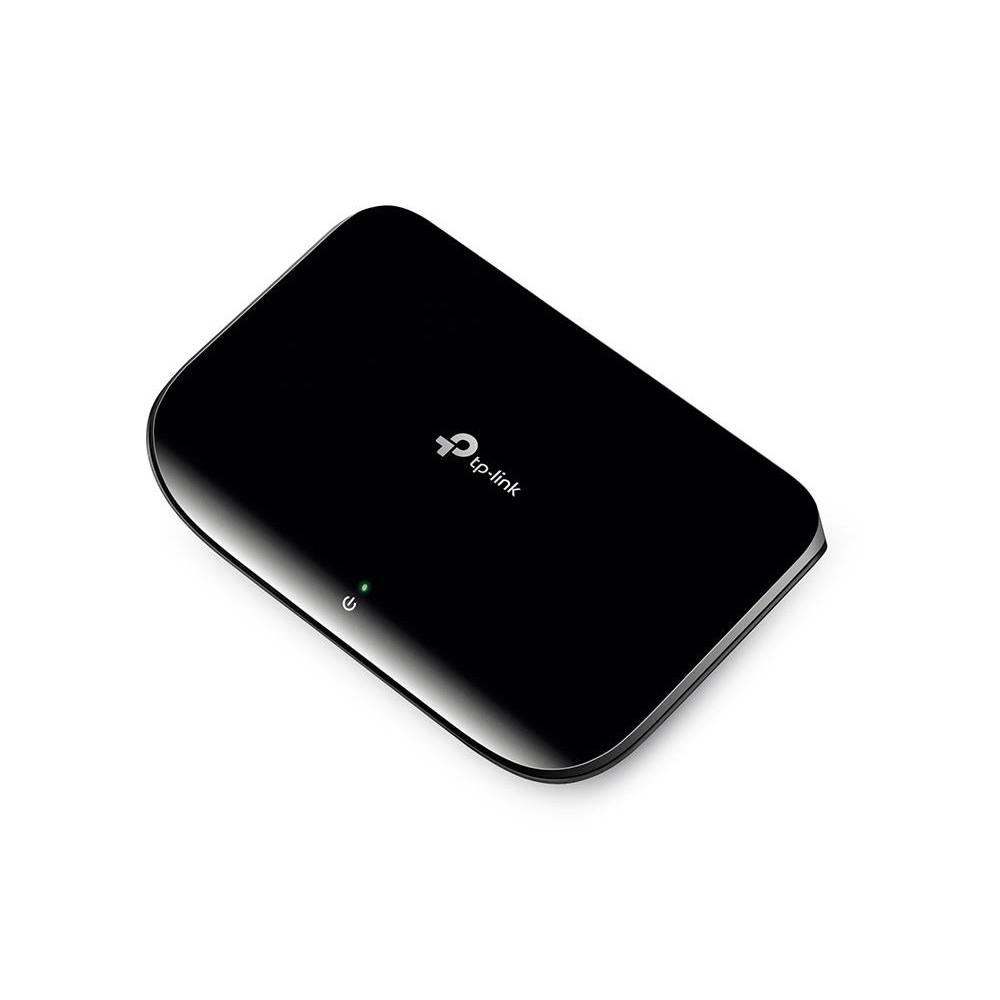

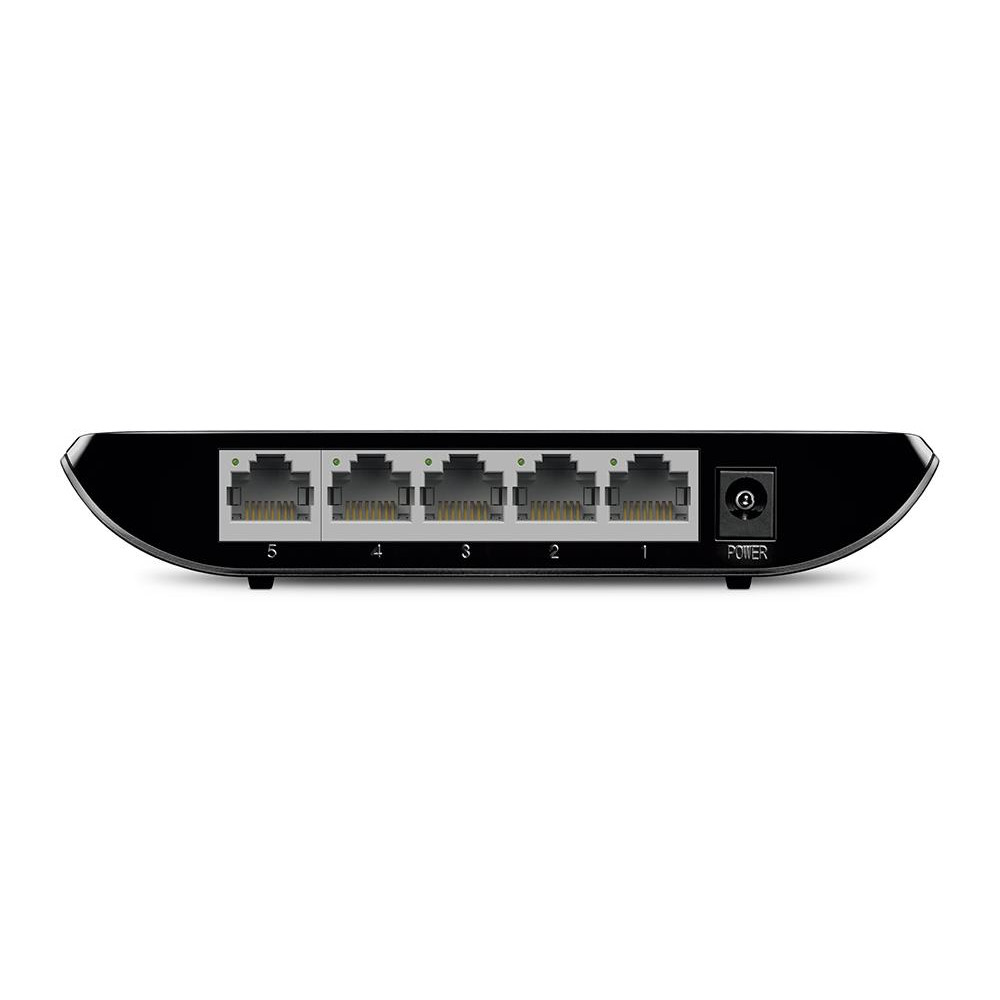

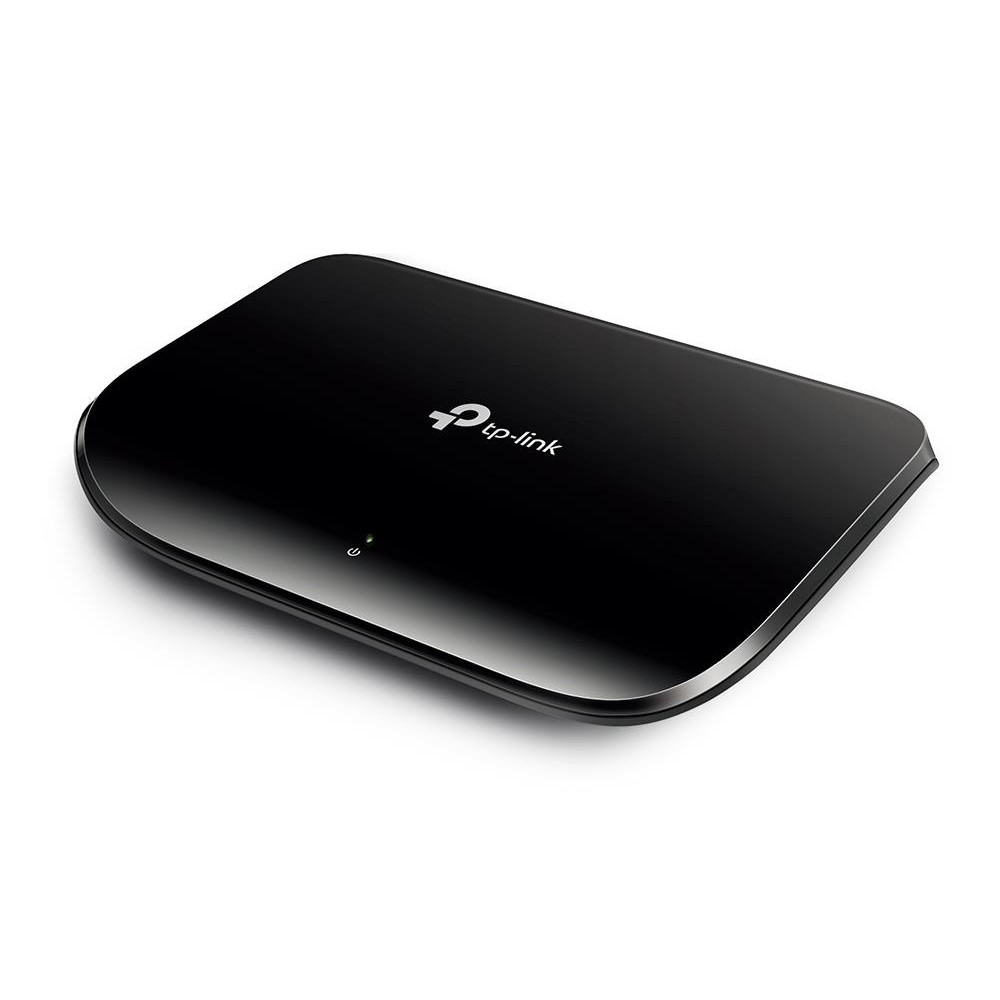

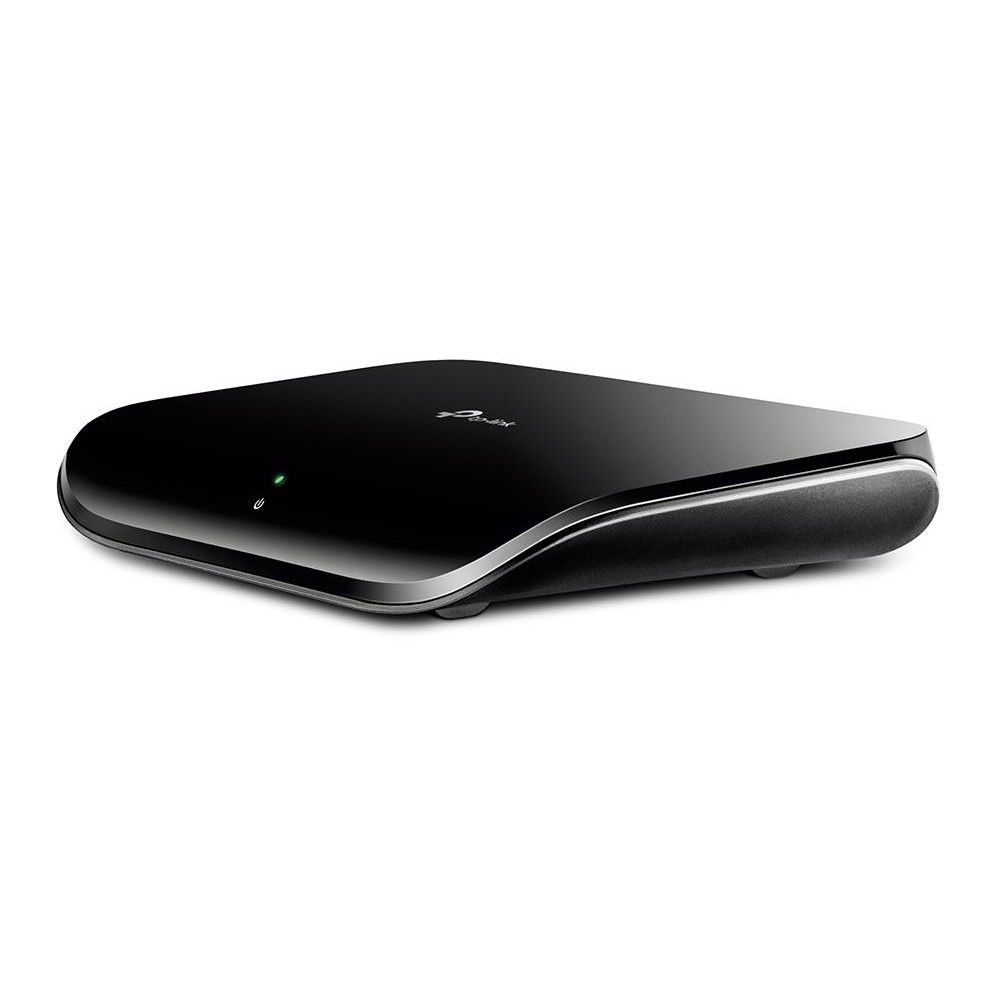

Switch, TP-LINK, 5x10Base-T / 100Base-TX / 1000Base-T, 1, TL-SG1005D

Popular

Reviews:

(0)

Name:

TP-LINK TL-SG1005D

Brand: TP-LINK
Product Code: TL-SG1005D
EAN: 6935364020255
Availability: 100

13.30€

Ex Tax: 10.99€

Product overview
Specification
Reviews (0)

Manufacturer page

Tags: Switches

Specifications

Specifikācija

Half duplex Yes

MAC address auto-aging supported Yes

MAC address auto-learning supported Yes

Product colour Black

Store-and-forward Yes

Summary TP-Link TL-SG1005D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Unit Calculated Volume 0.001604

Unit Calculated Weight 0.277

Units per Shipping Box 40

Connections types

Basic switching RJ-45 Ethernet ports quantity 5

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Specifications

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Depth 108

Flow control support Yes

Full duplex Yes

Gigabit Ethernet (copper) ports quantity 5

Heat dissipation 8.22

Height 28

Input current 0.6

Input voltage 9

Jumbo frames 15000

Jumbo frames support Yes

LED indicators Yes

MAC address table 8000

Maximum data transfer rate 1

Model TL-SG1005D

Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40

Package depth 108

Package height 85

Package weight 240

Package width 145

Power connector DC-in jack

Power consumption (max) 2.41

Power over Ethernet (PoE) No

Power source DC

Quick start guide Yes

Rack mounting No

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Supported data transfer rates 10/100/1000 Mbit/s

Switch type Unmanaged

Switching capacity 10

Width 165
