UPS, EATON, 1350 Watts, 1550 VA, LineInteractive, Phase 1phase, 5P1550IRNG2

Popular

Last thing

UPS, EATON, 1350 Watts, 1550 VA, LineInteractive, Phase 1phase, 5P1550IRNG2

Reviews:

(0)

Name:

EATON 5P1550IRNG2

Brand: EATON
Product Code: 5P1550IRNG2
EAN: 3553340710414
Availability: 2

1 503.76€

Ex Tax: 1 242.78€

Product overview
Specification
Reviews (0)

Specifications

Specification

Noise level 35

Specifikācija

Compliance certificates Low Voltage Directive (LVD)/RoHS

Hot-swap battery Yes

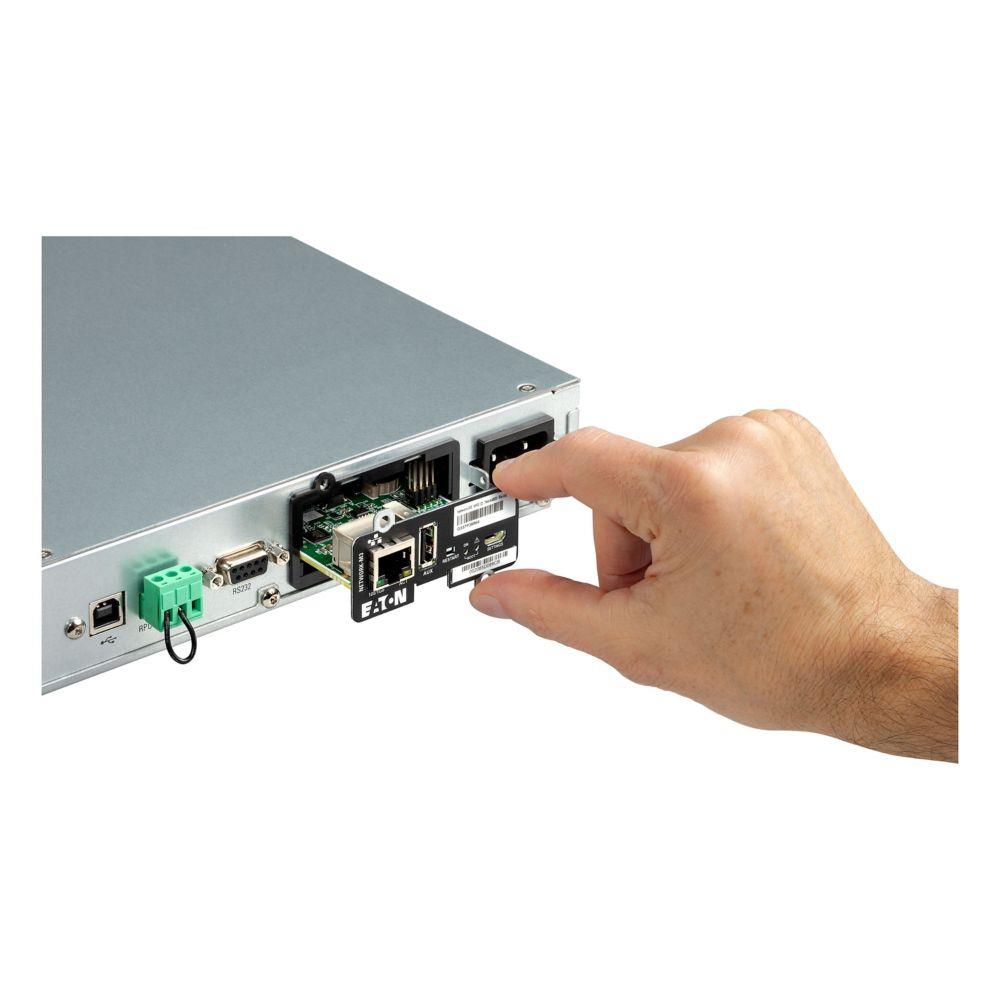

Network card slot Yes

Number of input phases 1

Number of output phases 1

Product colour Black,Silver

Rack capacity 1U

Rack mount kit Yes

Serial interface Yes

Summary Eaton 5P1550IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.55 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Unit Calculated Volume 0.0778

Unit Calculated Weight 24

Units per Shipping Box 1

USB port type USB Type-B

Waste Electrical and Electronic Equipment (WEEE) compliance Yes

Display parameters

Display type LCD

Ports types

USB port Yes

Battery parameters

Battery capacity 9

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 6

Number of battery cells 6

Specifications

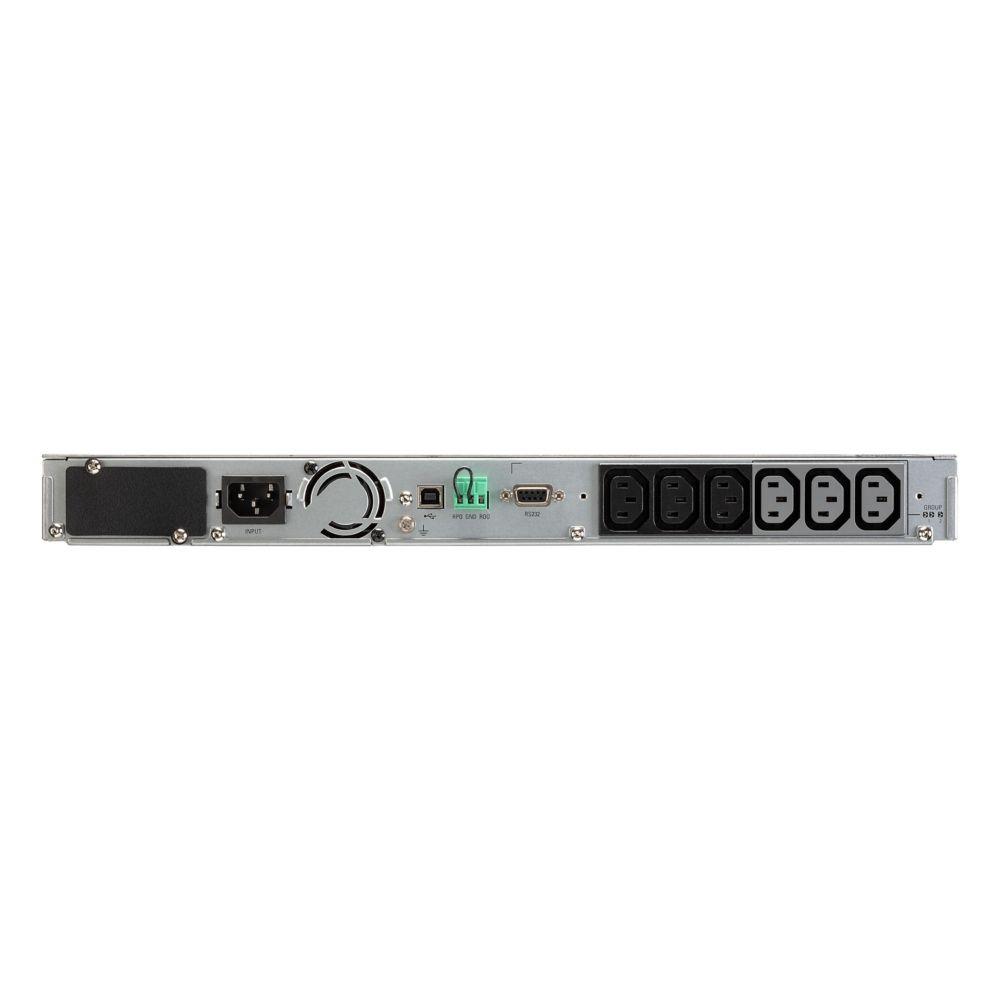

AC outlet types C13 coupler

AC outlets quantity 6

Automatic Voltage Regulation (AVR) Yes

Cables included USB cable

Certification EMCIEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS

Depth 555

Efficiency 98.2

Form factor Rackmount

Heat dissipation 654

Height 43.2

Input frequency 47/70

Input operation voltage (max) 294

Input operation voltage (min) 150

LED indicators Yes

Model 5P1550IRNG2

Operating altitude 0 - 3000

Operating relative humidity (H-H) 0 - 90

Operating temperature (T-T) 0 - 40

Output frequency 50/60

Output operation voltage (max) 240

Output operation voltage (min) 200

Output power 1350

Output power capacity 1.55

Power factor 0.9

Power plug C14 coupler

Quick installation guide Yes

Serial interface type RS-232

Serial ports quantity 1

Typical backup time at half load 13.5

UPS topology Line-Interactive

Waveform Sine

Weight 18780

Width 438
