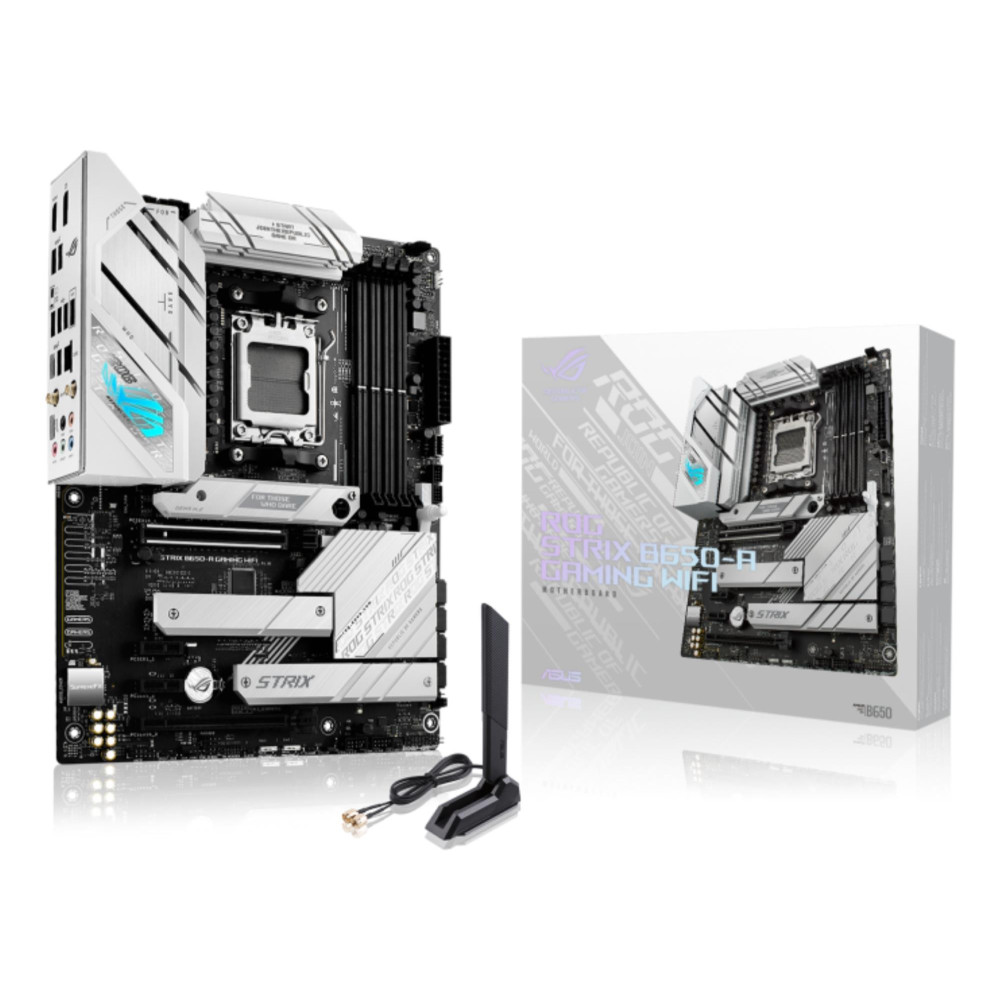

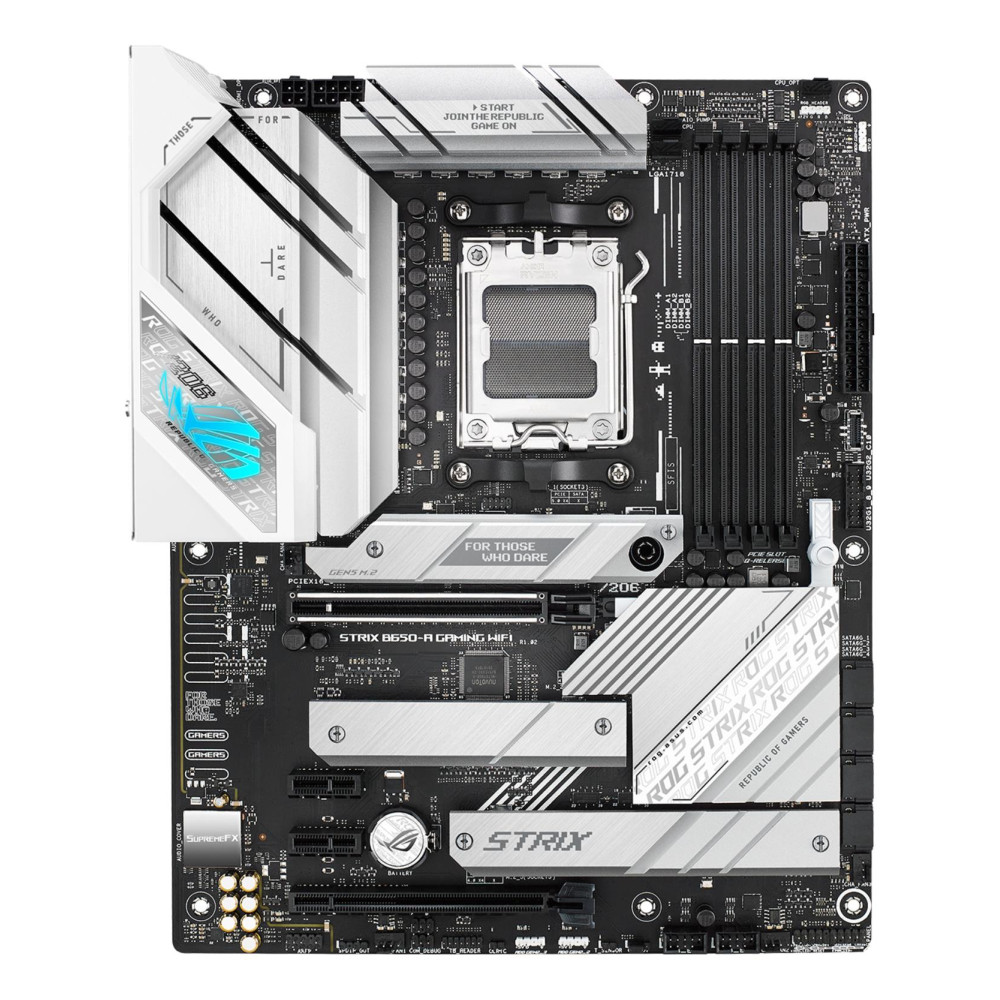

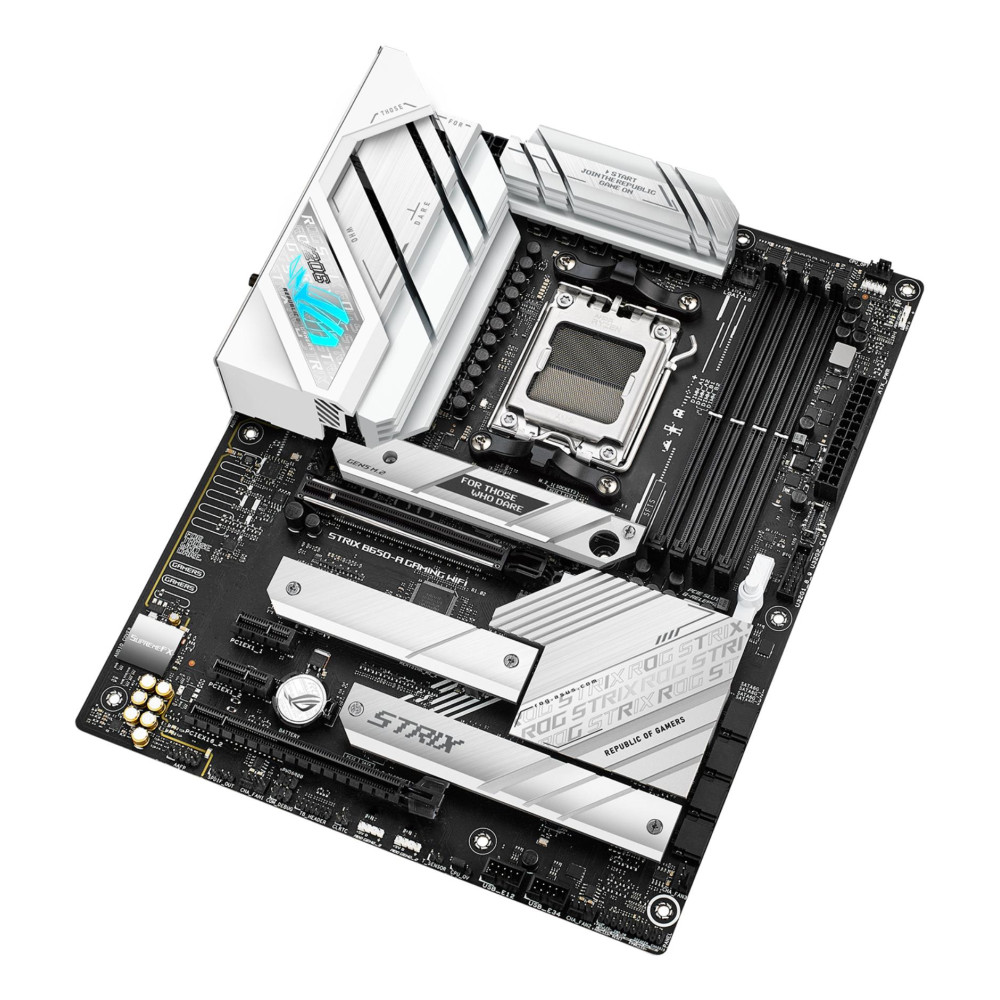

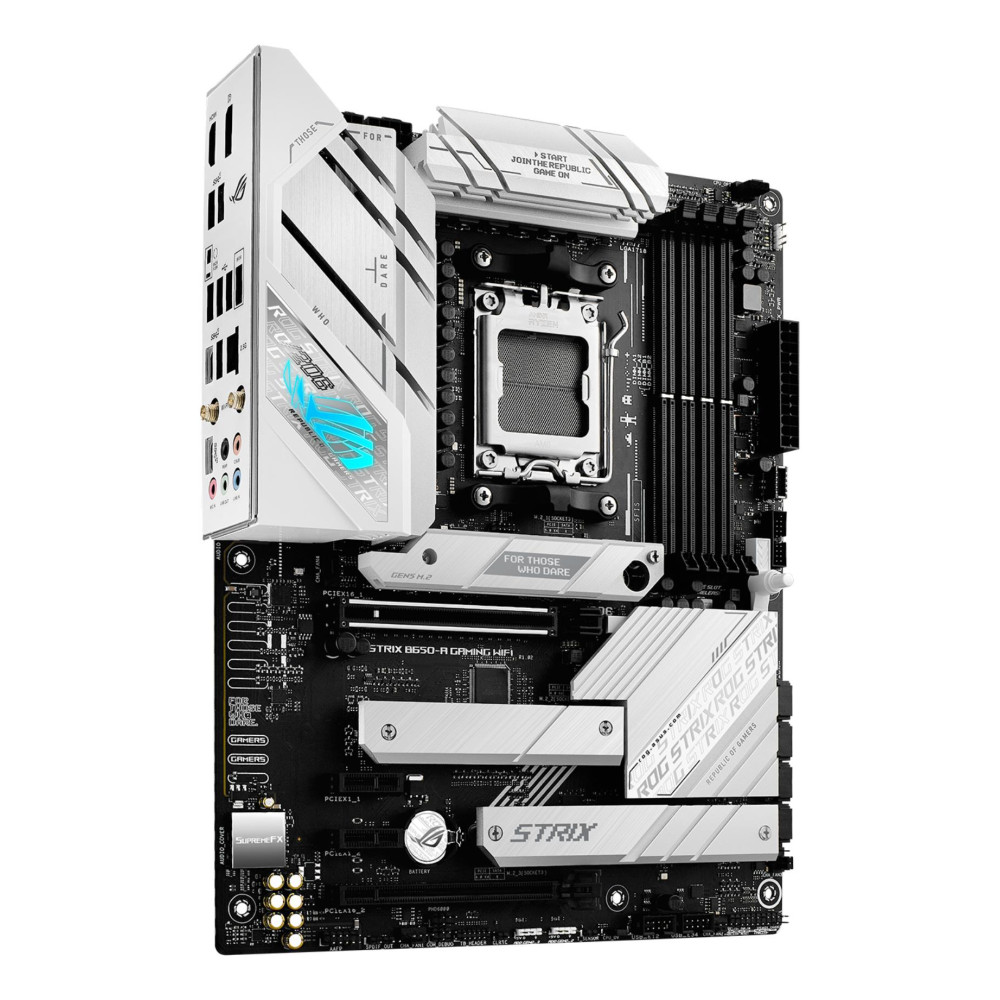

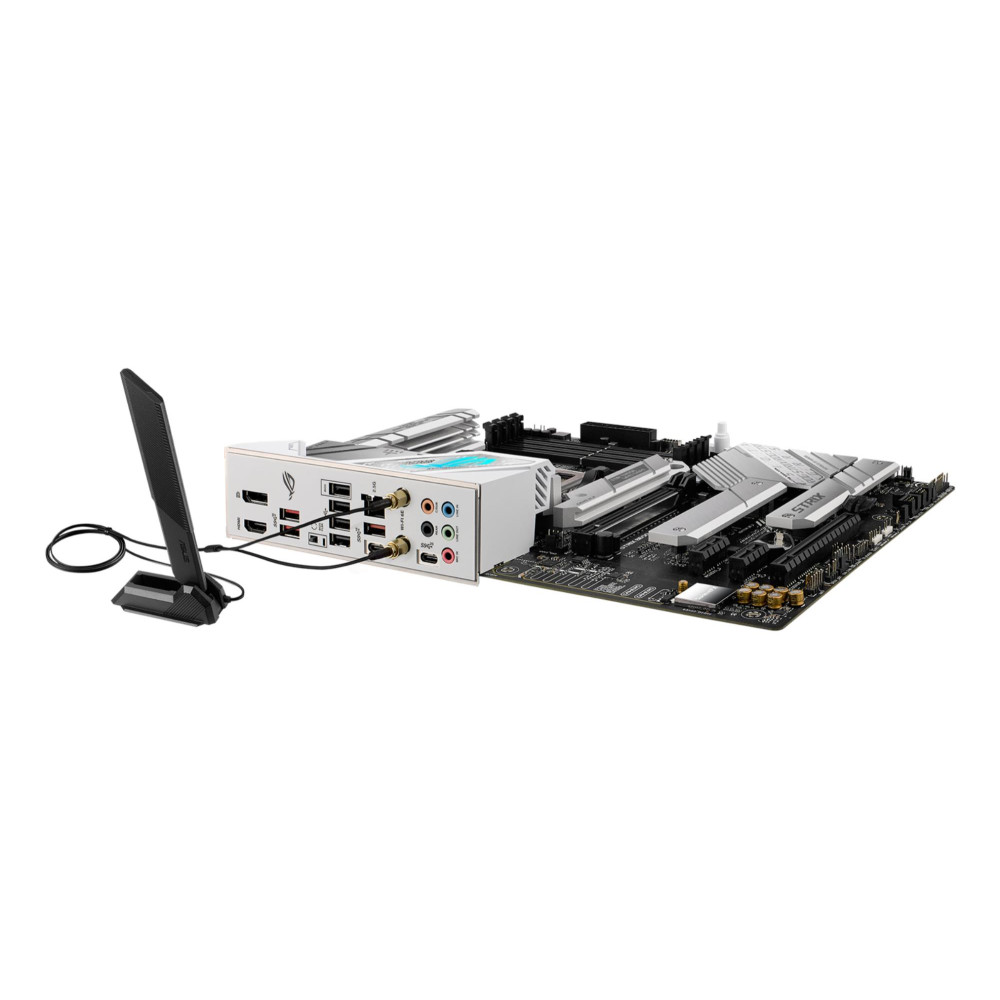

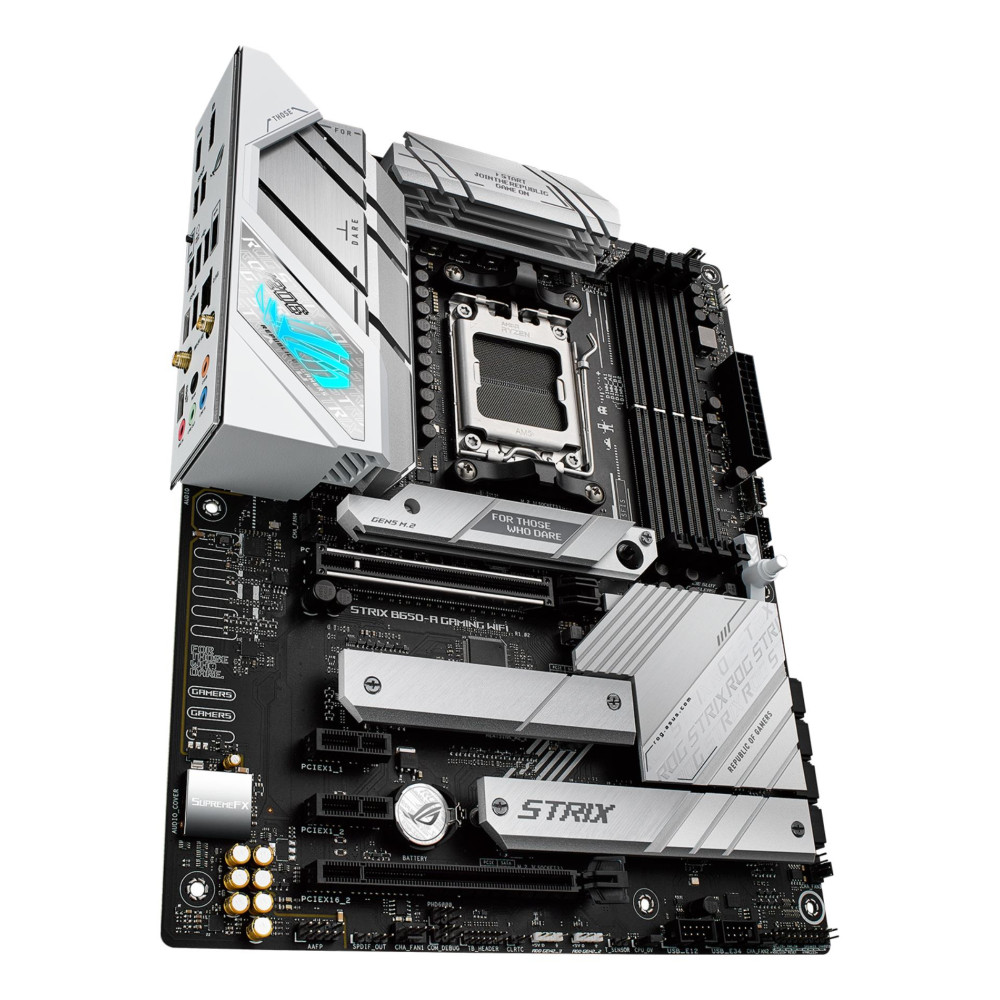

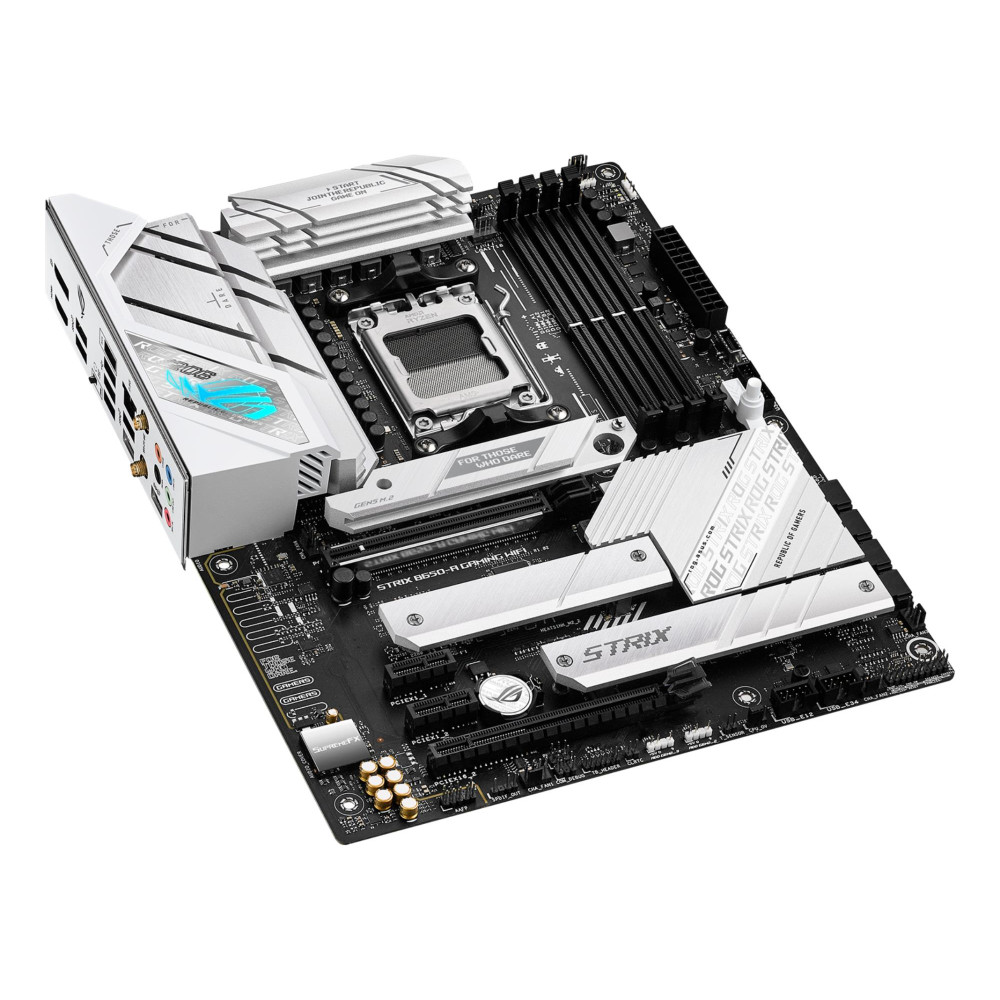

Mainboard, ASUS, AMD B650, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 3xUSB 3.2, 2xUSB-C, 1xRJ45, 5xAudio port, ROGSTRIXB650-AGAMWIFI
Populārs
Pēdējais
- Ražotājs: Asus
- Modelis: ROGSTRIXB650-AGAMWIFI
- EAN: 4711081917762
- Pieejamība: 1
Nosaukums:
Asus ROGSTRIXB650-AGAMWIFI
228,21€
Bez PVN: 188,60€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
- Līdzīgi produkti
Specifikācijas
Specifikācija
12V power connector
Y
Audio chip
Realtek ALC4080
BIOS memory size
256
Chassis intrusion connector
Y
Clear CMOS button
Y
CPU fan connector
Y
ECC ?ompatibility
ECC & non-ECC
Front panel audio connector
Y
Motherboard chipset family
AMD
Number of chassis fan connectors
4
Number of COM connectors
1
Number of M.2 (M) slots
3
Number of SATA III connectors
4
On-board graphics card
N
Parallel processing technology support
Not supported
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
Black/Silver
RGB LED pin header
Y
S/PDIF out connector
Y
Summary
ASUS ROG STRIX B650-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Thunderbolt headers
1
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Unit Calculated Volume
0.006545
Unit Calculated Weight
2.12
Units per Shipping Box
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Procesors
Compatible processor series
AMD Ryzen 7
Procesoru ligzda
AM5
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4800/5000/5200/5400/5600/5800/6000/6200/6400
Supported memory types
DDR5-SDRAM
Unbuffered memory
Y
Atmiņas ierīce
RAID levels
0/1/10
RAID support
Y
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD

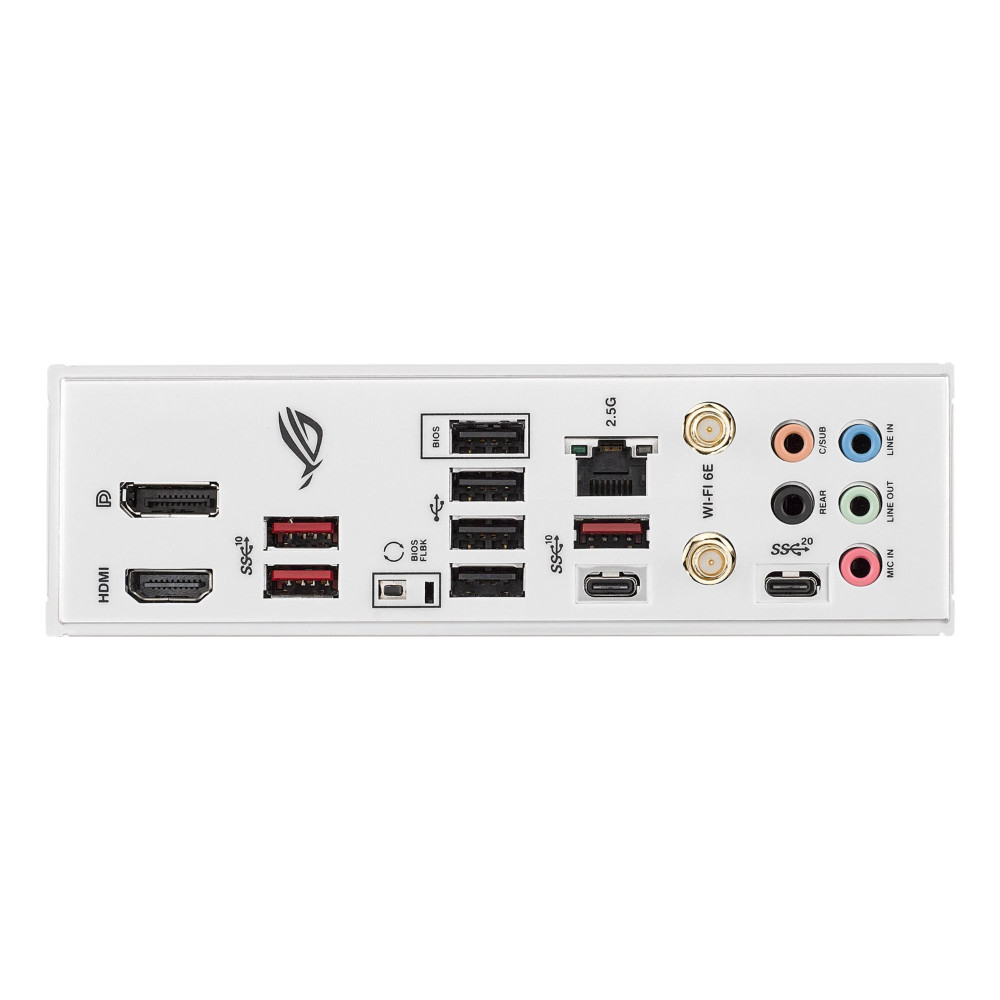

Porti
DisplayPorts quantity
1
HDMI portu daudzums
1
Headphone outputs
3
Microphone in
Y
USB 2.0 connectors
4
USB 2.0 ports quantity
4
Pieslēgumi
Bluetooth
Y
Bluetooth versija
5.2
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Y
Ethernet LAN (RJ-45) porti
1
LAN controller
Intel I225-V
Wi-Fi
Y
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Specifikācijas
ATX Power connector (24-pin)
Y
Audio output channels
7.1
BIOS Type
UEFI AMI
Component for
PC
Dziļums
244
EPS power connector (8-pin)
Y
Form factor
ATX
Komplektā kabeļi
SATA
Line-in
Y
Mikroshēmu komplekts
B650
Model
ROG STRIX B650-A GAMING WIFI
Motherboard chipset
AMD B650
Motherboard form factor
ATX
Number of memory slots
4
Package depth
265
Package height
71
Package weight
8997
Package width
280
Peripheral (Molex) power connectors (4-pin)
1
Platums
305
Supported processor sockets
Socket AM5
Windows operating systems supported
Windows 11 x64
